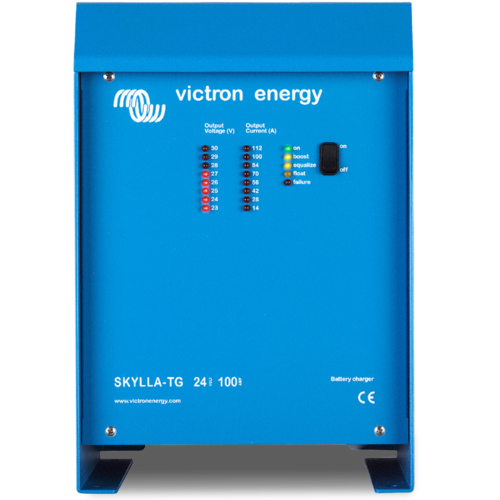

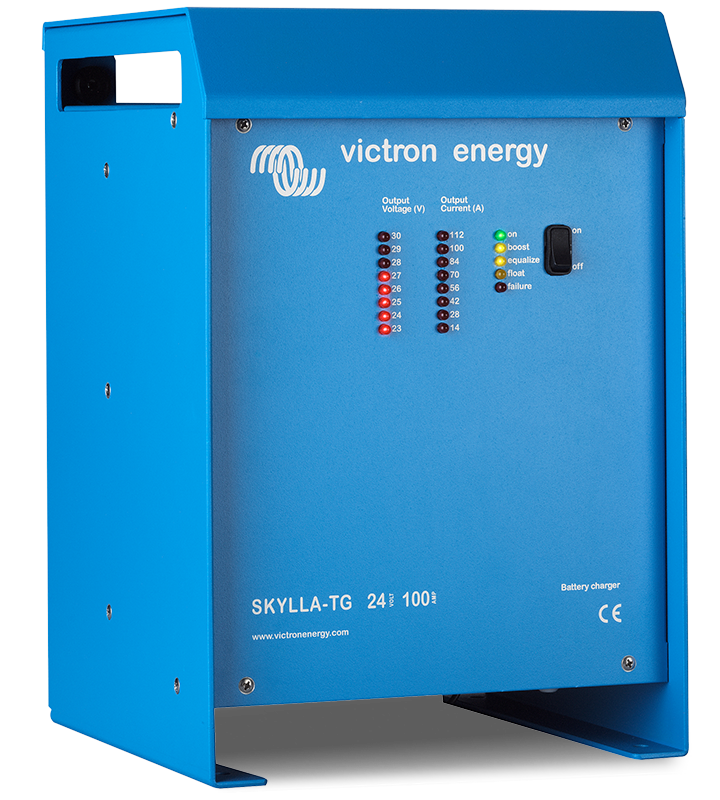

Victron Skylla-TG 24/100 (1+1) 120-240V

Description

Victron Skylla-TG 24/100 (1+1) 120-240V

One full rated output and one 4 Amp output. Charge voltage can be precisely adjusted to suit any battery system. The input for the charger is 230V at 50/60HZ. Charge voltage can be measured directly on the battery terminals in order to compensate for voltage loss due to cable resistance. An external sensor allows measuring battery temperature and compensating charge voltage accordingly.

Specifications:

• Input Voltage (V AC) 230
• Input Voltage Range (V AC) 90-265
• Input Voltage Range (V DC) 90-400
• Frequency (Hz) 45-65 Hz or DC
• Power Factor 1
• Charge Voltage 'Absorption' (V DC) 28.5
• Charge Voltage 'Float" (V DC) 26.5
• Charge Current House Batt. 100
• Charge Current Starter Batt. 4
• Charge Characteristics IUoUo (three step)
• Battery Capacity (Ah) 500-100
• Temperature Sensor Yes
• Can be used as a power supply Yes
• Remote Alarm Potential free contacts 60V / 1A (1x NO and 1x NC)
• Forced Cooling Yes
• Protection a, b, c, d
• Operating Temperature Range -40 to +50°C (-40 - 122°F) Full output current up to 40°C
• Humidity (Non-condensing) max 95%
• Material & Colour aluminium (blue RAL 5012)
• Battery-Connection M8 studs
• 230 VAC-Connection screw-clamp 2,5 mm² (AWG 6)
• Protecttion Category IP 21
• Weight kg 10
• Dimensions 365 x 250 x 257 mm
• Vibration 0,7g (IEC 60945)
• Safety EN 60335-1, EN 60335-2-29, IEC 60945
• Emission EN 60335-1, EN 60335-2-29, IEC 60945
• Immunity EN 55014-2, EN 61000-3-3, IEC 60945

Features:

Universal 90-265 V AC input voltage range and also suitable for DC supply - All models will operate without any adjustment needed over a 90 to 265 Volt input voltage range, whether 50 Hz or 60 Hz. The chargers will also accept a 90-400 V DC supply.

Germanischer Lloyd approval - The Chargers have been approved by Germanischer Lloyd (GL) to environmental category C, EMC 1. Category C applies to equipment protected from the weather. EMC 1 applies to conducted and radiated emission limits for equipment installed on the bridge of a ship.

The approval to GL C, EMC1 implies that the Chargers also complies to IEC 60945-2002, category ‘protected’ and ‘equipment installed on the bridge of a ship'. The GL certification applies to 185-265 V AC supply.

Other Features:

• Microprocessor control
• Can be used as power supply
• Battery temperature sensor for temperature compensated charging
• Battery voltage sensing to compensate for voltage loss due to cable resistance
