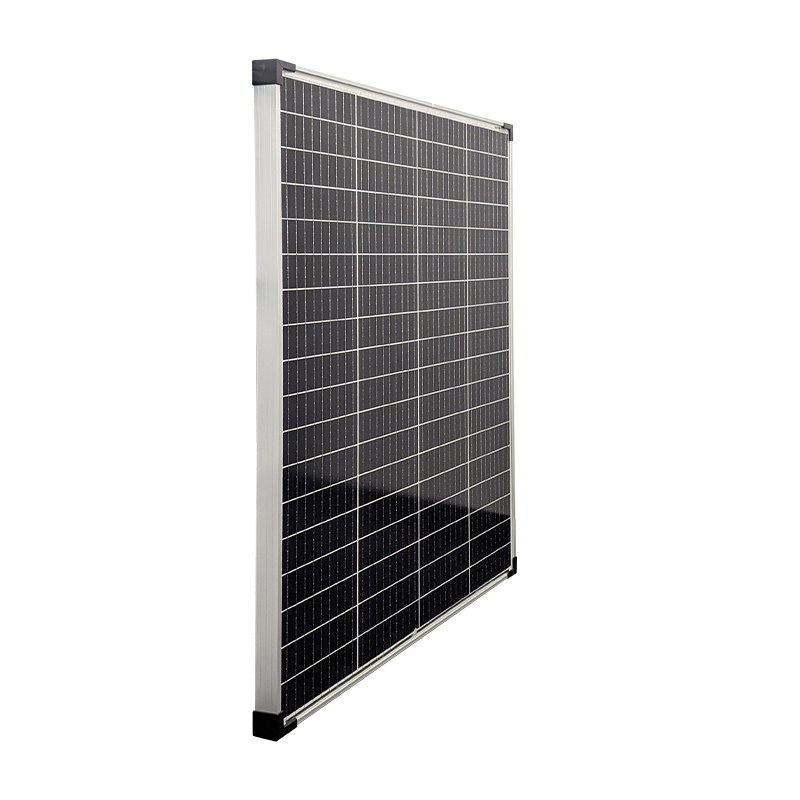

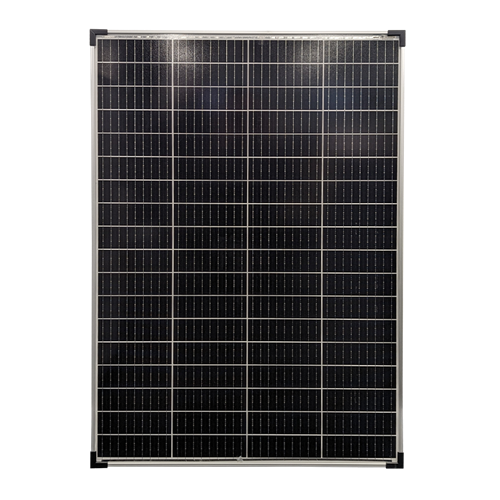

Sphere 130W Mono Crystalline Twin Cell Fixed Solar Panel

Description

Sphere 130W Mono Crystalline Twin Cell Fixed Solar Panel

Researched and developed in Australia, Sphere Twin Cell Technology is an innovative solution to the common issue of partial shading that affects caravan and RV solar power applications. Partial shading caused by rooftop-mounted accessories such as air conditioners, roof vents, and satellites can result in severe bottlenecks for conventional solar panels. When even a small section of a traditional panel is covered by shade, a blockage is created that drastically reduces overall output.

Sphere Twin Cell Technology helps reduce the impact of partial shading by allowing a single large solar panel to operate as if it were two smaller panels with isolated circuit paths. This unique parallel design allows each side of the panel to function independently from the other. When one half of a panel is covered by shade, the other will still perform at full capacity. Where partial shading will have already stopped traditional mono-crystalline panels from providing vital power, Sphere Solar Panels with Twin Cell Technology will keep on charging.

Sphere Twin Cell 100W and 130W panels feature improved cell efficiency, enabling enhanced performance while occupying a smaller footprint. This advancement not only optimizes power generation but also provides more versatile mounting options for installations in various configurations. The panels are complemented by by-passed diodes, which enhance reliability and further mitigate power drops caused by shade.



Features:

• Sphere Twin Cell Solar Technology for improved performance in partial shade.
• Improved cell efficiency in a smaller footprint for more versatile mounting options.
• By-passed diodes to improve reliability and further minimize power drops caused by shade.
• An anodized aluminium frame to withstand rust with pre-drilled mounting holes for a versatile range of applications.
• Antireflective, high transparency tempered glass for durability
• IP65-rated junction box provides complete protection against dust and water.

Specifications:

• Peak Power Output (W): 130W
• Power Output Tolerance（％）: 3%

Electricity Performance:

• Maximum Power Voltage (V): 20.9
• Maximum Power Current (A): 6.22
• Short Circuit Current（A):  6.56
• Open Circuit Voltage(V): 24.7
• Maximum System Voltage: 1000V/DC
• Junction Box Type: 0.9 m 4mm 2 solar cable fitted with MC 4 IP65

Mechanical Performance:

• Number of Cells: 4x18 72pcs
• Module Size (mm): 670mm x 1012mm x 35mm x 30mm x 1.2
• Module Net Weight: 8.15kg

Temperature Coefficient:

• Working Temperature: ﹣40～85℃
• Power TK: ﹣0.45%/℃
• Open Circuit Voltage T: ﹣0.33%/℃
• Short Circuit Current T: 0.045%/℃
