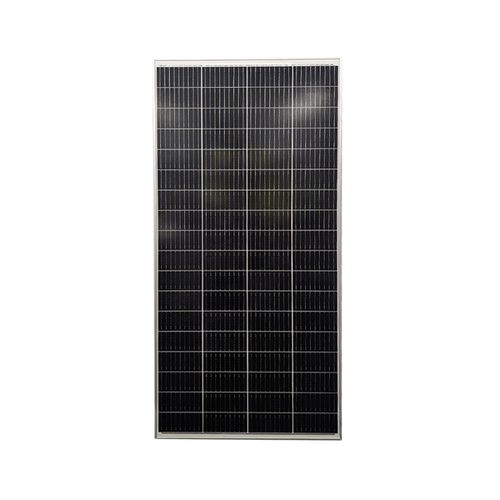

Sphere 200w Mono Crystalline Solar Panel with Twin Cell Technology 670x1480x35mm
SKU: 500-06250 Learn More»
Description
Sphere 200w Mono Crystalline Solar Panel with Twin Cell Technology 670x1480x35mm
Partial shading caused by rooftop-mounted accessories such as air conditioners, roof vents and satellites can result in severe bottlenecks for conventional solar panels. When even a small section of a traditional panel is covered by shade, a blockage is created that drastically reduces overall output.
Sphere Twin Cell Technology helps reduce the impact of partial shading by allowing a single large solar panel to operate as if it were two smaller panels with isolated circuit paths. This unique parallel design allows each side of the panel to function independently from the other. When one half of a panel is covered by shade, the other will still perform at full capacity. Where partial shading will have already stopped traditional mono-crystalline panels from providing vital power, Sphere Solar Panels with Twin Cell Technology will keep on charging.
Features:
- Sphere Twin Cell Solar Technology for improved performance in partial shade.
- Improved cell efficiency enabling 200W from a 180W footprint.
- By-passed diodes to improve reliability and further minimize power drops caused by shade.
- An anodized aluminium frame to withstand rust with pre-drilled mounting holes for a versatile range of applications.
- Antireflective, high transparency tempered glass for durability
- IP65-rated junction box provides complete protection against dust and water.
Specfications:
| Electricity Performance | Standard Test Conditions | 1000W/M2,1.5AM,25 |
| Peak Power Output (W) | 200 W | |
| Power Output Tolerance（％） | 3% | |
| Maximum Power Voltage (V) | 20.6 | |
| Maximum Power Current (A) | 9.71 | |
| Short Circuit Current（A） | 9.85 | |
| Open Circuit Voltage(V) | 24.1 | |
| Maximum System Voltage | 1000V/DC | |
| Mechanical Performance | Junction Box Type | 0.9 m 4mm 2 solar cable fitted with MC 4 IP65 |
| Number of Cells | 4*18 72 72pcs | |
| Module Size (mm) | 670 x 1480 x 35 x 30 x1.2 | |
| Module Net Weight | 11 KG | |
| Temperature Coefficient | ||
| Working Temperature | ﹣40 ～85 ℃ | |
| Power TK | ﹣0.45%/℃ | |
| Open Circuit Voltage T | ﹣0.3 3%/ ℃ | |
| Short Circuit Current T | 0.045%/ | |
| Test temperature | 25±2 ℃ | |
| Guarantee of power output | ≦10 Years | ≧90% |
| ≦25 Years | ≧80% | |
| Material Warranty | 12 Months |
Specifications
SKU 500-06250
Brand Sphere
Product Category Solar Panels
Watts (W) 200
Solar Panel Cell Type Monocrystalline
Solar Panel Type Fixed Solar Panels
-Weight 11 Kg
Dimensions 1480 x 670 x 35 mm
NOTE: see full product specifications & further product info in the Description section on this page.
Reviews
200w sphere solar panels
By: Geoffrey Thorpe on23 July 2023
The delivery was well ahead of time and once again the driver was excellent. The panels are a good size if you have a air-conditioning unit taking up space so one each side fitted nicely with plenty of room left for future extensions. They came ready to connect making life simpler, not top of the range but does what it has to at reasonable price.
Solar panel
By: Reece on15 February 2023
Great bang for your buck
