SPHERE 300W Solar Blanket - 1665x1090x5mm
SKU: 500-06264 Learn More»
Description
SPHERE 300W Solar Blanket - 1665x1090x5mm
The SPHERE foldable solar panel is a must-have for frequent travelers. It's a 300W solar blanket made from durable poly/cotton canvas and can be easily packed down to 1/6 of its full size, weighing only 10kg. Perfect for camping, RVing, and other outdoor activities, it features Anderson plugs for easy and secure connections. The A-grade monocrystalline solar cells offer an impressive energy conversion efficiency of 23.5%, providing efficient power to your electronic devices. Additionally, it has an auto-optimization function for immediate reconnection when sunlight returns after charging interruption, and comes with a lithium-compatible MPPT controller that adjusts voltage for a boost of current during peak demand, resulting in 20% more energy than a PWM controller. With the SPHERE solar panel, you'll be fully equipped to enjoy off-road adventures
Features:
- High-efficiency charging: A-grade monocrystalline solar cells offer energy conversion efficiency of up to 23.5% for fast charging.
- Improved energy conversion: Premium PET films provide a light penetration rate of 95% for increased efficiency.
- Compact and lightweight design: Made from poly/cotton canvas, this solar panel is only 5.9kg and can be easily packed down to 1/8 of its full size.
- User-friendly design: Includes 8 stitched loops for added stability in windy conditions.

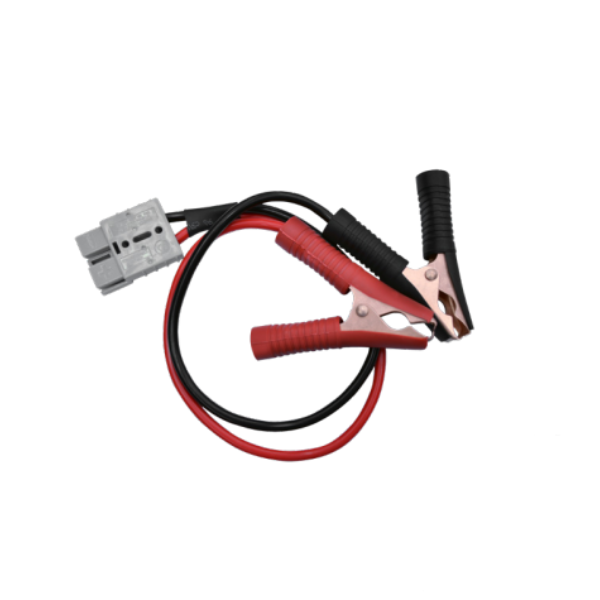

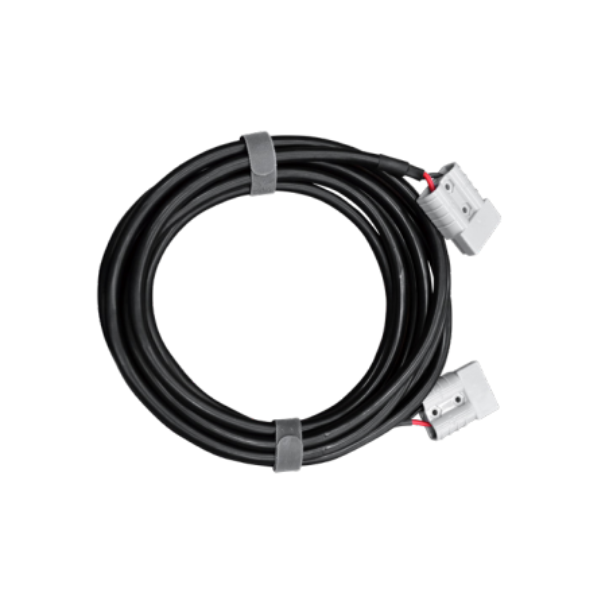

- Easy connection: Features Anderson plugs for secure and simple connections.
- Automatic reconnection: Auto-optimization function allows for immediate reconnection when sunlight returns after interruption.

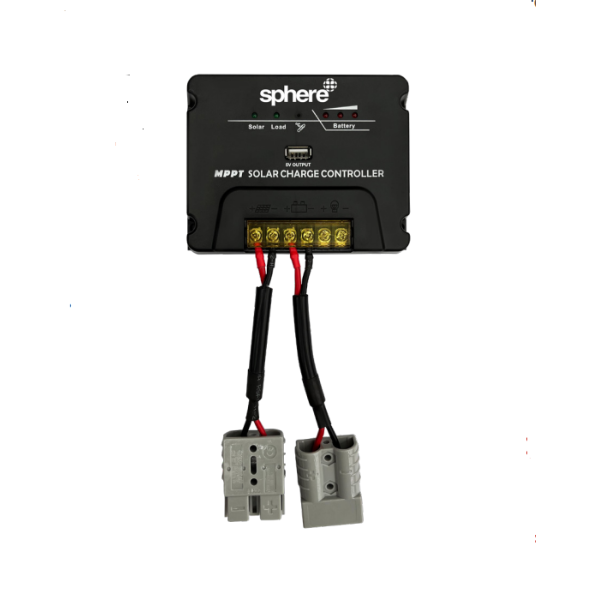

- Advanced controller: Equipped with a lithium-compatible MPPT controller that generates 20% more energy than a PWM controller.
- Safe and reliable performance: Overcharging cut-off technology ensures ultra-reliable performance.
- Lithium battery compatibility: Suitable for use with AGM, lead acid, Gel, Calcium, and LiFePO4 batteries.
- Additional functionality: USB port on the controller for charging portable devices such as smartphones and tablets.
Specifications:
- Material: A-grade monocrystalline
- Color: Black
- Product Dimension (Opened): 1665mm x 1090mm x 3mm
- Product Dimension (Closed): 555mm x 545mm x 50mm
- Gross Weight: 10.36kg
- Maximum Power: 300w
- Open Circuit Voltage (VOC): 21.05V
- Short Circuit Current (ISC): 19.67A
- Voltage at Pmax (VMP): 18.3V
- Current at Pmax (IMP): 16.39A
- Temperature Range: ~ +85°C (185℉)
Specifications
SKU 500-06264
Brand Sphere
Product Category Solar Panels
Watts (W) 300
Solar Panel Cell Type Monocrystalline
Solar Panel Type Solar Blanket
Open Circuit Voltage Voc(V) 21.05V
Short Circuit Current Isc(A) 19.67A
Dimensions (open) 555mm x 545mm x 50mm
Dimensions (closed) 1665mm x 1090mm x 3mm
Temperature Range -40°C~85°C
Weight (kg) 10.36
Maximum Power 300W
Voltage at Pmax (VMP) 18.3V
Current at Pmax (IMP) 16.39A
NOTE: see full product specifications & further product info in the Description section on this page.
