Blue Sea ST Blade Fuse Block – 6 Circuits with Cover
SKU: BS-5028B Learn More»
Description
Blue Sea ST Blade Fuse Block – 6 Circuits with Cover
The ST Blade Fuse Block can offer a space saving and cost effective solution to adding circuit protection when there are limited available circuit breakers on the distribution panel. A single circuit breaker on a distribution panel can provide the circuit protection for the feed wire to the ST Blade Fuse Block. This is frequently done for electronics that each have their own ON-OFF switch and don’t require the switching offered by a circuit breaker. The 6 or 12 position ST Blade Fuse Block then provides a consolidated location for fuses for each of the electronics.
Consolidates branch circuits and in-line fuses.
Features
- Positive distribution bus with #10-32 stud
- Can be used for 24-hour circuits
- Models available with or without a cover
- Cover satisfies ABYC/USCG requirements for insulation, incorporates an easy to open push button latch providing easy access to fuses, storage for two spare fuses, and label recesses that accept Blue Sea Systems” Small Format Labels for circuit identification
- Fuse blocks with covers include 20 write-on circuit labels
- Tin-plated copper buses and fuse clips
- Accepts ring or spade type terminals
- Accepts ATO® and ATC® fast acting blade fuses
- Fuses sold separately
Specifications
- Circuits: 6
- Maximum Amperage: 30A per circuit | 100A per block
- Maximum Voltage 32V DC

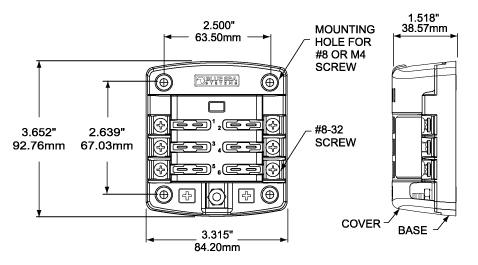

- Mounting: 8″ Screw [M4]
- Positive Bus: #10-32 Stud
- Recommended Torque: 24 in-lb (2.71 N.m)
- Screw Terminal Type: #8-32 with captive start lock washer
- Weight: 0.19 kg
.png)
Specifications
SKU BS-5028B
Brand Blue Sea
GTIN 9342616008010
Product Category Fuses and Breakers
NOTE: see full product specifications & further product info in the Description section on this page.
