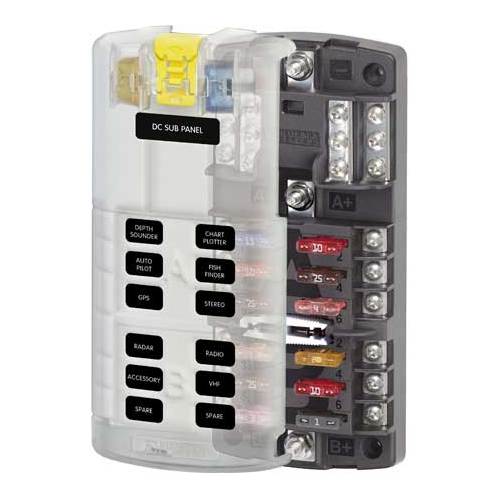

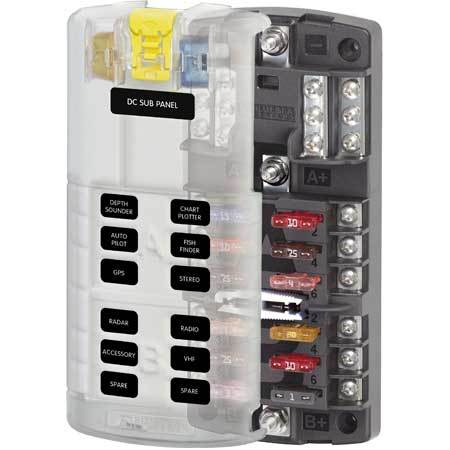

Blue Sea ST Blade Split Bus Fuse Block
SKU: BS-5032B Learn More»
Description
ST Blade Split Bus Fuse Block
Split Bus Fuse Block with ground for use when a mix of switched and 24-hour circuits are desired in the same block.
T Blade Split Bus Fuse Block
- Provides two isolated groups of six ATO®/ATC® circuits
- For use with either two isolated batteries or with a single battery providing a mix of 24 hour and switched circuits
- Screw terminals for securing wires accept ring terminals
- One-piece stainless flange nuts ensure safe and secure connections
- Clear insulating cover with label recesses and storage for two fuses, satisfies ABYC/USCG insulation requirements
- Easy to open, push button latch for easy access to fuses
- Tin-plated copper buses and fuse clips
- Fuses sold separately
Specifications
- Circuits: 12
- Maximum Amperage: 30A per circuit | 100A total
- Maximum Voltage: 32V DC
- Mounting: 8″ Screw [M4]
- Negative Bus: #10-32 Stud
- Recommended Torque: 24 in-lb (2.71 N.m)
- Screw Terminal Type: #8-32 with Captive Start Lockwasher
.png)
Show More
Specifications
SKU BS-5032B
Brand Blue Sea
GTIN 9342616008058
Product Category Fuses and Breakers
NOTE: see full product specifications & further product info in the Description section on this page.
