Suburban 20.3 Litre Hot Water System (SW6DERA) 12V, 240V & Gas with White Door

SKU: Z950-00036-W Learn More»

Caravan Hot Water System

CALCULATE SHIPPING:

Description

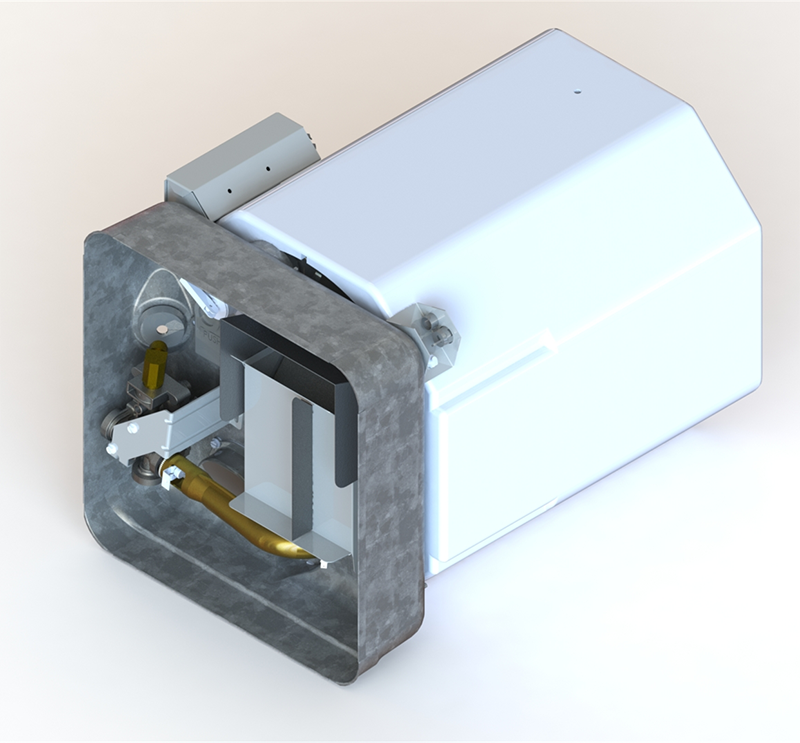

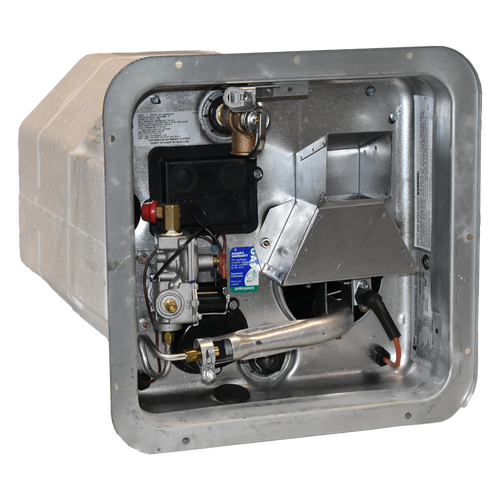

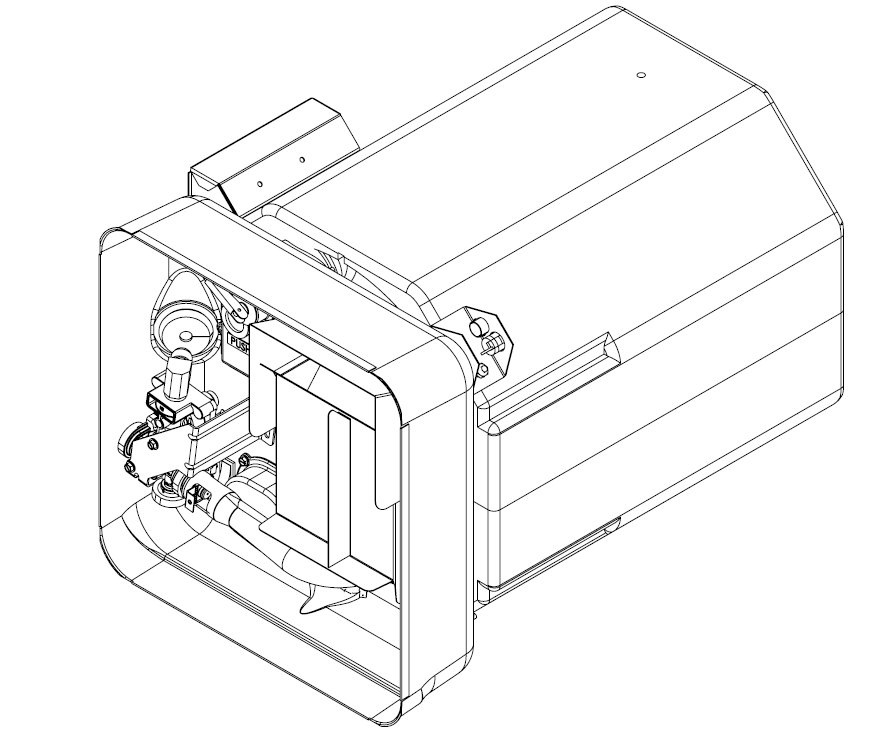

Suburban 20.3 Litre Hot Water System (SW6DERA) 12V, 240V & Gas with White Door

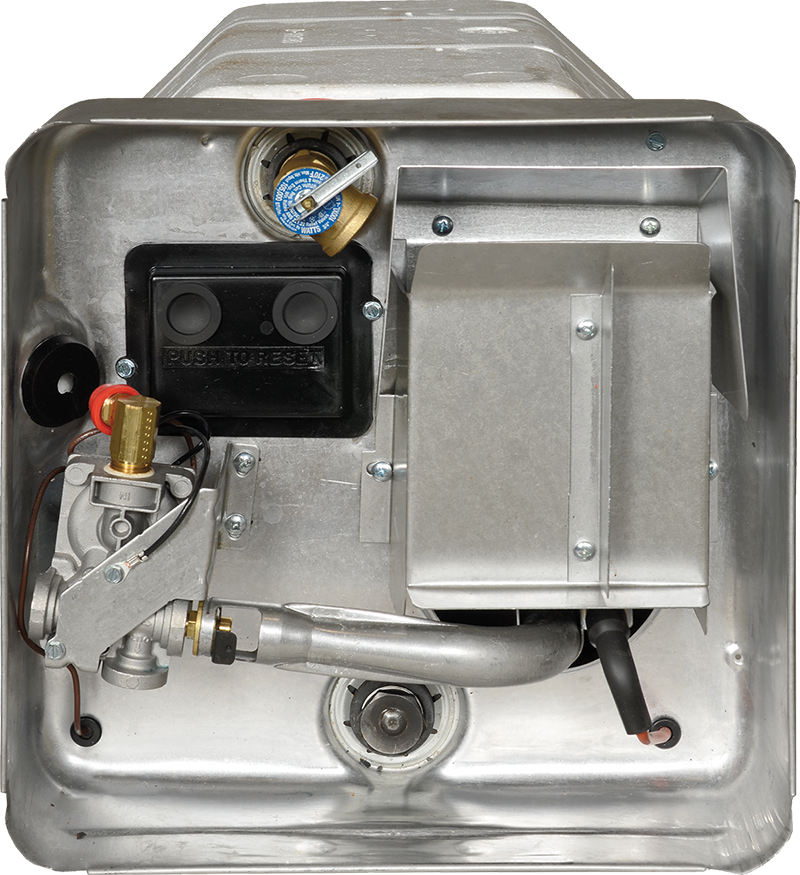

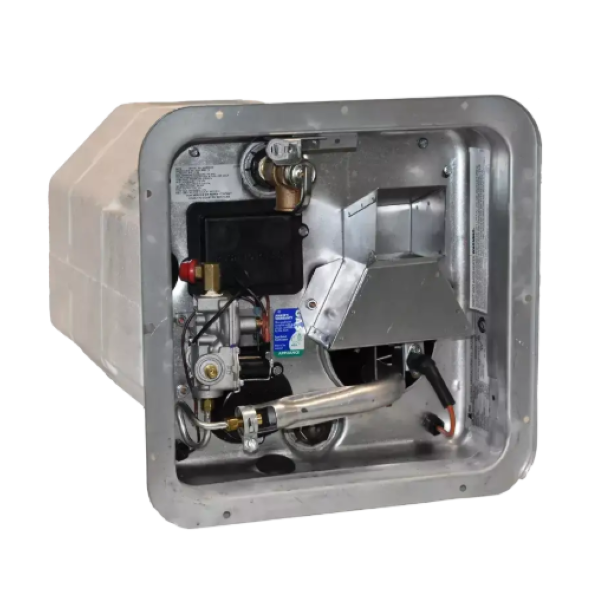

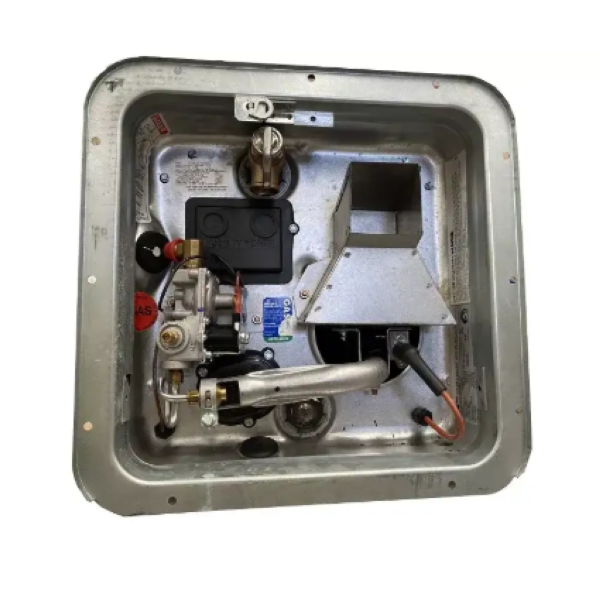

A water heating extreme machine from Suburban, the SW6DERA offers a near-perfect solution for a 24-hour hot water supply in your RV, caravan or camper. Running on both propane gas, 12V and a 240 volt electrical connection, the system’s inbuilt water storage tank has a mammoth capacity of 20.3 litres, and a solid build quality consisting of a pressure tested high tensile steel body, durability-enhancing porcelain lining, and a replaceable anode rod for protection against corrosion. The anode rod serves the additional function of a drain plug, which is accessed via a service door that houses other components such as the heating filament and the limiter switch.

The Suburban SW6DERA puts an end to hot water woes while you’re on the road, its 1440W element and heavy duty insulation ensuring both high-speed water heating, and an efficient recovery rate of 40 litres per hour. The automatic spark ignition capability of the device is an added advantage during rough weather, allowing you to remotely control the heating operation from inside your motor home. Relatively compact despite its generous capacity, the Suburban SW6DERA not only makes for a simple installation process, but is also easy to service and maintain thanks to readily available spare parts.



Features:

  • Operates on both propane gas, 12V and 240V connection
  • Equipped with 12V direct spark ignition
  • Generous storage capacity of 20.3 litres
  • Pressure tested, high tensile steel storage tank with porcelain lining for durability
  • Replaceable anode rod to protect tank from corrosion
  • Effective foam tank insulation for minimal heat loss
  • Rapid heating via 1440W heating element

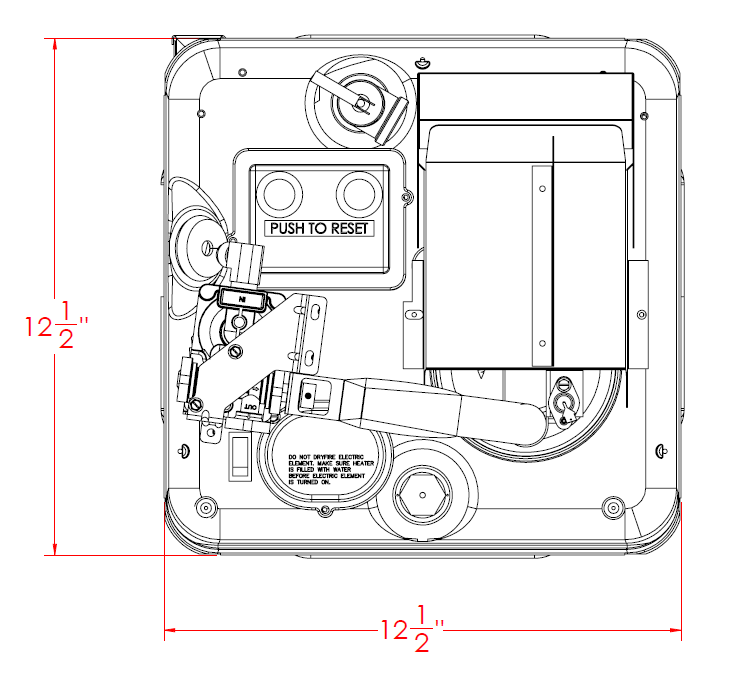

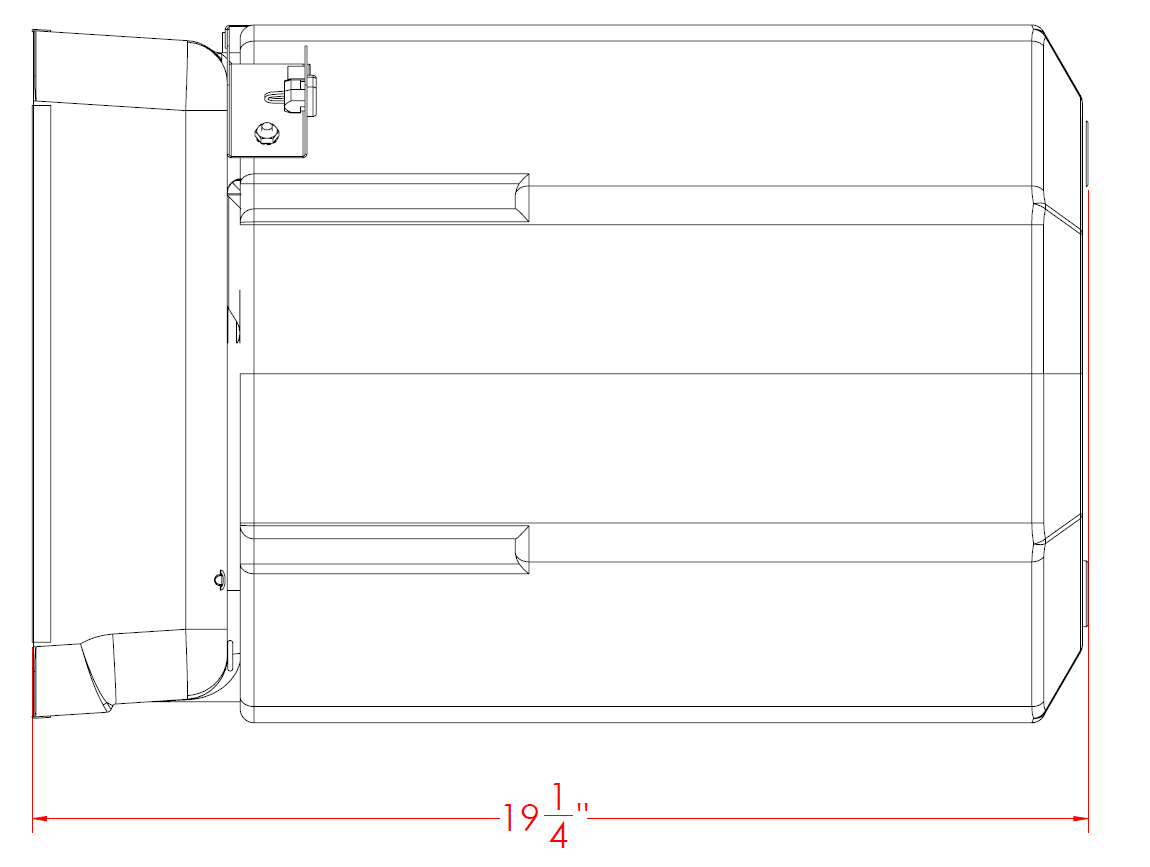

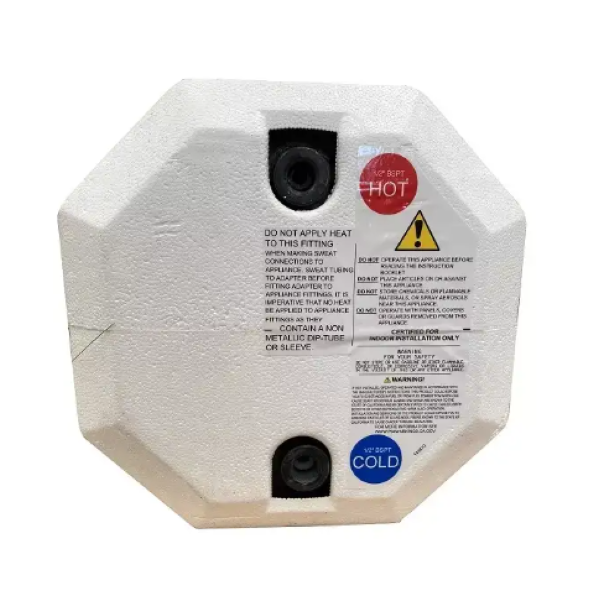

  • Dimensions (mm): (H)320 x (W)320 x (D)500 (plus pipe connections at rear)
  • Includes door - Overall Dimensions 380mm x 380mm
  • High recovery rate of 40 litres per hour, enabling continuous hot water supply

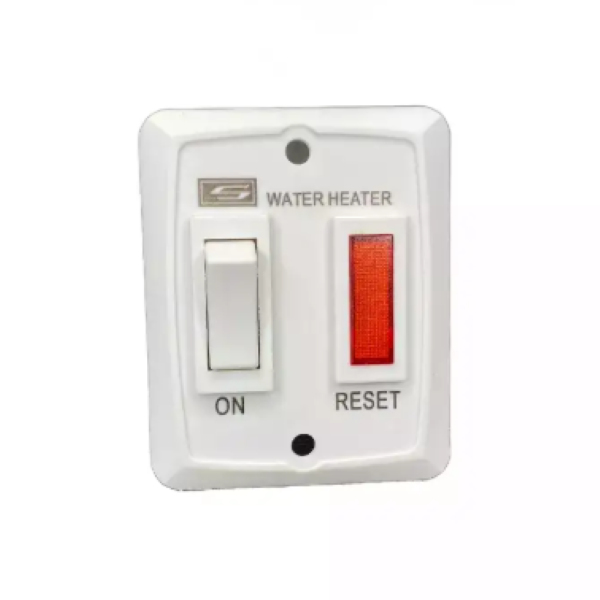

  • Remote control feature for access from inside the motor home

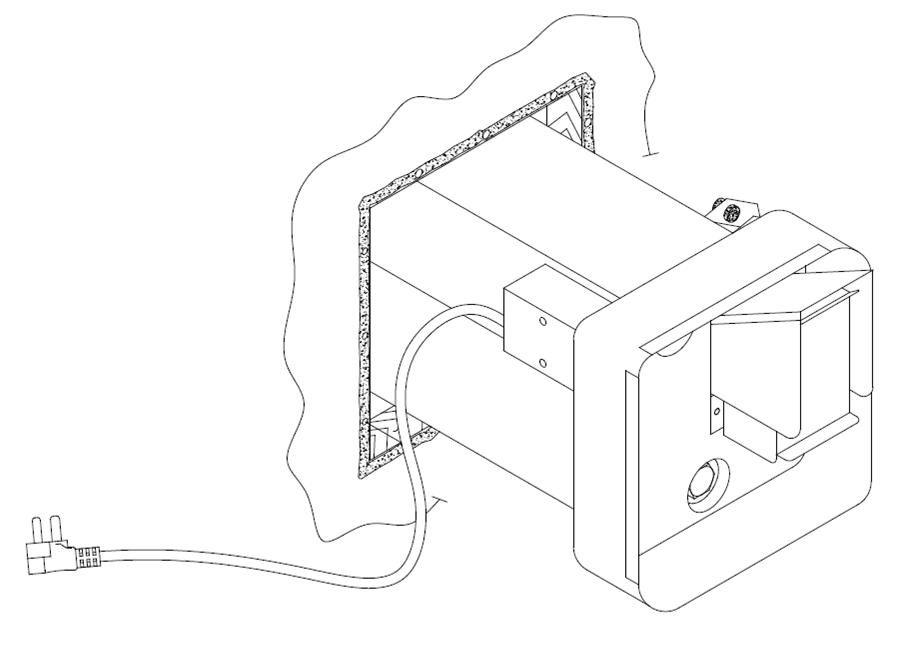

  • Compact size and intelligent design for easy installation
  • Rear service door and readily available spare parts, for simple maintenance



Specifications:

  • Capacity: 20.3 Litres
  • Maximum working pressure: 700 Kpa
  • Gas consumption: 8.7 mj/hour
  • Test point pressure: 2.63 Kpa
  • Jet Orifice Size: 0.84mm
  • Type: Propane Gas / 12V / 240Volt
  • Gas ingnitor (auto): 12 Volt DC
  • 240 Volt heating element: 240 Volt – 50 HZ AC
  • Element rating: 1440 Watts and 6 Amp

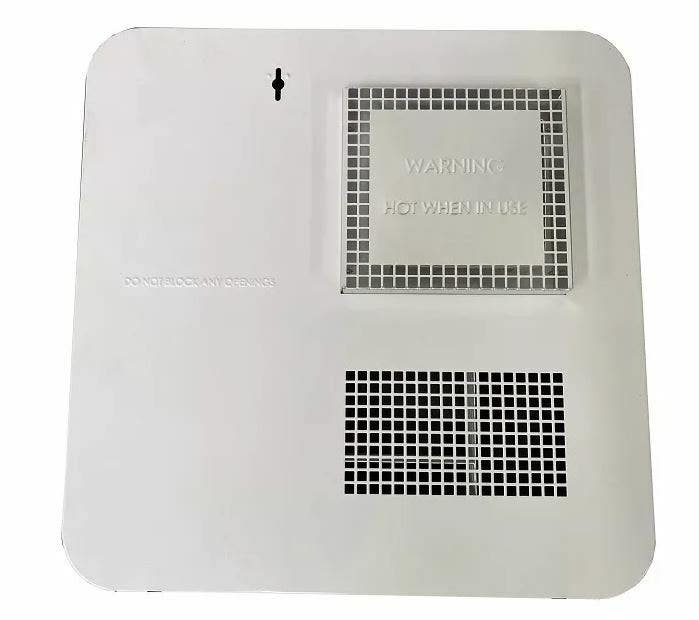

  • Includes a white service door



Note: This product is a gas appliance that must be installed by a qualified and licenced gas fitter to the current Australian Standard. Failure to do so will void the warranty and may pose a health and safety risk.



Show More

Specifications

SKU Z950-00036-W

Brand Suburban

Product Category RV Heaters and Hot Water

Gas Consumption 8.7mj/h

Voltage (V) 12/240V


NOTE: see full product specifications & further product info in the section on this page.

Reviews

Write a product review

Suburban hot water

6 September 2023

Unit was very easy to install and looks very tidy, heats the water up very quickly and maintains a good temperature

water heater

26 March 2023

I was very impressed with the unit The 240v addition wired straight in and heated up very quickly No noise.
