Sunman eArc 2 x 100W Flexible Solar Panel with Victron SmartSolar MPPT 75/15 Charge Controller & Wiring Kit

Description

Sunman eArc 2 x 100W Flexible Solar Panel with Wiring Kit to suit Victron SmartSolar MPPT 75/15 Charge Controller



Pack Includes:

• 2 x Sunman eArc 100W Flexible Solar Panel,  SMF100M-3x12UW
• 2 x Solar 4 RVs Vented Gap Kit for 100W Panels, RP-PK-VGK-100W
• 1 x Victron SmartSolar MPPT 75/15 Charge Controller, SCC075015060R

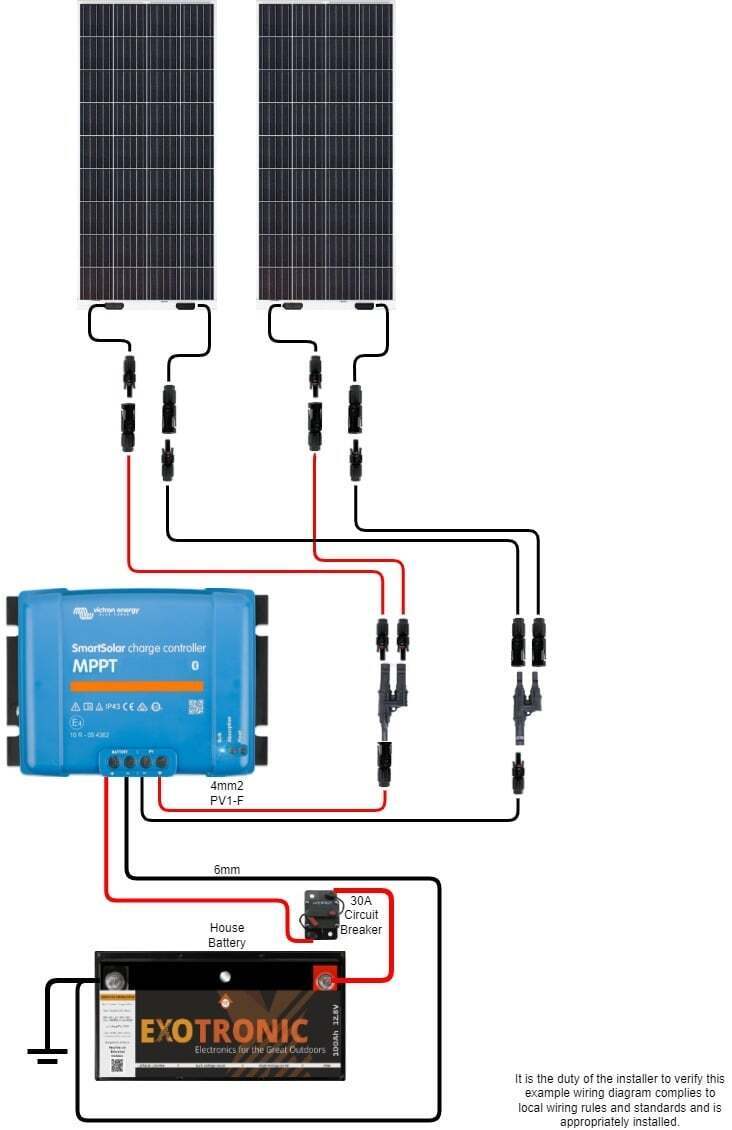

• Wiring Kit:
  • 5 x MC4 Compatible Solar Connector Pair
  • 1x 'h' Branch MC4
  • 7m 4mm² PV1-F Solar Cable
  • 1m 6mm Twin Auto Cable
  • 1 x Exotronic 30A Surface Mount Waterproof DC Circuit Breaker
  • 2 x Insulated Yellow Ring M6 Lug
  • 2 x Insulated Yellow Ring M8 Lug
  • 1x Noark Solar Circuit Breaker and 2 DIN Enclosure





Sunman eArc 100W Flexible Solar Panel

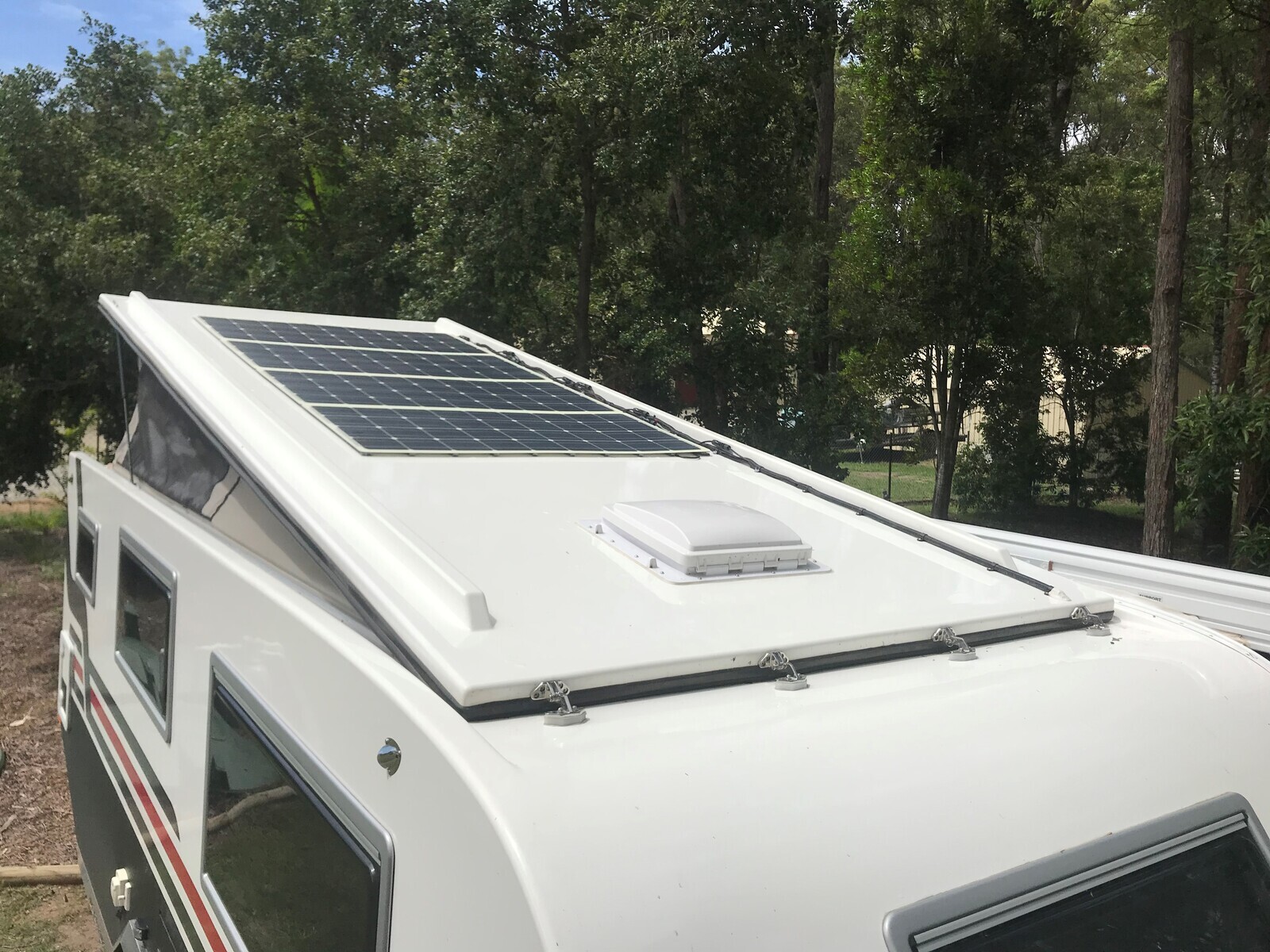

These lightweight yet robust solar panels are perfect for caravans, motorhomes, yachts, trains, buses and other applications.

Made with a Patent Pending composite material similar to those used in airplane windows.  These panels are tough enough to be approved by the Clean Energy Council for residential use yet they don't have a heavy, rigid frame or glass.

Mounting Options:

• The vented gap (height increase of ~15mm) improves panel efficiency and reduces heating of the mounting surface. This method also allows the junction box to sit underneath the panel. This includes:
  • One roll of very high bond double sided adhesive tape
  • Polycarbonate strips
• Installation via very high bond double sided adhesive tape provides a low profile secure bond.
• The Bi-Adhesive Backing includes a continuous sheet of 1mm bi-adhesive material over the whole back of the panel for mounting on smooth surfaces with no bumps or dips.  Installation then becomes a simple peel and stick. Mounted in factory to panel prior to shipping. You'll need to remove thin plastic covering prior to mounting in place.
• A structural silicone (Fix8) can be used to adhere the panel to a surface.
• The panel can be secured using bolts or screws through eyelets in the panel. You will get the correct amounts of eyelets for the size of the panel.
• Please note: You will only require one of the mounting option! Please choose one of the option in the Accessory List!

eArc are the only lightweight solar panels approved for grid connect on buildings which means they have passed the same testing criteria as traditional solar panels.

Tougher, lighter, thinner and more durable

• Cutting edge technology - glass fibre-reinforced composite polymers similar to aircraft windows
  • ​This reduces the coefficient of thermal expansion to a similar level as fixed panels, eliminating the main cause of cause of flexible/lightweight solar panel failures as seen in ETFE and PET panels, thermal expansion related stress causing failure of the cell to cell connections
• Light - 100W frameless is 1.8kg
• Thin - 2mm
• Tough - Hail tested with ice stones of 35mm diameter and 200g mass at 39.5m per sec​
• Strong - rated 2400 pascals for wind and 2400 pascals for load
• Durable - ​10 year product warranty for building and 5 years for mobile application
  • ​25 year exposure simulations/tests show degradation of the solar module at similar levels to fixed panels
• Output - Efficient monocrystalline cells, 25 year performance guarantee
• The only lightweight solar panel composition with Clean Energy Council (CEC) Accreditation

Specifications:

• Wattage: 100 W
• Solar cells: 36 (4x9)
• Maximum Power (Pmax): 100
• Maximum Power Voltage (Vmp): 21.2
• Maximum Power Current (Imp): 4.75
• Open-circuit Voltage (Voc): 25.2
• Short-circuit Current (Isc): 5.12
• Operating Temperature (°C): -40 °C to 85 °C
• Maximum System Voltage: 1000 V DC (IEC)
• Maximum Series Fuse Rating: 20 A
• Application Class: Class A
• Power Tolerance: 0/+5 W
• Backsheet: White
• Junction box: IP 68 rated (each j-box has one by-pass diode)
• Output Cables: Photovoltaic technology cable 4.0 mm2, (+)150 / (-)450 mm
• Connector: MC4 compatible

Note: To ensure the best outcome of your eArc solar panels, we recommend to our Victron solar charge controllers with your flexible solar panels. You can find our range of Victron Solar Charge Controllers HERE



Solar 4 RVs Vented Gap Kit for 100W Panels



The vented gap (height increase of ~15mm) improves panel efficiency and reduces heating of the mounting surface. This method also allows the junction box to sit underneath the panel.

Includes:

• Poly Carbonate Strips
• Roll of VHB Tape

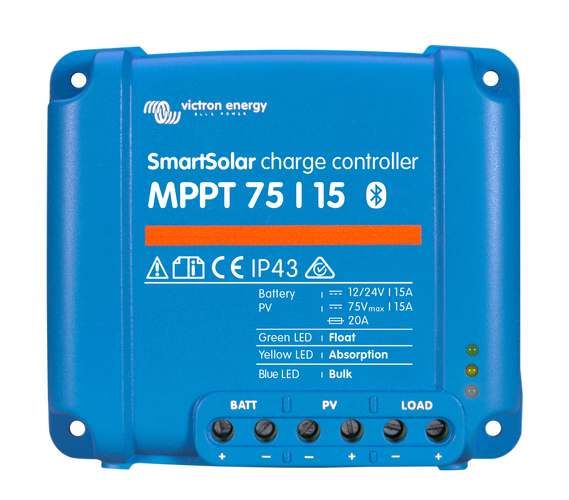

Victron SmartSolar MPPT 75/15 Charge Controller



Solar charge controller:

A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.



MPPT: Ultra Fast Maximum Power Point Tracking:

By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.



Remote Monitoring and Control:

Remotely control and monitor the extensive features of your SmartSolar MPPT charger with built-in Bluetooth by pairing it with your smartphone or other devices via VictronConnect. If your installation is connected to the internet Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both services are free to use. For remote installations - even when there is no internet connection or phone signal nearby - you may be able to monitor your MPPT by Bluetooth-pairing with a LoRaWAN (long-range wide area network) device, available optionally.



Load output:

The intelligent Load output function prevents damage caused by running batteries 'flat'. You can configure the voltage at which SmartSolar disconnects a load - thereby preventing excessive drain on your batteries. And here's the clever bit: SmartSolar will attempt a 100% recharge every day. If it can't - during periods of poor weather - it raises the disconnect voltage, daily, until it achieves success. We call this feature BatteryLife because it maintains the health, and extends the life of your battery.



Specifications:

• Battery voltage (auto-select) - 12/24V
• Rated charge current - 15A
• Nominal PV power, 12V 1a,b) - 220W
• Nominal PV power, 24V 1a,b)  -440W
• Max. PV short circuit current 2) - 15A
• Automatic load disconnect - Yes
• Max. PV open circuit voltage - 75V
• Peak efficiency - 98%
• Self-consumption - 12V: 25 mA 24V: 15 mA
• Charge voltage 'absorption' - 14,4V / 28,8V (adjustable)
• Charge voltage 'float' 13,8V / 27,6V (adjustable)
• Charge algorithm - multi-stage adaptive
• Temperature compensation -16 mV / °C resp. -32 mV / °C
• Max. continuous load current - 15A
• Low voltage load disconnect 11,1V / 22,2V / 44,4V or 11,8V / 23,6V / 47,2V or Battery Life algorithm
• Low voltage load reconnect 13,1V / 26,2V / 52,4V or 14V / 28V / 56V or Battery Life algorithm
• Protection - Output short circuit / Over temperature
• Operating temperature -30 to +60°C (full rated output up to 40°C)
• Humidity 95%, non-condensing
• Colour Blue (RAL 5012)
• Power terminals 6 mm² / AWG10
• Protection category IP43 (electronic components), IP22 (connection area)
• Weight 0.5 kg
• Dimensions (d x w x h) - 40 x 113 x 100 mm
