Sunman eArc 235W Portable Solar Blanket

Description

Sunman eArc 235W Portable Solar Blanket

Designed by Sunman, using their lightweight robust eArc monocrystalline solar panels, this premium 235w portable solar panel is made with a Patented composite material similar to those used in airplane windows. As this material is much more durable than standard ETFE and PET panels, a thick fibreglass sheet behind the panel is not necessary and the weight can be kept to a minimum.

Features:

• Easy to carry - lightweight (7kg) with built-in handle ​
• Easy to use - folds out in 4 sections.  Loops for easy hanging or lay flat
• Easy to store - thin profile (comes with bubble wrap bag in cardboard box for storage)
• Easy fold-out legs

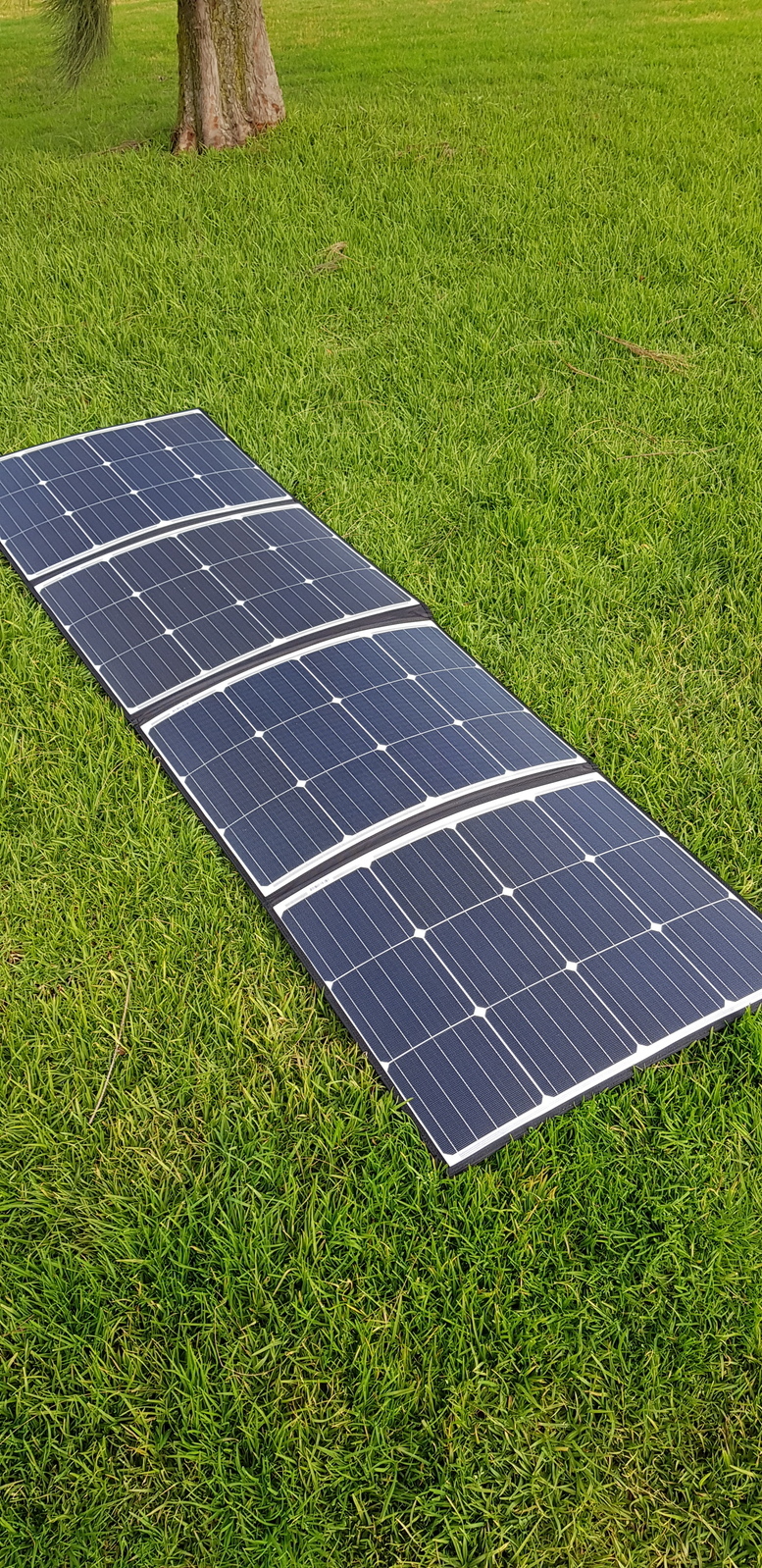

Lightweight and compact

Made with 48 solar cells in four sections of 12 solar cells each fold into a compact carry bag with handle that is easy to carry and store and weighs only 7kg!

• Dimensions folded  - 670 x 540 x 24 mm
• Dimensions un-folded  - 670 x 2600 x 5 mm

The functional storage pouch keeps the cables and solar charge controller neatly protected and stored when not in use.

High Efficiency

The output warranty is the same as high grade rigid solar panels used on buildings: above 80% of the original power by the 25th year. Unfolded, without shade this panel can produce more than 500wh per day in most areas.

Durable

The top encapsulation layer is a high-strength fluorine polymer that is corrosion and stain resistant, non-stick self cleaning, and retains its clarity (and therefore light transmittance) ensuring long service life for solar panels.  It will not discolour or degrade from exposure to environmental pollution, UV light, harsh chemicals or extreme temperature variations.

The surface is textured for extra robustness.

Included Accessories:

• PWM charge controller with LCD display (lithium compatible)
• 5m 4mm² PV1-F extension cable with Anderson Plugs.
• Alligator clips for easy battery connection

Specifications:

• No. of cells: 48 (4 x 12)
• Weight: 6.7 kg
• Dimensions (mm) folded: 670 x 540 x 18
• Dimensions (mm) unfolded: 670 x 2600 x 5
• Cell Type: Monocrystaline silicon - PERC
• Peak power (Pmax): 235Wp
• Open-circuit Voltage (Voc): 31.7
• Max power voltage (Vmp): 26.1
• Short-circuit Current (Isc): 9.54
• Maximum Power Current (Imp): 9.01
• Operating temperature (℃): -40 ℃ to 85 ℃
• Power Tolerance: 0/±5 %
• Application Class: class A
• Bag material: waterproof nylon fabric
• Cable type: PV1-F, 4mm2 (tinned copper)
• Connectors:  Anderson
• Solar Charge Controller - PWM: PWM with LCD display
• Warranty: Panel: 5 years, Accessories: 1 year
• STC: Irradiance 1000W/m2, Cell temperature 25℃, AM=1.5.
