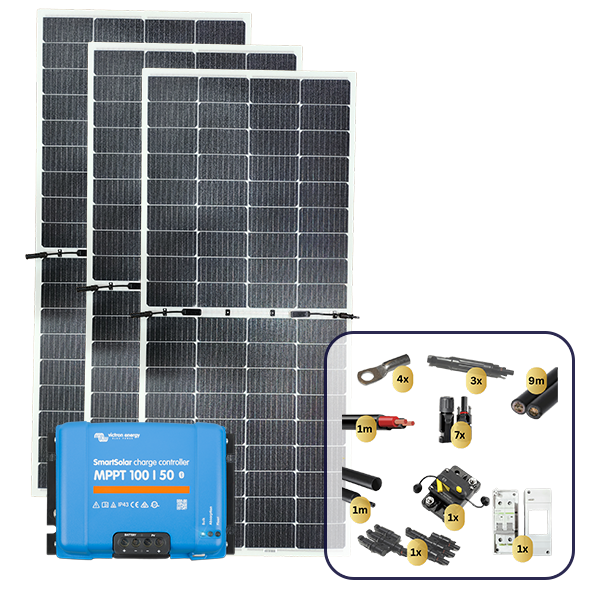

Sunman eArc 3 x 215W Flexible Solar Panel with Victron SmartSolar MPPT 100/50 Charge Controller & Wiring Kit

Description

Sunman eArc 3 x 215W Flexible Solar Panel with Victron SmartSolar MPPT 100/50 Charge Controller & Wiring Kit



Pack Includes:

• 3 x Sunman eArc 215W Half Cut Shade Flexible Solar Panel,  eASMF215F-18X4UW
• 3 x Solar 4 RVs Vented Gap Kit for Panels up to 215W (Poly Carbonate Strips + Roll of VHB Tape), RP-PK-VGK-215W
• 1 x Victron SmartSolar MPPT 100/50 Charge Controller, SCC110050210

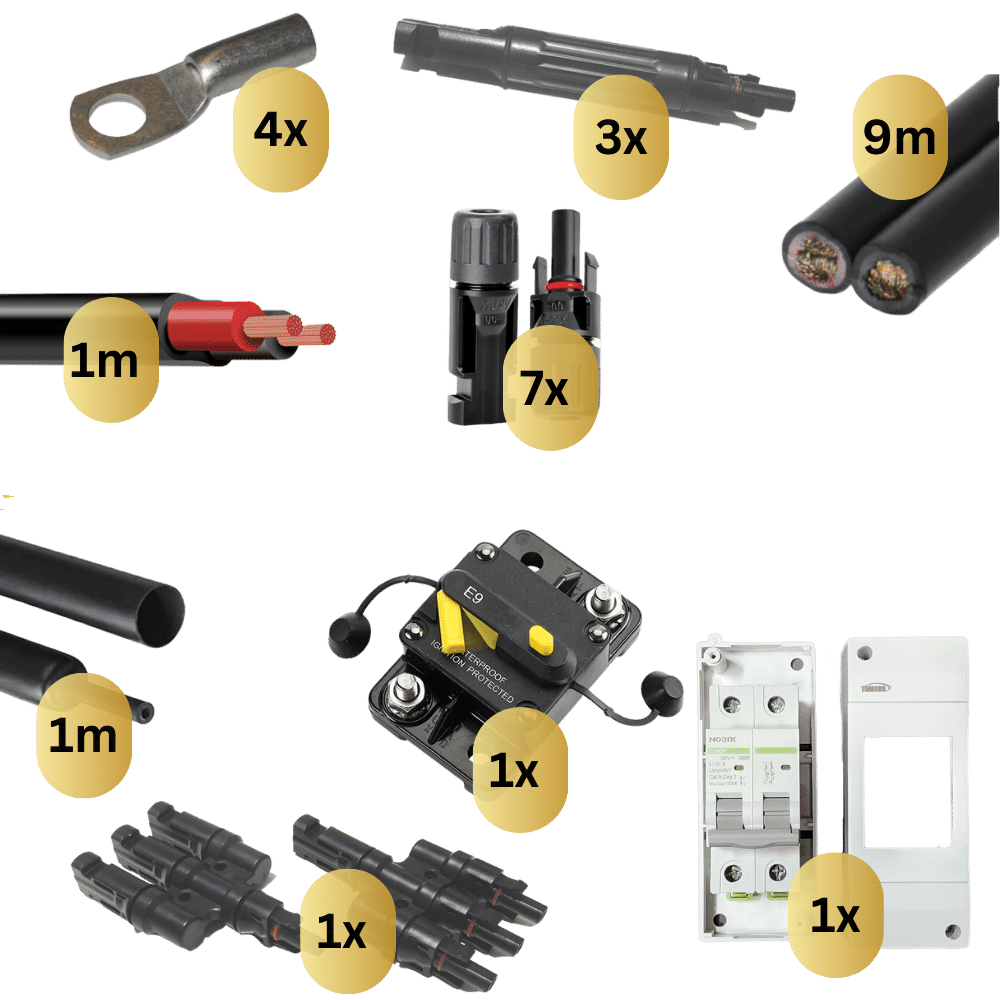

• Wiring Kit:
  • 7x MC4s
  • 3x MC4 in-line 15A Fuse
  • 1x '3 to 1' Branch MC4
  • 9m 6mm2 PV1-F Solar Cable
  • 1m 6 B&S Twin Cable
  • 1x 60A Resettable Circuit Breaker
  • 2x M6 16mm Lugs
  • 2x M8 16mm Lugs
  • 1m 9-3 Black Heatshrink
  • 3x MC4 Fuses
  • 1x Noark Solar Circuit Breaker and 2 DIN Enclosure



Sunman eArc 215W Half Cut Shade Flexible Solar Panel



New Half cut design using the latest M6 monocrystalline passivated emitter rear contact (PERC) cells reduces internal resistance and creates two independant strings within the panel.  Effectively reducing the effect of shading when on one side. PERC cells improve the year round performance compared to conventional cells as some of the light that hits the back of the cell is reflected back and converted to current.

These lightweight yet robust solar panels are perfect for caravans, motorhomes, yachts, trains, buses and other applications.

Made with a Patent Pending composite material similar to those used in airplane windows.  These panels are tough enough to be approved by the Clean Energy Council for residential use yet they don't have a heavy, rigid frame or glass. Click the Features tab for more information.

The junction box cover clips to the junction box, however it will require some form of adhesion such as Fix8.

Mounting Options:

• The vented gap (height increase of ~15mm) improves panel efficiency and reduces heating of the mounting surface. This method also allows the junction box to sit underneath the panel. This includes:
  • One roll of very high bond double sided adhesive tape
  • Polycarbonate strips
• Installation via very high bond double sided adhesive tape provides a low profile secure bond.
• The Bi-Adhesive Backing includes a continuous sheet of 1mm bi-adhesive material over the whole back of the panel for mounting on smooth surfaces with no bumps or dips.  Installation then becomes a simple peel and stick.
• A structural silicone (Fix8) can be used to adhere the panel to a surface.
• The panel can be secured using bolts or screws through eyelets in the panel.
• eArc are the only lightweight solar panels approved for grid connect on buildings which means they have passed the same testing criteria as traditional solar panels.

Specifications:

• Maximum Power (Pmax):  215
• Maximum Power Voltage (Vmp): 21.0
• Maximum Power Current (Imp): 10.24
• Open-circuit Voltage (Voe): 24.9
• Short-circuit Current (lsc): 10.72
• Module Efficiency (%): 19.10
• Operating Temperature (°C): -40 °C to 85 °C
• Maximum System Voltage: 600 V DC (IEC)
• Maximum Series Fuse Rating:  20A
• Power Tolerance : 0/+5W
• Solar Cell: Mono (166mm half)
• No. of Cells : 72 (4X 18)
• Dimensions: 1610mm x 700mm x 2mm
• Weight: 3.8kg

Note: To ensure the best outcome of your eArc solar panels, we recommend to our Victron solar charge controllers with your flexible solar panels. You can find our range of Victron Solar Charge Controllers HERE



Solar 4 RVs Vented Gap Kit for Panels up to 215W

Includes:

• Poly Carbonate Strips
• Roll of VHB Tape

Mounting:

• The vented gap (height increase of ~15mm) improves panel efficiency and reduces the heating of the mounting surface. This method also allows the junction box to sit underneath the panel. This includes:
  • One roll of very high bond double-sided adhesive tape
  • Polycarbonate strips

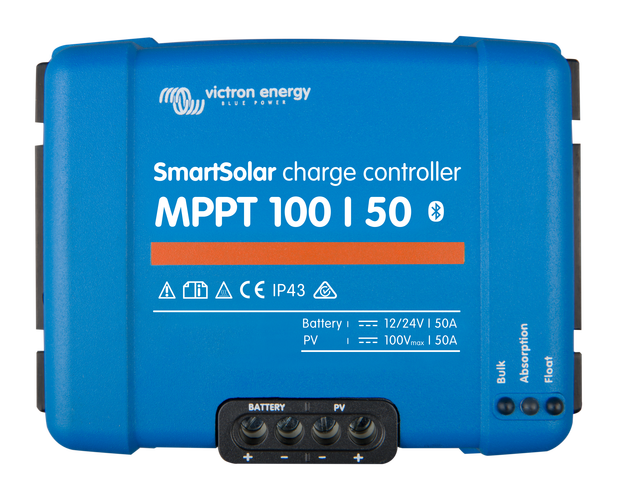

Victron SmartSolar MPPT 100/50 Charge Controller



Solar charge controller:

A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.



MPPT: Ultra Fast Maximum Power Point Tracking:

By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.



Remote Monitoring and Control:

Remotely control and monitor the extensive features of your SmartSolar MPPT charger with built-in Bluetooth by pairing it with your smartphone or other devices via VictronConnect. If your installation is connected to the internet Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both services are free to use. For remote installations - even when there is no internet connection or phone signal nearby - you may be able to monitor your MPPT by Bluetooth-pairing with a  LoRaWAN (long-range wide area network) device, available optionally.



Specifications:

• Battery voltage 12/24V Auto Select
• Rated charge current 50A
• Nominal PV power, 12V 1a,b) 770W
• Nominal PV power, 24V 1a,b) 1400W
• Maximum PV open circuit voltage 100V
• Max. PV short circuit current 2) 60A
• Maximum efficiency 98%
• Self-consumption 12V: 30 mA 24V: 20 mA
• Charge voltage 'absorption' Default setting: 14,4V / 28,8V (adjustable)
• Charge voltage 'float' Default setting: 13.8V / 27.6V (adjustable)
• Charge algorithm multi-stage adaptive
• Temperature compensation -16 mV / °C resp. -32 mV / °C
• Protection
  • PV reverse polarity
  • Output short circuit
  • Over-temperature
• Operating temperature -30 to +60°C (full rated output up to 40°C)
• Humidity 95%, non-condensing
• Colour Blue (RAL 5012)
• Power terminals 16 mm² / AWG6
• Protection category IP43 (electronic components), IP22 (connection area)
• Weight 1.3 kg
• Dimensions (d x w x h) 70 x 186 x 130 mm
