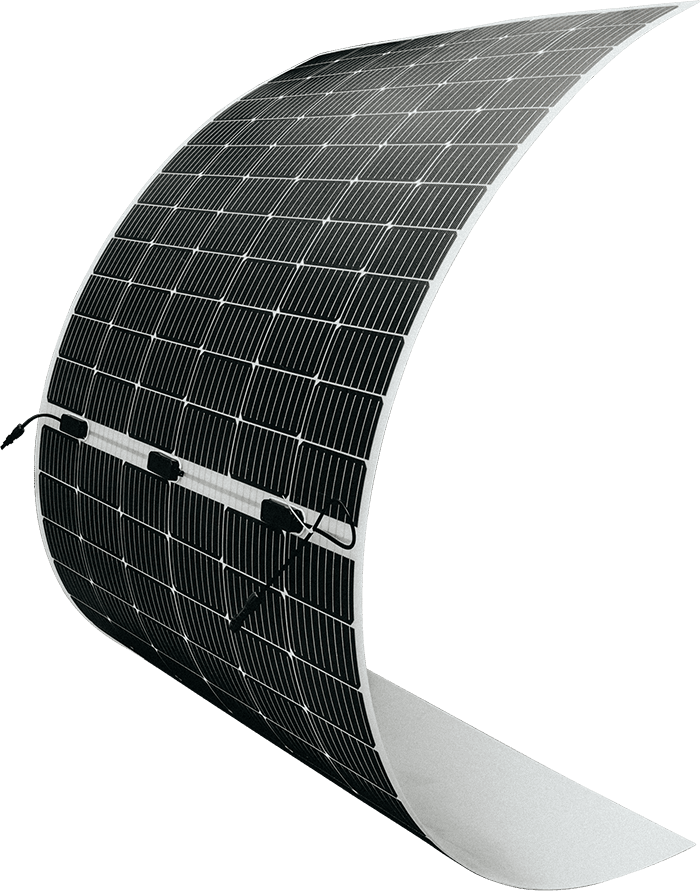

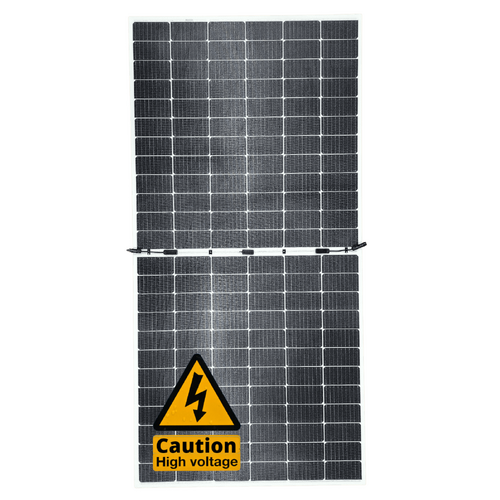

Sunman eArc 430W Flexible Slim Version Solar Panel

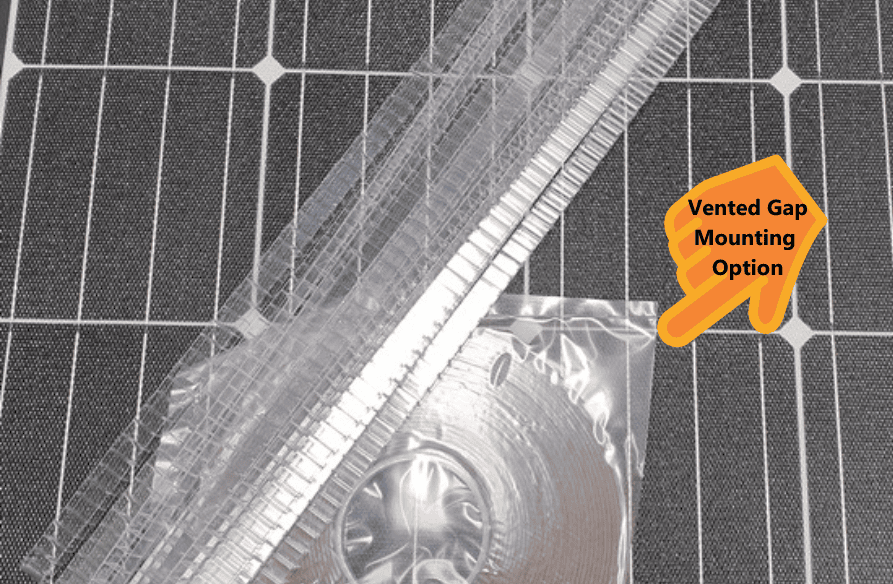

Solar 4 RVs Vented Gap Kit for 430W Panels

Please note: You will only require one of the mounting option! Please choose one of the option in the list.

Includes:

• Poly Carbonate Strips
• Roll of VHB Tape

Cable Entry Cover - 1 Gland White with 2 Cable Grommet Lightweight ABS

• IP66 waterproof when adhered with silicone
• ideal for marine and RV; roof or wall mounting
• for all cable types 6mm to 12mm in diameter
• strong UV stable
• Hides entry holes and protects against leaks
• low profile.

Includes both 1 and 2 rubber insert grommet so it can accomodate a single cable or two cables such as 4 or 6mm2 PV1-F.

Solar Cable PV1-F 6mm2 twin, thin sheath

These cables are developed according to PV1-F requirements and designed to meet the rigours of the outdoor application environment and provide long term durability and flexibility, combined with ease of installation.

• Outside diameter of each core 6mm
• Inner insulation: XLPE (Black, Red)
• Sheath insulation: XLPE (Crosslinked Polyethylene)
• Nominal voltage: U0 / U: 0,6 / 1 kV AC / max. 1.5 kV DC
• Test voltage according to EN 50395-6: 6,5 kV AC / 15 kV DC (5 min.)
• Rated current: 55 A (4.0 mm²), 70 A (6.0 mm²)
• Insulation resistance of the complete cable: ≥ 1000 MΩkm in accordance to EN 50395-8.2
• Ambient temperature:  –40°C ...+90°C
• Bending radius: Dynamic: >4 × OD

Constructed using fine stranded tinned copper conductors insulated with a temperatureresistant, halogen-free cross-linked copolymer compound and protected by an outer sheath of flame-retardant, abrasion and UV-resistant, halogen-free cross-linked co-polymer.

• Rated voltage AC 1000V, DC 1500V (max)
• Temperature range Ambient –40°C ...+90°C
• Approvals EN 50618 H1Z2Z2-K IEC 62930
• Minimum bending radius Flexing: 5 x cable diameter
• Fixed: 4 x cable diameter
• Marking Meter marked

Solar 4 RVs FixTech Black Fix8 Transparent Structural Silicone 300ml

Fix8 Black stands out as an architectural-grade, single-component, high modulus structural silicone sealant. This neutral-cure sealant boasts exceptional physical properties, making it perfect for a wide range of sealing and structural bonding tasks, particularly in glazing applications involving metal, aluminium, Corian®, most plastics, and fibreglass substrates.

Key Features:

• Primerless Adhesion: Effective on most substrates, excluding Teflon, PE, and PP.
• Exceptional UV Resistance: Ensures longevity and durability under sun exposure.
• Superior Filling Capacities: Ideal for various sealing requirements.
• Neutral Cure and Colour Fast: Maintains stability and appearance over time.
• Long-Lasting Weather Resistance: Offers up to 20 years of superior weather resistance.
• Compatibility with Other Sealants: Ensures versatile application possibilities.
• Permanently Elastic: Maintains flexibility, adapting to structural movements.
• Marine Exposure Suitability: Perfect for applications exposed to marine environments.

Diverse Applications in Construction and Transportation:
Fix8 Black is ideally suited for the installation of glass windows, sealing roof constructions, and bonding in the automotive industry. It excels in mounting and sealing window frames, bonding and sealing coachwork within the transportation industry, and attaching flexible solar panels, making it a versatile choice for professionals.

Special Remarks for Optimal Use:

• Fix8 Black is not suitable for overpainting.
• Potential discoloration with age under specific conditions.
• Chemically neutral (pH=7), ensuring safety and compatibility.
• Wide substrate applicability; however, compatibility tests are recommended due to varying substrate properties.

Choose Fix8 Black for Architectural Integrity and Performance:
Whether for glass curtain wall construction, weatherproofing applications, or structural tasks in challenging environments, Fix8 Black delivers top-tier performance and reliability. Its blend of flexibility, durability, and resistance to environmental factors positions it as a leading choice in the architectural, automotive, and transportation industries.
