Sunman eArc 430W Flexible Solar Panel
SKU: eASMF430-12X12UW Learn More»
CALCULATE SHIPPING:
Accessories List:
.png)
Description

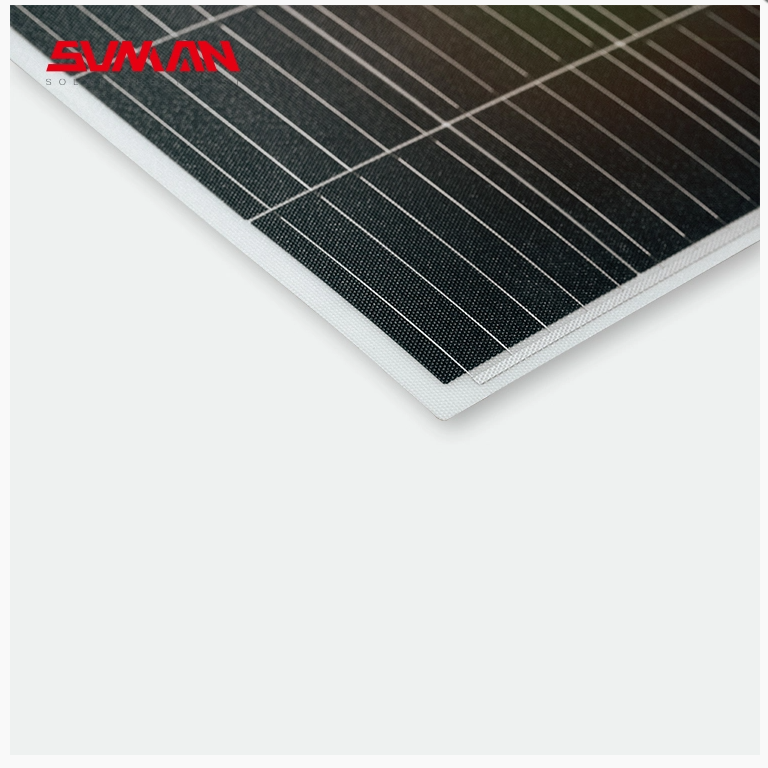

Sunman eArc 430W Flexible Solar Panel
These lightweight yet robust solar panels are perfect for caravans, motorhomes, yachts, trains, buses and other applications.
Made with a Patent Pending composite material similar to those used in airplane windows. These panels are tough enough to be approved by the Clean Energy Council for residential use yet they don't have a heavy, rigid frame or glass. Click the Features tab for more information.
Mounting Options: Please see accessories list and notes below:

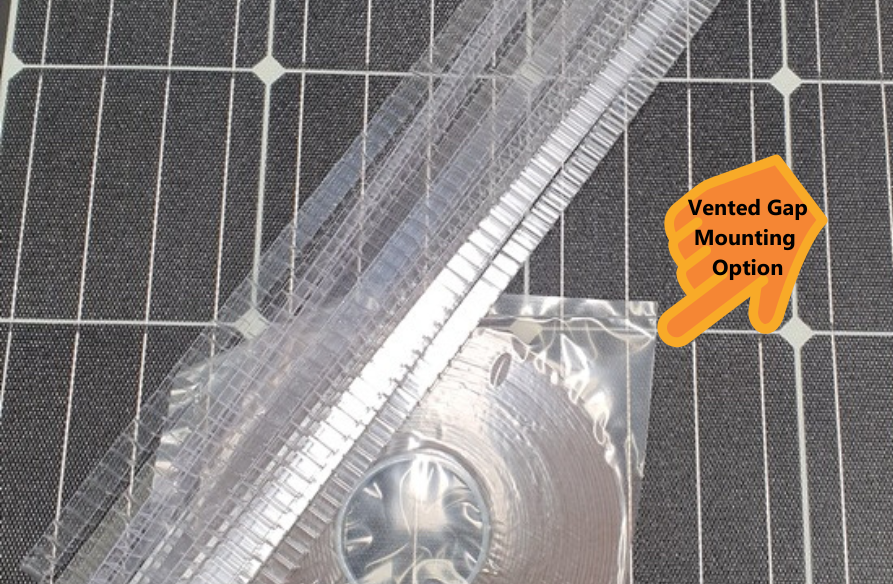

- The vented gap kit (height increase of panel by 15mm) improves panel efficiency and reduces heating of the mounting surface. This method also allows the junction box to sit underneath the panel. This includes:
- Two rolls of very high bond double sided adhesive tape
- Polycarbonate strips
Or
- A structural silicone (Fix8) can be used to adhere the panel to a surface.
- Tougher, lighter, thinner and more durable - eArche thin lightweight solar panels have a tough top layer
- Cutting edge technology - glass fibre-reinforced composite polymers similar to aircraft windows
- This reduces the coefficient of thermal expansion to a similar level as fixed panels, eliminating the main cause of cause of flexible/lightweight solar panel failures as seen in ETFE and PET panels, thermal expansion related stress causing failure of the cell to cell connections
- Light - 100W frameless is 1.8kg
- Thin - 2mm
- Tough - Hail tested with ice stones of 35mm diameter and 200g mass at 39.5m per sec
- Strong - rated 2400 pascals for wind and 2400 pascals for load
- Durable - 10 year product warranty for building and 5 years for mobile application
- 25 year exposure simulations/tests show degradation of the solar module at similar levels to fixed panels
- Output - Efficient monocrystalline cells, 25 year performance guarantee
- The only lightweight solar panel composition with Clean Energy Council (CEC) Accreditation
NOTE: Although the panel has a thin frame around the edge, the panel is flexible and requires supports at least every 156mm (every cell gap)
Specifications:
- Wattage: 430
- Max Power Voltage Vm(V): 42 Vmp
- Max Power Current Im(A): 10.24 Imp
- Open Circuit Voltage Voc(V): 49.8
- Short Circuit Current Isc(A): 10.74
- Max System Voltage (VDC): 1000 V DC (IEC)
- Operating Temperature Range: -40 ℃ to 85 ℃
- Cell Type: Monocrystalline silicon (158.75mm)
- Backsheet Colour: White
- Junction Box: IP 68 rated
- Output Cables: Photovoltaic technology cable 4.0 mm 2 , (+)150 / (-)450 mm
- Connector: MC4 compatible
- Dimensions: 2054mm x 1080mm x 2mm
- Weight: 7.3kg

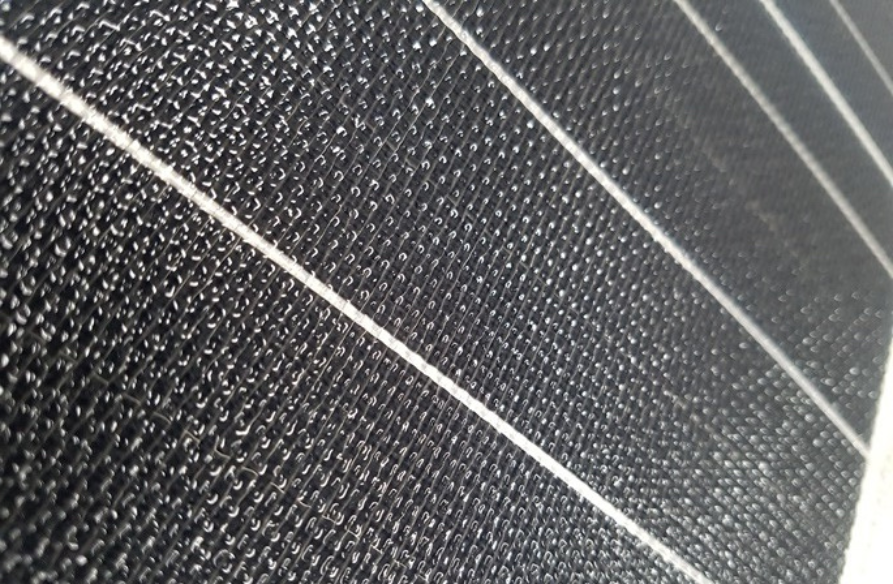

PLEASE NOTE: Swirl lines may be visible on the front-sheet when viewed in person. These slight indent lines are a natural result of the manufacturing process, specifically how the rollers apply materials, and are present on all eArc models.
.png)
Specifications
SKU eASMF430-12X12UW
Brand Sunman
Product Category Solar Panels
Watts (W) 430
Solar Panel Cell Type Monocrystalline
Solar Panel Type Flexible Solar Panels
-Weight 7.3 Kg
Dimensions 2054mm x 1080mm x 2mm
NOTE: see full product specifications & further product info in the Description section on this page.
Reviews
Sunman EARC 430 watt
By: Tony on5 February 2024
Great product. Only downside is crap wiring cover strips. Make Sue they are fastened down. I used cable ties.
Solar Power
By: Al Duncan on26 June 2022
Great solar panel, light weight and tough. Purchased the 430w panel as it was the right size to fit on the rooftop tent (like it was made for it). It charges the 340 Ah battery in no time.
Warranty
Warranty Period: 10 Years
Warranty Details: Please CLICK HERE for Warranty Information on this product
