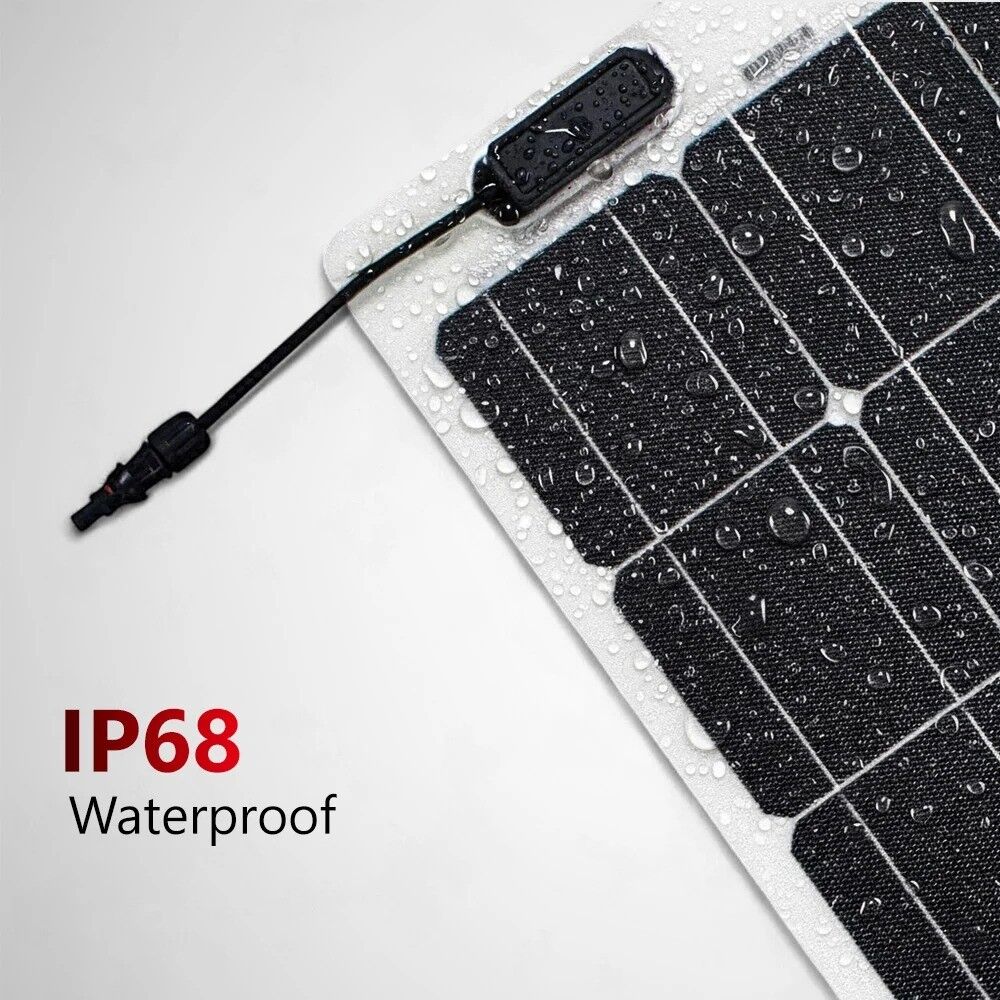

Sunman eArc 430W Flexible Solar Panel - with Butyl Tape
SKU: eASMF430-12X12UW-BT Learn More»
CALCULATE SHIPPING:
Accessories List:
Description

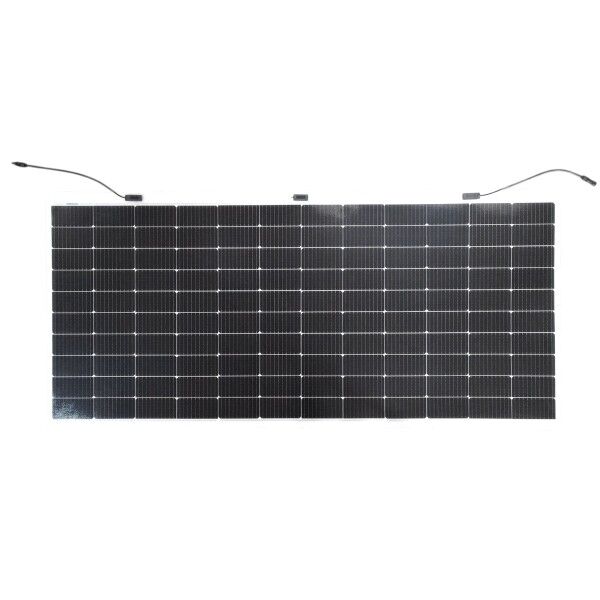

Sunman eArc 430W Flexible Solar Panel - with Butyl Tape

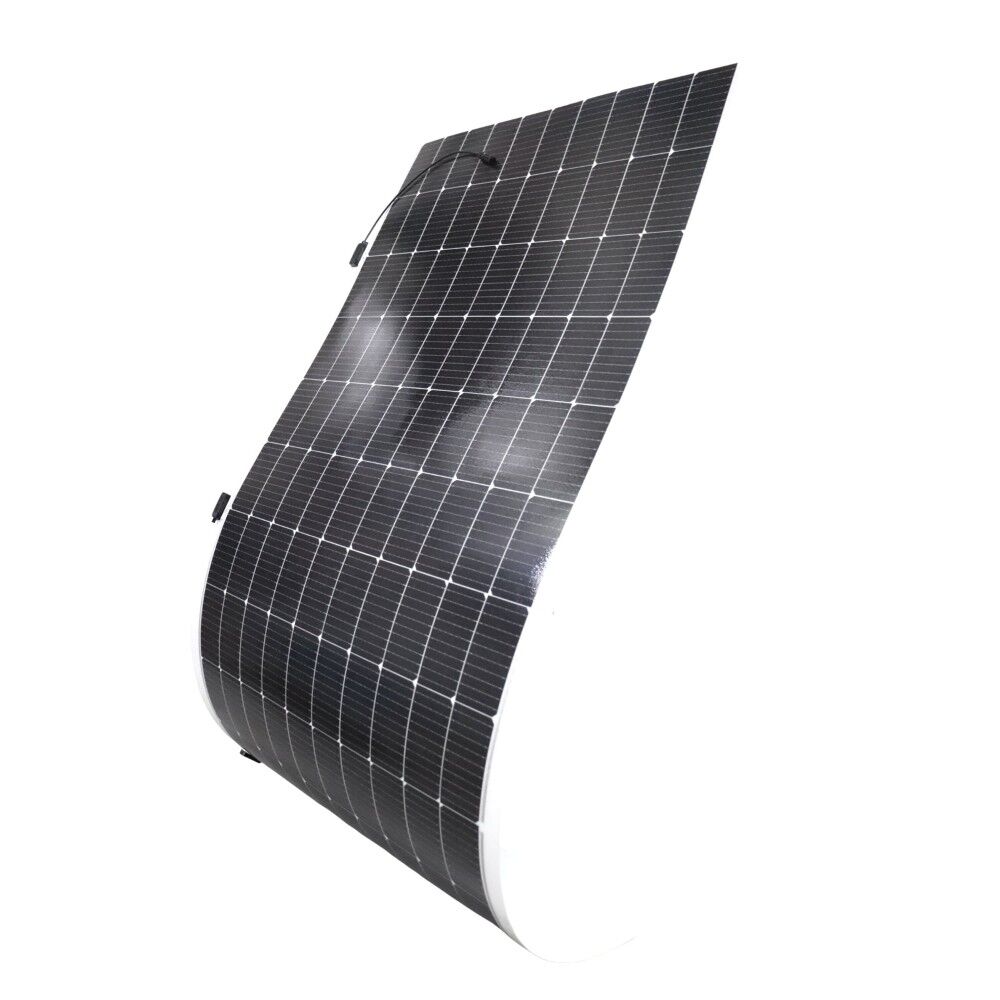

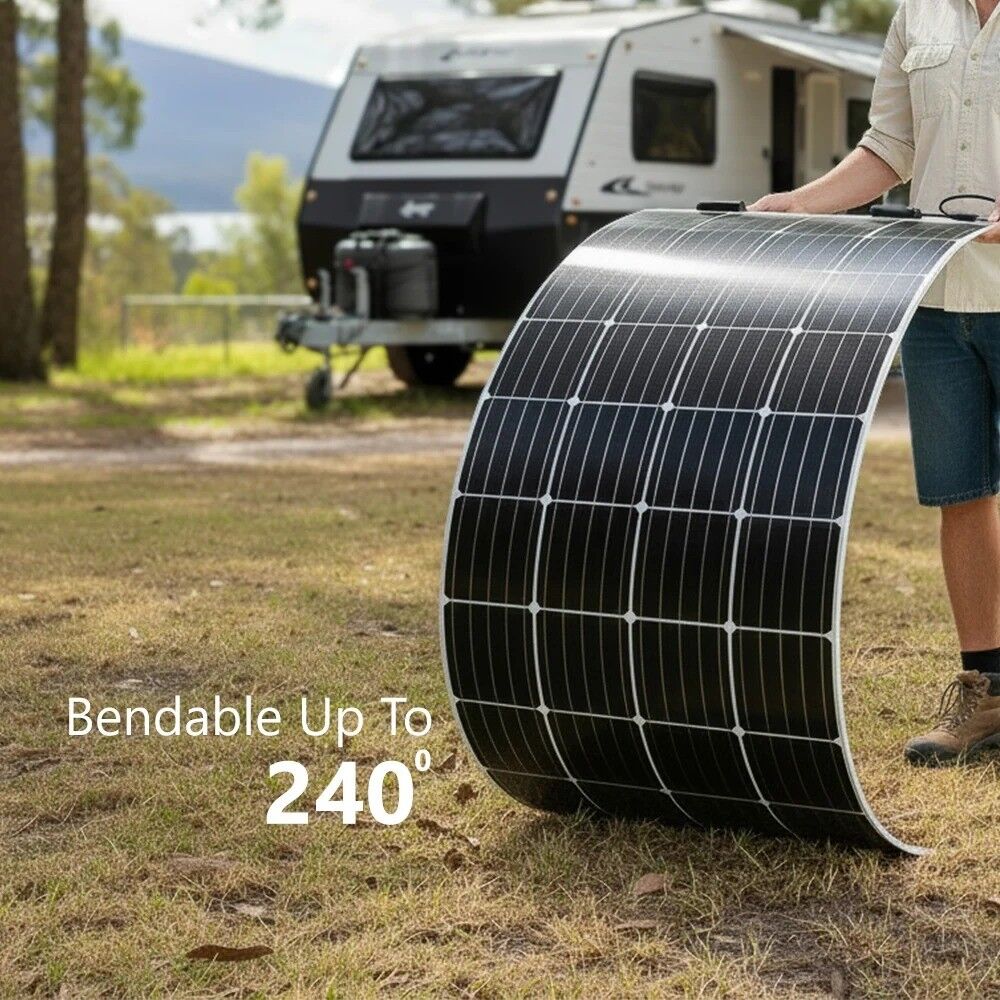

These lightweight yet robust solar panels are perfect for caravans, motorhomes, yachts, trains, buses and other applications. Panels include factory fitted butyl tape.
Made with a Patent Pending composite material similar to those used in airplane windows. These panels are tough enough to be approved by the Clean Energy Council for residential use yet they don't have a heavy, rigid frame or glass. Click the Features tab for more information.
Mounting Options:
- Installation via very high bond double sided adhesive tape provides a low profile secure bond. This is preinstalled on the back of the panel ready for fitment
eArc are the only lightweight solar panels approved for grid connect on buildings which means they have passed the same testing criteria as traditional solar panels.
- Tougher, lighter, thinner and more durable - eArche thin lightweight solar panels have a tough top layer
- Cutting edge technology - glass fibre-reinforced composite polymers similar to aircraft windows
- This reduces the coefficient of thermal expansion to a similar level as fixed panels, eliminating the main cause of cause of flexible/lightweight solar panel failures as seen in ETFE and PET panels, thermal expansion related stress causing failure of the cell to cell connections
- Light - 100W frameless is 1.8kg

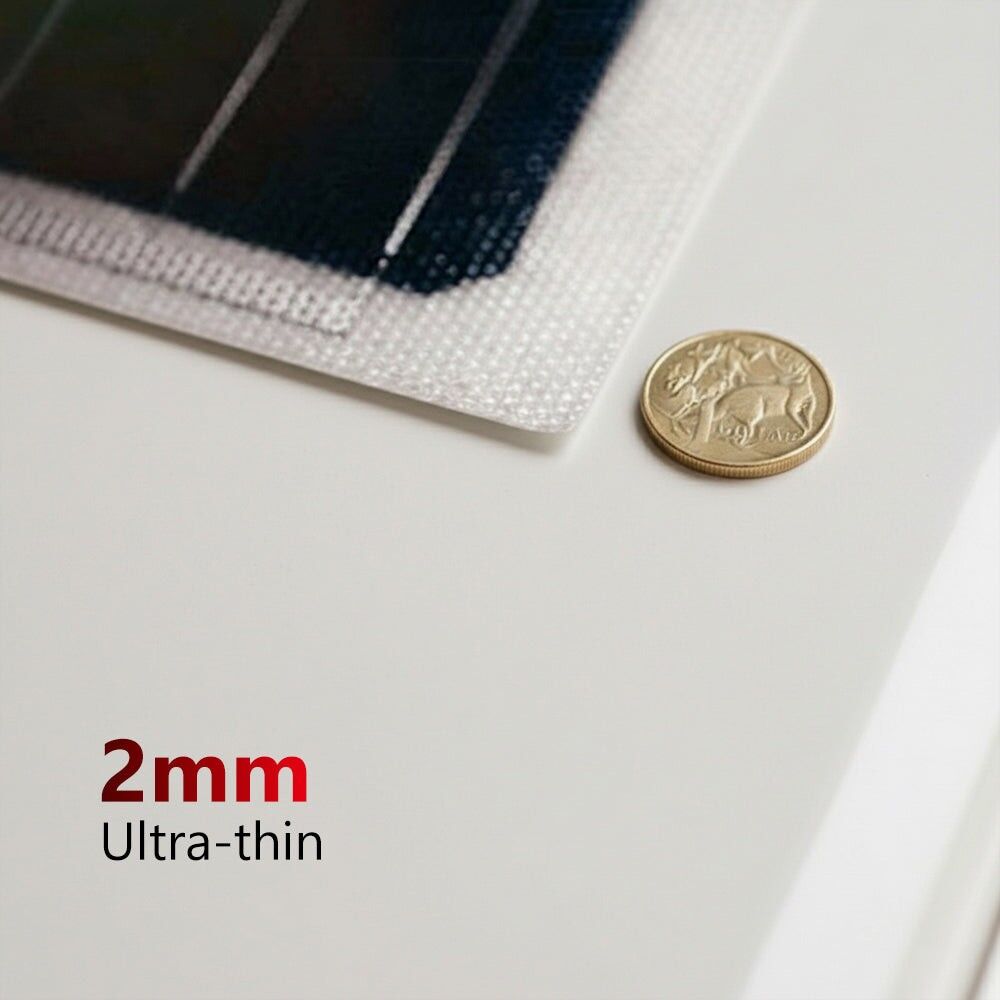

- Thin - 2mm
- Tough - Hail tested with ice stones of 35mm diameter and 200g mass at 39.5m per sec
- Strong - rated 2400 pascals for wind and 2400 pascals for load
- Durable - 10 year product warranty for building and 5 years for mobile application
- 25 year exposure simulations/tests show degradation of the solar module at similar levels to fixed panels
- Output - Efficient monocrystalline cells, 25 year performance guarantee
- The only lightweight solar panel composition with Clean Energy Council (CEC) Accreditation
NOTE: Although the panel has a thin frame around the edge, the panel is flexible and requires supports at least every 156mm (every cell gap)
Specifications:

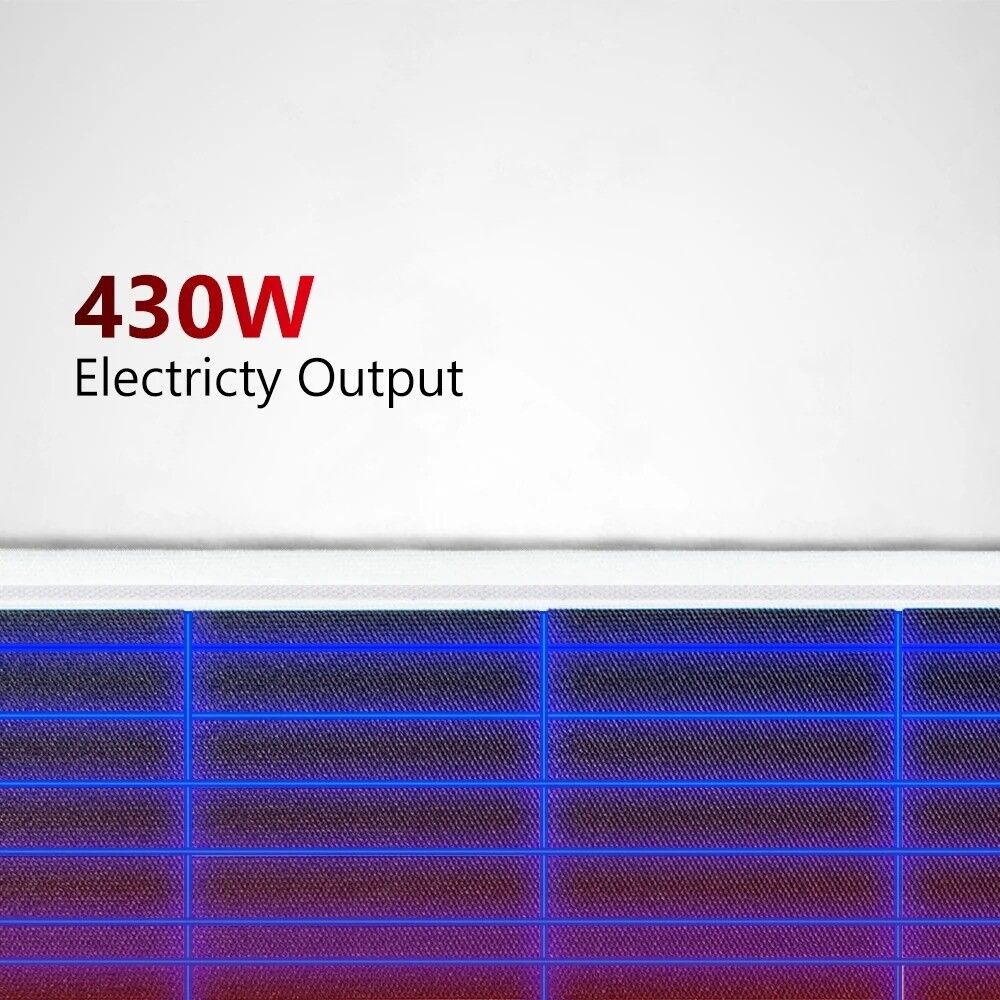

- Wattage: 430
- Max Power Voltage Vm(V): 42 Vmp
- Max Power Current Im(A): 10.24 Imp
- Open Circuit Voltage Voc(V): 49.8
- Short Circuit Current Isc(A): 10.74
- Max System Voltage (VDC): 1000 V DC (IEC)
- Operating Temperature Range: -40 ℃ to 85 ℃
- Cell Type: Monocrystalline silicon (158.75mm)

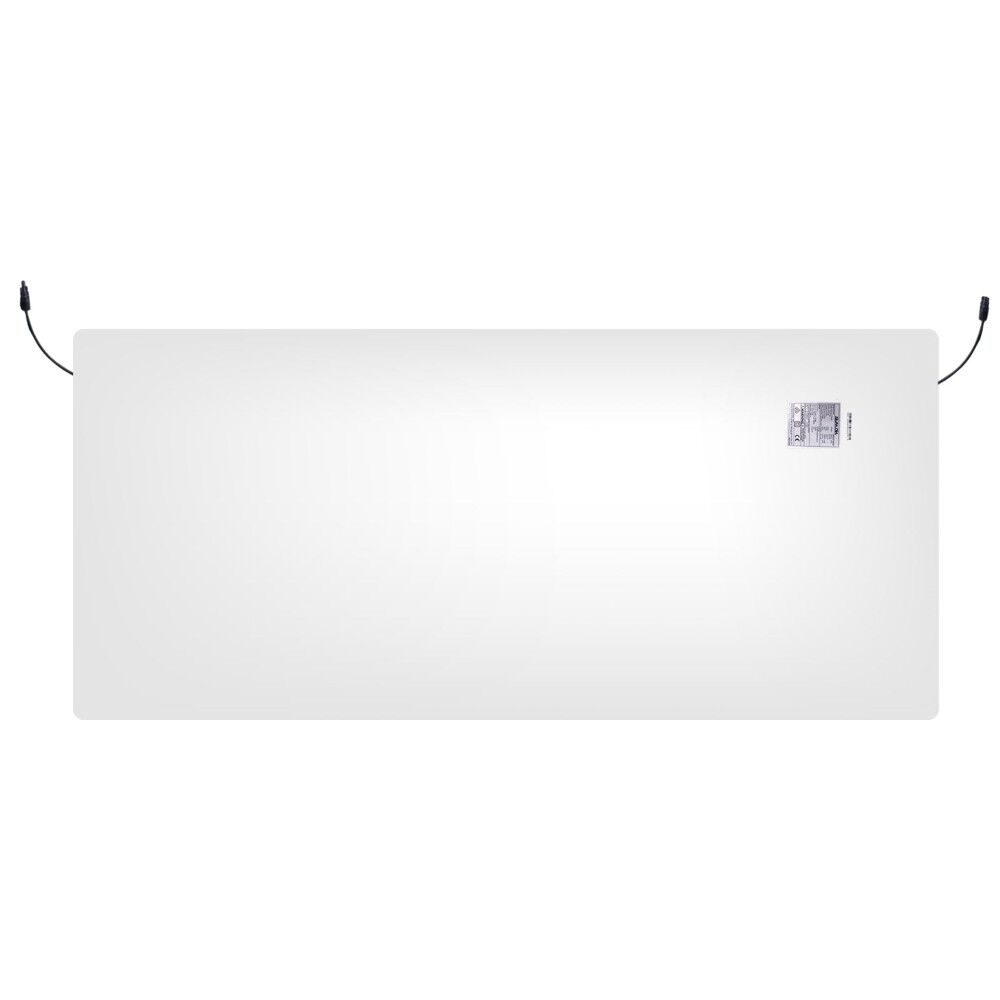

- Backsheet Colour: White
- Output Cables: Photovoltaic technology cable 4.0 mm 2 , (+)150 / (-)450 mm
- Connector: MC4 compatible
- Dimensions: 2054mm x 1080mm x 2mm
- Weight: 7.3kg
.png)
Specifications
SKU eASMF430-12X12UW-BT
Brand Sunman
Product Category Solar Panels
Watts (W) 430
Solar Panel Cell Type Monocrystalline
Solar Panel Type Flexible Solar Panels
-Weight 7.3 Kg
Dimensions 2054mm x 1080mm x 2mm
NOTE: see full product specifications & further product info in the Description section on this page.
Reviews
Sunman eArc 430 watt flexible solar panel
By: Robin Young on24 February 2023
Having had smaller wattage solar panels on my slide on camper 200w I found that it didn’t keep my batteries charged enough to keep the fridge and other equipment going for more than two days. This new panel is much larger and with new wiring (6mm) and a smart solar MPPT charge controller my system now keeps everything running as it charges both batteries even when I am in part shade. Don’t have to worry about running out of power anymore. Great unit.
