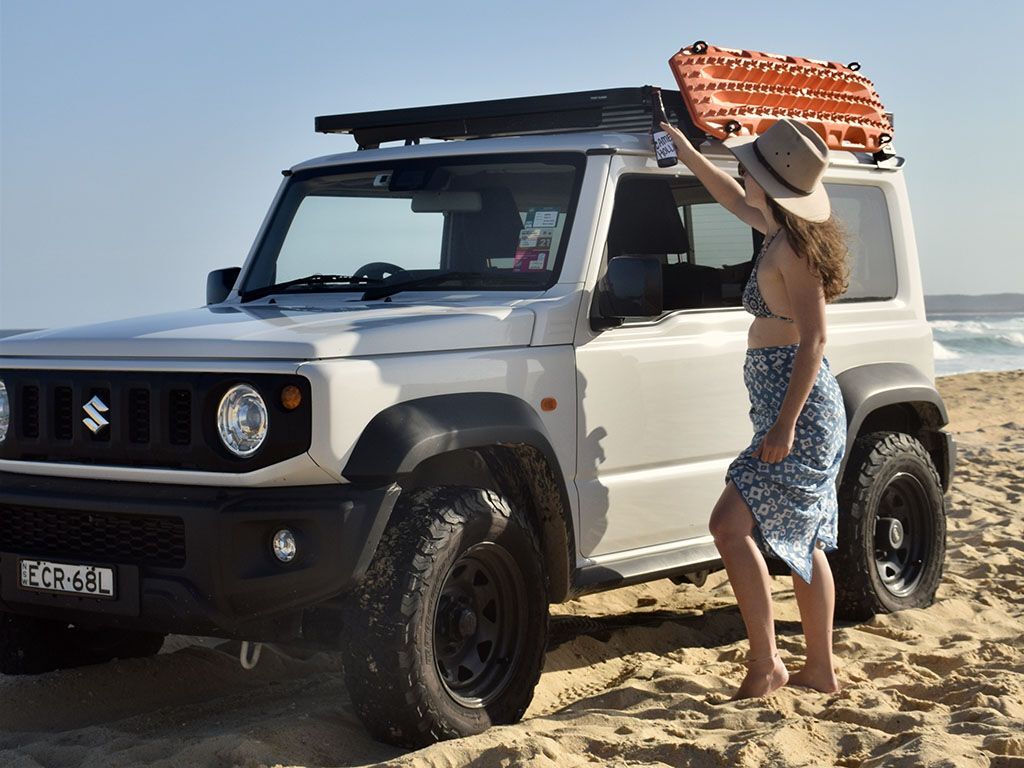

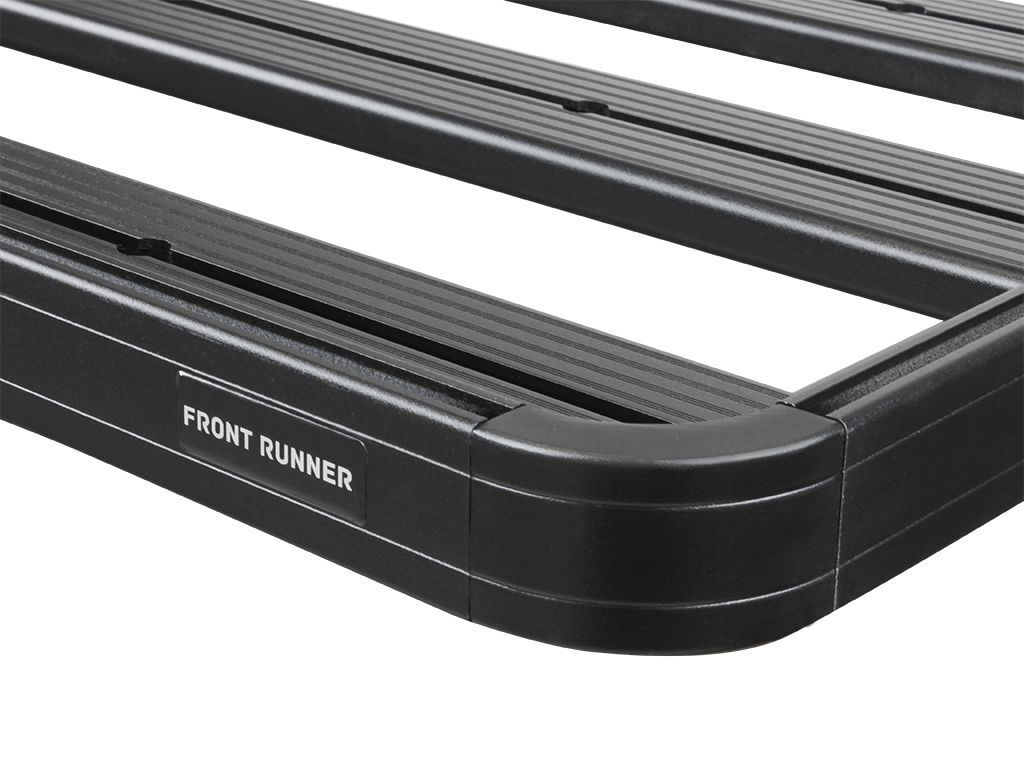

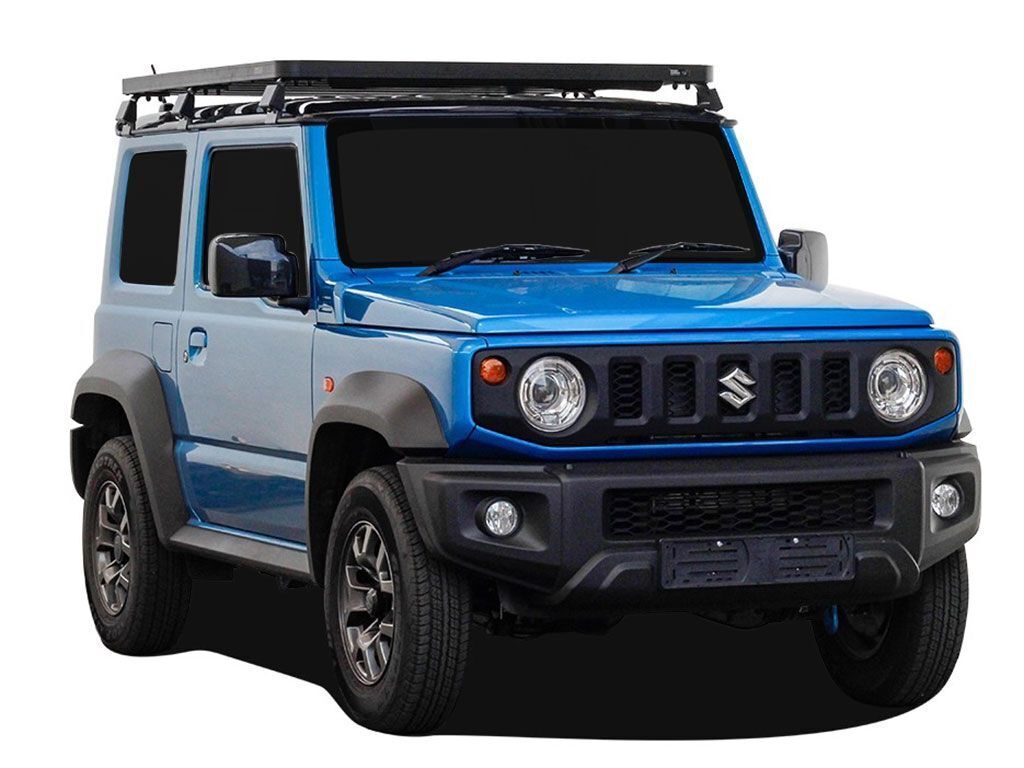

Suzuki Jimny (2018-Current) Slimline II Roof Rack / Tall - by Front Runner

Ratcheting Spade/Shovel & Paddle Mount - by Front Runner

• Mount a spade/shovel or similar gear up and out of the way on the side of a Front Runner Roof Rack.
• These brackets install along the Slimline II Roof Rack Tray side rails in minutes. No drilling required.
• Can accommodate most shovel sizes and is adjustable to fit gear 1/2" (12mm) to 2" (50mm) in diameter

Consists of:

• 2x Spade/Shovel Bracket
• 2x Ratchet buckle
• 2x Ladder Strap
• 1x Nut and bolt kit

Specifications:

• Materials used: 1.8mm (0.07") Black powder coated 3CR12 stainless steel.
• Product Dimensions: L 120mm (4.72") x W 90mm (3.54") x H 65mm (2.55")
• Weight : 0.6kg (1.322lbs)

Recovery Device & Gear Holding Side Brackets - by Front Runner

• These off-road tough brackets securely mount MAXTRAX, TRED Pro and other similar hole spacing recovery devices to the side profile of a Front Runner Slimline II Rack.
• Also use for mounting the Pro Ski, Snowboard & Fishing Rod Carrier .
• Adjustable in height and angle to compliment various vehicle profiles.
• Includes 2 types of bolts for holding either 1 or 2 pairs of MAXTRAX/TRED Pro.
• Built to mount to the side profiles of a Slimline II roof rack but are also compatible with the original Slimline rack.
• Finished with the same durable, weather resistant black powder coating as the Slimline II Rack.
• The included bolts can be substituted with the MAXTRAX Mounting Pin Set (sold separately) to lock MAXTRAX in place.

NOTE: Pro Ski, Snowboard & Fishing Rod Carrier not included.

Consists of:

• 2 x Adjustable Brackets
• Installation Hardware
• Fitting Instructions

Specifications:

• Materials used:
  • Black powder coated 3CR12 stainless steel
  • Stainless steel fasteners
• Product Dimensions: 313mm (12.3") L x 65mm (2.6") W x 178mm (7") H (Per Single Bracket)
• Between Stud Mounting Dimensions:
  • 230mm Inner hole centers
  • 270mm Outer hole centers
• Weight: 4.4kg (9.7lbs) (Per Pair)

Adjustable Rack Cargo Chocks - by Front Runner

• These chocks wedge against and secure the corners or sides of your gear to prevent movement and rattling.
• Adjustable along the slats to resize and fit a variety of gear like the Wolf Pack, Cub Pack, Typhoon Bag, Expander Camping Chair, and water tanks.
• Secures to your rack using Eye Nuts and supplied hardware.
• Eye Nuts create lashing points to secure cargo using Stratchits*

*Note: Purchase Wolf Packs, Cub Packs, Stratchits etc. separately.

Consists of:

• 4 x Rack Cargo Chocks
• 4 x Eye Nuts
• Installation Hardware
• Fitting Instructions

Specifications:

• Materials used: Black powder coated 3CR12 stainless steel
• Product Dimensions: 100mm (3.9") L x 82mm (3.2") W x 42mm (1.7") H (Per Bracket)
• Weight: 1.04kg (Per Set of 4)

Gas/Propane Bottle Holder - by Front Runner

• Perfect for portable cooking stoves, geyser/water heaters, heaters and lamps.
• Rack brackets securely hold your gas/propane bottle on your rack.
• 2 latches feature a safety catch to prevent any movement and are lockable with a for added safety.
• The removable collar is placed over the cylinder valve collar and latched on the rack brackets.
• The collar rods are adjustable to suit various bottle heights.

Consists of:

• 1 x Pair of Rack Brackets
• 1 x LPG Cylinder Bracket
• Installation Hardware
• Fitting Instruction

Materials used:

• Black powder coated 3CR12 stainless steel
• Stainless steel safety latches

Special Notes:

• Cylinder dimension guidelines:
• Max Cylinder Height: 12.6" (320mm)
• Max Cylinder Diameter: 11" (280mm)
• Max Top Collar Diameter: 6.7" (170mm)
• Max Weight: 22lb (10kg)

Single Jerry Can Holder - by Front Runner

• The adjustable stainless steel latch with safety catch holds your Jerry Can firmly in place over a lifetime of off-road abuse.
• For use with 20l / 5.3 gallon NATO/Wedco style military cans.
• This strap covers the Jerry can cap. Add your own padlock or Rack Accessory Lock / Small and you'll never have to worry about stolen fuel while on the road.
• Made of black powder coated stainless steel and designed to easily bolt to the Front Runner Roof Racks using the flat slotted slats in the rack.

Note: Not suitable for Scepter style containers.

Consists of:

• 1 x Strap Assembly
• 1 x Base
• 1 x Catch
• Installation Hardware
• Fitting Instructions

Specifications:

• Materials used: Black powder coated 3CR12 stainless steel
• Product Dimensions: 513mm (20.2") L x 165mm (6.5") W x 370mm (14.6") H
• Weight: 2.4kg (5.3lbs)

Rack Accessory Lock / Small - by Front Runner

• No keys needed.
• Easily set your own combo.
• Locks Front Runner Rack accessories for holding gear like Tables, Water Tanks, Hi-Lift Jacks, Axes, Wolf Packs and more.
• Works with Hi-Lift Jack Bracket, Water Tank Locking Tap, Axe Bracket, Cub Pack Rack Bracket , Wolf Pack Rack Bracket, Lockable Strap For Water Cap / 42L.
• Stainless steel rubber coated cable and corrosion resistant tumbler for years of worry-free security.

*Note: Rack accessories are sold separately.

Consists of: 1 x 3-Digit Combination Cable Lock

Specifications:

• Materials used:
  • Casing: Zinc Alloy
  • Inner Core: Zinc Alloy
  • Cable: Stainless steel wire with PVC coating
• Product Dimensions: 87mm (3.4") L x 30mm (1.2") W x 39mm (1.5") H
• Cable Length: 100mm (3.9")
• Cable Width: 2.8mm (0.1")
• Weight: 30g (17oz)

Spare Wheel Clamp / Low Profile - by Front Runner

This Front Runner Spare Wheel Clamp is designed to hold your spare wheel to a Front Runner Roof Rack or Front Runner Load Bar set.

Mounts across 2 slats and can handle mostly any size wheel.

Specifically mounts a raised dish rim with the hollow side facing up.

Tightens down to the back side of the wheel to protect your wheel finish, and can accommodate even the deepest offsets.

Consists of:

• 1x Rack Bracket
• 1x Clamp Bracket
• 1x Mounting Hardware

Specifications:

• Materials used: Black powder-coated 3CR12 stainless steel
• Product Dimensions: 263mm (10.4") L x 55mm (2.2") W x 242mm (9.5") H
• Weight: 1.5kg (3.3lbs)

Pro Stainless Steel Camp Table Kit - by Front Runner

A complete camp table and table storing solution. Effortlessly take a previously cumbersome luxury item on any vehicle based adventure.

Pro Stainless Steel Camp Table - by Front Runner:

• The extruded aluminum frame nests into the storage brackets and is secured with the table latch eliminating any excessive noise.
• A durable stainless steel table top ensures a hygienic surface for the preparation and serving of meals.
• The table frame and legs are powder-coated black with the same durable, corrosion resistant coating as the Front Runner Slimline II Roof Rack.
• The Legs easily unfold and with the open-and-lock mechanism are kept firmly in place.
• Rounded glass filled nylon corners prevent any accidental knicks or damage and provide a grip point when removing the table from under your roof rack.

Under-Rack Table Brackets - by Front Runner:

• A no-noise and secure storage solution designed specifically for the Pro Stainless Steel Camp Table.
• The brackets can be mounted both parallel and perpendicular to the roof rack's slats giving the options to access to the table from the side or rear of the vehicle.
• Easy installation.
• Made of 3CR12 stainless steel and is black powder-coated in the same durable and corrosion resistant coating as the Front Runner Slimline II roof rack.

Under-Rack Table Slides Latch - by Front Runner:

• Keeps the Pro Stainless Steel Camp Table securely stored in the Under-Rack Table Brackets - by Front Runner.
• Secured to the top of the Slimline II roof rack using the T-slot and clamps over the lip of the table to keep it in place.
• A rubber insert prevents rattling and damage to the table.
• Spring loaded for ease of use.
• Lockable for added security.
• Made of 3CR12 stainless steel and is black powder-coated in the same durable and corrosion resistant coating as the Front Runner Slimline II roof rack.

NOTE: A min clearance of 65mm (2.5") between the underside of the rack and the crown of the roof is required for fitment of a Front Runner Table Kit.

Consists of:

• 1 x Table
• 1 x Storage Slides
• 1 x Latch

Table:

• Materials used: Black powder coated Aluminium, 3CR12 1.2mm Stainless Steel
• Product Dimensions:
  • 750mm (29.5") W x 1130mm (44.5") L x 32mm (1.3") H
  • Height when opened: 730mm (28.7")
• Weight:  11.82kg (26.1lbs)

Table Slide:

• Materials used: Black powder coated 3CR12 Stainless Steel
• Product Dimensions: 881mm (34.7") L x 187mm (7.4") W x 46mm (1.8") H
• Weight: 2.4kg (5.3lbs)

Table Latch:

• Materials used:
  • Black powder coated 3CR12 Stainless Steel
  • PVC Grommet
• Product Dimensions: 91mm (3.6") L x 51.7mm (2") W x 47mm (1.9") H
• Weight: 191g (6.7oz)
• Full Kit Dimensions: 1130mm (44.5") L x 775mm (30.5") W x 55mm (2.2") H
• Full Kit Weight: 15.2kg (33.5lbs)

TABLE CARE:

• Keep your table clean and sparkling with these easy care instructions.
• Add a small amount of dish soap to a damp soft cloth.
• Wipe the table along the grain of your tabletop.
• Dry excess moisture with a dry towel.
• Quickly add polish by dabbing on a small amount of mineral or
• baby oil, wiping with the grain of the stainless steel.

Tap Extension Bracket - by Front Runner

• Installs to the side profile of your Slimline II roof rack.
• Swings out 90 degrees from the side of the rack, allowing your water tap to clear the side of your vehicle.
• The spring pin locks the extension bracket in a closed or opened position.
• Features a shower head holder.
• Used best with Hose Kit For Tap Extension Bracket .

Consists of:

• 1 x Tap Extension Bracket
• Installation Hardware
• Fitting Instructions

Specifications:

• Materials used: Black powder coated 3CR12 stainless steel
• Product Dimensions: 315mm (12.4") L x 187mm (7.4") W x 73mm (2.9") H
• Weight: 1.3kg (2.9lbs)

Stratchits - by Front Runner

Cinch down loads simply and effectively so you don't have to worry about gear rattling loose on bumpy roads.

• Adjustable from 22” (560mm) to 63” (1524mm) and with an additional 8” (203mm) when fully stretched.
• Won’t damage your expensive gear like surfboards through over tightening.
• Stratchits absorb tension like a stretchy ratchet strap.
• Quick and efficient. Simply secure the ends and hand tighten the strap.
• Fastens to, and around, just about anything.
• Perfect for Front Runner Racks and accessories, but work with all roof rack systems.
• Many uses! Secure: Wolf Pack, Cub Pack and other cases (Pelican, Zargas, Alu-box, etc.) to any roof rack.
• Secure: Surfboards, SUP, bicycles, firewood, chairs, etc.
• Keep your rack clean and organized with the cinching hook and loop strap that neatly stows away excess strap length.
• Sold in pairs.

HOW TO USE:
Hook to the Front Runner Roof Rack Tie Down Ring or loop around the slats or side profiles and fasten the Stratchit to itself.

You can even remove the carabiner and loop the Stratchit through itself - to fasten around any roof rack rail, railing, pole, bumper, tire carrier.... etc.

WARNINGS:

• Please read and follow all these warnings carefully -- failure to do so could result in cargo damage and could cause injury.
• Do not over tighten. Use only hand leverage.
• Never stand in the direct path of the Stratchit when tensioning to prevent the risk of injury should the strap become detached.
• Loads settle. Check Stratchit after first 10 miles of driving and each 50 miles thereafter.
• User to evaluate working load and requirements. DO NOT use to support human weight under any circumstance.
• Check the Stratchit regularly for signs of deterioration or damage.
• To ensure longevity, please remove the Stratchit from the sun and weather elements when not in use.
• Make sure that the points of attachment to the vehicle or trailer are of sufficient strength to withstand the maximum loading that will be produced during use.
• Take additional care if securing large objects that may be subject to aerodynamic lifting forces caused by bumps. Always use the appropriate number of straps and drive at reduced speeds to minimize the effects of these forces.

Specifications:

• Sold in PAIRS
• Adjustable from 22" (560mm) to 63" (1524mm) from the hook end of the carabiners. With up to an additional 8” of length when stretched.
• Working Load Rating 220 lbs (100kg)

Wolf Pack Pro - by Front Runner

These plastic, workable sized storage boxes are easy to arrange in a cargo bed and vertical-sided to avoid wasted space. They stack securely for convenient storage in your vehicle thanks to the lids fitting neatly into the base of the box above it.

• Made from black, impact-resistant plastic.
• Features new extra-secure latches sealing the Wolf Pack Pro from water and dust.
• IP66 rated.
• Integrated grips for easy carrying.
• Versatile. Use in the cargo bed, truck/boot, or on your roof rack.
• Suitable for exterior storage.
• Wolf Pack Pros form the heart of many Front Runner storage systems. The Front Runner Transit Bags hold 2-3 Wolf Pack Pros depending on Transit Bag size and Wolf Pack configuration. Front Runner Wolf Pack Drawer Systems provide a comprehensive and practical vehicle storage solutions.
• For a padded storage solution, line the Wolf Pack Pro with a Flat Pack to protect camera gear, kitchenware and other fragile items.
• Use in conjunction with Stratchits as well as Black Tie Down Rings / Eye Nuts for a safe and secure roof rack storage solution.
• Wolf Pack Pro are not stackable with Wolf Pack.

Consists of:

• 1x Wolf Pack Pro

Specifications:

• Materials used: High density polyethylene black plastic
• Product Dimensions:
  • External Dimensions: 510mm (20.1") L x 400mm (15.7") W x 230mm (9.1") H
  • Internal Dimensions: 445mm (17.5") L x 335mm (13.2") W x 203mm (8") H
• Weight: 3.65kg (8.1lbs)

Spare Tire Mount Braai/BBQ Grate - by Front Runner

This ingenious, stainless steel cooking grate, stores over your spare wheel and takes up virtually no space.

• Laser cut 3CR12 stainless steel grill on aluminum legs.
• Grill and griddle sections for campfire cooking options.
• Hooks over a spare wheel (secure with Spare Wheel Step, Strap Ratchet 4M Endless or wheel cover - not included).
• Fits 29” to 35” tyres (740mm to 890mm).

Please Note: This Spare Tire Mount Braai/BBQ Grate is designed to be used for cooking purposes over coals and not used over high flames.

Specifications:

• Material used:
  • Grill: Laser-cut 3CR12 stainless steel
  • Legs and spacers: Die Cast Aluminium
• Overall Set-up Dimensions: 210mm (8.5") H x 790mm (31.1") to 950mm (37.4") in Diameter
• Grill top Diameter / Cooking Surface: 600mm (23.6") Diameter
• Fits: 29" to 35" tyres
• Weight: 4.5kg (9.9lbs)

Quick Release Awning Mount Kit - by Front Runner

• Once these brackets are installed on a Front Runner Rack, no additional tools are needed to remove or refit the awning.
• Simply release the 2 latches and lift the awning away in seconds.
• No more wrenching in tight spaces during the “off-season” or time-consuming weekday removal of the awning.
• This strong and "rattle-free" mounting system is built off-road tough for use with Front Runner Racks.
• Works with all Front Runner Awnings and other popular awning brands like Eezi-Awn, Oz Tent, etc.
• 2 low profile base brackets are bolted to a Front Runner Rack while 2 self-aligning bushes are secured to the awnings mounting channel using the supplied fasteners.
• Safely secured in place using 2 latches with built-in safety catch. For added peace of mind, lock your latches in place using Rack Accessory Lock / Small.
• The brackets are small, unobtrusive and can be left on the roof rack when the awning is not mounted.
• No awning modification required.
• Removed awnings can be stored using the wall mount brackets supplied.
• Supplied with all required mounting hardware.
• Fitting instructions are included.
• Weight limit: 20kg (44.1lbs).

Note: Not suitable for 270 degree awnings.

Consists of:

• 1 x Pair of Quick Release Awning Brackets
• Installation Hardware
• Fitting Instructions

Specifications:

• Materials used:
  • Black powder coated Steel
• Product Dimensions: (Per assembled bracket): 161.5mm(6.4") L x 103mm (4.1") W x 100mm (3.9") H
• Weight: 2kg (4.4lbs)
• Weight Limit: 20kg (44.1lbs)

Stratchit Shorties - by Front Runner

• Cinch down loads simply and effectively so you don't have to worry about gear rattling loose on bumpy roads.
• Stratchit Shorties absorb tension like a stretchy ratchet strap.
• Stratchit Shorties are adjustable from 470mm / 18.5" in length to 1017mm / 40" in length.
• Quick and efficient. Simply secure the ends and hand tighten the strap.
• Fastens to, and around, just about anything.
• Perfect for Front Runner Racks and accessories, but work with all roof rack systems.

Many uses! Secure: Wolf Pack, Cub Pack and other cases (Pelican, Zargas, Alu-box, etc.) to any roof rack.

Secure: Surfboards, SUP, bicycles, firewood, chairs, etc.

Keep your luggage secure inside the vehicle. Scrunch up your sleeping bags extra tight.

Sold in pairs.

HOW TO USE:
Hook to the Front Runner Roof Rack Tie Down Ring or loop around the slats or side profiles and fasten the Stratchit Shortie to itself.

You can even remove the carabiner and loop the Stratchit Shortie through itself - to fasten around any roof rack rail, railing, pole, bumper, tire carrier.... etc.

WARNINGS:
Please read and follow all these warnings carefully -- failure to do so could result in cargo damage and could cause injury.

Do not over tighten. Use only hand leverage.

Never stand in the direct path of the Stratchit Shortie when tensioning to prevent the risk of injury should the strap become detached.

Loads settle. Check Stratchit Shortie after first 10 miles of driving and each 50 miles thereafter.

User to evaluate working load and requirements. DO NOT use to support human weight under any circumstance.

Check the Stratchit Shortie regularly for signs of deterioration or damage.

To ensure longevity, please remove the Stratchit Shorties from the sun and weather elements when not in use.

Make sure that the points of attachment to the vehicle or trailer are of sufficient strength to withstand the maximum loading that will be produced during use.

Take additional care if securing large objects that may be subject to aerodynamic lifting forces caused by bumps. Always use the appropriate number of straps and drive at reduced speeds to minimize the effects of these forces.

Consists of:

• 2 x Stratchit Shorties

Specifications:

• Materials used:
  • Polyester webbing
  • Latex Bungee
  • 7mm Stainless Steel Carabiner
• Product Dimensions: Adjustable from 470mm (18.5") L to 1017mm (40”) L x 25mm (1.0") W
• Weight:
  • 185g (6.5oz) each
  • 370g (13 oz) per pair
• Working Load Rating: 220 lbs (100kg)

Wolf Pack Pro Rack Mounting Bracket / MKII - by Front Runner

Mount or remove your Wolf Pack Pros in seconds with these Wolf Pack Pro Rack Mounting Brackets. These durable brackets will hold your storage bin securely in place through any terrain and are designed to work with Front Runner Roof Racks. They are lockable and offer versatile placement anywhere on your roof rack.

Features:

• Secures and holds the Wolf Pack Pro firmly in place on top of your rack.
• Can be used with the Wolf Pack Pro Hi-Lid.
• The versatile placement allows the Wolf Pack Pro to be secured either length or crossways on the rack.
• Effortlessly access the Wolf Pack Pro by easily releasing the quick-release latch.
• The bracket can be locked with a padlock or Rack Accessory Lock / Small (not included) for extra security and peace of mind.
• Can be used together with Adjustable Rack Cargo Chocks for extra support on extreme terrain.
• Made from steel and powder coated with the same durable coating as the Front Runner rack.
• Installation hardware and fitting instructions are included.

Specifications:

• Consists of: 1 x Wolf Pack Pro Mounting Brackets, Fitting Instructions
• Materials used: Black powder coated steel
• Product Dimensions: 101mm (4") L x 309mm (12.2") W x 255mm (10") H (Single Bracket)
• Weight: 1.65kg (3.6lbs)

Handle/Light Slimline II Rack Bracket - by Front Runner

• A pair of brackets that secure to the slats of your Front Runner Slimsport Rack.
• Mounts Front Runner side mount accessories such as:
• Quick Release Awning Mount Kit
• Ratcheting Spade/Shovel & Paddle Mount
• Installs in the T-slots of the Slimsport Rack and can be inversed to allow for standard or lower mount depending on roof clearance.
• Made from black powder coated 6063 T6 aluminum to match your rack accessories.
• Supplied with installation hardware and fitting instructions.

Note: This product is only compatible with the Front Runner Slimsport Rack Kits.

Consists of:

• 1 x Pair of Rack Accessory Mounting Brackets
• Installation Hardware
• Fitting Instructions

Specifications:

• Materials used: Black powder coated aluminum
• Product Dimensions: 101mm (L) x 60mm (W) x 50mm (H)(Per Single Bracket)
• Weight: 0.37kg

Installation Instructions for Handle/Light Slimline II Rack Bracket

Installation Instructions for Rack Handle Bracket
