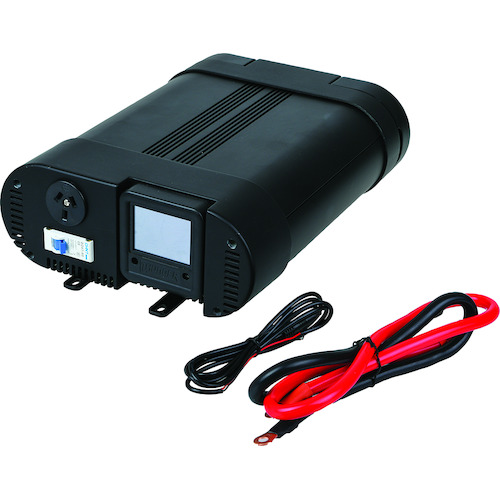

Thunder 1000W Pure Sine Wave Power Inverter

Description

Thunder 1000W Pure Sine Wave Power Inverter

Keep your devices charged and your appliances powered up during your outdoor travels with the Thunder 1000W Pure Sine Wave Inverters. This intelligent device convert the DC current from your vehicle battery into AC current giving you access to the same type of 240V power you get at home.

The Thunder inverters include overload, short circuit and over-temperature protection and load-controlled cooling fan, which is engaged when power consumption reaches as certain level preventing further damage to your battery.

Whether you are looking for a small inverter to run something from your car or camper trailer, or you want to power a range of appliances from your boat, the Thunder 1000W inverter have got you covered

Features:

• Removable 2.4 inch bluetooth colour LCD display with touch screen functionality for switching main unit on/off and display inverter input voltage. amperage, output AC wattage and low voltage warning
• Heavy duty aluminum housing
• Highly efficient power processing with 90% efficiency
• Permanent  mount points
• Low voltage warning at 11.5V with flashing voltage reading on the voltage gauge
• Shuts down output at 11V along with visible warning on LCD screen
• Over/under voltage, output short circuit, over temperature protection
• Automatic temperature reduction with rear cooling fan
• 3-year warranty
• Single 240VAC (600W/1000W inverters only)
• Dual 240VAC outlet (2000W inverter only)
• Automatic AC transfer switch senses when 240VAC input connected (2000W inverter only)

Specifications:

• Continuous Output Power: 1000W
• Peak Power (only for a short time): 2000W
• Output Overload Protection: 1100W
• Output Voltage: 240V
• Efficiency (Full load): 90%
• Minimum Input Voltage: 11V
• Input Voltage Range: 11-15V
• Input Low Voltage Warning: 11.5V
• Standby Current: 11mA
• No load Working Current: 0.5-0.6A

LCD Screen Operation
The Thunder 1000W Power Inverters come with a 2.4 inch Bluetooth LCD display with touch screen functionality for switching the main unit on/off from up to 10m away from the inverter installation location.

While the device is in use, the LCD screen will show the inverters output power, input voltage, amperage, output wattage and also low voltage warning allowing you to have better visibility of your device 's functionality. The inverter also features a small Bluetooth icon on top of the screen which will be displayed if there is signal received from the main unit.

If the input battery voltage reaches 11.5V, the voltage display value will start to flash, the low voltage warning will occur and the output power will shut down in order to prevent further power draw from the battery.

Integrated Bluetooth LCD Display Screen

1. 240VAC external power input (only displayed when external 240VAC power is connected)
2. Bluetooth active icon (only displayed when the Bluetooth signal is connected)
3. Output active icon (When inveter has 240VAC load connected)
4. DC input active icon (When DC input terminal has 12V connected)
5. Input battery DC voltage reading (When battery voltage drops to 11.5V, the number will flash)
6. Output power reading
7. Low voltage cut-off indicator (only displays when voltage drops to 11V)
8. Input DC current reading
9. Touch control On/Off switch of the inverter output (Blue is on, Grey is off)
10. Manual Switch to turn screen on/off
