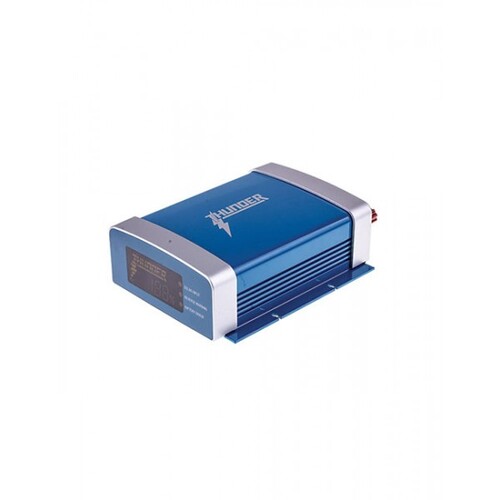

Thunder 20 AMP DC-DC Charger
Easy to install, the Thunder DC to DC charger is the smart way to charge your auxiliary battery, no matter your vehicle. The Thunder DC-DC Charger utilises a unique pulse charging algorithm with the intelligence to determine the best charge rate for your auxiliary battery (excluding lithium).
Specifications:
- Output Current Rating (Amps): 20.0 Amps
- Float: 13.8V
- Standby Current: 3 mA
- Battery Range: 18 to 250Ah
- Operating Temperature Range: 0°C to 60°C (current derates after 60°
- Output: 20A
- Input Fuse Rating Minimum: 30A
- Output Fuse Rating Minimum: 30A
- Charging Voltage: 13.1V - 15.2V (stops charging when alternator or vehicle battery below 12.2V)
- Solar Input Voltage Range: 13V-25V
- Maximum Solar Watt Input: 300W Note: Exceeding 300W of Solar will damage the Thunder DC-DC charger
- Input Voltage: 12.2V - 17V Note: If voltage increases over 17V the Thunder DC-DC will shut off, reset will be needed.
- Warranty: 1 Year
Features:
- MPPT solar regulator will regulate solar panels at maximum efficiency capable of up to 300W of solar @ 25V
- 20A output to charge your auxiliary battery while driving
- Automatically switches to the solar input when the vehicle battery is turned off or main battery drops to 12.2V
- Splash resistant (not IP rated)
- Easy to read and comprehensive LED display
- Simple to install – 4 mounting holes and 4 easy-to-use wiring studs
- Rate of charge starts to decrease at 50 degrees and will fully cut out at 80 degrees
Show More
Specifications
SKU TDR02020
Brand Thunder
GTIN 9315275901640
Product Category Battery Chargers
Output Current Rating (Amps) 20
Dimensions 180 x 130 x 55 mm
Weight (kg) 1.5
Charger Voltage 12V
NOTE: see full product specifications & further product info in the Description section on this page.
