Thunder 30A Battery Management System
SKU: TDR02026 Learn More»
Description
Thunder 30A Battery Management System

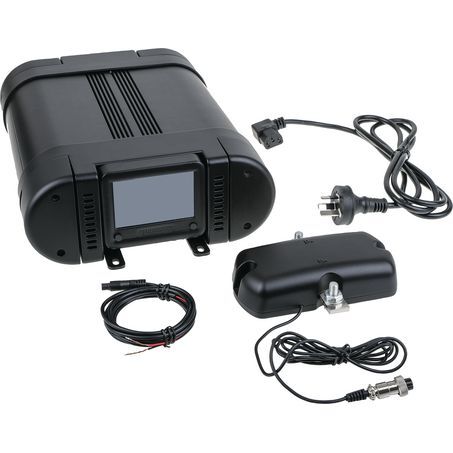

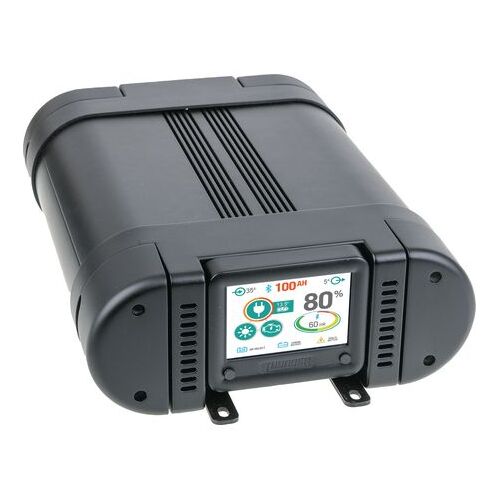

The Thunder 30A Battery Management System offers a comprehensive charging and maintenance solution for 4WD, caravan and camper trailer. Designed to charge and maintain auxilary batteries, the Thunder Battery Management System is the perfect addition to any vehicle requiring the management of a dual battery setup.
Designed to be a long-term solution with the highest level of safety in mind, the Thunder Battery Management System features a unique 8 stage charging program with the intelligence to determine the best charge rate for your auxillary battery. The remote mount Bluetooth LCD screen also conveniently give you better visibility on your battery's state of charge., so you never have to worry about gaving a flat battery again.
Whether you're heading off the grid or camping at a powered site, Thunder Battery Management System ensures you will always have the power you need.
Features & Benefits:
- Solar input MPPT regulated output (50V 500W max)
- Display battery time toi empty
- Usage monitoring in and out
- Display battery percentage
- 12-24V system input with 12V output
- 0ËšC to 60ËšC operating temperature
- Microchip monitoring and control fully automates high frequency multi-stage charging
- Pulse mode technology that reduces oxidation and minimises temperature equating to longer battery life
- Internal charger temperature monitoring and power output control
- Reverse polarity protection

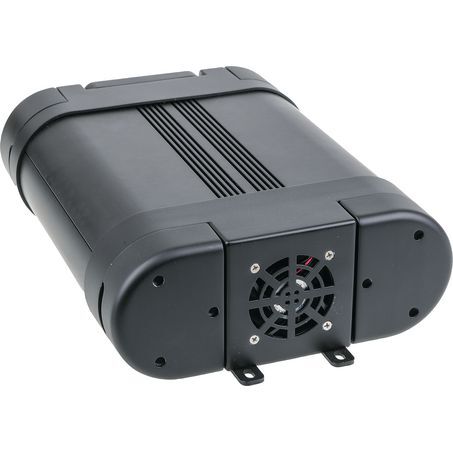

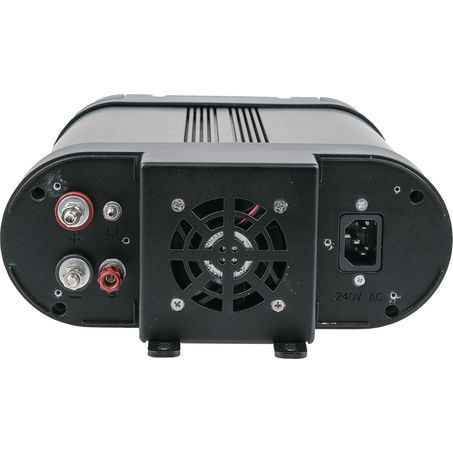

- Heavy duty aluminium case

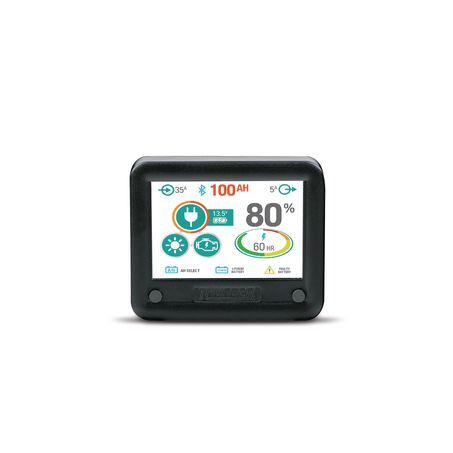

- Easy to read remote mount bluetooth screen
- Battery monitoring including time to empty, battery percentage and current in and out
- 60 Degrees operating temp
- 30A for both 240V and DC-DC charging
- Unit will automatically charge GEL, AGM, and standard Lead Acid
- Lithium battery charging profile
- Over charging, short circuit and over temperature protection
- 50V solar input with MPPT regulated output allowing 500W max of solar
- 355 x 240 x 95mm (35mm between l mount lugs)
Specifications:
- Voltage: 12V
- Output: 240V 30A
- Output: DC-DC 30A
- Input Fuse Rating Minimum: 50A
- Output Fuse Rating Minimum: 50A
- Solar Input Voltage Range: 13V-50V
- Maximum Solar Watt Input: 500W
- Standby Current: 10mA
- Float Voltage: 13.8V
- Efficiency (Full load): 90%
- Minimum Input Voltage: 11V
- Input Voltage Range: 11-15V
- Input Low Voltage Warning: 11.5V
- Standby Current: 11mA
Specifications
SKU TDR02026
Brand Thunder
GTIN 9324310169150
Product Category Battery Management System
Voltage 12V
Amps 30A
