Thunder Pack with Thunder Battery Box and 20Amp DC to DC Charger
SKU: TDR02007-TDR02020 Learn More»
FREE SHIPPING
This item is sent via Express Courier. All freight is fully insured.
Accessories List:
.png)
Description
Thunder Pack with Thunder Battery Box and 20Amp DC to DC Charger
Included:
- Thunder Battery Box
- Thunder 20 AMP DC-DC Charger

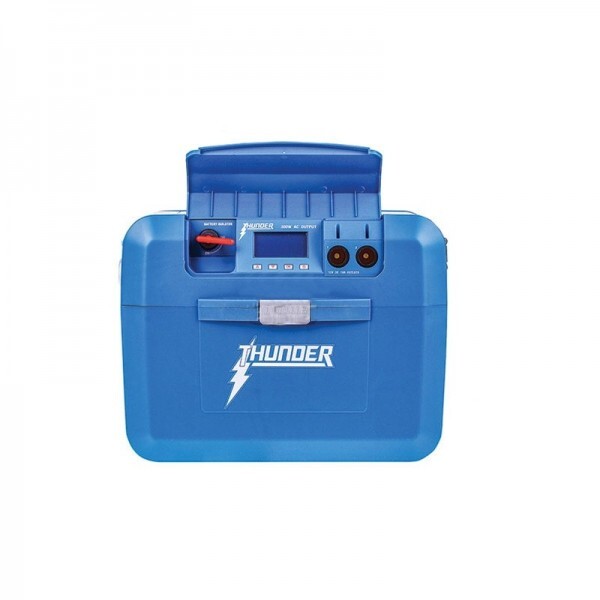

Thunder Battery Box:
The Thunder Battery Box provides 12 volt and 240 volt power for common devices and appliances, acting as a dual battery system to manage solar and in-vehicle charge. Featuring a 7 stage smart charger to maintain battery condition, the unit is compatible with leading vehicle batteries, including Lead Acid, Calcium, Gel and AGM up to 130Ah in size. Setting up the Battery Box is simple, with a step-by-step guide that helps you select your type of battery, remembers the last battery you used, and will warn you if there’s a fault during charge.
Specifications:
| Dimensions | External dimensions: 240mm (W) x 440mm (L) x 327mm (H) Internal dimensions: 180mm (H) x 330mm (L) x 238mm (H) |
|---|---|
| Net Weight (kg) | 4.6 Kg |
Thunder 20 AMP DC-DC Charger:
Easy to install, the Thunder DC to DC charger is the smart way to charge your auxiliary battery, no matter your vehicle. The Thunder DC-DC Charger utilises a unique pulse charging algorithm with the intelligence to determine the best charge rate for your auxiliary battery (excluding lithium).
Specifications:
| Output Current Rating (Amps) | 20.0 Amps |
|---|---|
| Float | 13.8V |
| Standby Current | 3mA |
| Battery Range | 18 to 250Ah |
| Operating Temperature Range | 0°C to 60°C (current derates after 60° |
| Output | 20A |
| Input Fuse Rating | Minimum 30A |
| Output Fuse Rating | Minimum 30A |
| Charging Voltage | 13.1V - 15.2V (stops charging when alternator or vehicle battery below 12.2V) |
| Solar Input Voltage Range | 13V-25V |
| Maximum Solar Watt Input | 300W Note: Exceeding 300W of Solar will damage the Thunder DC-DC charger |
| Input Voltage | 12.2V - 17V Note: If voltage increases over 17V the Thunder DC-DC will shut off, reset will be needed. |
| Warranty | 1 Year |
Features:
- MPPT solar regulator will regulate solar panels at maximum efficiency capable of up to 300W of solar @ 25V
- 20A output to charge your auxiliary battery while driving
- Automatically switches to the solar input when the vehicle battery is turned off or main battery drops to 12.2V
- Splash resistant (not IP rated)
- Easy to read and comprehensive LED display
- Simple to install – 4 mounting holes and 4 easy-to-use wiring studs
- Rate of charge starts to decrease at 50 degrees and will fully cut out at 80 degrees
Specifications
SKU TDR02007-TDR02020
Brand Thunder
Product Category Battery Boxes
Voltage 12V
Dimensions External dimensions 440 x 240 x 327mm Internal dimensions 330 x 180 x 238mm (Battery Box) (L x W x H)
Weight (kg) 6.1
NOTE: see full product specifications & further product info in the Description section on this page.
Q & A
-
Is the DCDC charger with these models lithium compatible?
Even though the battery boxes themselves are lithium compatible, the chargers are not.
