Topargee Bluetooth Water Gauge Package with 1.4m Sender Lead

Description

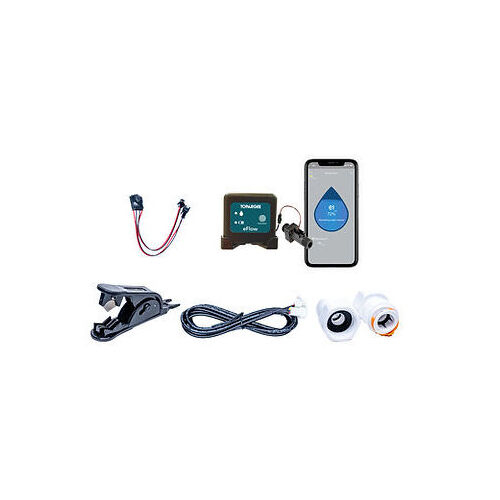

Topargee Bluetooth Water Gauge Package



Bundle Includes:

• Topargee H2F-BT12 Bluetooth Water Tank Gauge H2F-BT12
• Topargee Bluetooth 12V Adapter, H2F-BT12V
• SHOWERMI$ER Hose Cutter, EF041-A
• Topargee 1/2" BSP Female to John Guest 12 mm, FITSET

Options:

• Topargee 1.4m 3 Pin Sender Extension Lead, H2F-L
• Topargee 3m 3 Pin Sender Extension Lead, H2F-L3
• Topargee 1.4m 3 Pin Sender Extension Lead, H2F-L + Topargee Digital Water Flow Meter, WFM
• Topargee 3m 3 Pin Sender Extension Lead, H2F-L3 + Topargee Digital Water Flow Meter, WFM

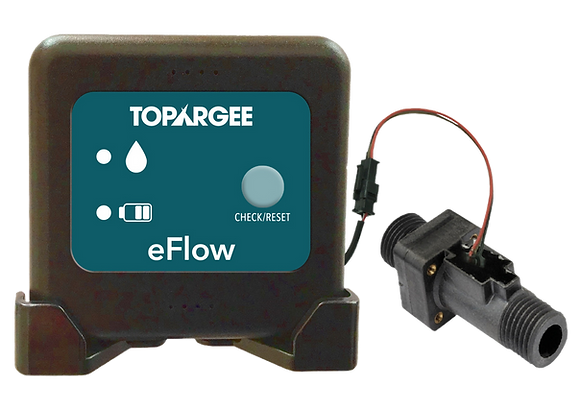

Topargee H2F-BT12 Bluetooth Water Tank Gauge

H2F-BT12 Bluetooth Water Tank Gauge - RV, Caravan & Marine model - uses your phone as the display.  It is compatible with IOS v10 or later & Android v8 or later.

All information is at your fingertips on your phone. This includes quantity & percentage of water remaining (in litres/gallons), programmable tank size, approx. battery state & refresh button are all displayed on the main screen of your app.

No need for an internet connection and as long as you are within approx. 5 meters of your app you can check the number of litres left in your tank.

Apps can be downloaded to multiple devices as all amounts and settings are stored in the Bluetooth module.

Topargee senders and electronics are compatible with all commonly available RV, Caravan & Marine water pumps and will even work with gravity fed systems.

The Topargee Bluetooth Water Gauge is a MUST for those loving the adventure of bush, free camping and boondocking as you will always know your daily water usage and you can plan your adventure more accurately.



Top Reasons you MUST have a Bluetooth

• Uses your phone as the display - perfect if you want to have your water usage information at your fingertips
• No need for an internet connection
• The sender is fitted to the water line, plugged into the Topargee  Bluetooth module and download
• Easy installation,  there is no display to install. The sender is fitted in water line, nothing is fitted or drilled to the tank
• The module is powered by two AA batteries and there is an optional 12v plug-in adapter so you can hard wire it to your 12v system
• Real time display as you use your water
• Stores the pre-set water capacity in memory
• Measures water flow as opposed to water volume
• Monitor water usage whether in the shower, washing, turning the tap on
• Lets you know how much water is left in your tank litre by litre from a pre-set amount - not full/half full/empty
• Most traditional water gauges will give an inaccurate reading if you park on an angle
• One unit for multiple tanks up to 99,999 litres
• ​​​Cost effective - stop wasting water by filling up unnecessarily

Specifications

• Colour:Black/Black
• Power: AA Batt/12Volt
• Mounting: Bracket
• Screen: No Screen
• Sender Lead: 1.4 Meters
• Ext Lead Option:Yes
• All applications: Yes
• Display Gal or Litres: Yes
• Operating Systems:  IOS v10 or later / Android v8 or later

Includes: 1.4m Sender Lead & ​AA batteries (Aus Only)

Does not include: Hose connectors, see Connecting Sender Unit (pictures) noting sender leads cannot be cut and joined as this will void your warranty. Extension leads must be used



Topargee Bluetooth 12V Adapter

12 Volt Adapter for Bluetooth H2F-BT12 model



SHOWERMI$ER Hose Cutter

Hose cutter is used to get a straight clean leak connection with all John Guest and quick connect type hoses.

Please Note: Never cut John Guest type hoses with a hacksaw or any other cutting tool.



Topargee 1/2" BSP Female to John Guest 12 mm

• For use with the 1/2" sender that is supplied with the Topargee Water Tank Gauges.
• The other end is to connect your 12 mm blue or black John Guest hose.
•  ​Retaining clips should always be used and are included as part of the John Guest kit.
• The package contains two fittings, washers, and clips.
• Use John Guest quick-connect if you are using a harder-side tubing like polyethylene.

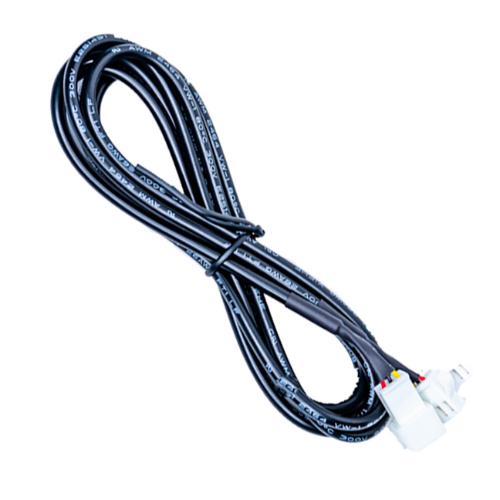

Topargee 1.4m 3 Pin Sender Extension Lead

Sender extension leads. Multiple leads can be joined together to make the desired length.



Topargee 3m 3 Pin Sender Extension Lead

Sender extension leads. Multiple leads can be joined together to make the desired length.



Topargee Digital Water Flow Meter

Know by the litre exactly how much water you are putting in your tanks as you fill it.

Simply attach to the hose you use to fill your tank and the built-in digital LCD screen will provide you with accurate information.

The built-in hall-type sensor provides a more reliable measurement.

This digital water flow meter now means you can accurately measure how much water you are putting in your tank and compliments our Topargee Water Tank Gauges which measure exactly how much water you are using.

Also includes a low battery indicator.  Battery Type 1 x CR2032.

Features:

• Easy operation, convenient to use.
• Digital LCD display, shows all data clearly.
• Built-in Hall-type sensor, more reliable measurement
• Measure the total real-time water flow rate, and measure the last water usage. Display daily average water consumption of 7 days. Measure total water consumption.
• Low battery indication.

Specifications:

• Suitable For: 12mm fittings
• Water Flow Rate: 1-40 l/min (0.3-10.6 GPM)
• Max Water Consumption: 9999 L & GAL
• Working Pressure: 0.5 bar - 8 bar (7.24-116PSI)
• Flow Max: 2400L/H (106GPM)
• Measurement Tolerance: Plus/Minus 5%
