Topargee Surface Mount Water Gauge Package with 1.4m Sender Lead

Description

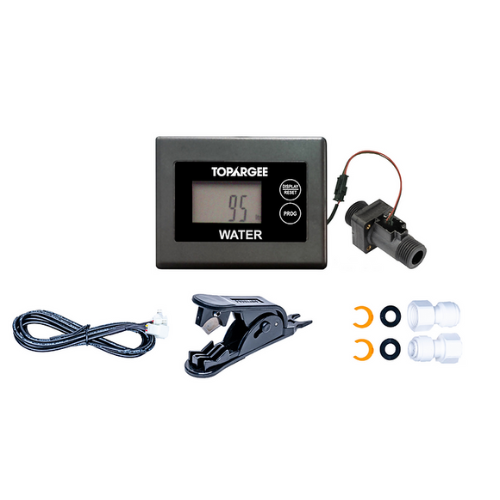

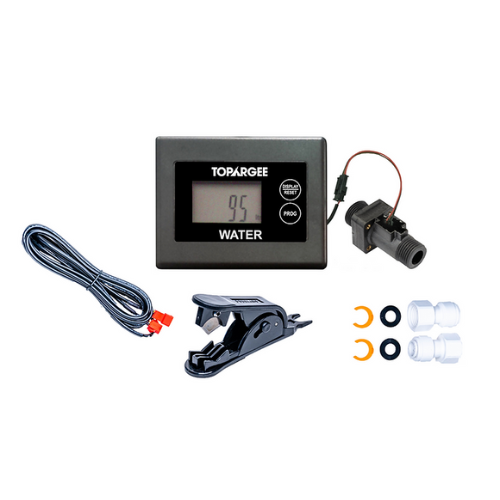

Topargee Surface Mount Water Gauge Package



Bundle Includes:

• Topargee H2F-SM Surface Mount Water Tank Gauge, H2F-SM
• SHOWERMI$ER Hose Cutter, EF041-A
• Topargee 1/2" BSP Female to John Guest 12 mm, FITSET

Options:

• Topargee 1.4m 3 Pin Sender Extension Lead, H2F-L
• Topargee 3m 3 Pin Sender Extension Lead, H2F-L3
• Topargee 1.4m 3 Pin Sender Extension Lead, H2F-L + Topargee Digital Water Flow Meter, WFM
• Topargee 3m 3 Pin Sender Extension Lead, H2F-L3 + Topargee Digital Water Flow Meter, WFM

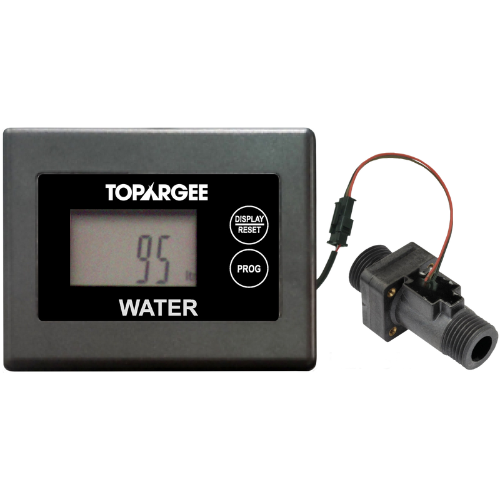

Topargee H2F-SM Surface Mount Water Tank Gauge

H2F-SM Surface Mount Water Tank Gauge - RV, Caravan & Marine model - is suited more to the DIY aftermarket.

Perfect if you have no space to install a display screen as screen does not need to be installed.

Topargee senders and electronics are compatible with all commonly available RV, Caravan & Marine water pumps and will even work with gravity fed systems.

Installation is very simple. The sender is fitted to the hose line and there is nothing fitted to the tank.  This solves the problem of having to remove the tank, drill holes, remove filings, seal sender holes, ongoing cleaning/maintenance, etc.

Ideal if you have multiple tanks or add more tanks at any stage you can simply change the programmed amount to suit your new capacity.

The Topargee Surface Mount Water Gauge is a MUST for those loving the adventure of bush, free camping and boondocking as you will always know your daily water usage.



Top Reasons you MUST have a Surface Mount

• Perfect if you have no space to install a display screen in your Caravan, Campervan or Motorhome as screen does not need to be installed
• Easy installation, fitted in water line, nothing is fitted or drilled to the tank
• Real time display as you use your water - takes the guess work out of your water supply
• Stores the pre-set water capacity in memory, which is displayed in Litres or Gallons
• Measures water flow as opposed to water volume
• Monitor water usage whether in the shower, washing, turning the tap on
• Lets you know how much water is left in your tank litre by litre from a pre-set amount, not full/half full/empty
• Most traditional water gauges will give an inaccurate reading if you park on an angle
• One unit for multiple tanks up to 99,999 litres
• Cost effective - stop wasting water by filling up unnecessarily
• You can plan your adventure more accurately

Specifications:

• Colour: Black/Black
• Power: AA Batt
• Mounting: Double Sided Tape
• Screen: Standard Screen
• Sender Lead: 1.4 Meters
• Ext Lead Option: Yes
• All applications: Yes
• Display Gal or Litres: Yes

Includes: 1.4m Sender Lead & ​AA batteries (Aus Only)

Does not include: Hose connectors, see Connecting Sender Unit (pictures) noting sender leads cannot be cut and joined as this will void your warranty. Extension leads must be used

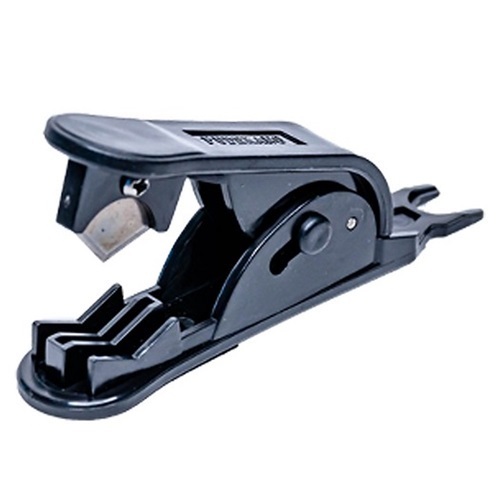

SHOWERMI$ER Hose Cutter

Hose cutter is used to get a straight clean leak connection with all John Guest and quick connect type hoses.

Please Note: Never cut John Guest type hoses with a hacksaw or any other cutting tool.

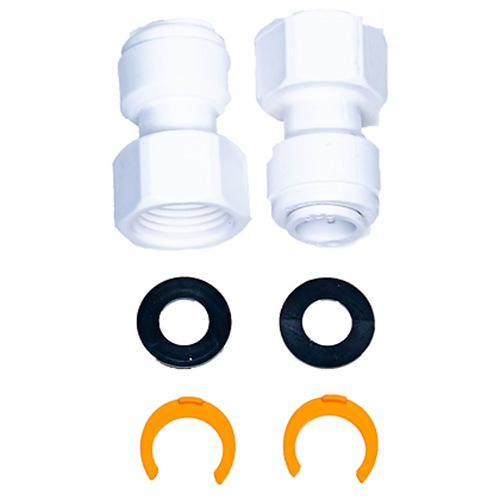

Topargee 1/2" BSP Female to John Guest 12 mm

• For use with the 1/2" sender that is supplied with the Topargee Water Tank Gauges.
• The other end is to connect your 12 mm blue or black John Guest hose.
•  ​Retaining clips should always be used and are included as part of the John Guest kit.
• The package contains two fittings, washers, and clips.
• Use John Guest quick-connect if you are using a harder-side tubing like polyethylene.

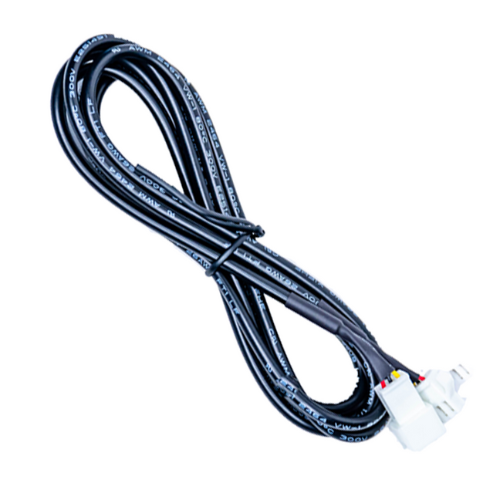

Topargee 1.4m 3 Pin Sender Extension Lead

Sender extension leads. Multiple leads can be joined together to make the desired length.

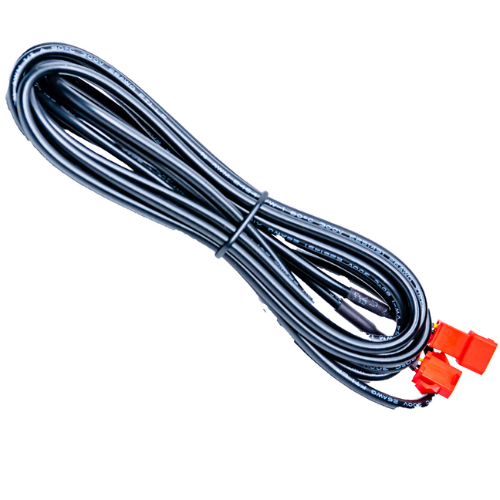

Topargee 3m 3 Pin Sender Extension Lead

Sender extension leads. Multiple leads can be joined together to make the desired length.



Topargee Digital Water Flow Meter

Know by the litre exactly how much water you are putting in your tanks as you fill it.

Simply attach to the hose you use to fill your tank and the built-in digital LCD screen will provide you with accurate information.

The built-in hall-type sensor provides a more reliable measurement.

This digital water flow meter now means you can accurately measure how much water you are putting in your tank and compliments our Topargee Water Tank Gauges which measure exactly how much water you are using.

Also includes a low battery indicator.  Battery Type 1 x CR2032.

Features:

• Easy operation, convenient to use.
• Digital LCD display, shows all data clearly.
• Built-in Hall-type sensor, more reliable measurement
• Measure the total real-time water flow rate, and measure the last water usage. Display daily average water consumption of 7 days. Measure total water consumption.
• Low battery indication.



Specifications:

• Suitable For: 12mm fittings
• Water Flow Rate: 1-40 l/min (0.3-10.6 GPM)
• Max Water Consumption: 9999 L & GAL
• Working Pressure: 0.5 bar - 8 bar (7.24-116PSI)
• Flow Max: 2400L/H (106GPM)
• Measurement Tolerance: Plus/Minus 5%
