Toyota Fortuner (2016-Current) Drawer Kit - by Front Runner

Description

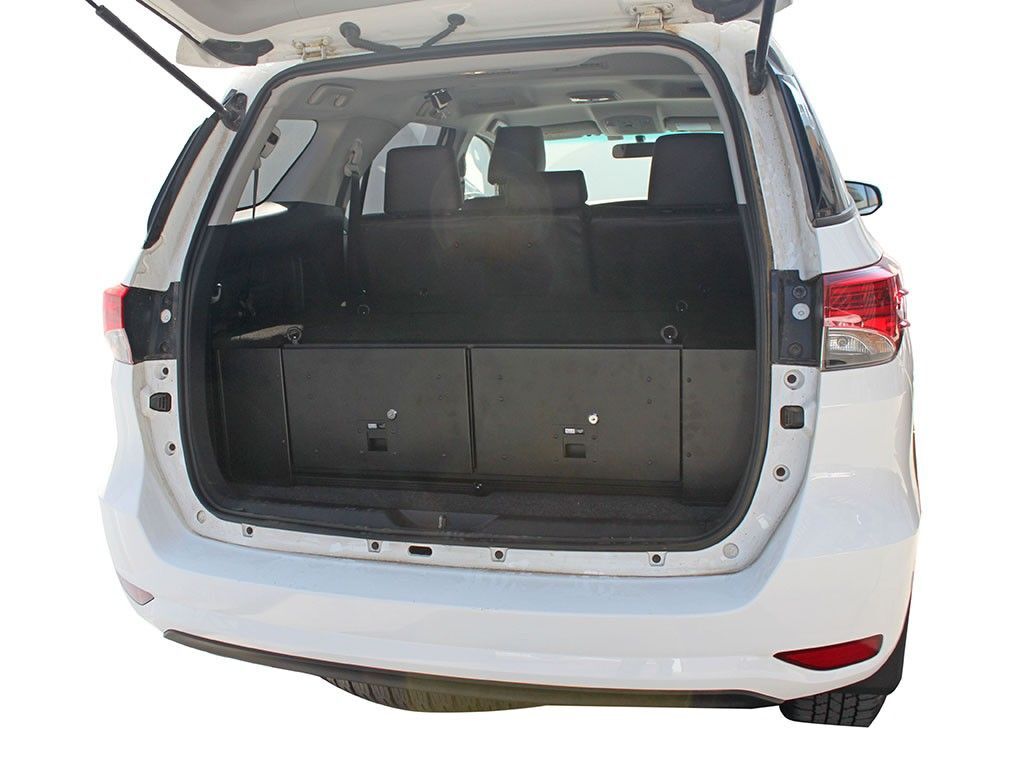

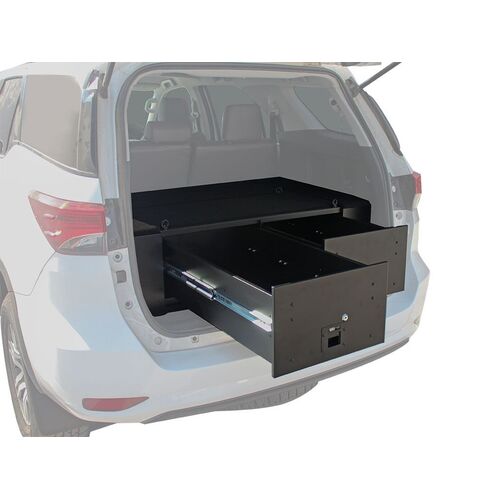

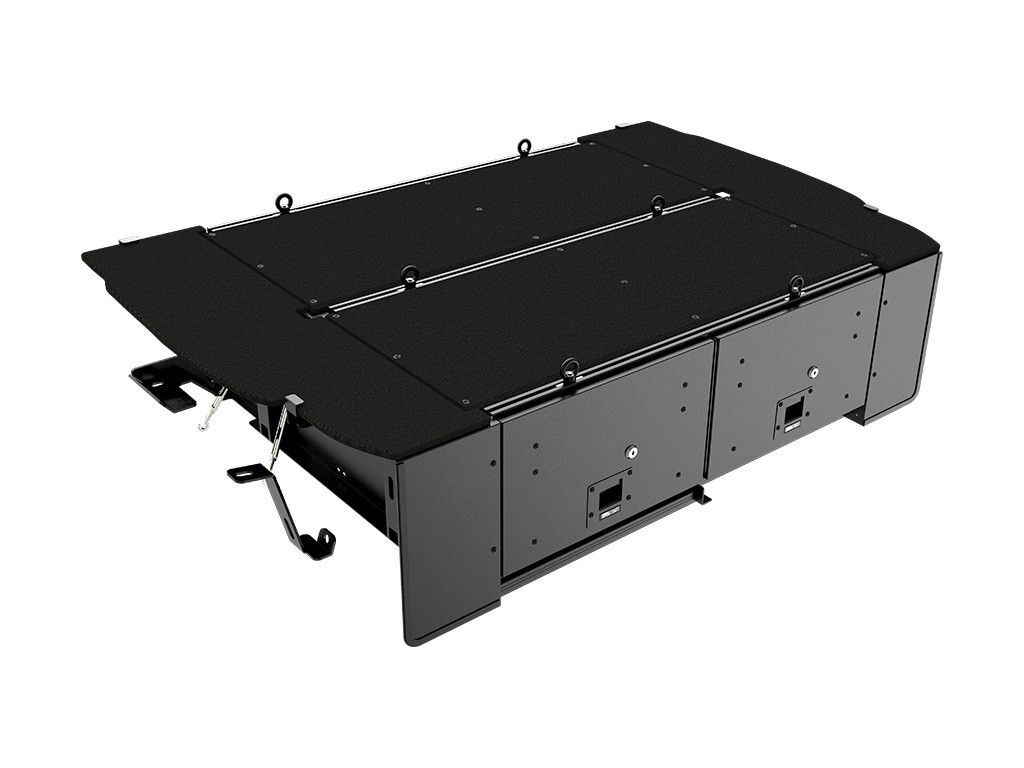

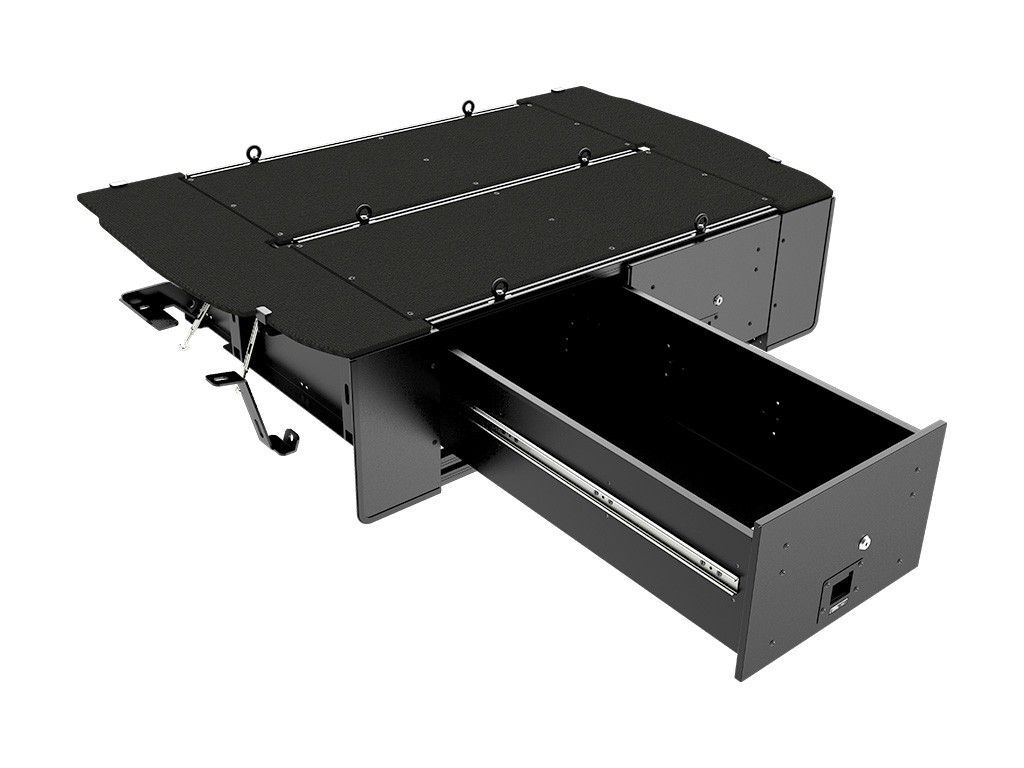

Toyota Fortuner (2016-Current) Drawer Kit - by Front Runner



This drawer kit has 2 lockable drawers, 2 keys per lock, 3 tie down rails, 6 tie down rings, deck completion set, face completion set, brackets, all necessary installation hardware, and detailed fitment instructions.

• 113kg / 250 lb per drawer load carrying capacity.
• High-strength bearing slides allows each drawer to extend nearly 100% from the anchored base.
• Provide peace of mind and security by locking away important travel items such as computers, smart phones and camera gear.
• The flat deck incorporates three cargo attachment channels and 6 Tie Down Rings / Eye Nuts For Drawer System.
• Customize your own storage configurations. Stack and secure luggage, Wolf Pack, Cub Pack, aluminum boxes and other storage containers to the top deck using Stratchits or other straps.
• The deck above the drawers can also be used to mount Front Runner Cargo/Fridge Slides.
• The side decks are easily removable creating storage space between the drawers and vehicle for a variety of items such as tools, jumper cables, tow ropes, diving snorkels, masks, fins, kindling, barbeque skewers, etc.
• To create compartments within the drawers, add the optional steel Drawer Dividers. Helps organize and stop excessive movement of gear and supplies. Sold in pairs, these drawers can accommodate up to 4 dividers per drawer.
• The deck is covered with a durable, UV resistant nylon pile black carpet detailed to complement the vehicle’s interior contours.
• The nylon carpet surface creates resiliency for securing cargo while insulating against noise and vibration.
• Finished with the same durable black powder coating as Front Runner Roof Racks and other Front Runner products.
• This drawer kit can be easily installed in minutes by attaching the supplied carabiners and turnbuckles to the supplied tie down brackets. Removing the drawers is just as easy.
• Note: The rear jump seats need to be removed to install this drawer system.

All Front Runner Storage Systems are backed by a 2 year warranty.

*Please Note: Drawer Dividers are not included when purchasing this Drawer System and are sold separately.



Consists of:

• 1 x Drawer Base unit (SSDR005)
• 1 x Toyota Fortuner Deck Completion Set (SSDS110)
• 2 x Push to close latches with 2 keys per lock
• 3 x Accessory channels
• 6 x Eye Nuts for accessory channels
• Installation Hardware
• Fitting Instructions

Materials used:

• Aluminum - Accessory Channels & Sub Frame
• Black powder coated steel - Drawer Bins & Frame
• UV resistant Nylon Carpet & Laminated plywood - Top Deck & Deck Set

Product Dimensions:

• Overall Dimensions: 888mm (L) x 1313mm (W) x 339mm (H)
• Internal Drawer Dimensions:
  • Left Hand Side: 817mm (L) x 386mm (W) x 213mm (H)
  • Right Hand Side: 817mm (L) x 386mm (W) x 213mm (H)



Weight: 74.6kg

Load Rating: 113Kg per Drawer

Special Notes: 4 Drawer dividers (SSCA048) can fit each drawer



Installation Instructions for SSDR005

 Installation Instructions for SSDS110
