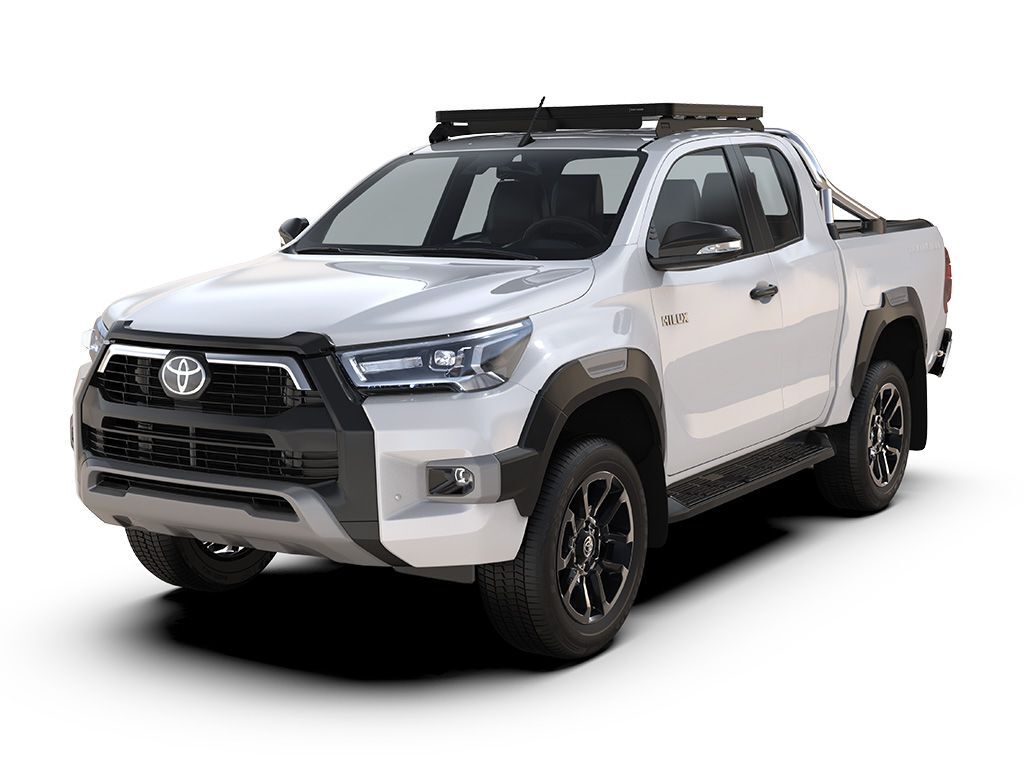

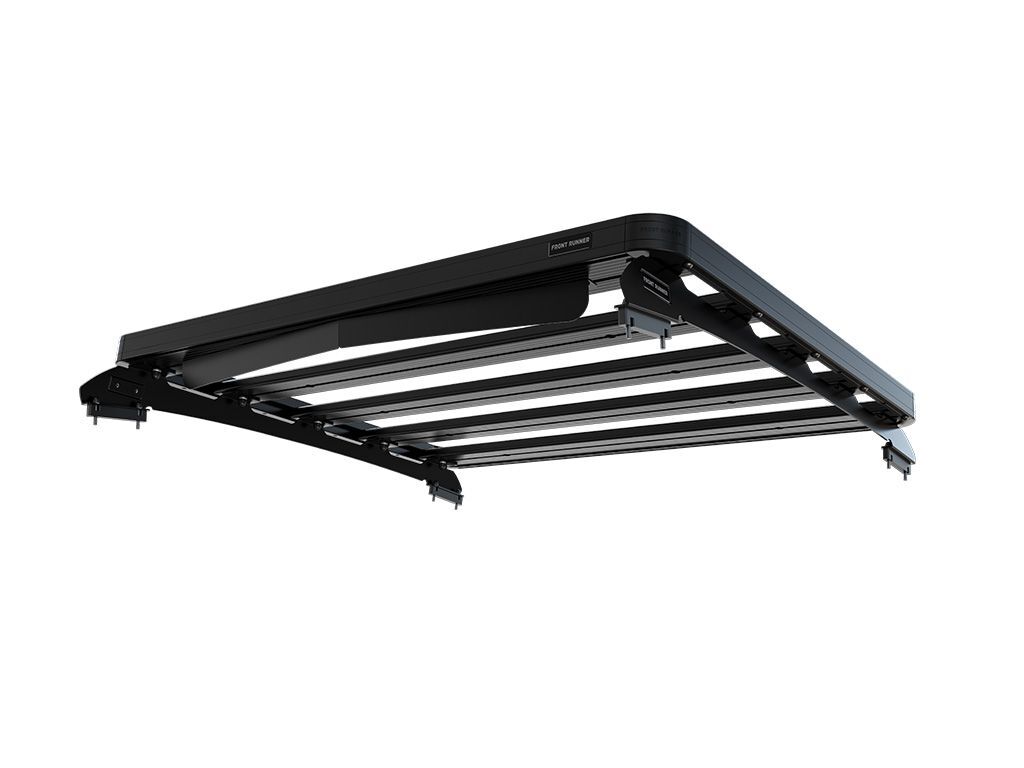

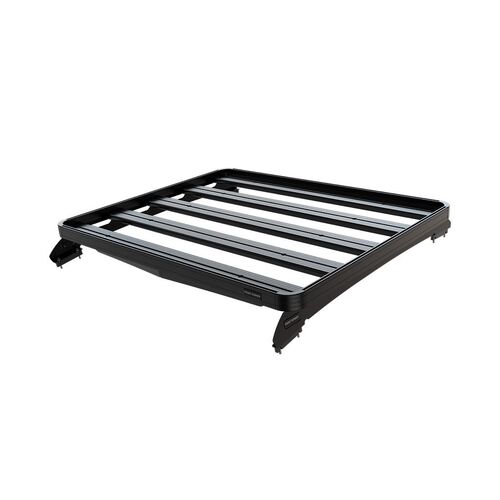

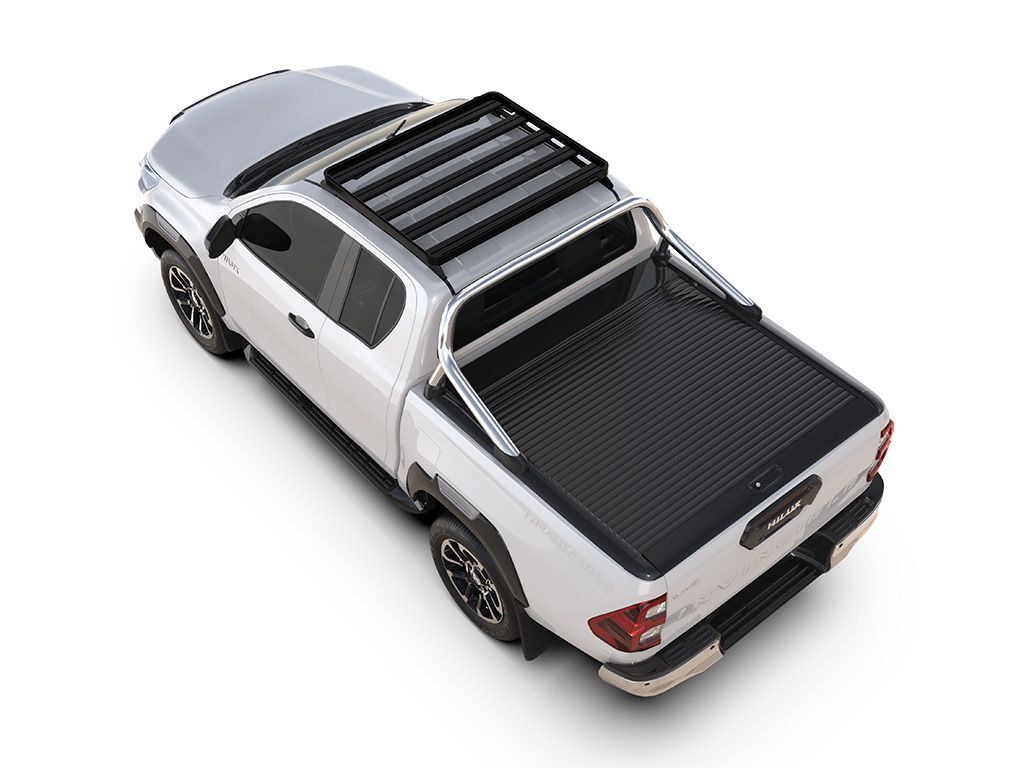

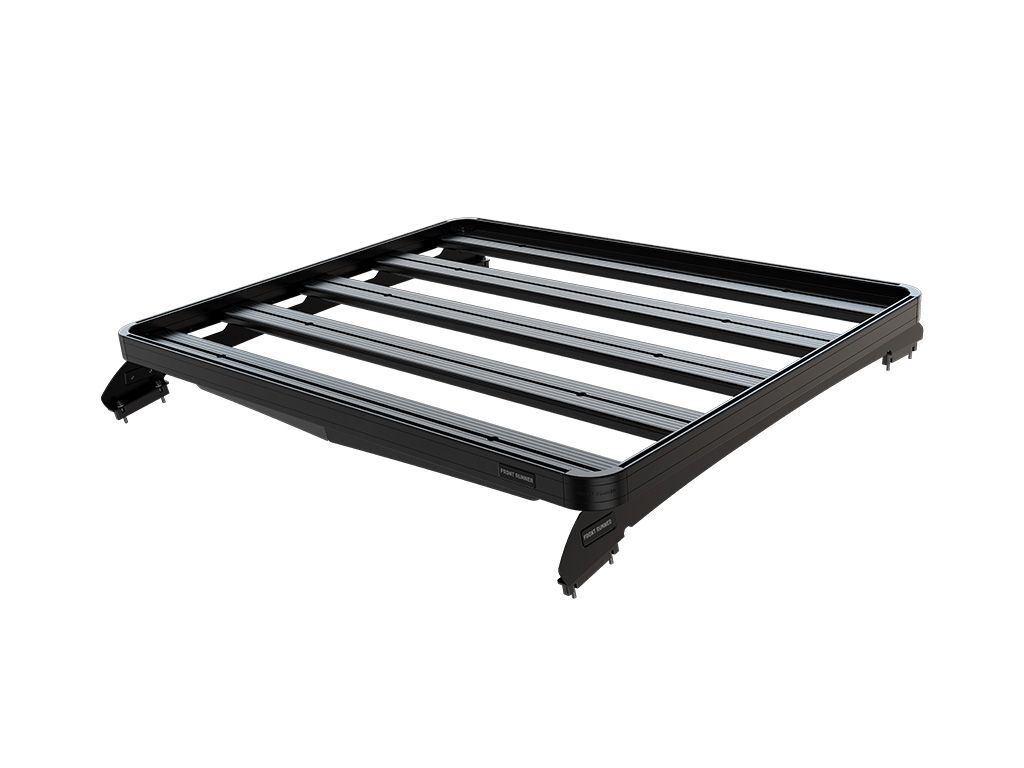

Toyota Hilux Revo Extended Cab (2016-Current) Slimline II Roof Rack Kit / Low Profile - by Front Runner

Black Tie Down Rings / Eye Nuts - by Front Runner

• The must have item to experience the full potential of the Front Runner Rack.
• These easy to use tie down rings quickly and easily mount to a Front Runner Rack via the t-slots on the top, the bottom, and the side rails of the rack.
• No tools required. Just hand tighten.
• Slide these around anywhere on the rack for an endless supply of tie down points.
• Perfect for use with the Front Runner Stratchit or any style tie down strap.
• Mount unusual loads securely to a Rack for hassle free/rattle free travels where a specific mounting accessory is not available.
• Of all the accessories for the Front Runner Slimline II Roof Rack this is THE must have.
• Sold in pairs.

Consists of:

• M8 Eye Nut x 2 M8 Nylon Washer x 2
• M8 Hex Bolt x 2

Specifications:

• Materials used: Made from galvanized steel supplied with bolt& plastic washer
• Product Dimensions: L 90mm (3.54") x W 40mm (1.57") x H 20mm (0.78")
• Weight: 0.12kg (0.26lbs)

Recovery Device & Gear Holding Side Brackets - by Front Runner

• These off-road tough brackets securely mount MAXTRAX, TRED Pro and other similar hole spacing recovery devices to the side profile of a Front Runner Slimline II Rack.
• Also use for mounting the Pro Ski, Snowboard & Fishing Rod Carrier .
• Adjustable in height and angle to compliment various vehicle profiles.
• Includes 2 types of bolts for holding either 1 or 2 pairs of MAXTRAX/TRED Pro.
• Built to mount to the side profiles of a Slimline II roof rack but are also compatible with the original Slimline rack.
• Finished with the same durable, weather resistant black powder coating as the Slimline II Rack.
• The included bolts can be substituted with the MAXTRAX Mounting Pin Set (sold separately) to lock MAXTRAX in place.

NOTE: Pro Ski, Snowboard & Fishing Rod Carrier not included.

Consists of:

• 2 x Adjustable Brackets
• Installation Hardware
• Fitting Instructions

Specifications:

• Materials used:
  • Black powder coated 3CR12 stainless steel
  • Stainless steel fasteners
• Product Dimensions: 313mm (12.3") L x 65mm (2.6") W x 178mm (7") H (Per Single Bracket)
• Between Stud Mounting Dimensions:
  • 230mm Inner hole centers
  • 270mm Outer hole centers
• Weight: 4.4kg (9.7lbs) (Per Pair)

Gas/Propane Bottle Holder - by Front Runner

• Perfect for portable cooking stoves, geyser/water heaters, heaters and lamps.
• Rack brackets securely hold your gas/propane bottle on your rack.
• 2 latches feature a safety catch to prevent any movement and are lockable with a for added safety.
• The removable collar is placed over the cylinder valve collar and latched on the rack brackets.
• The collar rods are adjustable to suit various bottle heights.

Consists of:

• 1 x Pair of Rack Brackets
• 1 x LPG Cylinder Bracket
• Installation Hardware
• Fitting Instruction

Materials used:

• Black powder coated 3CR12 stainless steel
• Stainless steel safety latches

Special Notes:

• Cylinder dimension guidelines:
• Max Cylinder Height: 12.6" (320mm)
• Max Cylinder Diameter: 11" (280mm)
• Max Top Collar Diameter: 6.7" (170mm)
• Max Weight: 22lb (10kg)

Single Jerry Can Holder - by Front Runner

• The adjustable stainless steel latch with safety catch holds your Jerry Can firmly in place over a lifetime of off-road abuse.
• For use with 20l / 5.3 gallon NATO/Wedco style military cans.
• This strap covers the Jerry can cap. Add your own padlock or Rack Accessory Lock / Small and you'll never have to worry about stolen fuel while on the road.
• Made of black powder coated stainless steel and designed to easily bolt to the Front Runner Roof Racks using the flat slotted slats in the rack.

Note: Not suitable for Scepter style containers.

Consists of:

• 1 x Strap Assembly
• 1 x Base
• 1 x Catch
• Installation Hardware
• Fitting Instructions

Specifications:

• Materials used: Black powder coated 3CR12 stainless steel
• Product Dimensions: 513mm (20.2") L x 165mm (6.5") W x 370mm (14.6") H
• Weight: 2.4kg (5.3lbs)

Wolf Pack Pro - by Front Runner

These plastic, workable sized storage boxes are easy to arrange in a cargo bed and vertical-sided to avoid wasted space. They stack securely for convenient storage in your vehicle thanks to the lids fitting neatly into the base of the box above it.

• Made from black, impact-resistant plastic.
• Features new extra-secure latches sealing the Wolf Pack Pro from water and dust.
• IP66 rated.
• Integrated grips for easy carrying.
• Versatile. Use in the cargo bed, truck/boot, or on your roof rack.
• Suitable for exterior storage.
• Wolf Pack Pros form the heart of many Front Runner storage systems. The Front Runner Transit Bags hold 2-3 Wolf Pack Pros depending on Transit Bag size and Wolf Pack configuration. Front Runner Wolf Pack Drawer Systems provide a comprehensive and practical vehicle storage solutions.
• For a padded storage solution, line the Wolf Pack Pro with a Flat Pack to protect camera gear, kitchenware and other fragile items.
• Use in conjunction with Stratchits as well as Black Tie Down Rings / Eye Nuts for a safe and secure roof rack storage solution.
• Wolf Pack Pro are not stackable with Wolf Pack.

Consists of:

• 1x Wolf Pack Pro

Specifications:

• Materials used: High density polyethylene black plastic
• Product Dimensions:
  • External Dimensions: 510mm (20.1") L x 400mm (15.7") W x 230mm (9.1") H
  • Internal Dimensions: 445mm (17.5") L x 335mm (13.2") W x 203mm (8") H
• Weight: 3.65kg (8.1lbs)

Quick Release Awning Mount Kit - by Front Runner

• Once these brackets are installed on a Front Runner Rack, no additional tools are needed to remove or refit the awning.
• Simply release the 2 latches and lift the awning away in seconds.
• No more wrenching in tight spaces during the “off-season” or time-consuming weekday removal of the awning.
• This strong and "rattle-free" mounting system is built off-road tough for use with Front Runner Racks.
• Works with all Front Runner Awnings and other popular awning brands like Eezi-Awn, Oz Tent, etc.
• 2 low profile base brackets are bolted to a Front Runner Rack while 2 self-aligning bushes are secured to the awnings mounting channel using the supplied fasteners.
• Safely secured in place using 2 latches with built-in safety catch. For added peace of mind, lock your latches in place using Rack Accessory Lock / Small.
• The brackets are small, unobtrusive and can be left on the roof rack when the awning is not mounted.
• No awning modification required.
• Removed awnings can be stored using the wall mount brackets supplied.
• Supplied with all required mounting hardware.
• Fitting instructions are included.
• Weight limit: 20kg (44.1lbs).

Note: Not suitable for 270 degree awnings.

Consists of:

• 1 x Pair of Quick Release Awning Brackets
• Installation Hardware
• Fitting Instructions

Specifications:

• Materials used:
  • Black powder coated Steel
• Product Dimensions: (Per assembled bracket): 161.5mm(6.4") L x 103mm (4.1") W x 100mm (3.9") H
• Weight: 2kg (4.4lbs)
• Weight Limit: 20kg (44.1lbs)

Stratchit Shorties - by Front Runner

• Cinch down loads simply and effectively so you don't have to worry about gear rattling loose on bumpy roads.
• Stratchit Shorties absorb tension like a stretchy ratchet strap.
• Stratchit Shorties are adjustable from 470mm / 18.5" in length to 1017mm / 40" in length.
• Quick and efficient. Simply secure the ends and hand tighten the strap.
• Fastens to, and around, just about anything.
• Perfect for Front Runner Racks and accessories, but work with all roof rack systems.

Many uses! Secure: Wolf Pack, Cub Pack and other cases (Pelican, Zargas, Alu-box, etc.) to any roof rack.

Secure: Surfboards, SUP, bicycles, firewood, chairs, etc.

Keep your luggage secure inside the vehicle. Scrunch up your sleeping bags extra tight.

Sold in pairs.

HOW TO USE:
Hook to the Front Runner Roof Rack Tie Down Ring or loop around the slats or side profiles and fasten the Stratchit Shortie to itself.

You can even remove the carabiner and loop the Stratchit Shortie through itself - to fasten around any roof rack rail, railing, pole, bumper, tire carrier.... etc.

WARNINGS:
Please read and follow all these warnings carefully -- failure to do so could result in cargo damage and could cause injury.

Do not over tighten. Use only hand leverage.

Never stand in the direct path of the Stratchit Shortie when tensioning to prevent the risk of injury should the strap become detached.

Loads settle. Check Stratchit Shortie after first 10 miles of driving and each 50 miles thereafter.

User to evaluate working load and requirements. DO NOT use to support human weight under any circumstance.

Check the Stratchit Shortie regularly for signs of deterioration or damage.

To ensure longevity, please remove the Stratchit Shorties from the sun and weather elements when not in use.

Make sure that the points of attachment to the vehicle or trailer are of sufficient strength to withstand the maximum loading that will be produced during use.

Take additional care if securing large objects that may be subject to aerodynamic lifting forces caused by bumps. Always use the appropriate number of straps and drive at reduced speeds to minimize the effects of these forces.

Consists of:

• 2 x Stratchit Shorties

Specifications:

• Materials used:
  • Polyester webbing
  • Latex Bungee
  • 7mm Stainless Steel Carabiner
• Product Dimensions: Adjustable from 470mm (18.5") L to 1017mm (40”) L x 25mm (1.0") W
• Weight:
  • 185g (6.5oz) each
  • 370g (13 oz) per pair
• Working Load Rating: 220 lbs (100kg)

Wolf Pack Pro Rack Mounting Bracket / MKII - by Front Runner

Mount or remove your Wolf Pack Pros in seconds with these Wolf Pack Pro Rack Mounting Brackets. These durable brackets will hold your storage bin securely in place through any terrain and are designed to work with Front Runner Roof Racks. They are lockable and offer versatile placement anywhere on your roof rack.

Features:

• Secures and holds the Wolf Pack Pro firmly in place on top of your rack.
• Can be used with the Wolf Pack Pro Hi-Lid.
• The versatile placement allows the Wolf Pack Pro to be secured either length or crossways on the rack.
• Effortlessly access the Wolf Pack Pro by easily releasing the quick-release latch.
• The bracket can be locked with a padlock or Rack Accessory Lock / Small (not included) for extra security and peace of mind.
• Can be used together with Adjustable Rack Cargo Chocks for extra support on extreme terrain.
• Made from steel and powder coated with the same durable coating as the Front Runner rack.
• Installation hardware and fitting instructions are included.

Specifications:

• Consists of: 1 x Wolf Pack Pro Mounting Brackets, Fitting Instructions
• Materials used: Black powder coated steel
• Product Dimensions: 101mm (4") L x 309mm (12.2") W x 255mm (10") H (Single Bracket)
• Weight: 1.65kg (3.6lbs)

Handle/Light Slimline II Rack Bracket - by Front Runner

• A pair of brackets that secure to the slats of your Front Runner Slimsport Rack.
• Mounts Front Runner side mount accessories such as:
• Quick Release Awning Mount Kit
• Ratcheting Spade/Shovel & Paddle Mount
• Installs in the T-slots of the Slimsport Rack and can be inversed to allow for standard or lower mount depending on roof clearance.
• Made from black powder coated 6063 T6 aluminum to match your rack accessories.
• Supplied with installation hardware and fitting instructions.

Note: This product is only compatible with the Front Runner Slimsport Rack Kits.

Consists of:

• 1 x Pair of Rack Accessory Mounting Brackets
• Installation Hardware
• Fitting Instructions

Specifications:

• Materials used: Black powder coated aluminum
• Product Dimensions: 101mm (L) x 60mm (W) x 50mm (H)(Per Single Bracket)
• Weight: 0.37kg
