Toyota Land Cruiser 200 Low Profile Slimline II Roof Rack & "Water Solution - 20L"

SKU: KRTL042T_BUNDLE_1 Learn More»

4WD Roof Rack Kit by Front Runner Outfitters

$2,469
$2,755
In Stock1 Day Dispatch

EXTRA $40 OFF! Add to cart to get an instant discount
SALE ENDS:

FREE SHIPPING

This item is sent via Express Courier. All freight is fully insured.

Accessories List:

$20

$95

$235

$115

$294

$129

$85

$970

$58

$74

$365

$180

$54

$109

$89

Click '+' to show more accessories

Description

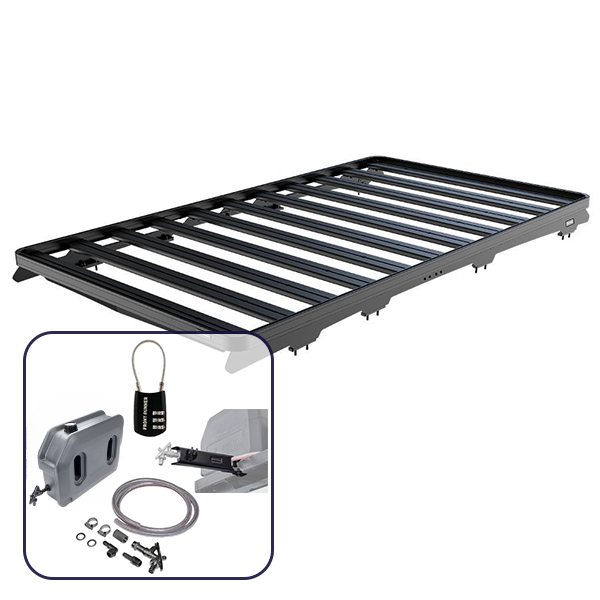

Toyota Land Cruiser 200 Low Profile Slimline II Roof Rack & "Water Solution - 20L"



Pack Includes:

  • Toyota Land Cruiser 200/Lexus LX570 Slimline II Roof Rack Kit / Low Profile - by Front Runner, KRTL042T
  • Pro Water Tank With Tap / 20L - by Front Runner - by Front Runner, WTAN060
  • Hose Kit For Tap Extension Bracket - by Front Runner, WTAN054
  • Tap Extension Bracket - by Front Runner, RRAC170
  • Rack Accessory Lock / Small - by Front Runner, RRAC134

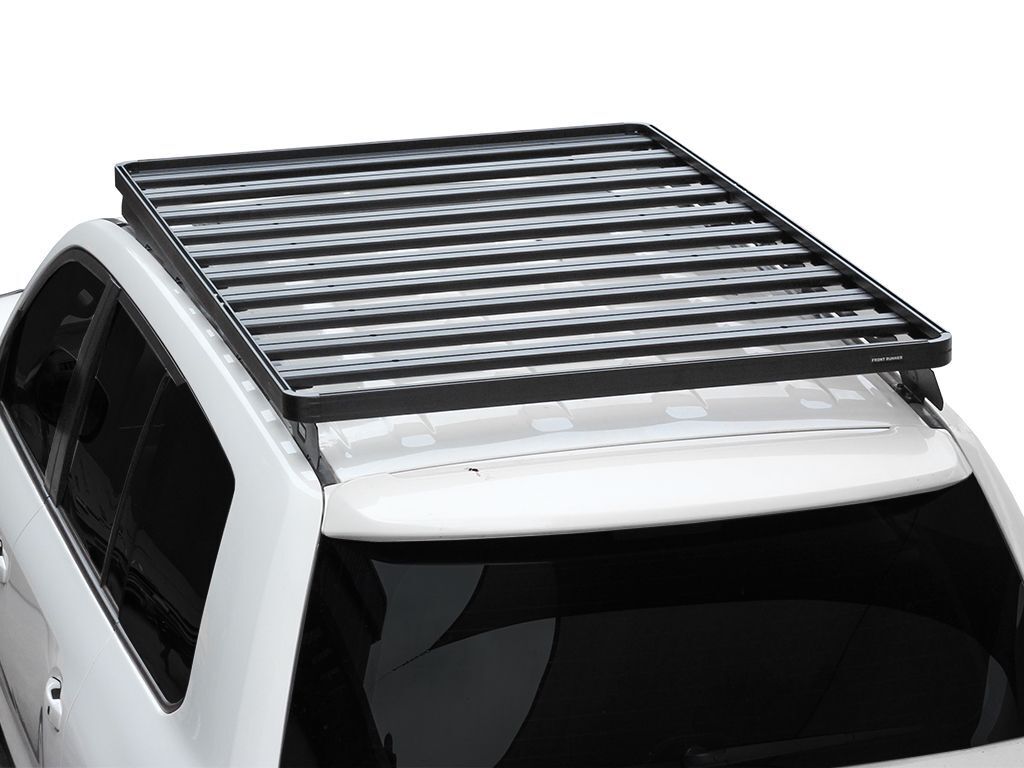

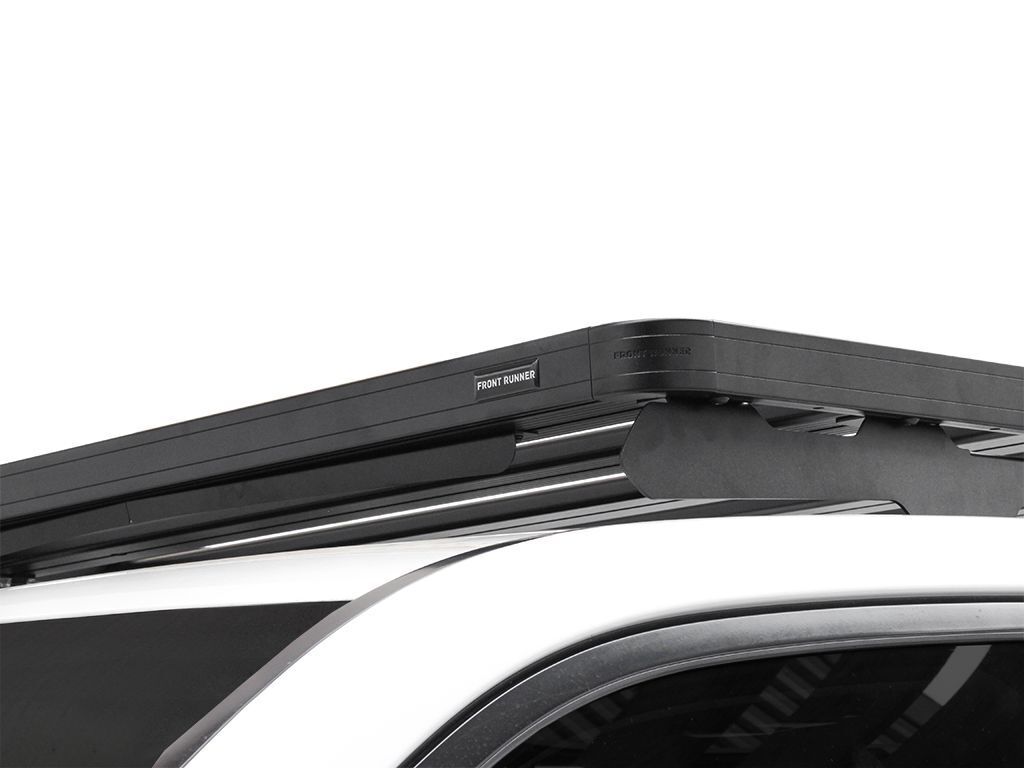

Toyota Land Cruiser 200/Lexus LX570 Slimline II Roof Rack Kit / Low Profile - by Front Runner

This 2166mm/85.3" long full-size Slimline II cargo roof rack kit contains the Slimline II Tray, Wind Deflector and 2 Low Profile Foot Rails to mount the Slimline II Tray to your Toyota Land Cruiser 200 or Lexus LX570. It easily installs using the existing factory mounting points. No drilling required.

All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle.

All Front Runner Racks are backed by a Limited Lifetime Warranty*

Note: Under Rack Tables can not be fitted to this Low Profile Kit.
Front Runner has a wide range of suitable accessories for all their roof racks & load bars. In the accessories list above, you will find the most popular accessories. Please CLICK HERE to find ALL Front Runner accessories!

Consisting of:

  • 1 x Toyota Land Cruiser 200 Foot Rails / Low Profile - by Front Runner

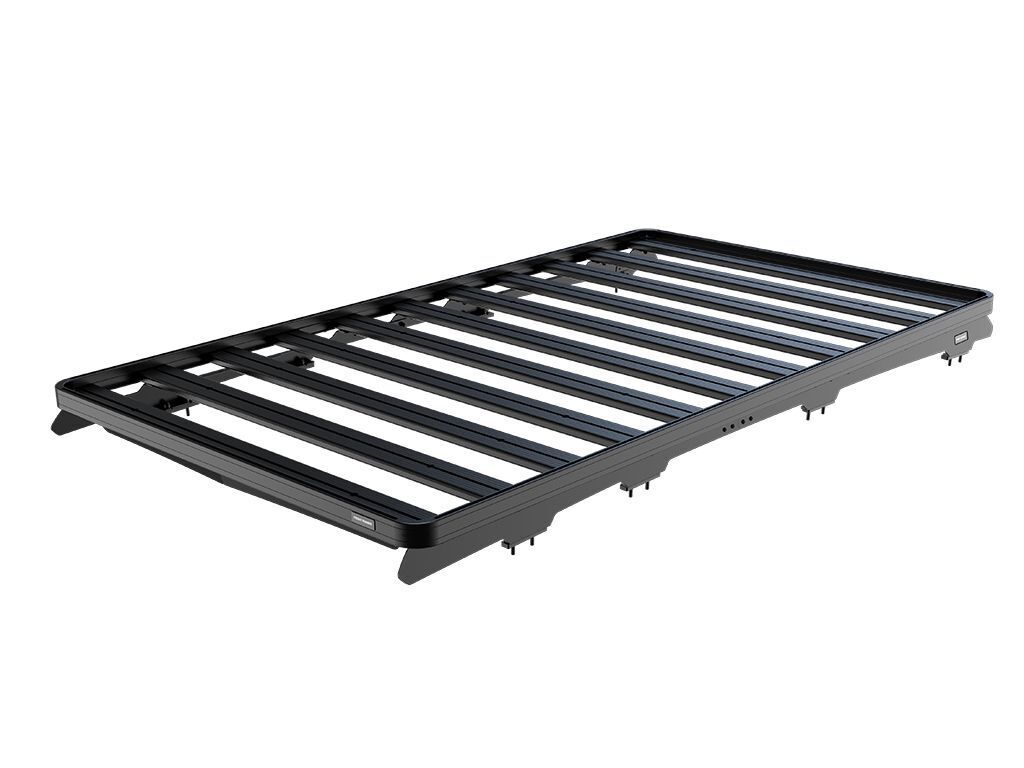

  • 1 x Slimline II Tray - 1255mm(W) X 2166mm(L) - by Front Runner

Material Used:

  • Black epoxy powder - coated T6 aluminium
  • High strength steel



Approximate Installed Weight: 38.6kg (85.0lbs)

The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.

To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/2") to the height of the Foot, Grab-on Foot or Strap-On Foot listed above.

If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/2") to the height of the Legs to determine the height of the rack from your vehicle’s rain gutters.

If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.

Installation Instructions for Toyota Land Cruiser 200 Foot Rails Low Profile

Installation Instructions for Slimline II Tray Universal Assembly

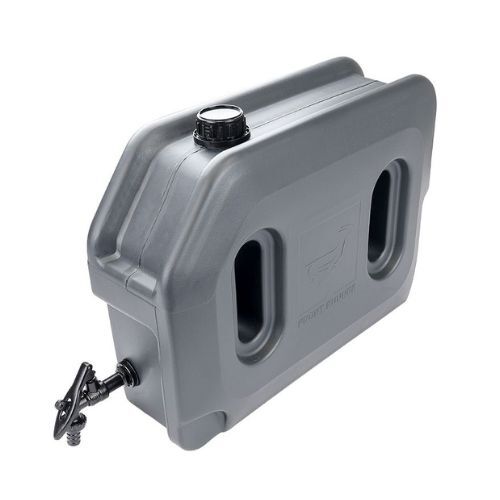

Pro Water Tank With Tap / 20L - by Front Runner.

When you’re out adventuring water isn’t just nice to have, it's a necessity. Always ensure you have water when and where you need it with this Pro Water Tank with Tap / 20L. The convenient tap gives you easy access to your water while the durable tank and holder are strong enough for any terrain.

Features:

  • Holds 20l / 5.2 gal capacity.
  • Includes a 1/2" black powder coated steel lockable Tap.
  • Made of food grade polyethylene and is BPA free.
  • This Pro Water Tank has 1/2" (BSP thread) polyethylene fitting for the supplied tap or any other 1/2" fitting.

Consists of:

  • 1 x 20L Water Tank
  • 1 x 1/2" Lockable Tap

Specifications:

  • Materials used:
    • Food grade BPA free polyethylene Water Tank
    • Black powder coated steel Tap
  • Product Dimensions: 560mm L x 350mm W x 165mm H
  • Weight: 2.23kg



Hose Kit For Tap Extension Bracket - by Front Runner

  • Used together with the Tap Extension Bracket.
  • Allows you to extend your Water tank tap away from your vehicle to make pouring stored water effortless when out on any adventure.
  • Designed to Swing in and out with the Tap Extension Bracket.
  • Includes 1.5m of clear hose and all necessary hardware.

Consists of:

  • 1 x 12mm Diameter x 1500mm (59") length of clear hose
  • 1 x Locking Tap
  • 1 x ½” Threaded Female to Female Adapter
  • 2 x Hose clamp
  • 2 x ½” Bonded Washer
  • 1 x Right angled tank to pipe fitting
  • 1 x Straight tank to pipe fitting
  • Fitting instructions

Specifications:

  • Materials used: Steel & Clear Hose
  • Product Dimensions: 1500mm (L)x 40mm (W) x 50mm (H)
  • Weight: 540g



Tap Extension Bracket - by Front Runner

  • Installs to the side profile of your Slimline II roof rack.
  • Swings out 90 degrees from the side of the rack, allowing your water tap to clear the side of your vehicle.
  • The spring pin locks the extension bracket in a closed or opened position.
  • Features a shower head holder.
  • Used best with Hose Kit For Tap Extension Bracket .

Consists of:

  • 1 x Tap Extension Bracket
  • Installation Hardware
  • Fitting Instructions

Specifications:

  • Materials used: Black powder coated 3CR12 stainless steel
  • Product Dimensions: 315mm (12.4") L x 187mm (7.4") W x 73mm (2.9") H
  • Weight: 1.3kg (2.9lbs)

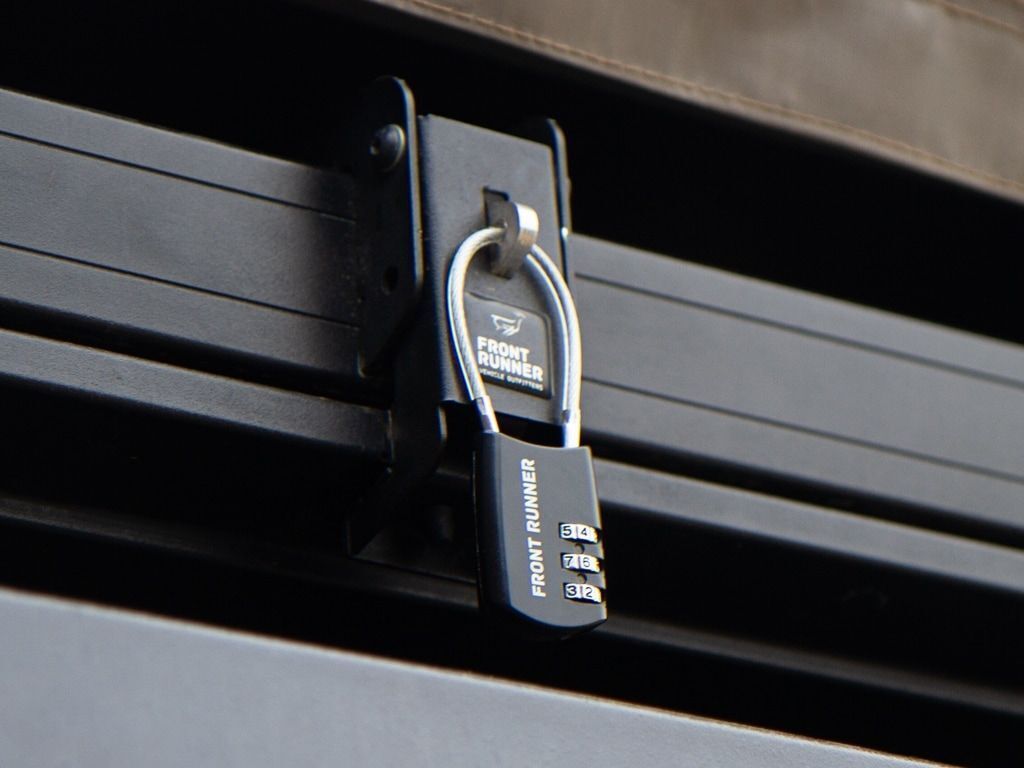

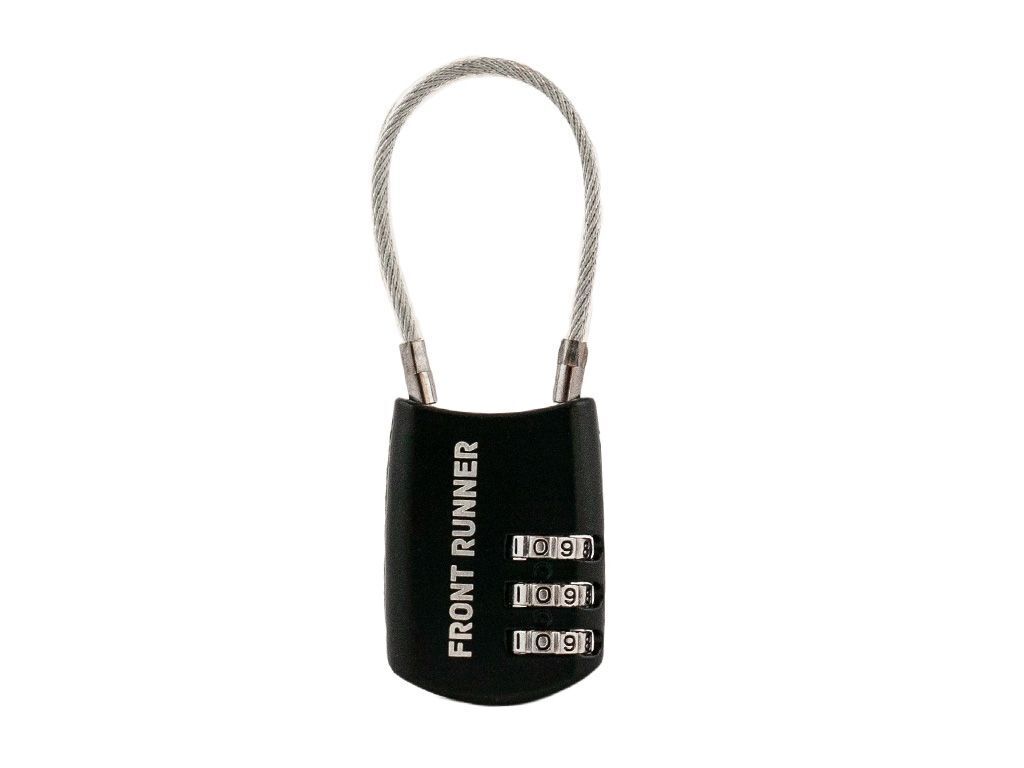

Rack Accessory Lock / Small - by Front Runner

  • No keys needed.
  • Easily set your own combo.
  • Locks Front Runner Rack accessories for holding gear like Tables, Water Tanks, Hi-Lift Jacks, Axes, Wolf Packs and more.
  • Works with Hi-Lift Jack Bracket, Water Tank Locking Tap, Axe Bracket, Cub Pack Rack Bracket , Wolf Pack Rack Bracket, Lockable Strap For Water Cap / 42L.
  • Stainless steel rubber coated cable and corrosion resistant tumbler for years of worry-free security.

*Note: Rack accessories are sold separately.

Consists of:

  • 1 x 3-Digit Combination Cable Lock

Specifications:

  • Materials used:
    • Casing: Zinc Alloy
    • Inner Core: Zinc Alloy
    • Cable: Stainless steel wire with PVC coating
  • Product Dimensions: 87mm (3.4") L x 30mm (1.2") W x 39mm (1.5") H
  • Cable Length: 100mm (3.9")
  • Cable Width: 2.8mm (0.1")
  • Weight: 30g (17oz)
