Toyota Land Cruiser 200 Series Drawer Kit - by Front Runner

Description

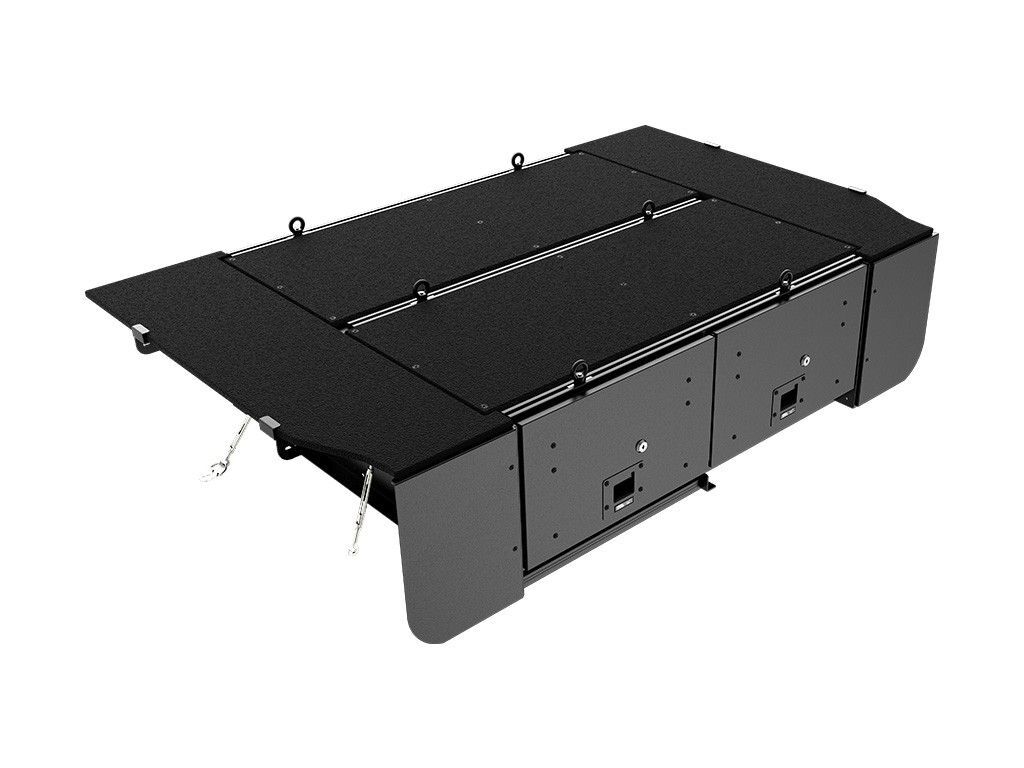

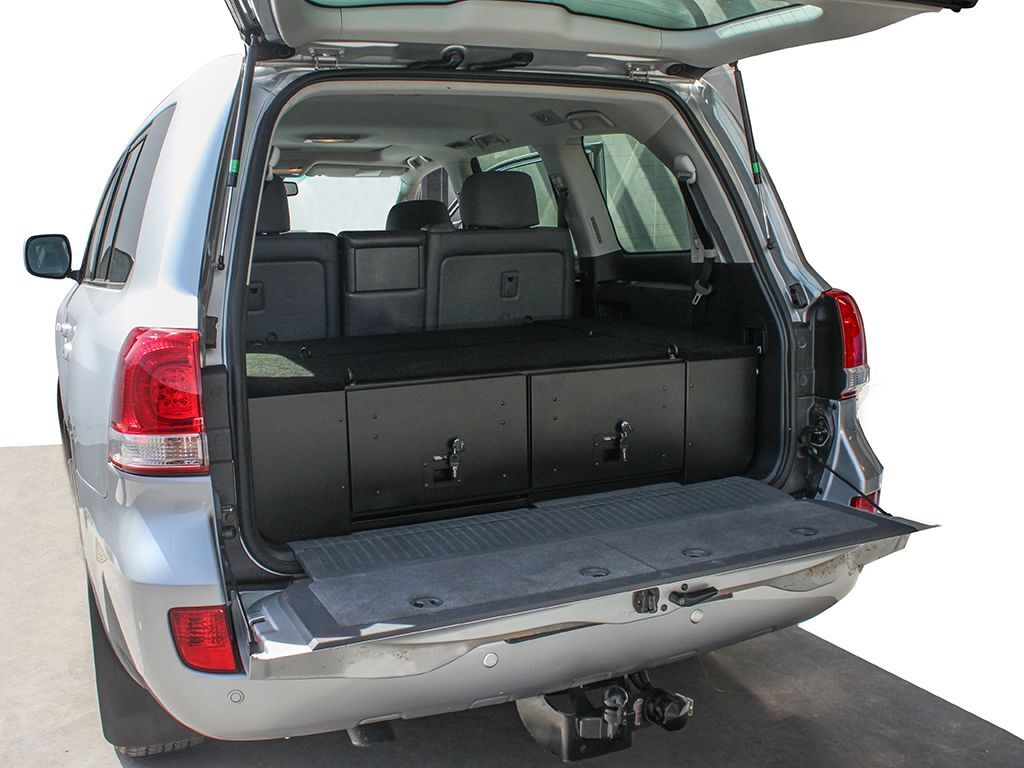

Toyota Land Cruiser 200 Series Drawer Kit - by Front Runner



This drawer kit has 2 lockable drawers, 2 keys per lock, 3 tie down rails, 6 tie down rings, deck completion set, face completion set, brackets, all necessary installation hardware, and detailed fitment instructions.

• Features two equally sized drawers for all storage needs.
• 113kg / 250 lb per drawer load carrying capacity.

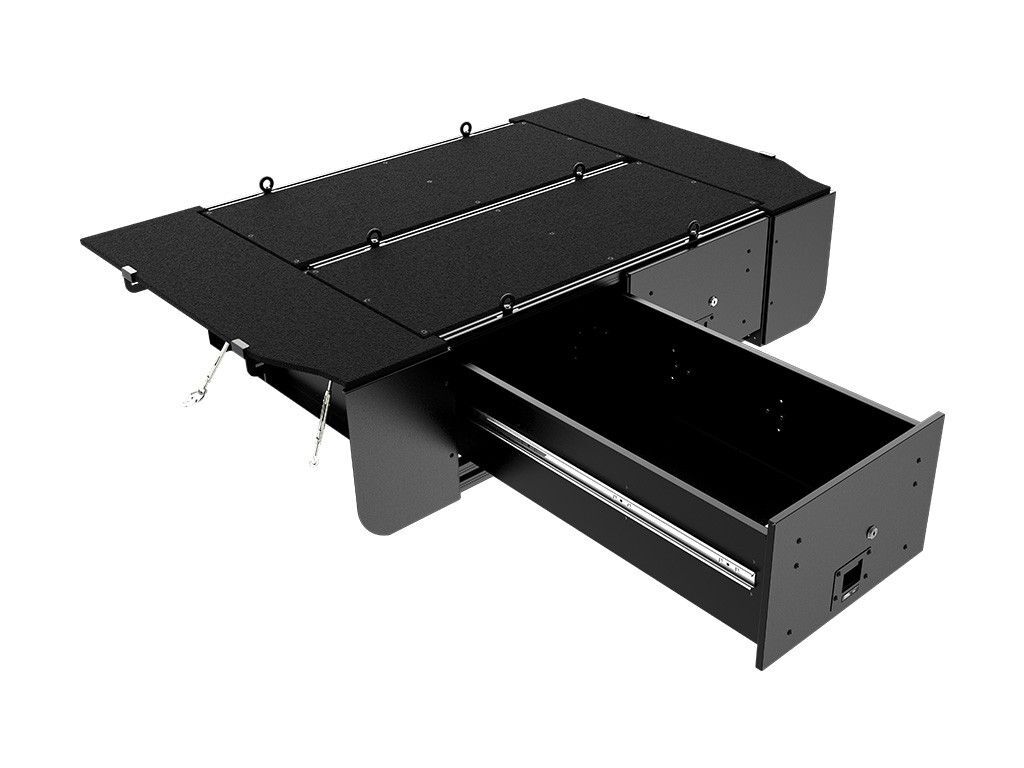

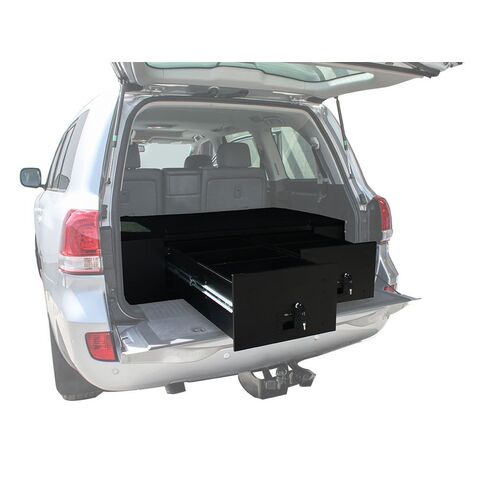

• High-strength bearing slides allows each drawer to extend nearly 100% from the anchored base.
• Provide peace of mind and security by locking away important travel items such as computers, smart phones and camera gear.
• The flat deck incorporates three cargo attachment channels and 6 Tie Down Rings / Eye Nuts For Drawer System.
• Customize your own storage configurations. Stack and secure luggage, Wolf Packs, Cub Packs, aluminum boxes and other storage containers to the top deck using Stratchits or other straps.
• The deck above the drawers can also be used to mount Front Runner Cargo/Fridge Slides.
• The side decks are easily removable creating storage space between the drawers and vehicle for a variety of items such as tools, jumper cables, tow ropes, diving snorkels, masks, fins, kindling, barbeque skewers, etc.
• To create a removable box option, just insert a Cub Pack. Designed to fit inside Front Runner drawers, the Cub Pack can be used to further organize and move gear in and out of a vehicle.
• To create compartments within the drawers, add the optional steel Drawer Dividers. Helps organize and stop excessive movement of gear and supplies. Sold in pairs, these drawers can accommodate up to 4 dividers per drawer.
• The deck is covered with a durable, UV resistant nylon pile black carpet detailed to complement the vehicle’s interior contours.
• The nylon carpet surface creates resiliency for securing cargo while insulating against noise and vibration.
• Finished with the same durable black powder coating as Front Runner Roof Racks and other Front Runner products.
• This drawer kit can be easily installed in minutes by attaching the supplied carabiners and turnbuckles to the vehicle’s existing mounting points and the drawer mounting brackets. Removing the drawers is just as easy.

All Front Runner Storage Systems are backed by a 2 year warranty.

*Please Note: Cub Packs and Drawer Dividers are not included when purchasing this Drawer System and are sold separately.

NOTE: This Drawer Kit is not suitable for the Heritage Edition or models without the 3rd row of seats.

Consists of:

• 1 x Drawer base unit (SSDR005)
• 1 x Toyota Land Cruiser 200 Drawer Deck Completion Set (SSDS103)
• 1 x Wing Set (SSWS003)
• 2 x Push to Close Latch with 2 keys per lock
• 3 x Accessory channels
• 6 x Eye Nuts for accessory channels
• Installation Hardware includes 4 turnbuckles to secure unit to vehicle
• Fitting instructions

Materials used:

• Black powder coated steel - Drawer Bins and Frame
• Stainless Steel - Mounting Hardware
• Nylon Carpet & Laminated Plywood - Top Deck and Deck Set

Product Dimensions: 895mm (L) x 1424mm (W) x 335mm (H)

Internal Drawer Dimensions: 817mm (L) x 386mm (W)x 213mm (H)

Weight: 77.42kg

Load Rating: 113Kg per Drawer



Installation Instructions for SSDR005

 Installation Instructions for SSDS103



 Installation Instructions for SSWS003
