Victron 100Ah 4x4 Off-Grid Bundle
SKU: BDL003 Learn More»
Victron Lithium Battery Bundle
Description

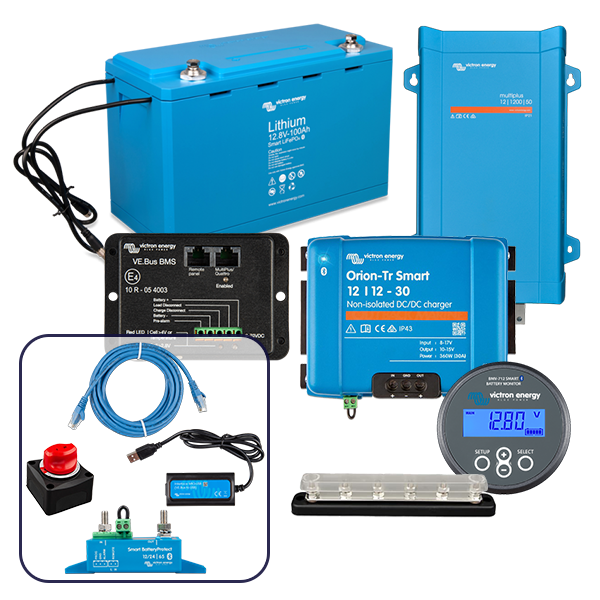

Victron 100Ah 4x4 Off-Grid Bundle
Enhance efficiency, take control, and optimize your energy usage like never before. Unleash the full power of your energy system with our high-performance bundle. Revolutionise your energy storage and management with these components:
Bundle Includes:
- Victron LiFePO4 Lithium Battery 12.8V/100Ah – Smart- BAT512110610
- Victron MultiPlus Inverter Charger 12/1200/50-16- PMP122120000
- Victron Orion-Tr Smart 12/12-30A (360W) Non-isolated DC-DC charger- ORI121236140
- Victron VE.Bus BMS- BMS300200000
- Victron Smart Battery Protect 12/24V-65A- BPR065022000
- Victron Battery Monitor BMV-712 Smart- BAM030712000R
- Victron Battery Switch ON/OFF 275A- VBS127010010
- 2 x Victron Busbar 150A 6P + Cover- VBB115060020
- Victron RJ45 UTP Cable 0.9 m- ASS030064920
- Victron Interface MK3-USB - VE.Bus to USB- ASS030140000

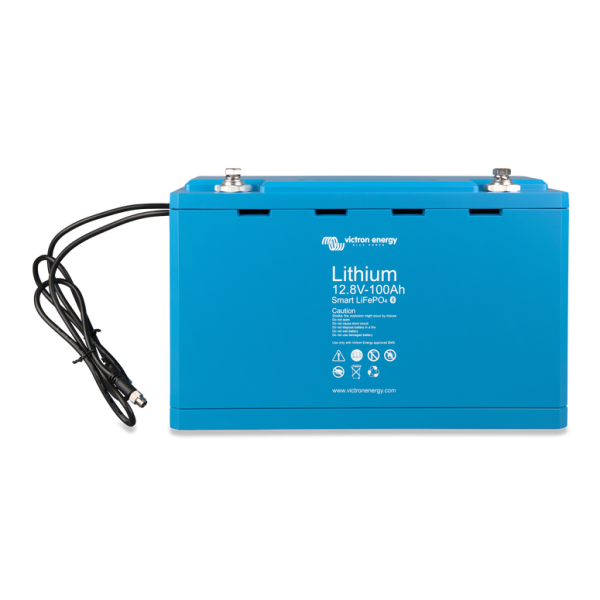

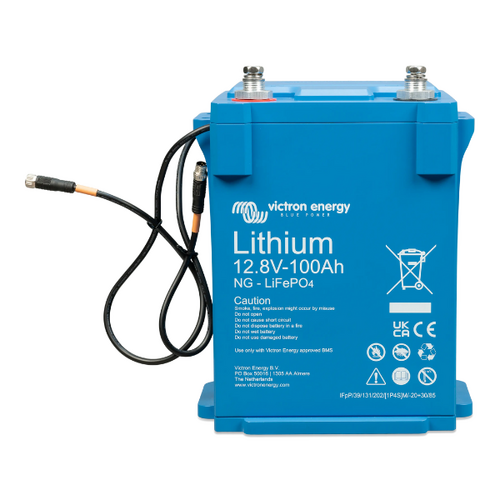

Victron Smart LiFePO4 Lithium Battery 12.8V/100Ah
- With integrated cell balancing
- Can be parallel and series connected
- Bluetooth app available to monitor cell voltage and temperature
Battery Management System (BMS): The BMS will:
- Generate a pre-alarm whenever the voltage of a battery cell decreases to less than 3,1V (adjustable 2,85 - 3,15 V).
- Disconnect or shut down the load whenever the voltage of a battery cell decreases to less than 2,8V (adjustable 2,6 V - 2,8 V).
- Stop the charging process whenever the voltage of a battery cell increases to more than 3,75 V or the temperature increases to more than 60°C.

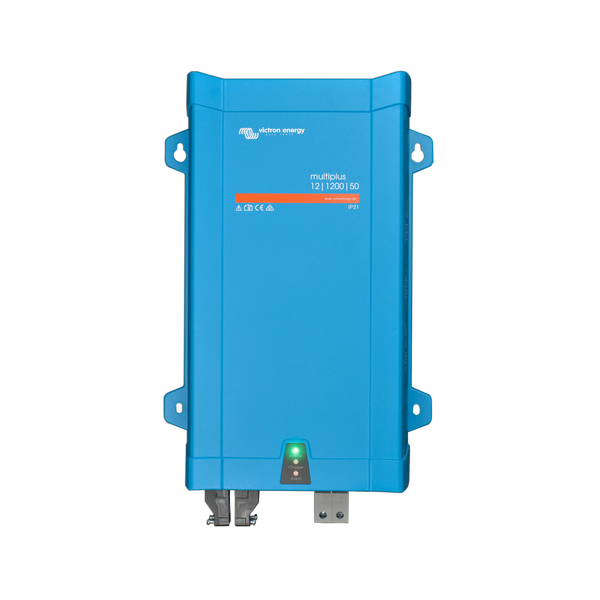

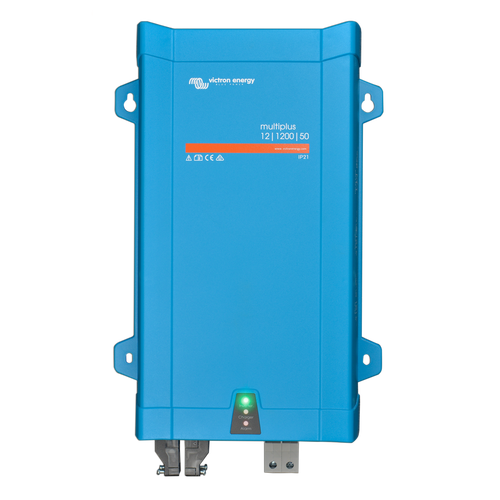

Victron MultiPlus Inverter Charger 12/1200/50-16
The new style MultiPlus is set to replace the earlier MultiPlus Compact range. It is a powerful true sine wave inverter, a sophisticated battery charger that features adaptive charge technology and a high-speed AC transfer switch in a single compact enclosure.
Uninterrupted AC power (UPS function): In the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.
Remote Monitoring and Control: When coupled with a GX device (e.g. Cerbo GX) you can monitor and control your Multi and system or systems' locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, from adjusting your Multi to auto starting a backupgenerator and more…"

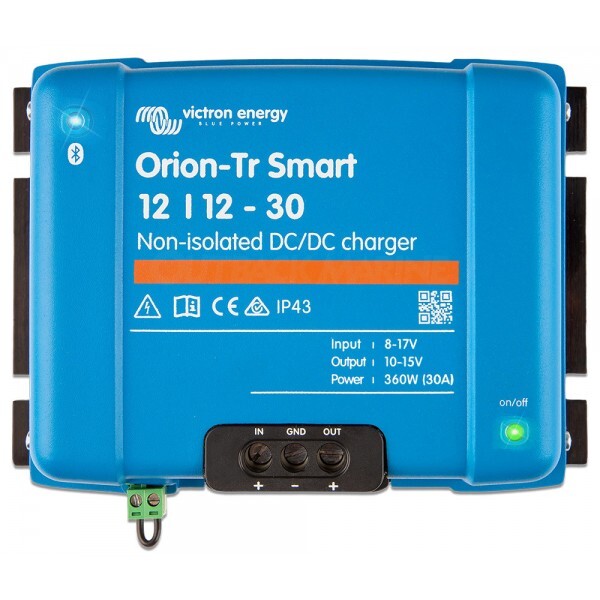

Victron Orion-Tr Smart 12/12-30A (360W) Non-isolated DC-DC charger
The Orion-Tr Smart DC-DC charger is a professional DC to DC adaptive 3-stage charger with built-in Bluetooth.
For use in dual battery systems in vehicles or on boats where the alternator and the start battery are used to charge the service battery. The unit can be monitored and programmed via Bluetooth and can be remotely controlled via a remote on/off switch.
The Orion Tr-Smart charger can be used in 12V or 24V systems and is suitable for both lead-acid and lithium batteries. Models are available up to 400W and unlimited multiple units can be connected in parallel to increase output power. Suitable for high temperatures up to 55°C with a full rated output up to 40°C.
Bluetooth Smart enabled: Any Bluetooth enabled smartphone, tablet or other devices can be used to monitor, to change settings, and to update the charger when new software features become available.

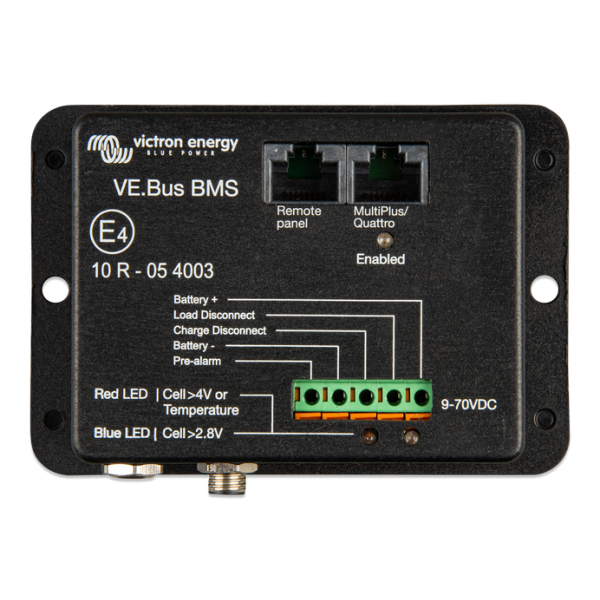

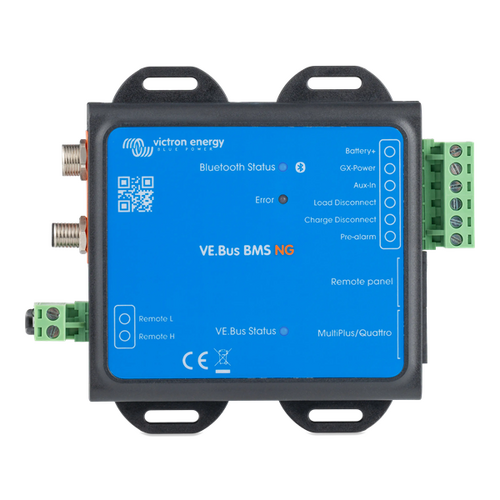

Victron VE.Bus BMS
The VE.Bus BMS protects each individual cell of a Victron lithium-iron-phosphate (LiFePO4 or LFP) battery. Each individual cell of a LiFePO4 battery must be protected against over voltage, under voltage and over temperature. Victron LiFePO4 batteries have integrated Balancing, Temperature and Voltage control (acronym: BTV) and connect to the VE.Bus BMS with two M8 circular connector cord sets. The BTVs of several batteries can be daisy chained. Please see our LiFePO4 battery documentation for details.
The BMS will:
- Shut down or disconnect loads in case of imminent cell under voltage.
- Reduce charge current in case of imminent cell overvoltage or over temperature.
- Shut down or disconnect battery chargers in case of imminent cell overvoltage or over temperature.

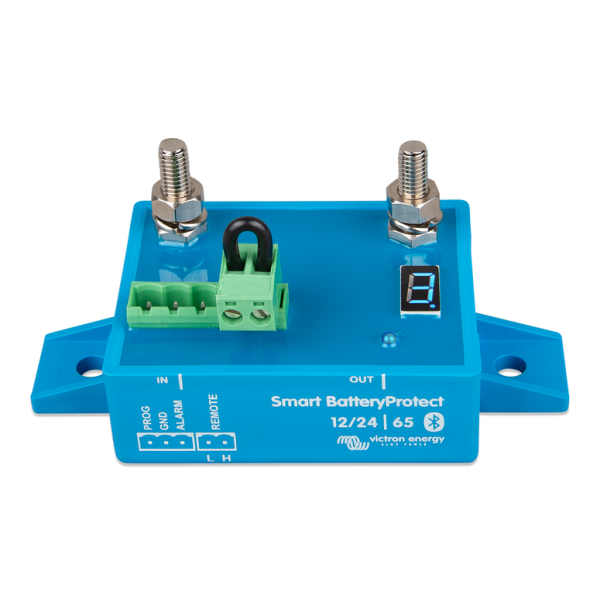

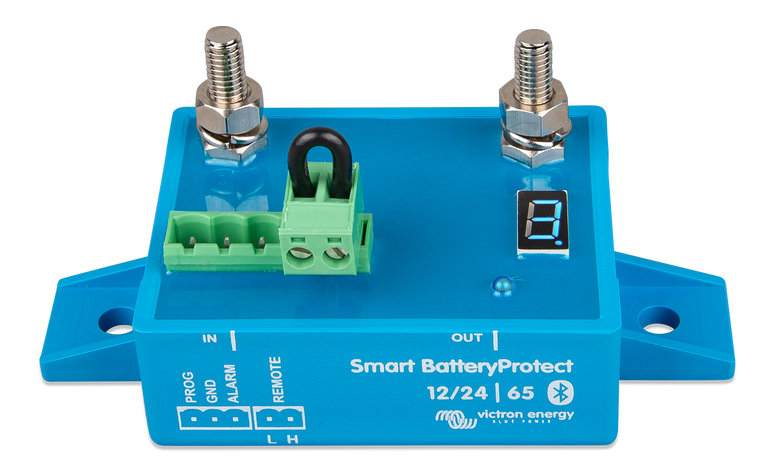

Victron Smart Battery Protect 12/24V-65A
The Smart BatteryProtect disconnects the battery from non-essential loads before it is completely discharged (which would damage the battery) or before it has insufficient power left to crank the engine.
When using Bluetooth to program the Smart BatteryProtect any required engage/disengage levels can be set. Alternatively, one of nine predefined engage/disengage levels can be set with the programming pin (see manual).
If required, Bluetooth can be disabled.
The Smart BatteryProtect is a uni-directional device. It can only deal with current in one direction, so either current to a load, or current from a charger, but not both currents at the same time. In addition to this, current only can only flow from the IN terminal to the OUT terminal. In case of use with a load, the battery connects to the IN terminal, and in case of use with a charger, the charger connects to the IN terminal.

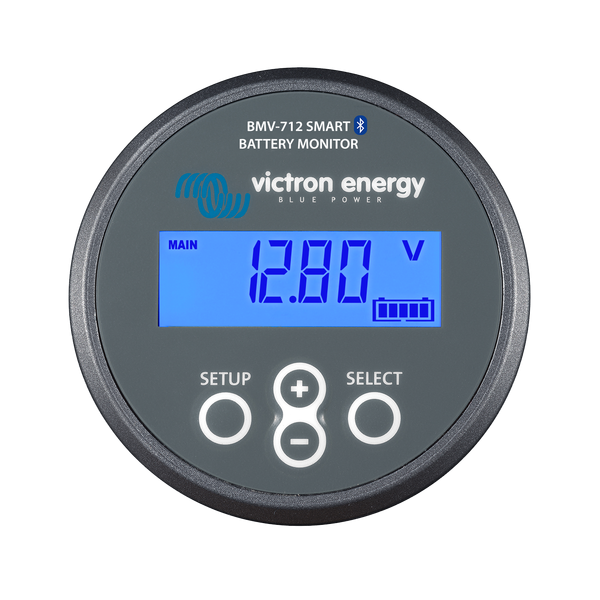

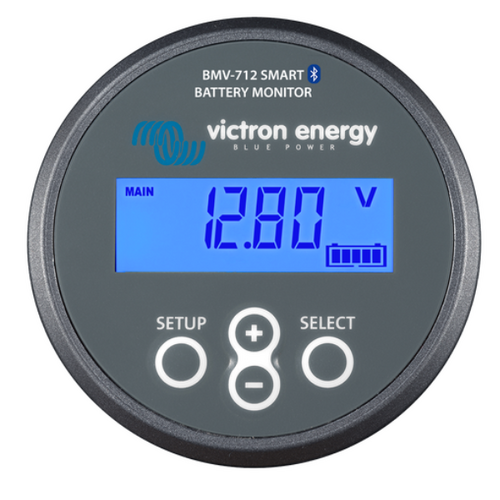

Victron Battery Monitor BMV-712 Smart
With Bluetooth built-in, the BMV Smart is ready for the Internet of Things (IoT) era. With Bluetooth being implemented in most other Victron Energy products, wireless communication between products will simplify system installation and enhance performance.

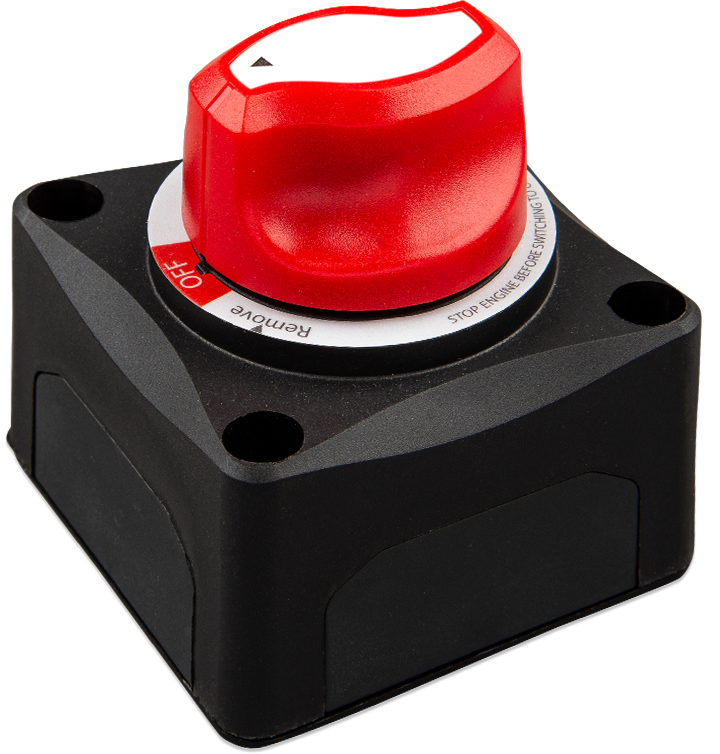

Victron Battery Switch ON/OFF 275A
Battery Switch ON/OFF 275A

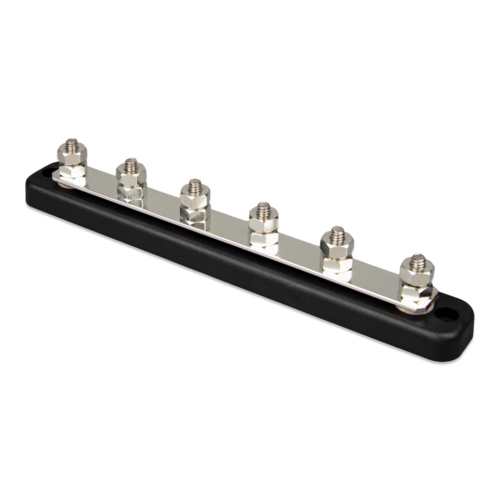

2 x Victron Busbar 150A 6P + Cover
Busbars are used for high current distribution and at the same time they provide connections for batteries and/or DC equipment.

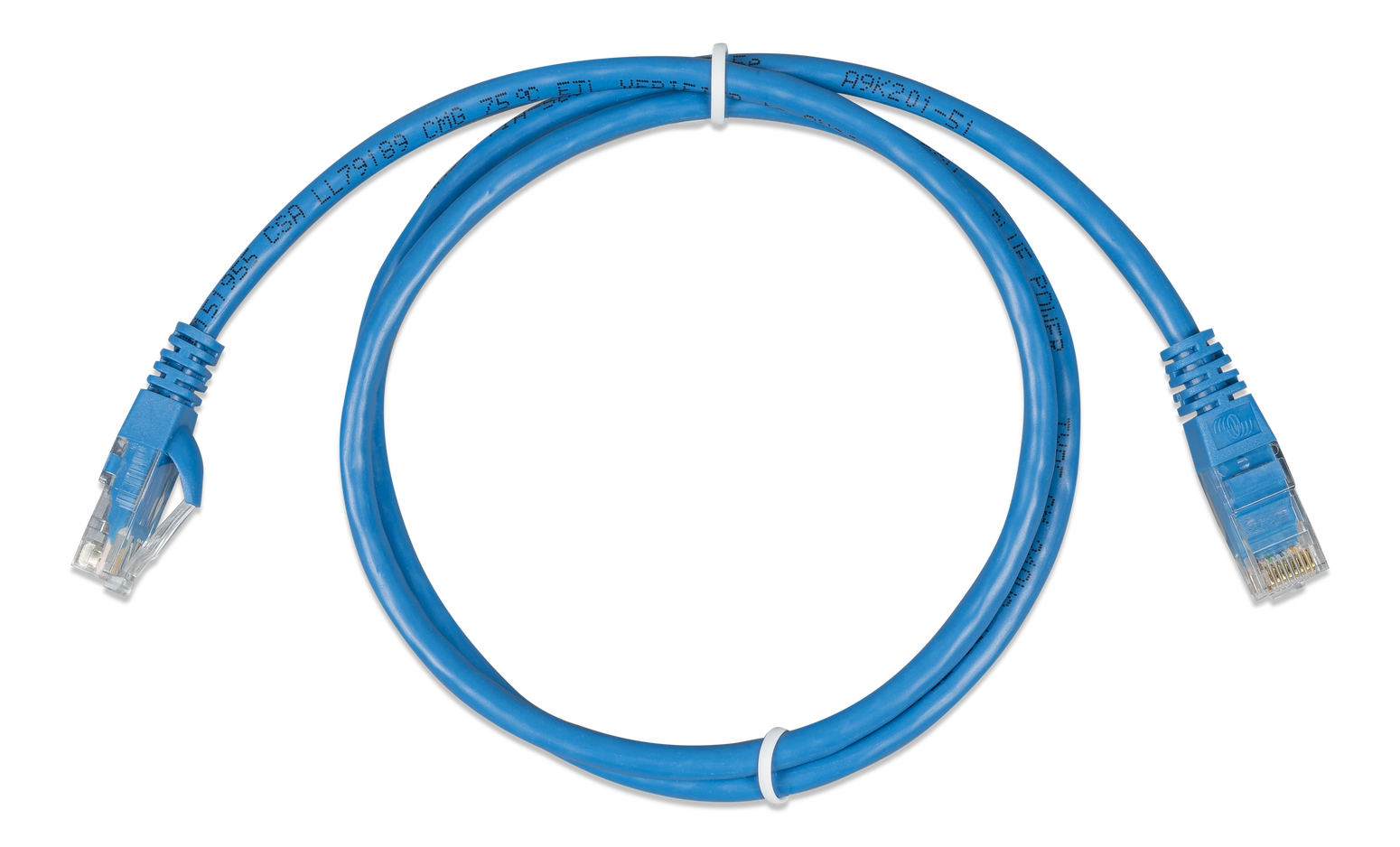

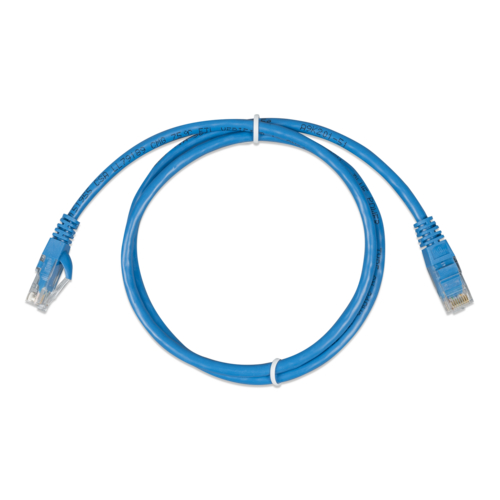

Victron RJ45 UTP Cable 0.9 m
A cable to connect Digital Multi Control, Phoenix Inverter Control, Interface MK3-USB, VE.Bus connections between multiple VE.Bus devices and to make VE.Bus and VE.Can connections to a GX device.

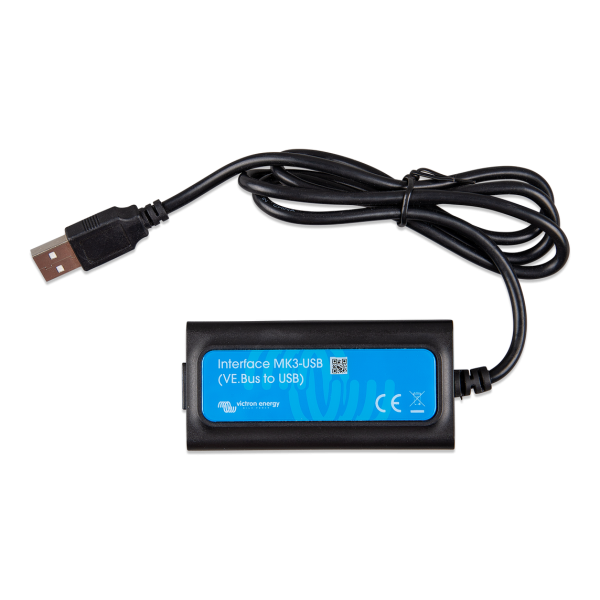

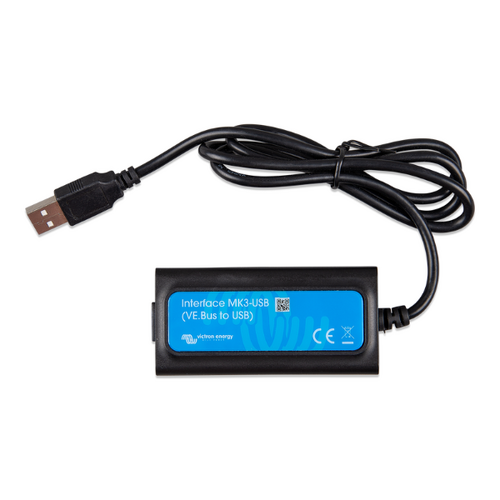

Victron Interface MK3-USB - VE.Bus to USB
The MK3-USB allows the following products to connect to a computer for configuration and firmware updates:
Multi, MultiGrid, MultiPlus, MultiPlus-II, Quattro, Inverter/Charger settings in ECOmulti, EasySolar, EasyPlus, and Inverters with a VE.Bus communication port.
Specifications
SKU BDL003
Brand Victron
Product Category Battery Bundle
Battery Voltage 12V
Amp Hours (Ah) 100
Battery Length (mm) 152
Battery Width (mm) 321
Battery Height (mm) 197
Battery Weight (kg) 15
Voltage 12V
Output Current Rating (Amps) 30
Wattage (W) 1000
Input Voltage 9.5-17V
Peak Power (W) 2400
NOTE: see full product specifications & further product info in the Description section on this page.
Q & A
-
What size battery do I need for my caravan?
Great question! Your deep cycle battery for your caravan will be a minimum of 100 Amp Hours (Ah).
The average size for a Caravan is 200Ah. Usually, 2 x 100Ah connected in Parallel. However, if your budget allows to upgrade to a Lithium battery you can get a lot more power for the size of the battery. For example, a 200Ah lithium battery can be equivalent to up to 360 Ah of an AGM battery.
To work out exactly what size you require you need to first look at the load you are planning on drawing. The load should be calculated in Amps per hour, or Amp Hours (Ah). Batteries are rated in Amp Hours (Ah) as well.
So, if you are drawing a 50Ah per day, a 100Ah AGM battery can provide power for about 1 day as you do not want to draw more than 50% from your battery. However, it is not always easy to find what each appliance draws. Some popular examples are following:
- 150L 12V Fridge = 2.5 Amps per hour (2.5Ah) - runs for 24 hours a day
- 12V Water Pump = 3.5 Amps per hour (3.5Ah) - only runs for 1 hour a day
- Phone Charger = 0.5 Amps per hour (0.5Ah) - Maybe 4 hours per day
- 12V Fan = 4 Amps per hour (4Ah) - Maybe 4 hours per day
Then you will need to factor in how much charge you are putting in Daily. The charge comes in the way of Solar and in car charging via a DC to DC charger.
Ideally you want enough charge input per day to cover the load drawn, then enough battery storage to last 2 - 3 days without charge.
-
What is best - AGM or lithium battery?
The answer is simple. Lithium is a better product than AGM.
Lithium is lighter, more compact, and powerful, it will also last longer.
However, a lithium battery will cost more, because it is a highly sort after product. Almost everything that has a battery nowadays will have a lithium battery. Mobile phone, Electric Car, Electric Bike and Skateboard just to name a few.
There are situations where you can get away with an AGM battery. If you only need about 100ah (most 4 x 4 set ups), you can purchase 1 x 100ah battery and a battery box and away you go.
However, once you start getting into the larger amperages (200+) it really makes more sense to turn to lithium.
-
How do I charge my caravan battery?
There are three ways to charge your caravan Battery. Either:
- AC to DC - This is using a traditional battery charger that plugs into mains power.
- DC to DC - This is a battery charger connected between the start battery of your tow vehicle and the Caravan Battery. This will charge the battery whilst driving.
- Solar - Solar panels on your roof can be connected to a solar charge controller then to your Caravan Battery.
-
How much solar do I need to keep my caravan battery charged?
Ideally, you want use as much solar as you can fit on the roof. Extra portable solar panels are also good idea if you want to park your van in the shade and run a portable panel from a lead in the sun � please see our solar range here.
Solar is cheap relative to the rest of your system, and it provides so much of your power when you are camping off grid.
However, the solar required depends on the load. Please feel free to contact our team for any specific questions on your battery - 1800 787 278!
