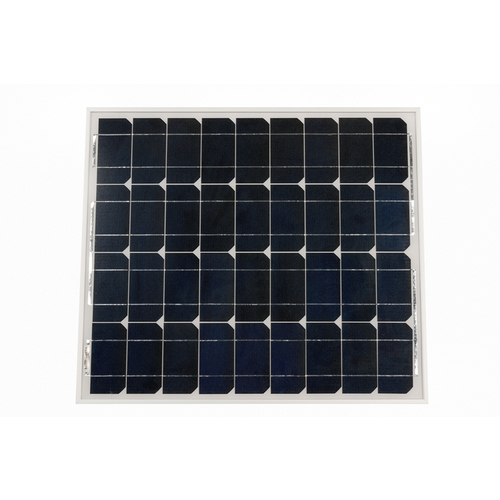

Victron 55W-12V Mono Solar Panel
SKU: SPM040551200 Learn More»
CALCULATE SHIPPING:
Accessories List:
Click '+' to show more accessories
Description
Victron 55W-12V Mono Solar Panel
Features:
- Low voltage-temperature coefficient enhances high-temperature operation.
- Exceptional low-light performance and high sensitivity to light across the entire solar spectrum.
- 25-Year limited warranty on power output and performance.
- 5-Year Limited warranty on materials and workmanship.
- Sealed, waterproof, multifunctional junction box gives high level of safety.
- High performance bypass diodes minimize the power drop caused by shade.
- Advanced EVA (Ethylene Vinyl Acetate) encapsulation system with triple-layer back sheet meets the most stringent safety requirements for high-voltage operation.
- A sturdy, anodized aluminium frame allows modules to be easily roof-mounted with a variety of standard mounting systems.
- Highest quality, high-transmission tempered glass provides enhanced stiffness and impact resistance.
- Pre wired quick-connect system with PV-ST01 connectors.
Specifications:
- Nominal Power (±3% tolerance) - 55W
- Cell type - Monocrystalline
- Number of cells in series - 36
- Maximum system voltage - 1000V
- Temperature coefficient of MPP (%) -0.45/°C
- Temperature coefficient of Voc (%) -0.35/°C
- Temperature coefficient of Isc (%) - +0.04/°C
- Temperature Range -40°C to +85°C
- Surface Maximum Load Capacity - 200 kg/m²
- Allowable Hail Load - 23 m/s, 7.53 g
- Junction Box Type - PV-LH0806
- Length of Cables / Connector Type - No cable
- Output tolerance - +/-3%
- Frame - Aluminium
- Product warranty - 5 years
- Warranty on electrical performance 10 years 90% + 25 years 80% of power output
- Smallest packaging unit - 1 panel
- Quantity per pallet - 140
.png)
Show More
Specifications
SKU SPM040551200
Brand Victron
GTIN 8719076040330
Product Category Solar Panels
Watts (W) 55
Solar Panel Cell Type Monocrystalline
Solar Panel Type Fixed Solar Panels
-Weight 4 Kg
Dimensions 545 x 668 x 25 mm
NOTE: see full product specifications & further product info in the Description section on this page.
