Victron Battery Monitor BMV-702

SKU: BAM010702000R Learn More»
$224
$259
In Stock1-2 Days Dispatch

CALCULATE SHIPPING:

Accessories List:

$59

Description

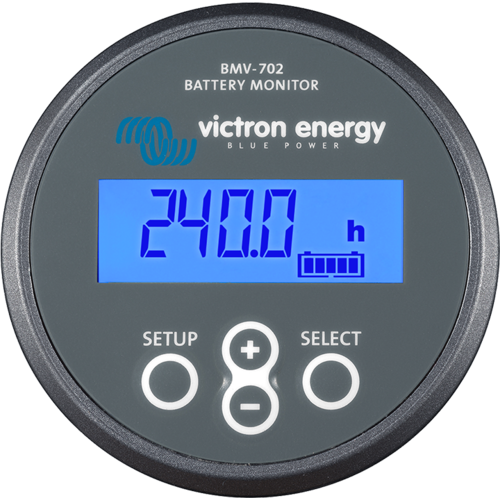

Victron Battery Monitor BMV-702



The BMV-702 (Grey) is a high precision battery monitor. The essential function of a battery monitor is to calculate ampere-hours consumed and the state of charge of a battery. Ampere hours consumed are calculated by integrating the current flowing in or out of the battery.



Specifications:

  • Supply voltage range - 6,5 - 95 VDC
  • Current draw, backlight off - < 4mA
  • Input voltage range, auxiliary battery - 6,5 - 95 VDC
  • Battery capacity (Ah)  - 1 - 9999 Ah
  • Operating temperature range - -40 +50°C (-40 - 120°F)
  • Measures voltage of the second battery, or temperature, or midpoint - Yes
  • Temperature measurement range - -20 +50°C
  • VE. Direct communication port-  Yes
  • Relay - 60V / 1A normally open (function can be inverted)
  • Current -  ± 0,01A
  • Voltage -  ± 0,01V
  • Amp hours - ± 0,1 Ah
  • State of charge (0 – 100%) - ± 0,1%
  • Time to go - ± 1 min
  • Temperature (0 - 50°C or 30 - 120°F) -. ± 1°C/°F
  • Accuracy of current measurement - ± 0,4%
  • Accuracy of voltage measurement - ± 0,3%



Show More

Specifications

SKU BAM010702000R

Brand Victron

GTIN 8719076020103

Product Category Battery Monitors

Amps ± 0,1 Ah (hours)

Input Voltage 6.5 - 70 VDC

Operating temperature range -40°C to 50°C

Dimensions Front 63 mm diameter | Front bezel 69 x 69 mm | Body diameter 52 mm | Body depth 31 mm

Temperature Range -20 +50°C

Current draw 4mA

Voltage (V) ± 0,01V


NOTE: see full product specifications & further product info in the section on this page.
