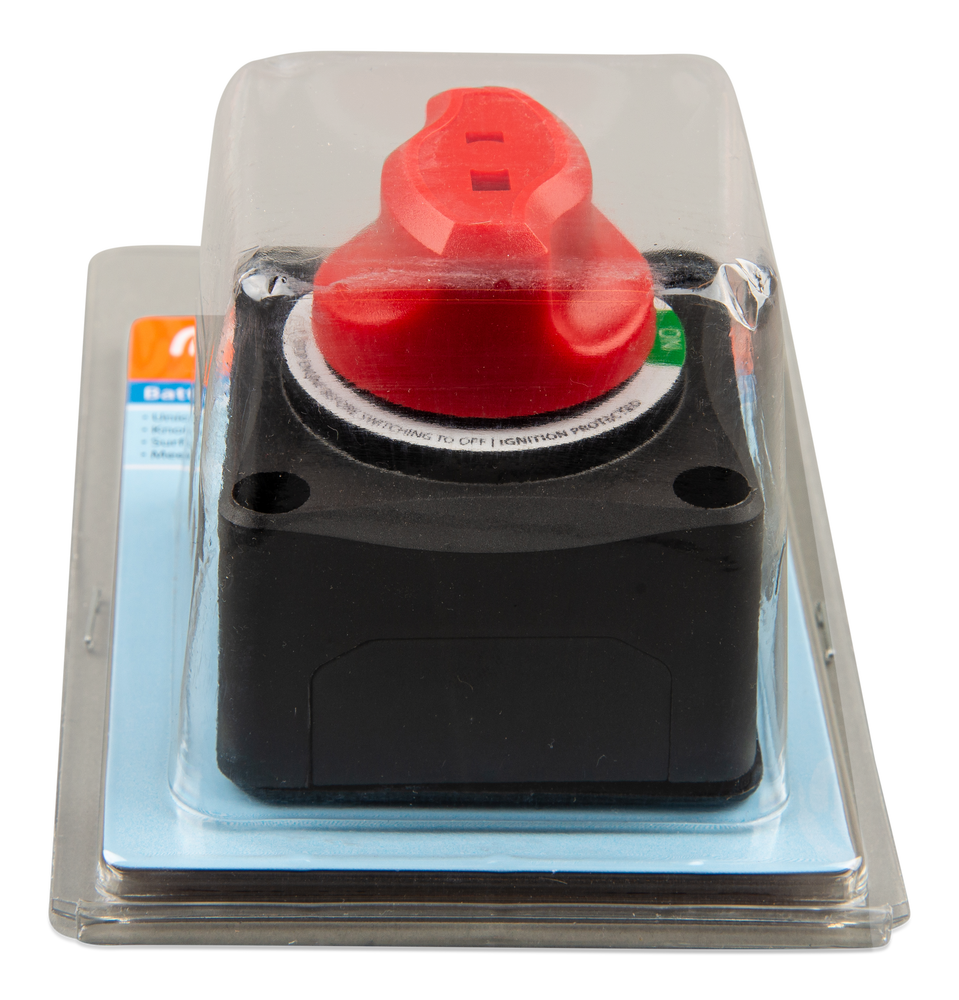

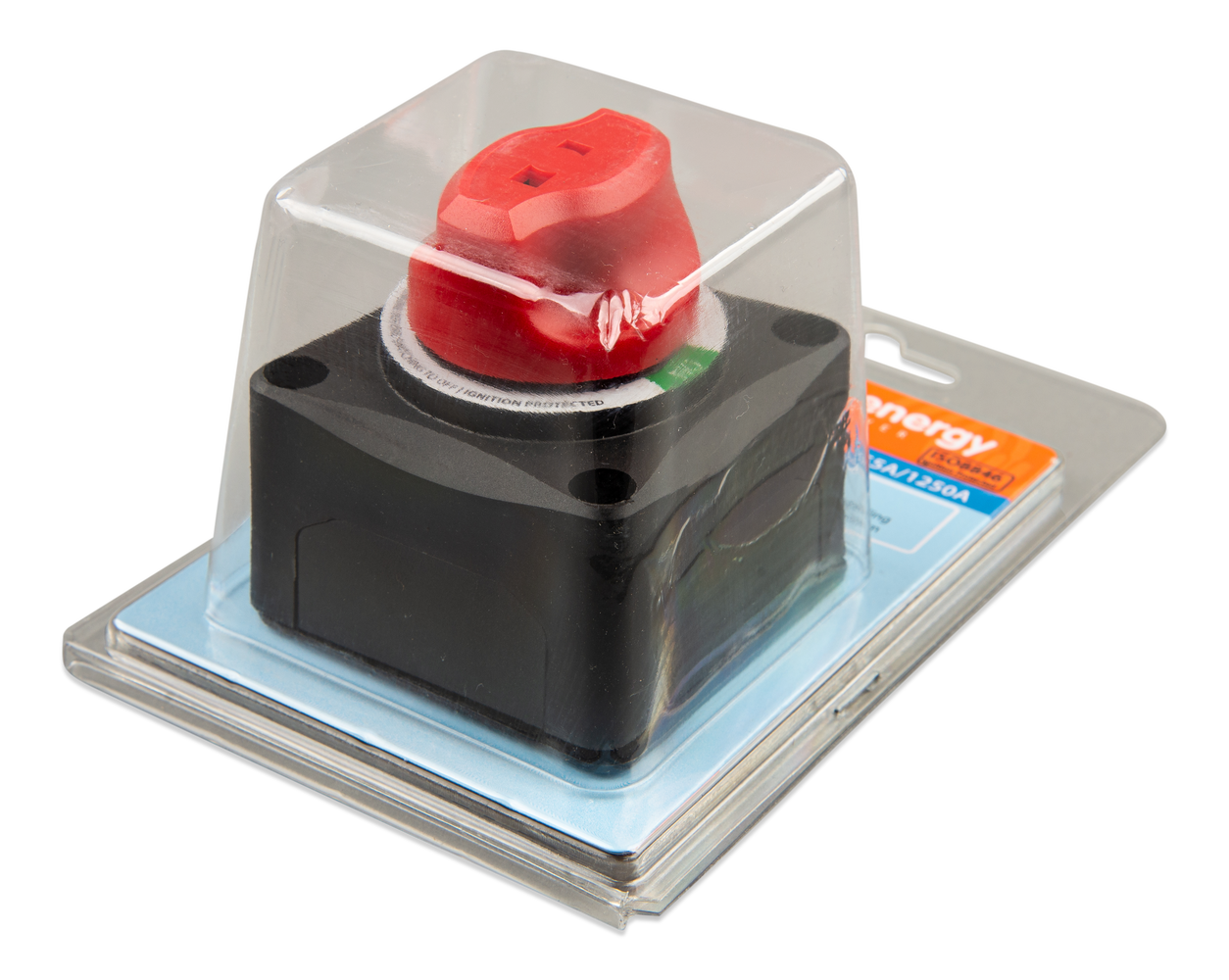

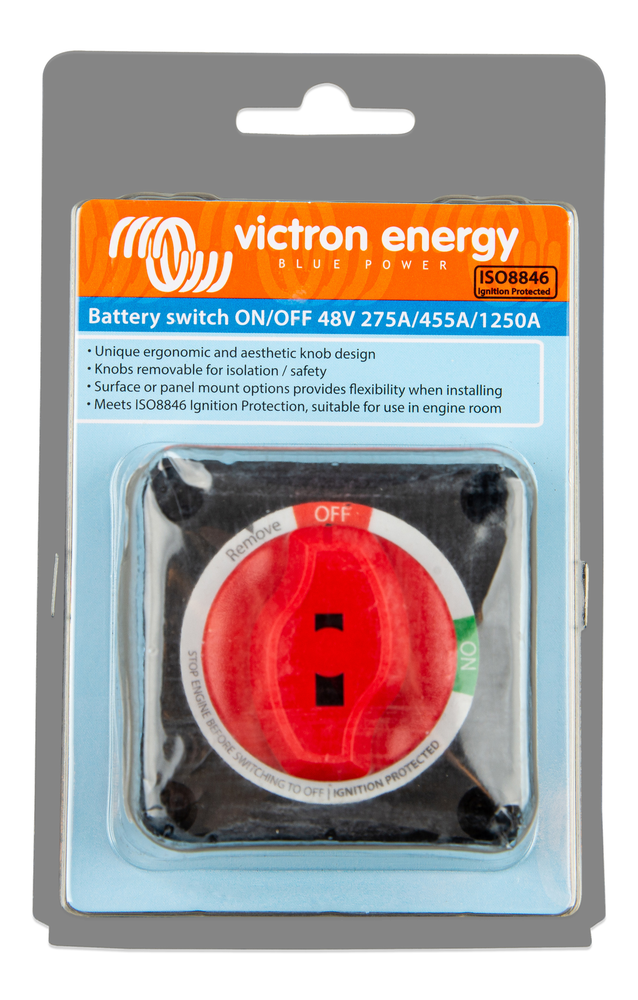

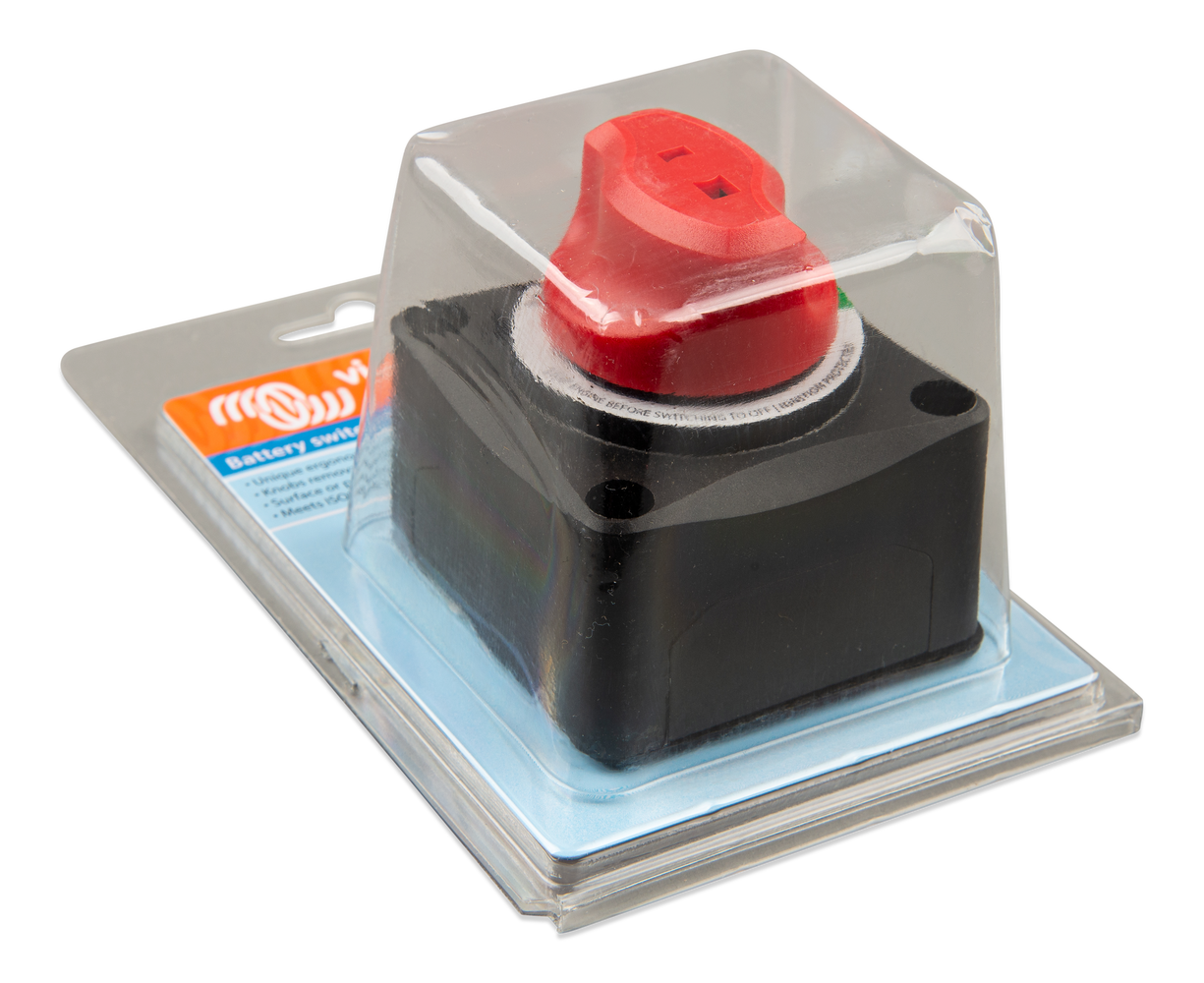

Victron Battery Switch On/Off 275A

SKU: VBS127010010 Learn More»
$69
In StockDispatch 5 to 7 days

CALCULATE SHIPPING:

Description

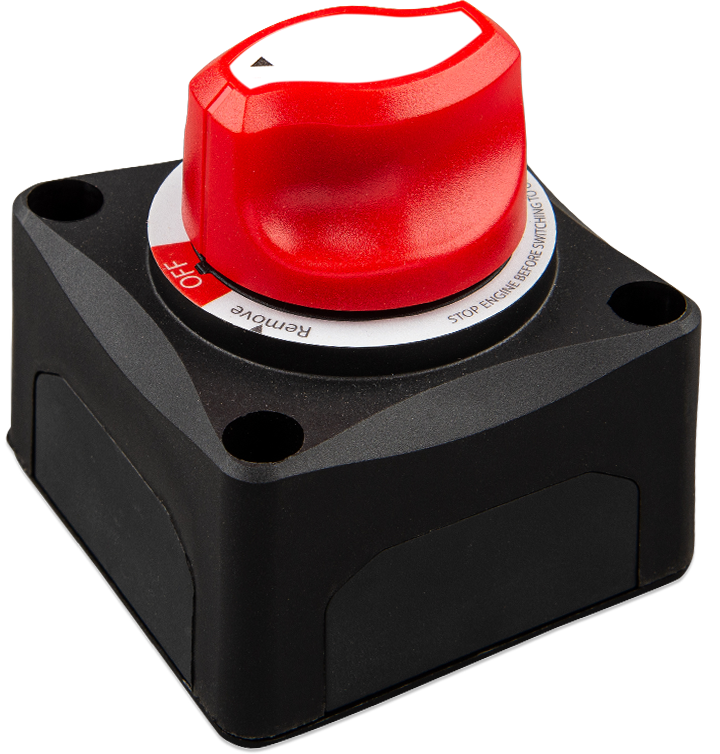

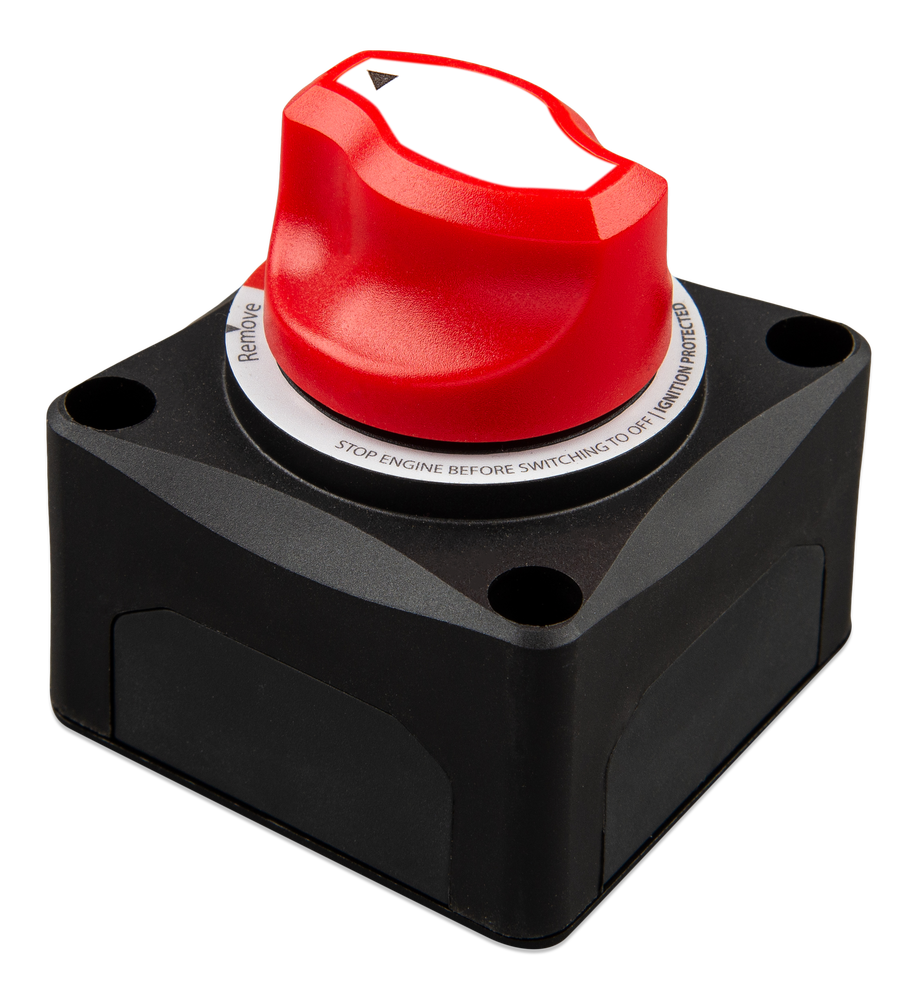

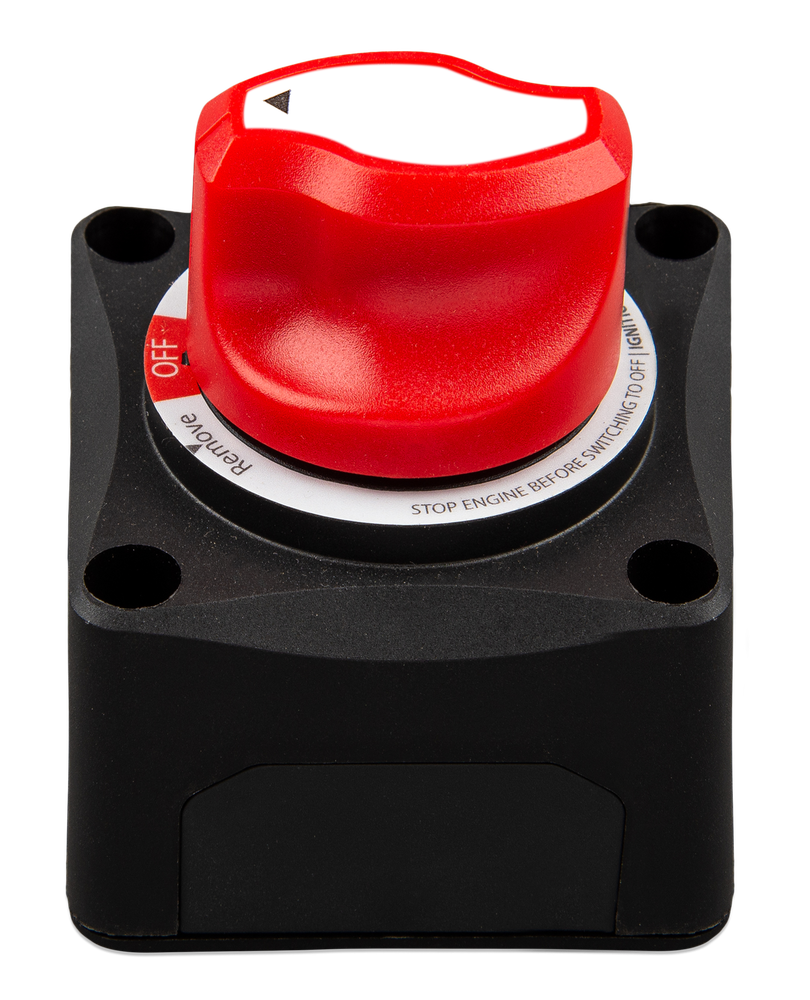

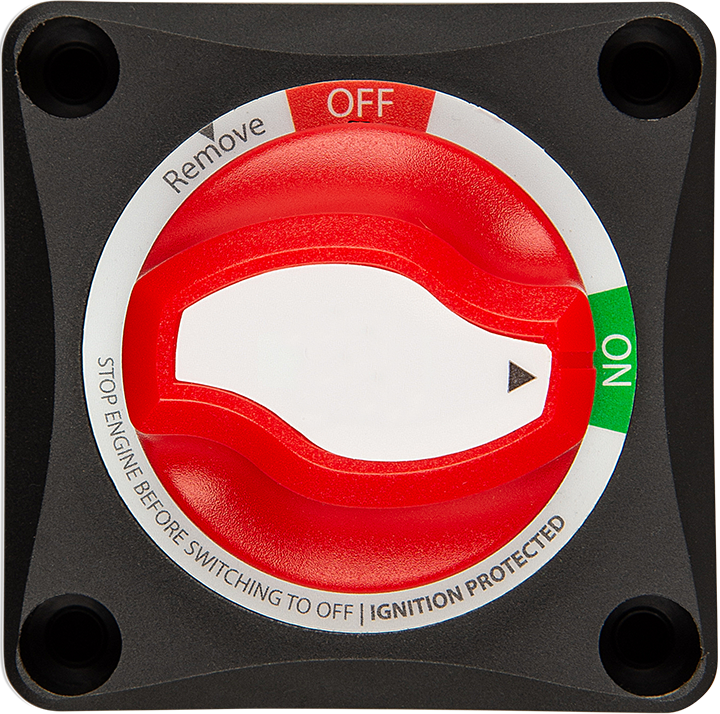

Victron Battery Switch On/Off 275A

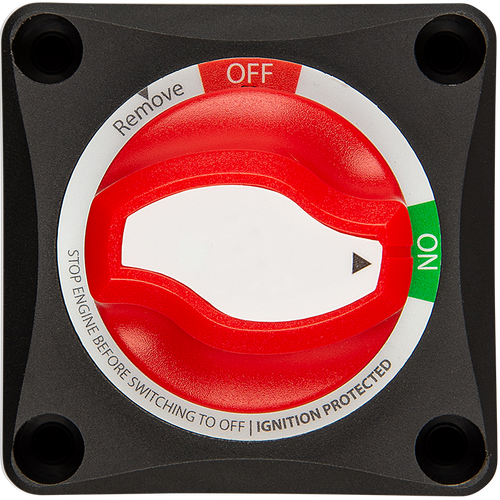

The Battery Switch ON/OFF 275A is suitable for battery systems up to 48V. It has a unique ergonomic and aesthetic knob design. The knob is removable for isolation or safety purposes.

The Battery Switch can be either surface or panel mounted, providing flexibility during install.

The Battery Switch meets the ISO8846 Ignition Protection standard and is suitable for use in an engine room.



Specifications:

  • Max. continuous current: 275 A
  • One minute rating: 455 A
  • Cranking rating: 1250 A
  • Voltage rating: 48 V

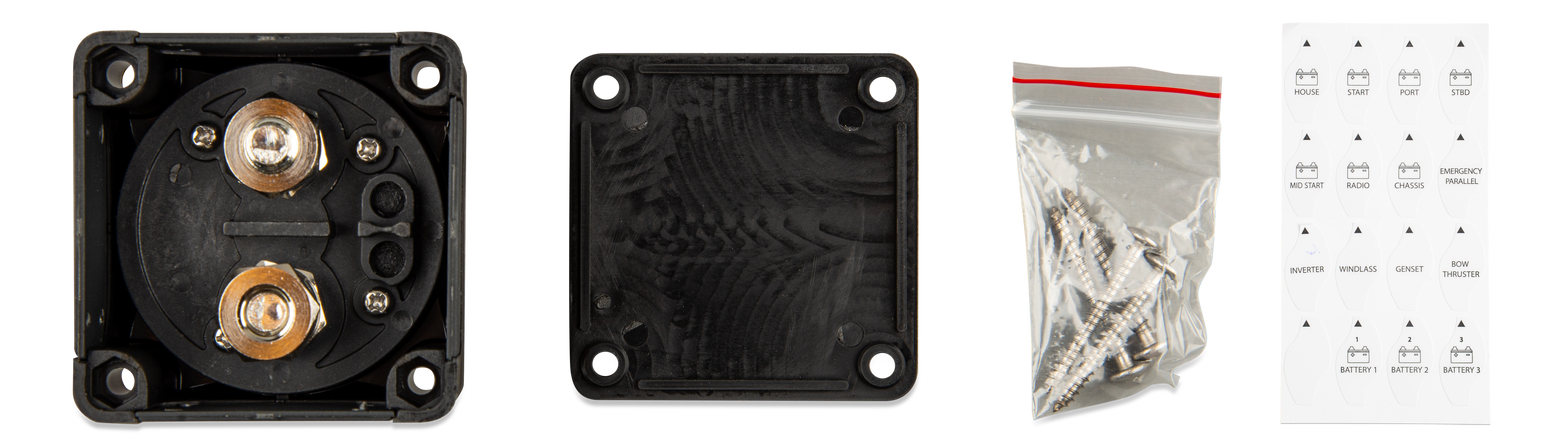

  • Terminal material: Tin-plated copper
  • Hex nut material: Tin-plated copper
  • Terminal diameter:  9.53 mm
  • Recommended torque: 8 N·m
  • Base material: Glass fiber reinforced nylon
  • Weight: 0.2 kg
  • Dimensions (l x w x h): 69.5 x 76.3 x 69.5 mm
  • Mounting: Surface or rear panel mount





Show More

Specifications

SKU VBS127010010

Brand Victron

GTIN 8719076052258

Product Category Electrical Accessories

Dimensions (L x W x H) 69.5 x 76.3 x 69.5 mm


NOTE: see full product specifications & further product info in the section on this page.
