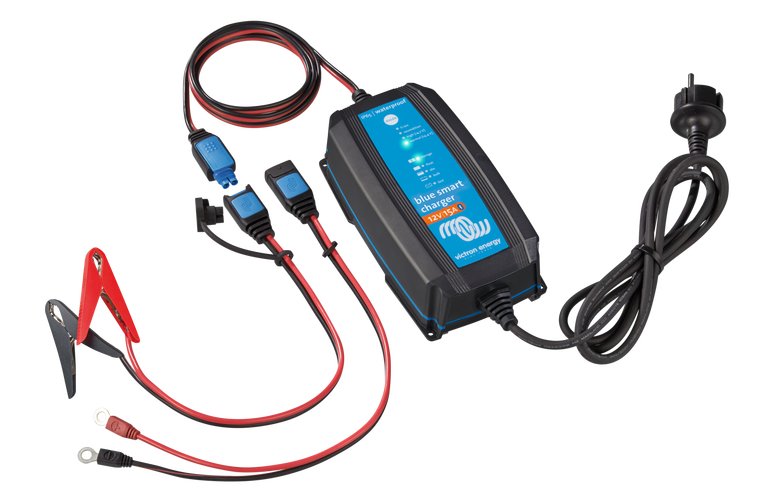

Victron Blue IP65 Smart Charger 12/15 + DC connector
SKU: BPC121531014R Learn More»
FREE SHIPPING
This item is sent via Express Courier. All freight is fully insured.
Accessories List:
Description
Victron Blue IP65 Smart Charger 12/15 + DC connector
Ultra high efficiency “green” battery charger
With up to 95% efficiency, these chargers generate up to four times less heat when compared to the industry standard. And once the battery is fully charged, power consumption reduces to 0.5 watt, some five to ten times better than the industry standard.
Temperature compensated charging
The optimal charge voltage of a lead-acid battery varies inversely with temperature. The Blue Smart IP65 Charger measures ambient temperature during the test phase and compensates for tempera - ture during the charge process. The temperature is measured again when the charger is in low current mode during float or storage. Special settings for a cold or hot environment are therefore not needed.
Li-ion battery mode
The Blue Smart Charge r uses a specific charging algorithm for Li-ion (LiFePO₄) batteries, with automatic Li-ion under voltage protection reset.
The VictronConnect app
Setup, readout and configure your Blue Smart IP65 Charger via your smartphone. You can display the status of your charger and battery and even control the functions of your charger using the VictronConnect app. On your screen the readout of voltage and current is default available.
Features:
- Water, dust and chemical resistant
- Seven step smart charge algorithm
- Recovery of fully discharged 'dead' batteries
- Automatic power supply function
- Servere cold performance: down to -30°C
- Several other battery life enhancing features
- Low power mode to charge smaller batteries
- Li-ion battery mode
- Setup and configure, readout of voltage and current by Bluetooth Smart
Specifications:
| Output Current Rating (Amps) | 15.0 Amps |
|---|---|
| Efficiency | 94% |
| Operating Temperature Range | -30 to +50°C (full rated output up to 30°C) (cables retain flexibility at low temperature) |
| Humidity | Max 95% |
| Output System Voltage | 12V |
| Back Current Drain | 0,7 Ah/month (1 mA) |
| Charge current | 15 A |
| Temperature compensation (lead-acid batteries only) | 16 mV/ º C |
| Dimensions (LxWxH) mm | 105 x 190 x 60 mm (L x W x H) |
| Net Weight (kg) | 0.9 Kg |
| Charge voltage 'absorption' | Normal: 14,4 V | High: 14,7 V | Li-ion: 14,2 V |
| Charge Voltage Float - Wet (25 degrees)** | Normal: 13,8 V | High: 13,8 V | Li-ion: 13,5 V |
| Charge voltage 'storage' | Normal: 13,2 V | High: 13,2 V | Li-ion: 13,5 V |
| Protection | Reverse polarity, Output short circuit, and Over temperature |
| Charge current in low current mode | 4 A |
| Protection category | IP65 (splash and dust proof) |
| Battery-connection | Black and red cable of 1,5 meter |
| Standby power consumption | 0,5 W |
| Input Voltage | 230 VAC |
| Can be used as power supply | Yes |
| Manufacturers Warranty | 5 Years |
Specifications
SKU BPC121531014R
Brand Victron
GTIN 8719076018001
Product Category Battery Chargers
Output Current Rating (Amps) 15
Dimensions 105 x 190 x 60 (LxWxH) mm
Weight (kg) 0.9
Charger Voltage 12V
NOTE: see full product specifications & further product info in the Description section on this page.
