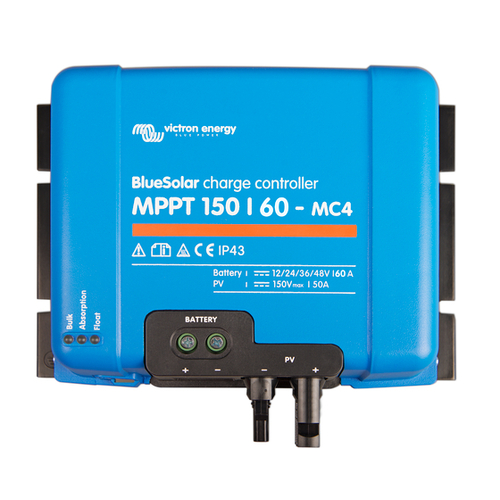

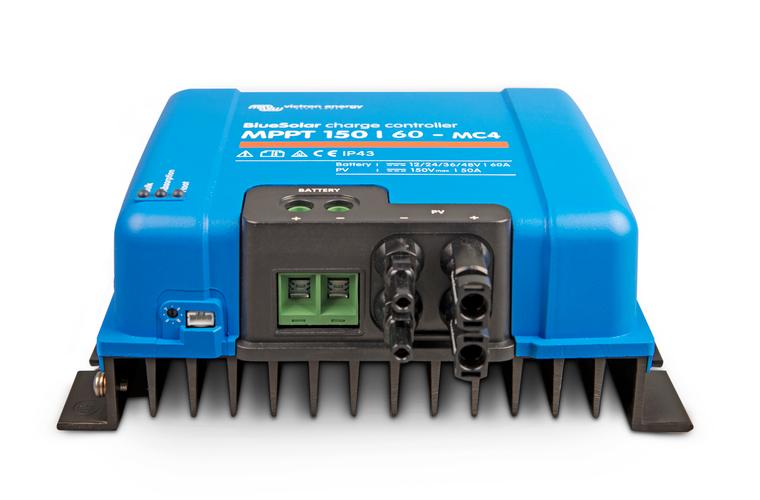

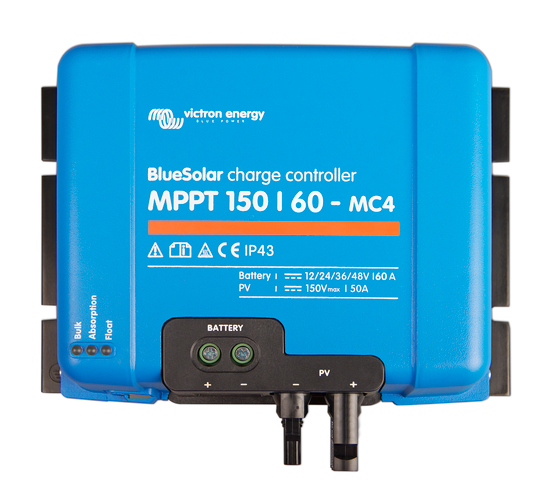

Victron BlueSolar MPPT 150/60-MC4 Charge Controller
SKU: SCC010060200-300 Learn More»
FREE SHIPPING
This item is sent via Express Courier. All freight is fully insured.
Accessories List:
Description

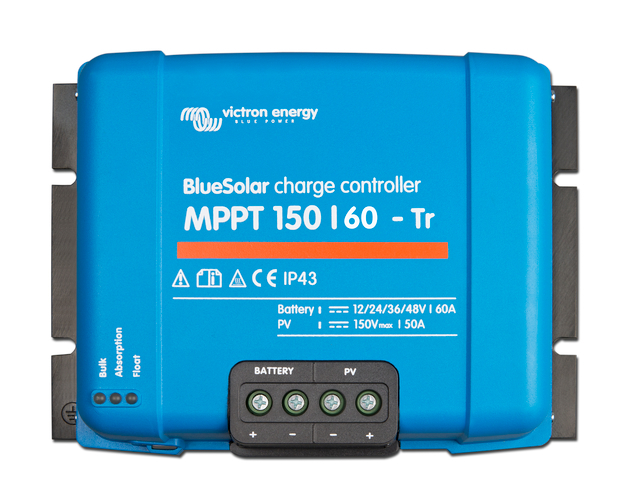

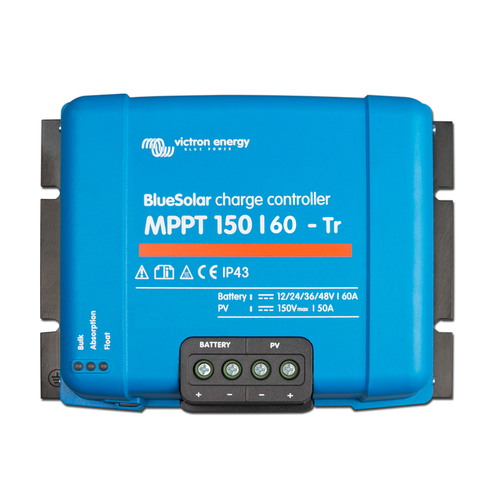

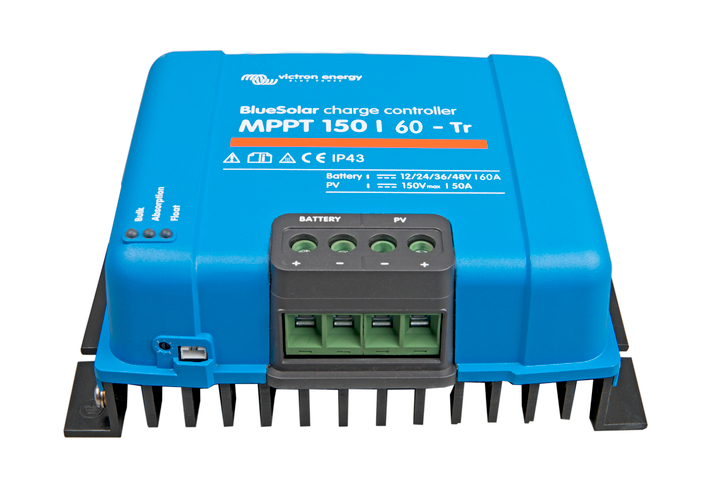

Victron BlueSolar MPPT 150/60 Charge Controller - Tr or MC4
Solar charge controller
A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, BlueSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. BlueSolar maintains battery health, extending its life.
MPPT: Ultra Fast Maximum Power Point Tracking
By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.
Remote Monitoring and Control
Remotely control and monitor the extensive features of your BlueSolar MPPT charger by attaching a Bluetooth dongle and pairing it with your smartphone or other devices via VictronConnect. If your installation is connected to the internet Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both services are free to use. For remote installations - even when there is no internet connection or phone signal nearby - you may be able to monitor your MPPT by BlueTooth-pairing with a LoRaWAN(long-range wide area network) device, available optionally.
Ultra-fast Maximum Power Point Tracking (MPPT)
Especially in the case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.
Advanced Maximum Power Point Detection in case of partial shading conditions
If partial shading occurs, two or more maximum power points may be present on the power-voltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP. The innovative BlueSolar algorithm will always maximize energy harvest by locking to the optimum MPP.
Outstanding conversion efficiency
No cooling fan. Maximum efficiency exceeds 98%.
Flexible charge algorithm
Fully programmable charge algorithm (see the software page on Victrons website), and eight pre-programmed algorithms, selectable with a rotary switch (see the manual for details).
Extensive electronic protection
Over-temperature protection and power derating when the temperature is high. PV short circuit and PV reverse polarity protection. PV reverse current protection.
Internal temperature sensor
Compensates absorption and float charge voltage for temperature.
Real-time data display options
- Color Control GX or other GX devices: see the Venus documents on Victrons website.
- A smartphone or other Bluetooth-enabled device: VE.Direct Bluetooth Smart dongle needed.
Specifications:
| Battery voltage | 12 / 24 / 48V Auto Select (software tool needed to select 36V) |
| Rated charge current | 60A |
| Nominal PV power, 12V 1a,b) | 860W |
| Nominal PV power, 24V 1a,b) | 1720W |
| Nominal PV power, 48V 1a,b) | 3440W |
| Max. PV short circuit current 2) | 50 A |
| Maximum PV open circuit voltage |
150V absolute maximum coldest conditions 145V start-up and operating maximum |
| Maximum efficiency | 98% |
| Self-consumption | 10mA |
| Charge voltage 'absorption' | Default setting: 14.4 / 28.8 / 43.2 / 57.6V (adjustable) |
| Charge voltage 'float' | Default setting: 13.8 / 27.6 / 41.4 / 55.2V (adjustable) |
| Charge algorithm | multi-stage adaptive |
| Temperature compensation | -16 mV / -32 mV / -64 mV / °C |
| Protection | PV reverse polarity / Output short circuit / Over temperature |
| Operating temperature | -30 to +60°C (full rated output up to 40°C) |
| Humidity | 95%, non-condensing |
| Data comm. port and remote on-off |
VE.Direct (see the data communication whitepaper on our website) 150/100 only: VE.Can |
| Parallel operation |
Yes (not synchronized) 150/100: max 25 units |
| Colour | Blue (RAL 5012) |
| PV terminals 3) |
35 mm² / AWG2 (Tr models) Two sets of MC4 connectors |
| Battery terminals | 35 mm² / AWG2 |
| Protection category | IP43 (electronic components), IP22 (connection area) |
| Weight | 3kg |
| Dimensions (d x w x h) in mm |
Tr models: 95 x 250 x 185 MC4 models: 95 x 250 x 215 |
.png)
Specifications
SKU SCC010060200-300
Brand Victron
GTIN 8719076025474
Product Category Solar Charge Controllers
Operating temperature range Äì30¬∞C to +60¬∞C (full rated output up to 40¬∞C)
Dimensions Tr Model 95 x 250 x 185 | MC4 Model 95 x 250 x 215 (D x W x H)
Weight (kg) 3
Charge Voltage Default setting 14.4 / 28.8 / 43.2 / 57.6V (adjustable)
Nominal Power 12V 860W | 24V 1720W | 48V 3440W
Charge Current (A) 60
Voltage (V) 12 / 24 / 48V Auto Select (software tool needed to select 36V)
Protection Battery reverse polarity (fuse, not user accessible) PV reverse polarity / Output short circuit / Over temperature
NOTE: see full product specifications & further product info in the Description section on this page.
