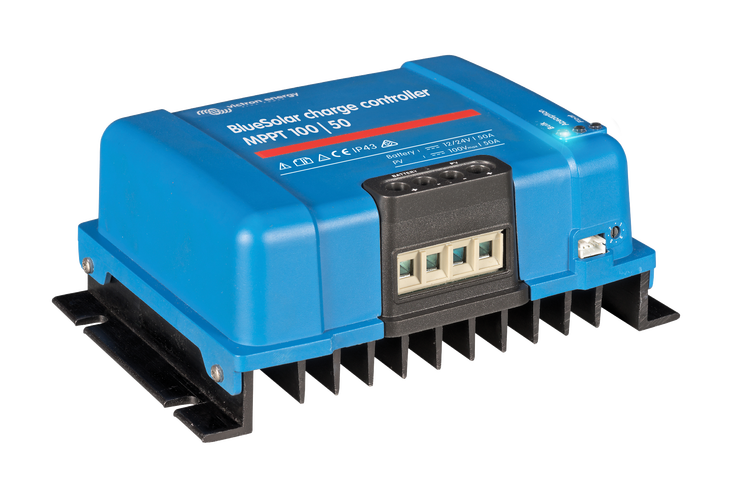

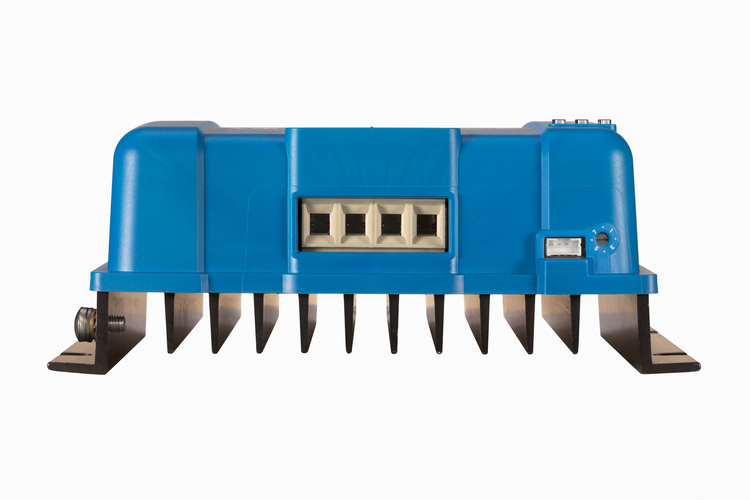

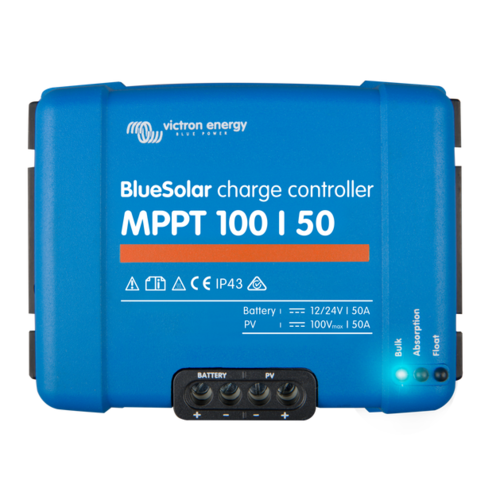

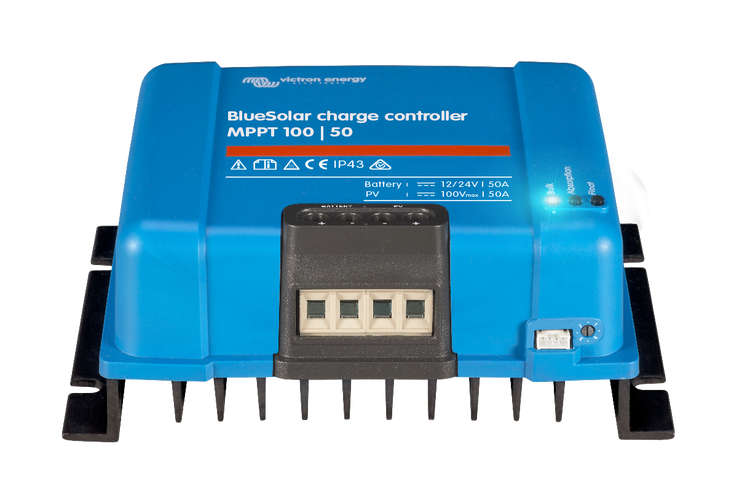

Victron BlueSolar MPPT Charge Controller 100/50
SKU: SCC020050200 Learn More»
FREE SHIPPING
This item is sent via Express Courier. All freight is fully insured.
Accessories List:
Description
Victron BlueSolar MPPT Charge Controller 100/50
Solar charge controller
A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, BlueSolar maximizes this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. BlueSolar maintains battery health, extending its life.
By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.
Remotely control and monitor the extensive features of your BlueSolar MPPT charger by attaching a Bluetooth dongle and pairing it with your smartphone or other devices via VictronConnect. If your installation is connected to the internet Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both services are free to use. For remote installations - even when there is no internet connection or phone signal nearby - you may be able to monitor your MPPT by Bluetooth-pairing with a LoRaWAN (long-range wide area network) device, available optionally.
Specifications:
- Battery voltage - 12/24V Auto Select
- Rated charge current - 50A
- Nominal PV power, 12V 1a,b) -700W
- Nominal PV power, 24V 1a,b) - 1400W
- Maximum PV open circuit voltage - 100V
- Max. PV short circuit current 2) - 60A
- Maximum efficiency - 98%
- Self-consumption - 12V: 30 mA 24V: 20 mA
- Charge voltage 'absorption' - Default setting: 14,4V / 28,8V (adjustable)
- Charge voltage 'float' - Default setting: 13,8V / 27,6V (adjustable)
- Charge algorithm - multi-stage adaptive
- Temperature compensation -16 mV / °C resp. -32 mV / °C
- Operating temperature -30 to +60°C (full rated output up to 40°C)
- Humidity 95%, non-condensing
- Power terminals - 13 mm² / AWG6
- Protection category - IP43 (electronic components), IP22 (connection area)
- Weight - 1.3 kg
- Dimensions (h x w x d) - 130 x 186 x 70 mm
.png)
Specifications
SKU SCC020050200
Brand Victron
GTIN 8719076025566
Product Category Solar Charge Controllers
Amps 50A
Operating temperature range Äì30¬∞C to +60¬∞C (full rated output up to 40¬∞C)
Dimensions 70 x 186 x 130 (D x W x H)
Weight (kg) 1.3
Charge Voltage Default setting 14.4V / 28.8V (adjustable)
Nominal Power 12V 700W | 24V 1400W
Charge Current (A) 50
Voltage (V) 12/24V Auto Select
Protection Battery reverse polarity (fuse, not user accessible) PV reverse polarity, Output short circuit, Over temperature
NOTE: see full product specifications & further product info in the Description section on this page.
