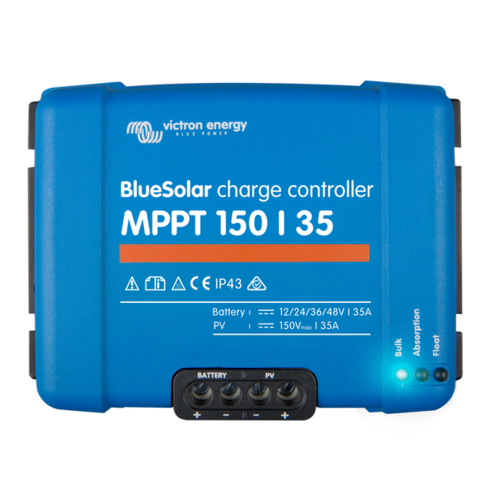

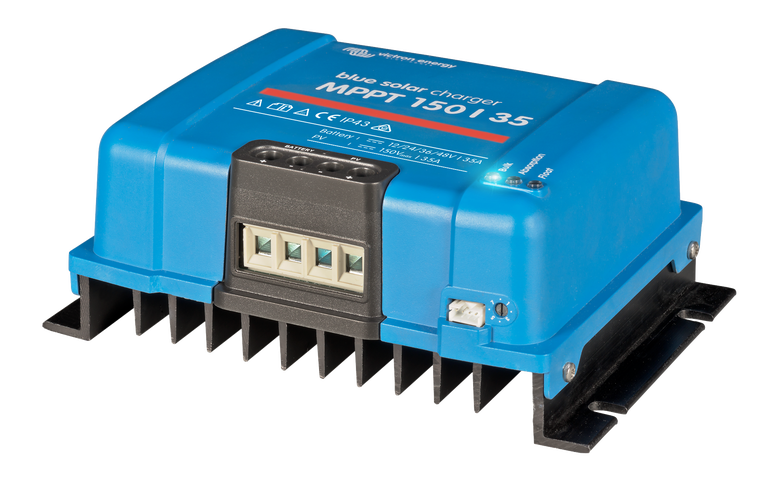

Victron BlueSolar MPPT Charge Controller 150/35
SKU: SCC020035000 Learn More»
FREE SHIPPING
This item is sent via Express Courier. All freight is fully insured.
Accessories List:
Description
Victron BlueSolar MPPT Charge Controller 150/35
A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, BlueSolar maximizes this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. BlueSolar maintains battery health, extending its life.
By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.
Remotely control and monitor the extensive features of your BlueSolar MPPT charger by attaching a Bluetooth dongle and pairing it with your smartphone or other devices via VictronConnect. If your installation is connected to the internet Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both services are free to use. For remote installations - even when there is no internet connection or phone signal nearby - you may be able to monitor your MPPT by Bluetooth-pairing with a LoRaWAN (long-range wide area network) device, available optionally.
Specifications:
- Battery voltage - 12 / 24 / 48V Auto Select (software tool needed to select 36V)
- Rated charge current - 35A
- Nominal PV power 1a, b) - 12V: 500W / 24V: 1000W / 36V: 1500W / 48V: 2000W
- Max. PV short circuit current 2) - 40A
- Maximum PV open circuit voltage 150V absolute maximum coldest conditions 145V start-up and operating maximum
- Maximum efficiency 98%
- Self-consumption 12V: 20 mA 24V: 15 mA 48V: 10mA
- Charge voltage 'absorption' - Default setting: 14,4 / 28,8 / 43,2 / 57,6V (adjustable)
- Charge voltage 'float' Default setting: 13,8 / 27,6 / 41,4 / 55,2V (adjustable)
- Charge algorithm - multi-stage adaptive (eight pre-programmed algorithms)
- Temperature compensation -16 mV / -32 mV / -64 mV / °C
- Protection - PV reverse polarity Output short circuit Over-temperature
- Operating temperature -30 to +60°C (full rated output up to 40°C)
- Humidity - 95%, non-condensing
.png)
Specifications
SKU SCC020035000
Brand Victron
GTIN 8719076025559
Product Category Solar Charge Controllers
Operating temperature range Äì30¬∞C to +60¬∞C (full rated output up to 40¬∞C)
Dimensions 70 x 186 x 130 (D x W x H)
Weight (kg) 1.25
Charge Voltage Default setting 14.4 / 28.8 / 43.2 / 57.6V (adjustable)
Nominal Power 12V 500W / 24V 1000W / 36V 1500W / 48V 2000W
Charge Current (A) 35
Voltage (V) 12 / 24 / 48V Auto Select (software tool needed to select 36V)
Protection Battery reverse polarity (fuse, not user accessible) PV reverse polarity, Output short circuit, Over temperature
NOTE: see full product specifications & further product info in the Description section on this page.
