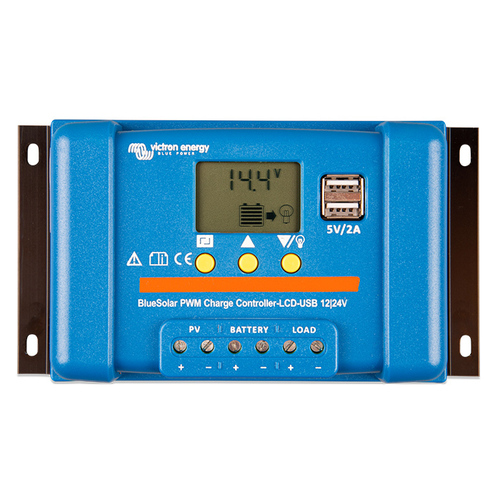

Victron BlueSolar PWM-LCD&USB 12/24V-20A Charge Controller
SKU: SCC010020050 Learn More»
FREE SHIPPING
This item is sent via Express Courier. All freight is fully insured.
Accessories List:
Description
Victron BlueSolar PWM-LCD&USB 12/24V-20A Charge Controller
Specifications:
| Battery Voltage | 12/24 V with automatic system voltage detection |
| Rated charge current | 20A |
| Automatic load disconnect | Yes |
| Maximum solar voltage | 28V / 55V |
| Self-consumption | < 10 mA |
| Load output | Manual control + low voltage disconnect +timer |
| Protection |
Battery reverse polarity (fuse) Output short circuit Over-temperature |
| Overload protection |
Shut down after 60 s in case of 130% load Shut down after 5 s in case of 160% load Short circuit: immediate shut down |
| Grounding | Common positive |
| Operating temp. range | -35 to +60°C (full load) |
| Humidity (non-condensing) | Max 95% |
| Charge voltage 'absorption' | 14.4V / 28.8V |
| Charge voltage 'float' | 13.7V / 27.4V |
| Low voltage load disconnect | 11.2V / 22.4V |
| Low voltage load reconnect | 12.6V / 25.2V |
| Voltage | 5V |
| Current | 2A (total from 2 outputs) |
| Protection class | IP20 |
| Terminal size | 6 mm² / AWG10 |
| Weight | 0.15kg |
| Dimensions (d x w x h) | 36 x 169 x 96 mm |
.png)
Specifications
SKU SCC010020050
Brand Victron
GTIN 8719076046202
Product Category Solar Charge Controllers
Amps 20A
Operating temperature range Äì35¬∞C to +60¬∞C (full load)
Dimensions 36 x 169 x 96 (D x W x H)
Weight (kg) 0.15
Charge Current (A) 20
Voltage (V) 12/24 V with automatic system voltage detection
Protection Battery reverse polarity (fuse), Output short circuit, and Over temperature
NOTE: see full product specifications & further product info in the Description section on this page.
