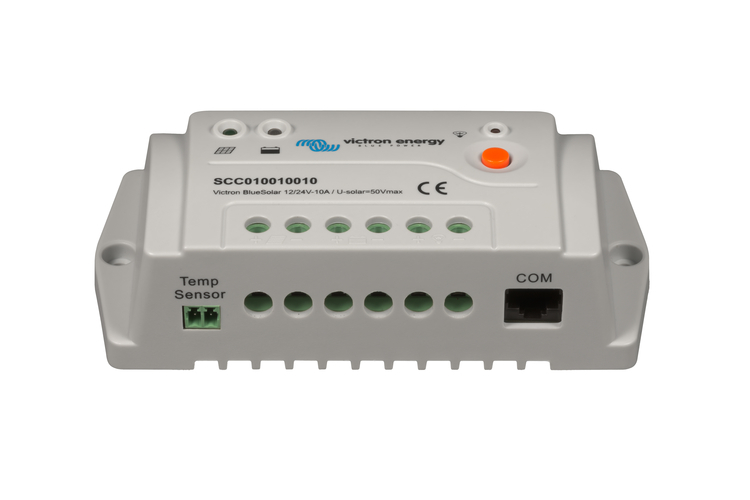

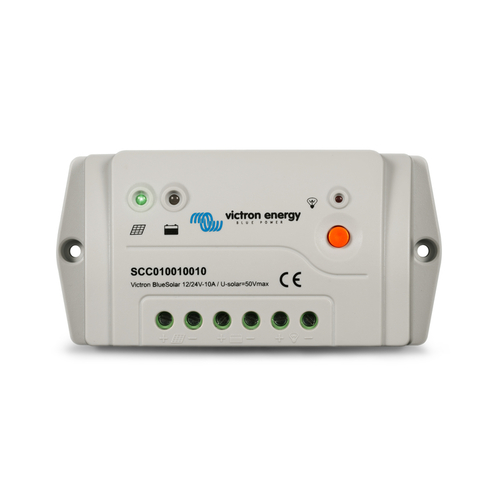

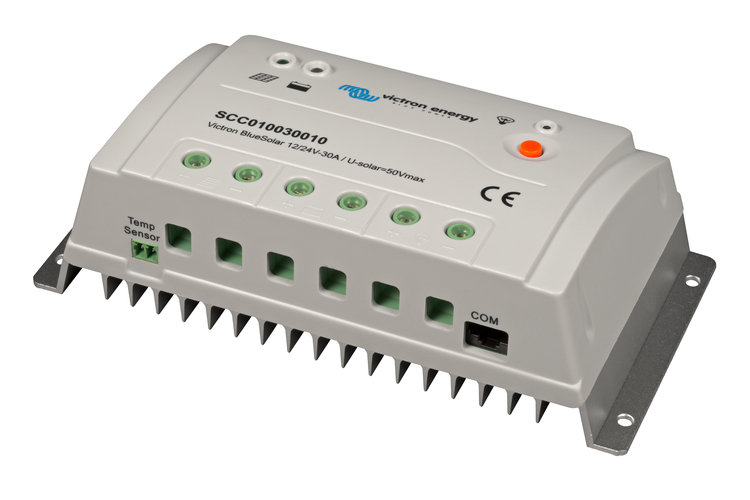

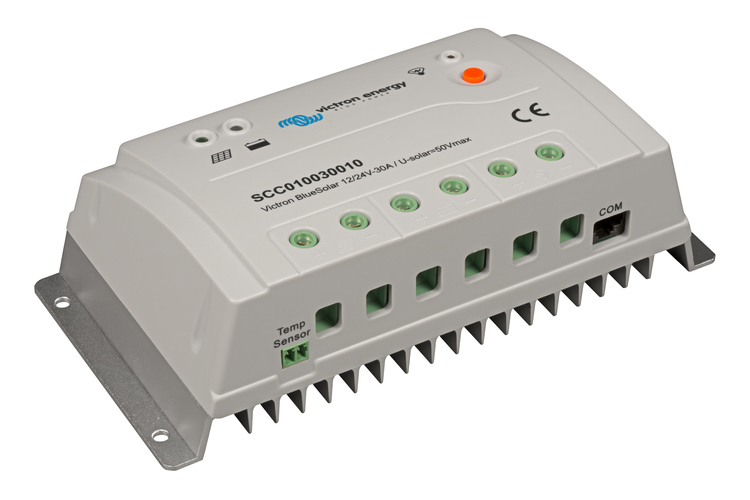

Victron BlueSolar PWM-Pro Charge Controller 12/24V-5A
SKU: SCC010005010 Learn More»
CALCULATE SHIPPING:
Accessories List:
Description
Victron BlueSolar PWM-Pro Charge Controller 12/24V-5A
BlueSolar PWM-Pro
The BlueSolar PWM-Pro series is ready for use with its default settings. It also is fully programmable.
- Lighting control function, fully programmable.
- Three-stage battery charging (bulk, absorption, float), fully programmable.
- Integrated battery monitor function (Remote Panel needed to display state of charge).
- Load output with low voltage disconnect and manual control (default setting).
- Optional external temperature sensor.
- Load output protected against overload and short circuit.
- Protected against reverse polarity connection of the solar panels and/or battery.
- Day/night timing options: see manual Remote Panel for details.
Features
- Load output with low battery voltage disconnect function.
- Lighting control function, one timer only.
- Two-digit seven segment display for quick and easy setting of the load output functionality, including timer setting.
- Three-stage battery charging (bulk, absorption, float), not programmable.
- Load output protected against overload and short circuit.
- Protected against reverse polarity connection of the solar array and/or battery.
Specifications:
- Battery Voltage - 12/24V with automatic system voltage detection
- Rated charge current - 5A
- Automatic load disconnect - Yes
- Maximum solar voltage - 28V / 55V (1)
- Self-consumption - < 10 mA
- Load output - Manual control + low voltage disconnect
- Protection - Battery reverse polarity (fuse) Output short circuit Over temperature.
- Grounding -Common positive
- Operating temp. range -20 to +50°C (full load)
- Humidity (non-condensing) - Max 98%
- Charge voltage 'absorption' - 14.4V / 28.8V
- Charge voltage 'float' - 13.8V / 27.6V
- Equalization charge - 14.6V / 29.2V
- Low voltage load disconnect - 11.1V / 22.2V
- Low voltage load reconnect - 12,6V / 25,2V
- Protection class - IP30
- Terminal size - 4 mm² / AWG10
- Weight - 0.13kg
- Dimensions (h x w x d) - 138x70x37 mm
.png)
Specifications
SKU SCC010005010
Brand Victron
GTIN 8719076025252
Product Category Solar Charge Controllers
Amps 5A
Operating temperature range –20°C to +50°C (full load)
Dimensions 37 x 70 x 138 mm (D x W x H)
Weight (kg) 0.13
Charge Current (A) 5
Voltage (V) 12/24 V with automatic system voltage detection
Protection Battery reverse polarity (fuse), Output short circuit, and Over temperature
NOTE: see full product specifications & further product info in the Description section on this page.
