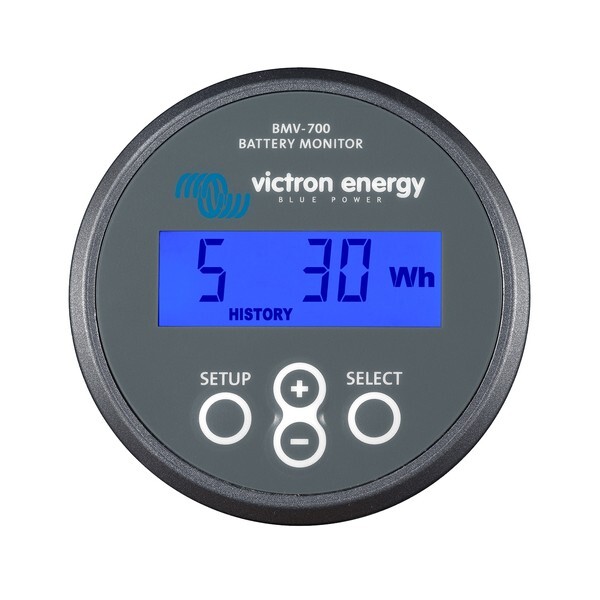

Victron BMV700 Battery Monitor
SKU: BAM010700000R Learn More»
FREE SHIPPING
This item is sent via Express Courier. All freight is fully insured.
Accessories List:
Description
Be confident your batteries will last! The new VICTRON BMV 700 is packed with features and is the ultimate battery monitor. It gives you command over your power load.
If you are long range touring, or taking a weekend break, a flat or deeply discharged battery will ruin your plans and hit your back pocket. To steer clear of this scenario you need to control and manage your power use and have confidence that your batteries can handle the load.
The new VICTRON BMV 700 provides you with the most advanced information about your battery system, in a way that’s easy to understand and simple to use, so you can stay powered up to enjoy the good times.
Driven by a powerful microprocessor and super-accurate shunt technology, the BMV 700 delivers precision monitoring using a simple push button display. If you’re running lights, fridges or a compressor off your battery, the BMV 700 places incredibly useful information at your fingertips. The new “fuel gauge” status bar shows your remaining power. Its “power measurement” function (voltage times current) instantly calculates watts. With the BMV 700, you no longer have to manually determine your power use, so it’s easy to assess the load on your system and prevent harmful battery discharge or failure.
Along with these new features the VICTRON BMV 700 will automatically detect if you’re running a 12V, 24V, or 48V battery. It allows you to program a visual and audible alarm for its battery voltage and battery charge/discharge display. You can choose to see your battery’s state of charge, the percentage of energy consumed by the battery and the amount of time you can continue to support the current load. All of this means you’ll be able to take care of your batteries, extend their lifetime and save money. Plus, you’ll have a hassle-free break not having to worry about flat batteries, a win win!
Features:
- Battery Fuel Gauge
- State of charge display
- Time to go indicator display
- Discharge current display
- Charge current display
- Voltage display
- Current display
- Power consumption display
- Easy DIY Install
|
RESOLUTION & ACCURACY (with a 500 A shunt) |
|
|
Current |
± 0,01 A |
|
Voltage |
± 0,01 V |
|
Amp hours |
± 0,1 Ah |
|
State of charge (0 – 100 %) |
± 0,1 % |
|
Time to go |
± 1 min |
|
Temperature (0 - 50°C or 30 - 120°F) |
n. a. |
|
Accuracy of current measurement |
± 0,4 % |
|
Accuracy of voltage measurement |
± 0,3 % |
|
INSTALLATION & DIMENSIONS |
|
|
Installation |
Flush mount |
|
Front |
63 mm diameter |
|
Front bezel |
69 x 69 mm (2.7 x 2.7 inch) |
|
Body diameter |
52mm (2.0 inch) |
|
Body depth |
31mm (1.2 inch) |
|
STANDARDS |
|
|
Safety |
EN 60335-1 |
|
Emission / Immunity |
EN 55014-1 / EN 55014-2 |
|
Automotive |
ECE R10-4 / EN 50498 |
|
ACCESSORIES |
|
|
Shunt (included) |
500 A / 50 mV |
|
Cables (included) |
10 meter 6 core UTP with RJ12 connectors, and cable with fuse for ‘+’ connection |
|
Technical |
|
|---|---|
|
Battery Capacity (Ah) |
20 - 9999 Ah |
|
Current Draw, Back Light Off |
< 4 mA |
|
Input Voltage Range, Auxiliary Battery |
N/A |
|
Operating Temperature Range |
-20 +50°C |
|
Relay |
60V/1A normally open (function can be inverted) |
|
Supply Voltage Range |
6,5 - 95 VDC |
|
Temperature Measurement Range |
-20 +50°C |
|
VE.Direct Communication Port |
Yes |
Specifications
SKU BAM010700000R
Brand Victron
GTIN 8719076020073
Product Category Battery Monitors
Amps ± 0,1 Ah (hours)
Operating temperature range -40°C to 50°C
Dimensions Front 63 mm diameter | Front bezel 69 x 69 mm | Body diameter 52 mm | Body depth 31 mm
Temperature Range -20 +50°C
Current draw 4mA
Voltage (V) ± 0,01V
NOTE: see full product specifications & further product info in the Description section on this page.
