Victron Busbar 150A 4Pole & Cover
SKU: VBB115040020 Learn More»
Description

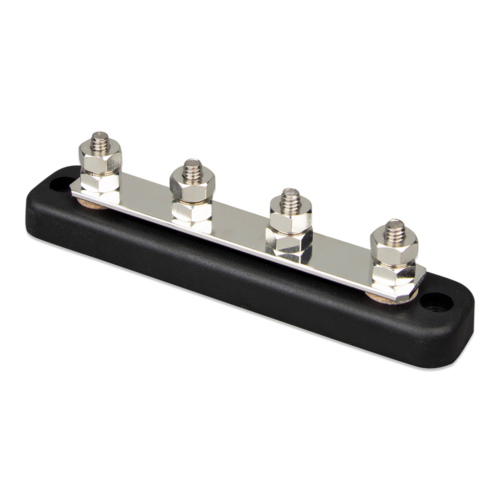

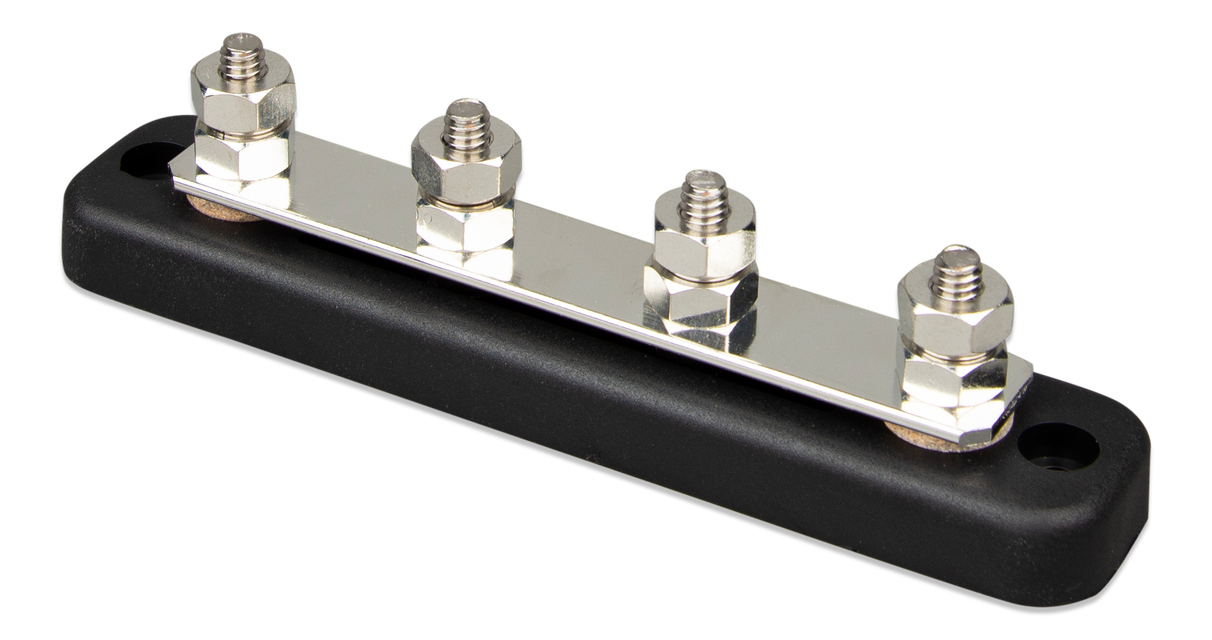

Victron Busbar 150A 4Pole & Cover
Busbars are used for high current distribution and at the same time they provide connections for batteries and/or DC equipment.
We offer a number of busbars with different current ratings, and a different number of connection terminals. Each busbar is fitted out with a removable protection cover.
Specifications:
- Max. current: 150 A
- Max. Voltage: 70 VDC
- Terminal diameter: ¼ inch / 6.35 mm
- Terminal height: 0.67 inch / 17 mm
- Terminal material: Stainless steel
- Hex nut material: Tin-plated copper
- Recommended torque: 60 lbf·inch / 7 N·m
- Busbar strip material: Tin-plated copper (1.4 x 18 mm)
- Base material: ABS, black, UL 94 V-0
- Cover material: Clear Polycarbonate, UL 94 HB
- Weight, 4 terminals: 0.2 kg
- Dimensions (hxwxd): (with cover) 45 x 152.4 x 31.8 mm
.png)
Show More
Specifications
SKU VBB115040020
Brand Victron
GTIN 8719076052197
Product Category Fuses and Breakers
NOTE: see full product specifications & further product info in the Description section on this page.
Reviews
Be The First To Review This Product!
Help other CARAVANRVCAMPING users shop smarter by writing reviews for products you have purchased.
Warranty
Warranty Period: 5 Years
Warranty Details: Please CLICK HERE for Warranty Information on this product
