Description

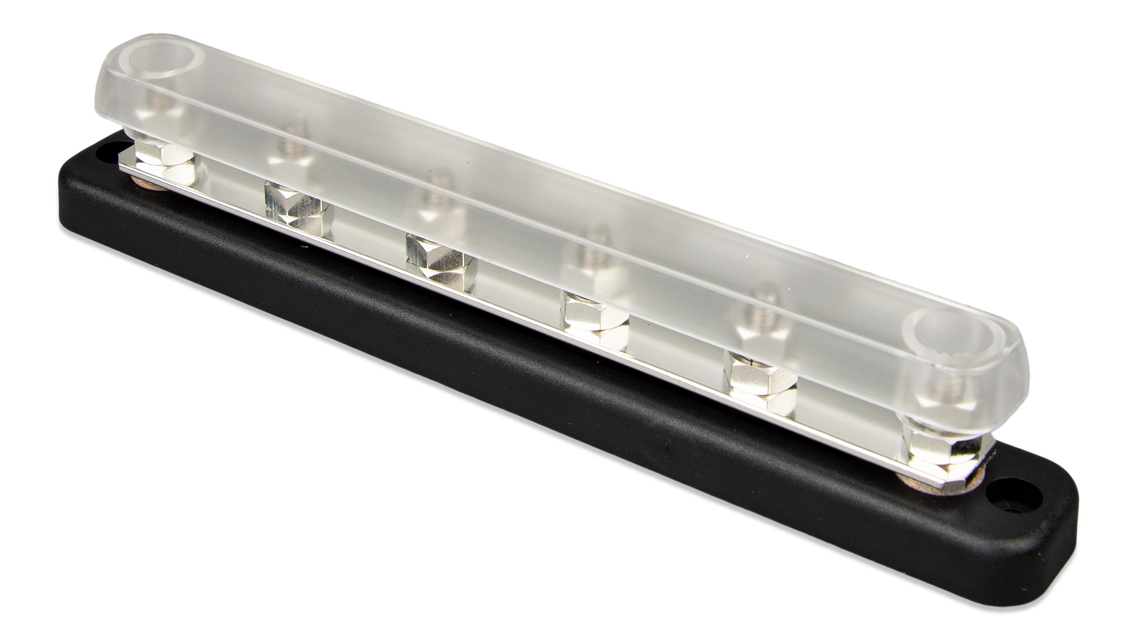

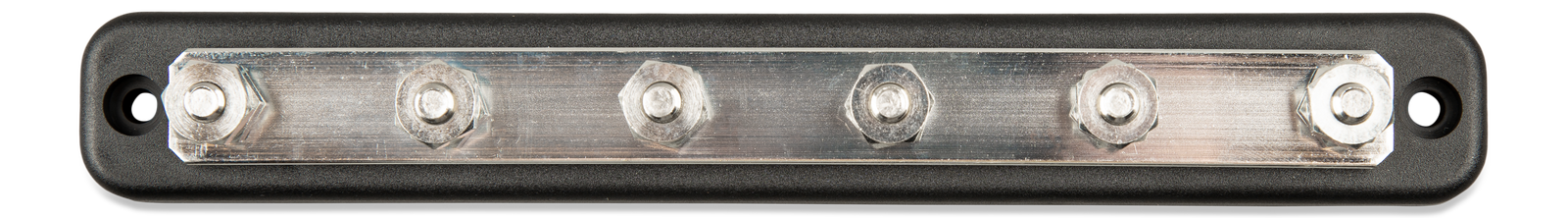

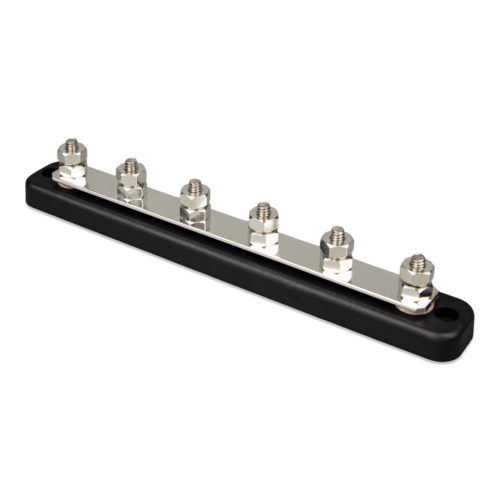

Victron Busbar 150A 6Pole & Cover
Busbars are used for high current distribution and at the same time they provide connections for batteries and/or DC equipment.
We offer a number of busbars with different current ratings, and a different number of connection terminals. Each busbar is fitted out with a removable protection cover.
Specifications:
- Max. current: 150 A
- Max. Voltage: 70 VDC
- Terminal diameter: ¼ inch / 6.35 mm
- Terminal height: 0.67 inch / 17 mm
- Terminal material: Stainless steel
- Hex nut material: Tin-plated copper
- Recommended torque: 60 lbf·inch / 7 N·m
- Busbar strip material: Tin-plated copper (1.4 x 18 mm)
- Base material: ABS, black, UL 94 V-0
- Cover material: Clear Polycarbonate, UL 94 HB
- Weight, 6 terminals: 0.27 kg
- Dimensions (hxwxd): (with cover) 45 x 231.7 x 31.8 mm
.png)
Show More
Specifications
SKU VBB115060020
Brand Victron
GTIN 8719076052203
Product Category Fuses and Breakers
NOTE: see full product specifications & further product info in the Description section on this page.
