Victron Busbar 250A 4Pole & Cover
SKU: VBB125040010 Learn More»![](/assets/thumbL/VBB125040010.png?20220106183759)
![](/assets/alt_1/VBB125040010.png?20220106183803)
![](/assets/alt_2/VBB125040010.png?20220106183812)
![](/assets/alt_3/VBB125040010.png?20220106183815)
Description

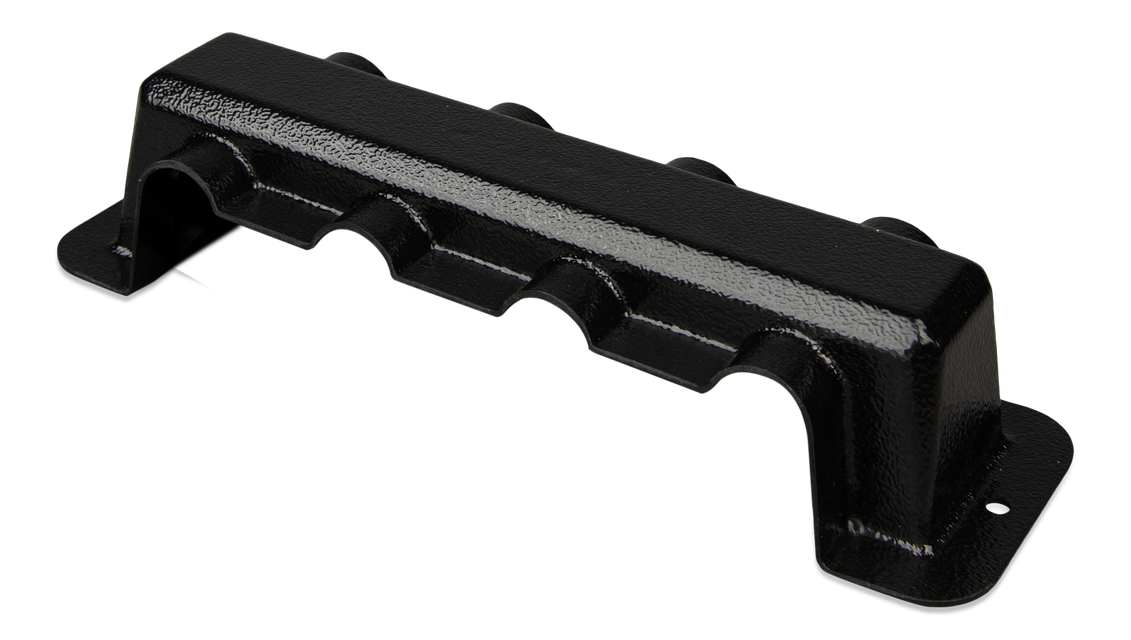

Victron Busbar 250A 4Pole & Cover
Busbars are used for high current distribution and at the same time they provide connections for batteries and/or DC equipment.
We offer a number of busbars with different current ratings, and a different number of connection terminals. Each busbar is fitted out with a removable protection cover.
Specifications:
- Max. current: 250 A
- Max. Voltage: 70 VDC
- Terminal diameter: 5/16 inch / 8 mm
- Terminal height: 0.67 inch / 17 mm
- Terminal material: Stainless steel
- Hex nut material: Tin-plated copper
- Recommended torque: 110 lbf·inch / 13 N·m
- Busbar strip material: Tin-plated copper (5 x 24 mm)
- Base material: ABS, black, UL 94 V-0
- Cover material: ABS, black, UL 94 V-2
- Weight, 4 terminals: 0.45 kg
- Dimensions (hxwxd): (with cover) 48mm x 237mm x 70 mm
Specifications
SKU VBB125040010
Brand Victron
GTIN 8719076052210
Product Category Electrical Accessories
NOTE: see full product specifications & further product info in the Description section on this page.
