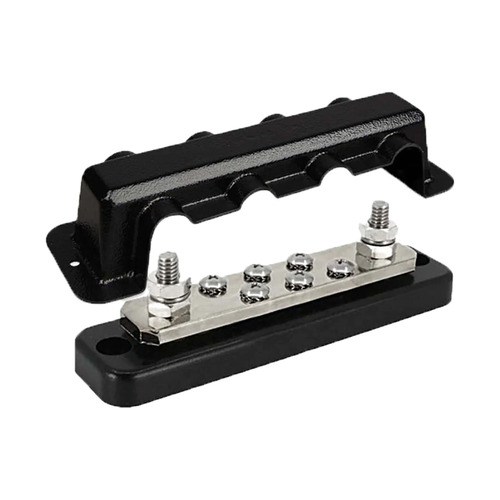

Victron Busbar 250A/70A 2P With 6 Screws + Cover

SKU: VBB125020620 Learn More»
Victron Busbar 250A/70A 2P With 6 Screws + Cover
Free Shipping
Free Shipping

FREE SHIPPING

This item is sent via Express Courier. All freight is fully insured.

Notify Me When Back In Stock
Go to: Product Details
Go to: Specifications

Description

Victron Busbar 250A/70A 2P With 6 Screws + Cover



Busbars are used for high current distribution and at the same time they provide connections for batteries and/or DC equipment.

We offer a number of busbars with different current ratings, and a different number of connection terminals. Each busbar is fitted out with a removable protection cover.



Available models:

  • 150A / 70V - 4 high current connections
  • 150A / 70V - 6 high current connections
  • 150A / 70A - 2P with 10 screws +cover
  • 150A / 70A - 2P with 20 screws +cover
  • 250A / 70V - 4 high current connections
  • 250A / 70V - 6 high current connections
  • 250A / 70A - 2P with 6 screws +cover
  • 250A / 70A - 2P with 12 screws +cover
  • 600A / 70V - 4 high current connections and 8 low current connections
  • 600A / 70V - 8 high current connections and 8 low current connections



Specifications:

  • Max. current: 250 A
  • Max. Voltage: 70 VDC
  • Terminal diameter: 8 mm
  • Terminal height: 17 mm
  • Terminal material: Stainless steel
  • Hex nut material: Tin-plated copper
  • Recommended torque: 13 N·m
  • Terminal screws: 4.8mm
  • Terminal material: Stainless steel
  • Busbar strip material: Tin-plated copper (6.35 x 25 mm)
  • Base material: ABS, black, UL 94 V-0
  • Cover material: ABS, black, UL 94 V-2
  • Weight: 0.25 kg
  • Dimensions 6 screws (hxwxd):  65 x 216 x 86 mm (with cover)





Show More
Go to: Description
Go to: Q&A

Specifications

SKU VBB125020620

Brand Victron

GTIN 8719076056386

Product Category Electrical Accessories

Dimensions 10 screws (hxwxd) 65 x 216 x 86 mm(with cover)
