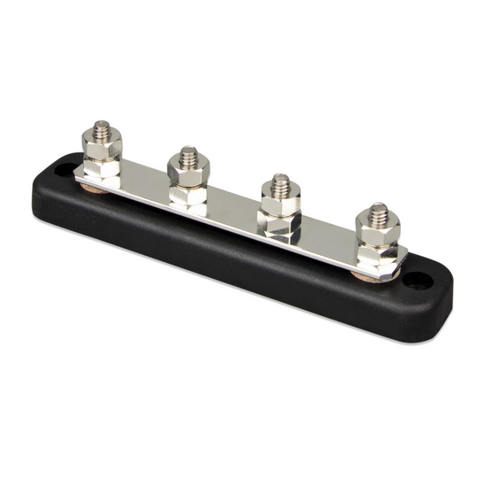

Victron Busbar 600A 4Pole & Cover
SKU: VBB160040010 Learn More»![](/assets/thumbL/VBB160040010.png?20220106191123)
Description
Victron Busbar 600A 4Pole & Cover
Busbars are used for high current distribution and at the same time they provide connections for batteries and/or DC equipment.
We offer a number of busbars with different current ratings, and a different number of connection terminals. Each busbar is fitted out with a removable protection cover.
Specifications:
- Max. current: 600 A
- Max. Voltage: 70 VDC
- Terminal diameter: 3/8 inch / 9.53 mm
- Terminal height: 0.76 inch / 19 mm
- Terminal material: Stainless steel
- Flange Nut Material: Stainless steel
- Recommended torque: 180 lbf·inch / 20 N·m
- Screw terminals: diameter #8 (0.164 inch) / 4.2 mm
- Screw material: Stainless steel
- Busbar strip material: Tin-plated copper (19 x 24 mm)
- Base material: ABS, black, UL 94 V-0
- Cover material: ABS, black, UL 94 V-2
- Weight, 4 terminals: 0.75 kg
- Dimensions (hxwxd): (with cover) 65mm x 216mm x 86 mm
Specifications
SKU VBB160040010
Brand Victron
GTIN 8719076052227
Product Category Electrical Accessories
NOTE: see full product specifications & further product info in the Description section on this page.
