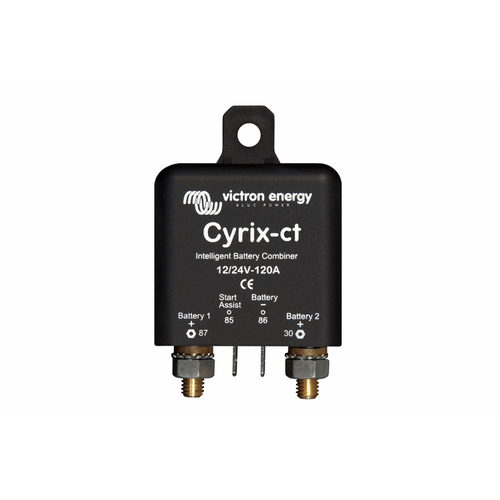

Victron Cyrix-ct 12/24V 120A Intelligent Battery Combiner
SKU: CYR010120011R Learn More»
Description
Victron Cyrix-ct 12/24V 120A Intelligent Battery Combiner
The Cyrix Battery Combiner is a microprocessor controlled heavy duty relay that automatically connects batteries in parallel when one of them has reached a pre-set voltage (indicating that the battery is being charged), and disconnects when the voltage decreases below float level (indicating that one or more batteries are being discharged). Cyrix Battery Combiners are an excellent replacement for diode isolators. The main feature is that there is virtually no voltage loss so that the output voltage of alternators or battery chargers does not need to be increased.
Specifications:
- LED status indication - No
- Continuous current - 120 A
- Cranking Rating (5 seconds) - 180 A
- Connect voltage - From 13 V to 13,8 V and 26 to 27,6 V with intelligent trend detection
- Disconnect voltage - From 11 V to 12,8 V and 22 to 25,7 V with intelligent trend detection
- Current consumption when open - <4 mA
- Current consumption when closed - 12 V : 220 mA 24 V : 120 mA
- Start - Assist Yes (Cyrix remains engaged during 30 seconds)
- Control cable included (length 1 m) - No
- Protection category - IP54
- Weight - 0.11kg
- Dimensions h x w x d in mm - 46 x 46 x 80
.png)
Specifications
SKU CYR010120011R
Brand Victron
GTIN 8719076022145
Product Category Batteries Other
Voltage Connect voltage From 13 V to 13,8 V and 26 to 27,6 V with intelligent trend detection | Disconnect voltage From 11 V to 12,8 V and 22 to 25,7 V with i
Dimensions 46 x 46 x 80 mm
Max Charge Current 120A
NOTE: see full product specifications & further product info in the Description section on this page.
