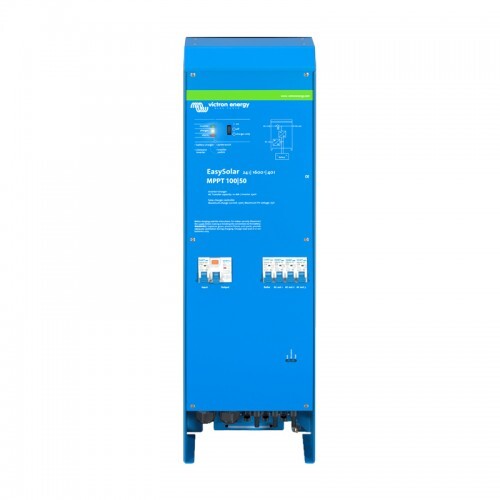

Victron Easysolar 12V 1600V/A 70amp Inverter Charger
SKU: CEP121621000 Learn More»
FREE SHIPPING
This item is sent via Express Courier. All freight is fully insured.
Accessories List:
Description
Victron Easysolar 12V 1600V/A 70amp Inverter Charger
The VICTRON EasySolar combines an MPPT solar charge controller, an inverter/charger and AC distribution in one enclosure.
From eucalyptus forest to sandy bays, Australia has a depth of unexplored beauty waiting for you to discover in your caravan, RV or boat. To enjoy the conveniences of home like boiling the kettle, having a steamy shower or a cold beer, when you travel, you need to get off grid with more power!
Integrated and smart this power solution delivers uninterrupted and reliable power by combining the force of ultra-fast MPPT solar charging, with an inverter/charger and AC power distribution, all in one unit. Combined with your solar panels, battery storage or generator you can enjoy the freedom and independence of energy anywhere, anytime. The EasySolar is powerful enough to form part of a comprehensive off-grid solution that will take you anywhere from the Kimberley to Cape York.
The solar charge controller: BlueSolar MPPT 100/50
Up to three strings of PV panels can be connected with three sets of MC4 (PV-ST01) PV connectors.
The inverter/charger: MultiPlus Compact 12/1600/70 or 24/1600/40
The MPPT charge controller and the MultiPlus Compact inverter/charger share the DC battery cables (included). The batteries can be charged with solar power (BlueSolar MPPT) and/or with AC power (inverter/charger) from the utility grid or a genset.
Easy to install, with a minimum of wiring.
Specifications:
| Wattage | 1300W |
|---|---|
| Peak Power | 3000W |
| Output Voltage and Frequency | 230 VAC ± 2% | 50 Hz ± 0,1% |
| Protection | a) output short circuit b) overload c) battery voltage too high d) battery voltage too low e) temperature too high f) DC ripple too high |
| Input Voltage | 9,5 - 17V |
| Operating Temperature Range | -20 to +50°C (fan assisted cooling) |
| Humidity | Max 95% |
| AC Output | 16A |
| Charge voltage 'absorption' | 14,4V |
| Charge Voltage Float - Wet (25 degrees)** | 13,8V |
| Charge voltage 'storage' | 13,2V |
| No load power consumption | 8W | 2W (in search mode) |
| Dimensions (LxWxH) mm | 745 x 214 x 110 |
| Battery-connection | Screw terminals |
| Protection category | IP 21 |
| Efficiency | 98% |
| Net Weight (kg) | 3.0 Kg |
Specifications
SKU CEP121621000
Brand Victron
GTIN 8719076021599
Product Category Power Inverter Chargers
Voltage 12V
Wattage (W) 1300
Input Voltage 9.5-17V
-Weight 3kg
Dimensions 745 x 214 x 110mm
Peak Power (W) 3000
NOTE: see full product specifications & further product info in the Description section on this page.
Q & A
-
Can these chargers take solar input?
No, the battery charging component is an AC input, meaning only AC power (mains power) can charge through this unit.
