Victron EasySolar-II GX 24/3000/70-32 MPPT 250/70 GX
SKU: PMP242307010 Learn More»
FREE SHIPPING
This item is sent via Express Courier. All freight is fully insured.
Accessories List:
Description
Victron EasySolar-II GX 24/3000/70-32 MPPT 250/70 GX
The EasySolar-II GX combines an MPPT Solar Charge Controller, an inverter/charger and control hub in one enclosure. The product is easy to install, with a minimum of wiring.
Features:
The Victron EasySolar-II GX integrates the following elements:
- A MultiPlus-II inverter/charger
- A SmartSolar MPPT -Tr solar charge controller
- A GX device with a 2 x 16-character display.
These elements come prewired together inside a single unit. This greatly simplifies most installations, saving time and money.
Display and Wi-Fi
- The display reads battery, inverter and solar charge controller parameters.
- The same parameters can be accessed with a smartphone or other Wi-Fi enabled
- device.
- In addition, Wi-Fi can be used to set up the system and to change settings.
Solar charge controller
- The DC output of the SmartSolar MPPT is parallel wired with the DC connection of the
- MultiPlus-II inverter/charger.
- The on/off mechanism of the MultiPlus-II also controls the SmartSolar MPPT.
GX device:
The integrated GX device includes:
- A BMS-Can interface. This can be used to connect to a compatible CAN-bus managed
- battery. Note that this not a VE.Can compatible port.
- A USB port
- An Ethernet port
- A VE.Direct port
The GX device controls the MultiPlus-II and the SmartSolar MPPT with respectively a VE.Bus and a VE.Direct connection.
Specifications:
| Amps | 70.0 Amps |
|---|---|
| Model | EasySolar 24/3000/70-32 |
| AC Input Voltage | 187-265 VAC |
| AC Input Frequency Range | 45 – 65 Hz |
| Peak Power | 5500W |
| Operating Temperature Range | -20 to +45 °C (fan assisted cooling) Max. altitude 2000 m |
| Humidity | Max. 95% |
| Output Power | 2400W (continuous output power at 25°C) | 2200W (continuous output power at 40°C) | 1700W (continuous output power at 55°C) |
| Net Weight (kg) | 26.0 Kg |
| Charge voltage 'absorption' | 28.8V |
| Charge Voltage Float - Wet (25 degrees)** | 27.6V |
| Charge voltage 'storage' | 26.4V |
| Input Voltage | 19-33V |
| Product Dimensions (mm) HxWxD | 499 x 268 x 237 |

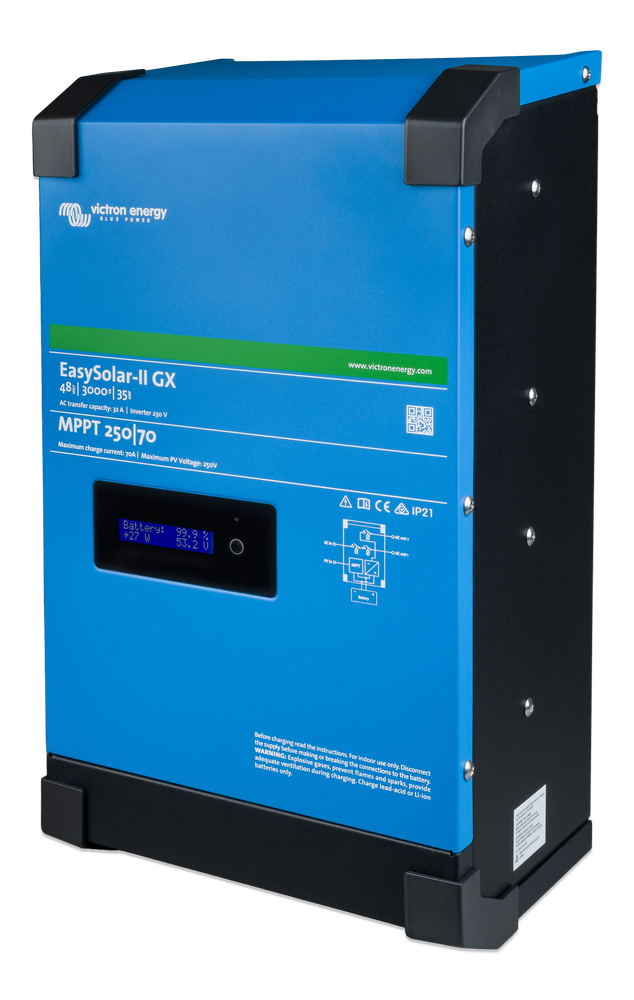

The display model is EasySolar-II GX 48V 3000VA
.png)
Specifications
SKU PMP242307010
Brand Victron
GTIN 8719076049265
Product Category Solar Charge Controllers
Amps 70A
Operating temperature range Äì40¬∞C to +65¬∞C
Dimensions 218 x 258 x 810 (D x W x H)
Weight (kg) 28
Charge Voltage 28.8V
Charge Current (A) 70
Voltage (V) 24
NOTE: see full product specifications & further product info in the Description section on this page.
Q & A
-
Can these chargers take solar input?
No, the battery charging component is an AC input, meaning only AC power (mains power) can charge through this unit.
