Victron Color Control GX

Description

VICTRON ENERGY COLOR CONTROL GX - CCGX REMOTE CONSOLE

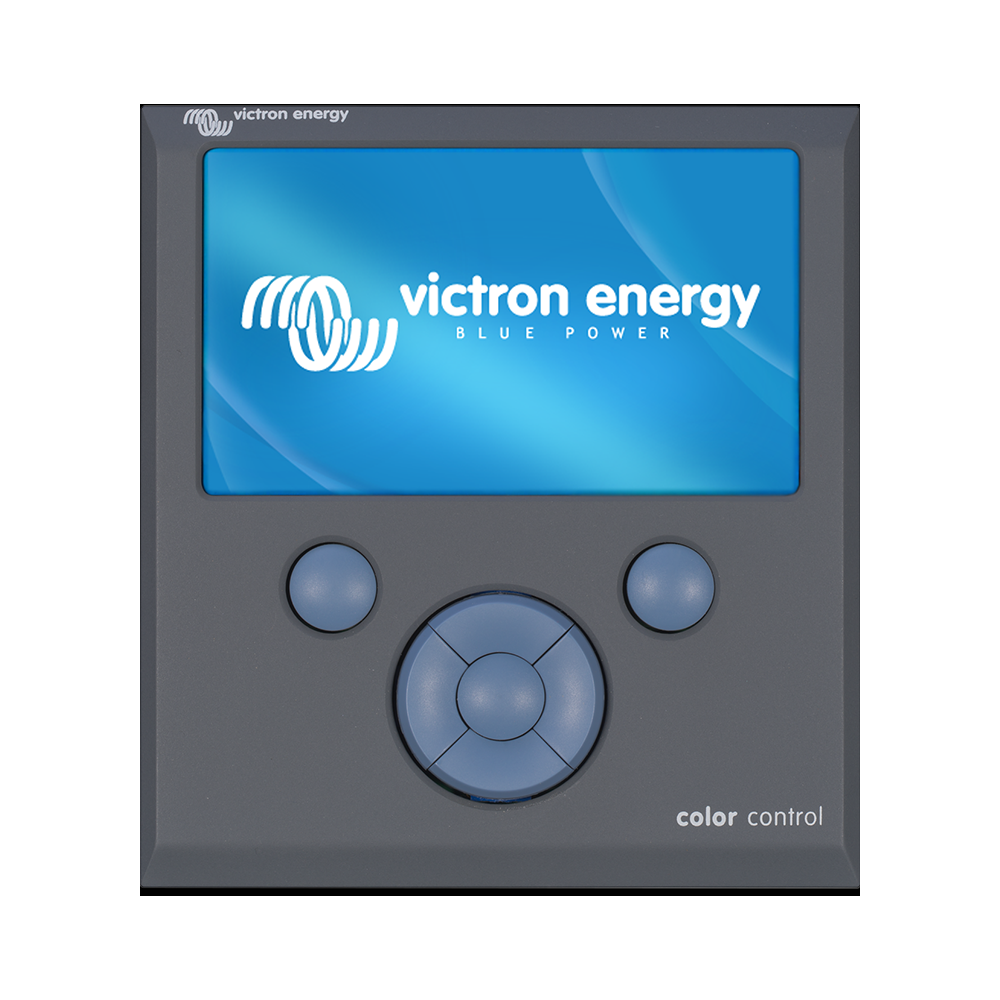

Colour Control GX

The Colour Control GX is the communication centre of your installation. It offers at-a-glance live information, and lets you control all products connected to it. Full system control is gained – almost anywhere in the world – by accessing your Colour Control GX using our free-to-use Victron Remote Management Portal (VRM)

VRM Online Portal

Besides monitoring and controlling products on the CCGX, the information is also forwarded to our free remote monitoring website: the VRM Online Portal. To get an impression of the VRM Online Portal, visit https://vrm.victronenergy.com, and try our demo. See also the screenshots further down in this datasheet.

Auto Generator Start/Stop:

The Colour Control GX (CCGX) can be programmed to auto-start your generator – triggered by low-voltage; high-demand; or battery state of charge. It can be further tailored to delay ignition until the end of ‘quiet’ periods – avoiding accidental nuisance at dead of night.

Remote Console – control everything from anywhere…

A Remote Console feature is available. It’s like carrying the front face of your CCGX control panel around on your phone, or other device.

Future functionality

The CCGX has endless possibilities. To implement all our ideas and wishes will take years. There are therefore many features that are not yet available. Functions marked with ‘Future function’ will become available later, as a firmware update. Firmware updates are free of charge, as with all Victron products. Updating the product is easy: the CCGX will update itself automatically, as long as it is connected to the internet. Manual updates can be done with a USB stick and microSD cards.



Victron CCGX Features:

• The Colour Control (CCGX) provides intuitive control and monitoring for all Victron power systems such as inverters Multis & Quattro’s, MPPT solar chargers, BMV battery monitors, Lynx Ion + Shunt and more.
• Monitor, control and configure the CCGX remotely, over the internet. Just like standing in front of the device, everything can also be done remotely. The same functionality is also available on the local network, Remote Console on LAN.
• When connected to the internet, all data is sent to the VRM Portal. When there is no internet connection available, the CCGX will store the data internally, up to 48 hours. By inserting a micro SD card or USB stick, more data can be stored. These files can then be uploaded to the VRM Portal, or offline converted with the Victron Connect app, for analysis.
• Automatic generator start/stop – A highly customizable start/stop system. Use state of charge, voltage, load and other parameters. Define a special set of rules for quiet times, and optionally a monthly test run.
• Full 4.3″ full colour display! Multiple languages: English, Czech, German, Spanish, French, Italian, Dutch, Russian, Swedish, Turkish, Chinese, Arabic.



Supported products:

• Multis and Quattro’s – including split phase and three phase systems. Monitoring and control (on/off and current limiter). Changing configuration is possible (only remotely via the internet, not without an internet connection)
• BlueSolar MPPT Solar Chargers with a VE.Direct port
• BlueSolar MPPT 150/70 and the MPPT 150/85 with VE.Can port. When multiple BlueSolar MPPTs with VE.Can are used in parallel, the all information is combined as one.
• BMV-700 family can be connected directly to the VE.Direct ports on the CCGX. Use the VE.Direct Cable for this.
• BMV-600 family can be connected to the VE.Direct ports on the CCGX. Requires an accessory cable.
• Lynx Ion + Shunt
• Lynx Shunt VE.Can
• Skylla-i battery chargers
• NMEA2000 tank sensors
• A USB GPS can be connected to the USB port. Location and speed will be visible on the display, and the data is sent to the VRM Portal for tracking purposes. The map on VRM will show the latest position.
• Fronius PV Inverters
