Victron EV Charging station
SKU: EVC300400300 Learn More»
Description

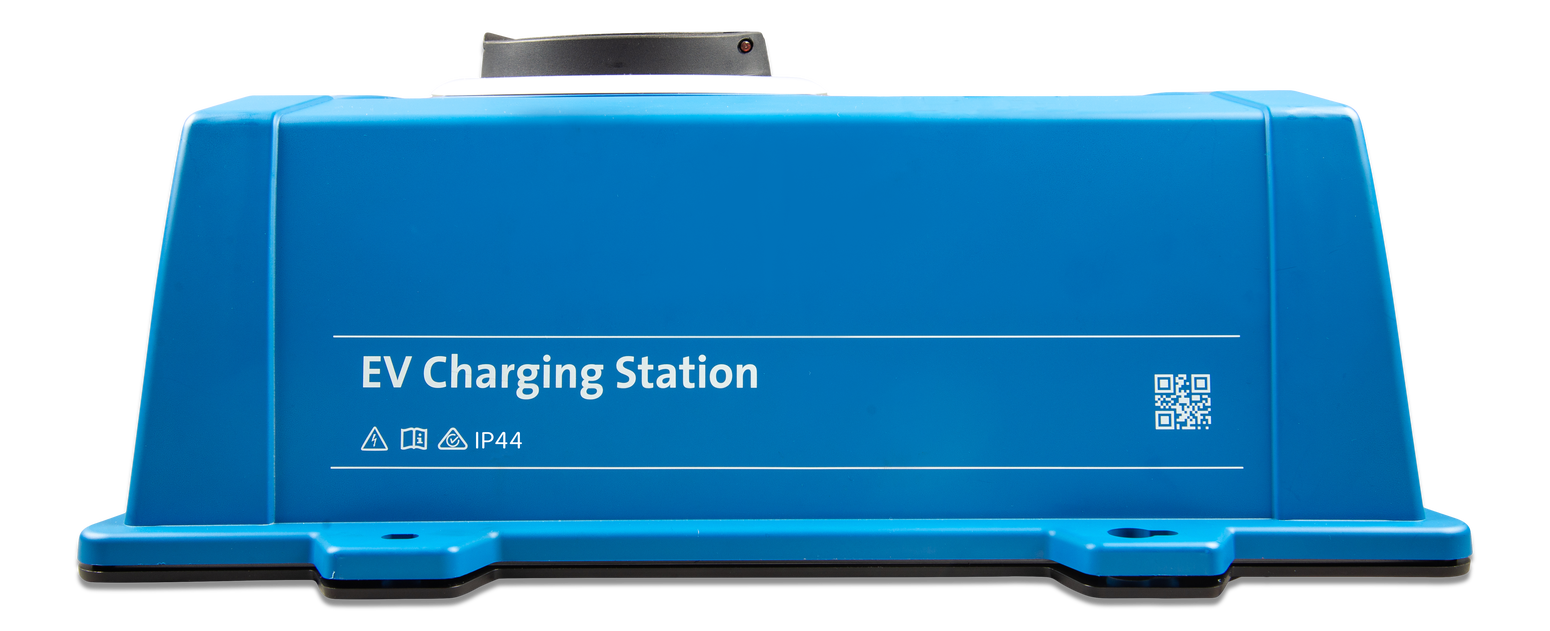

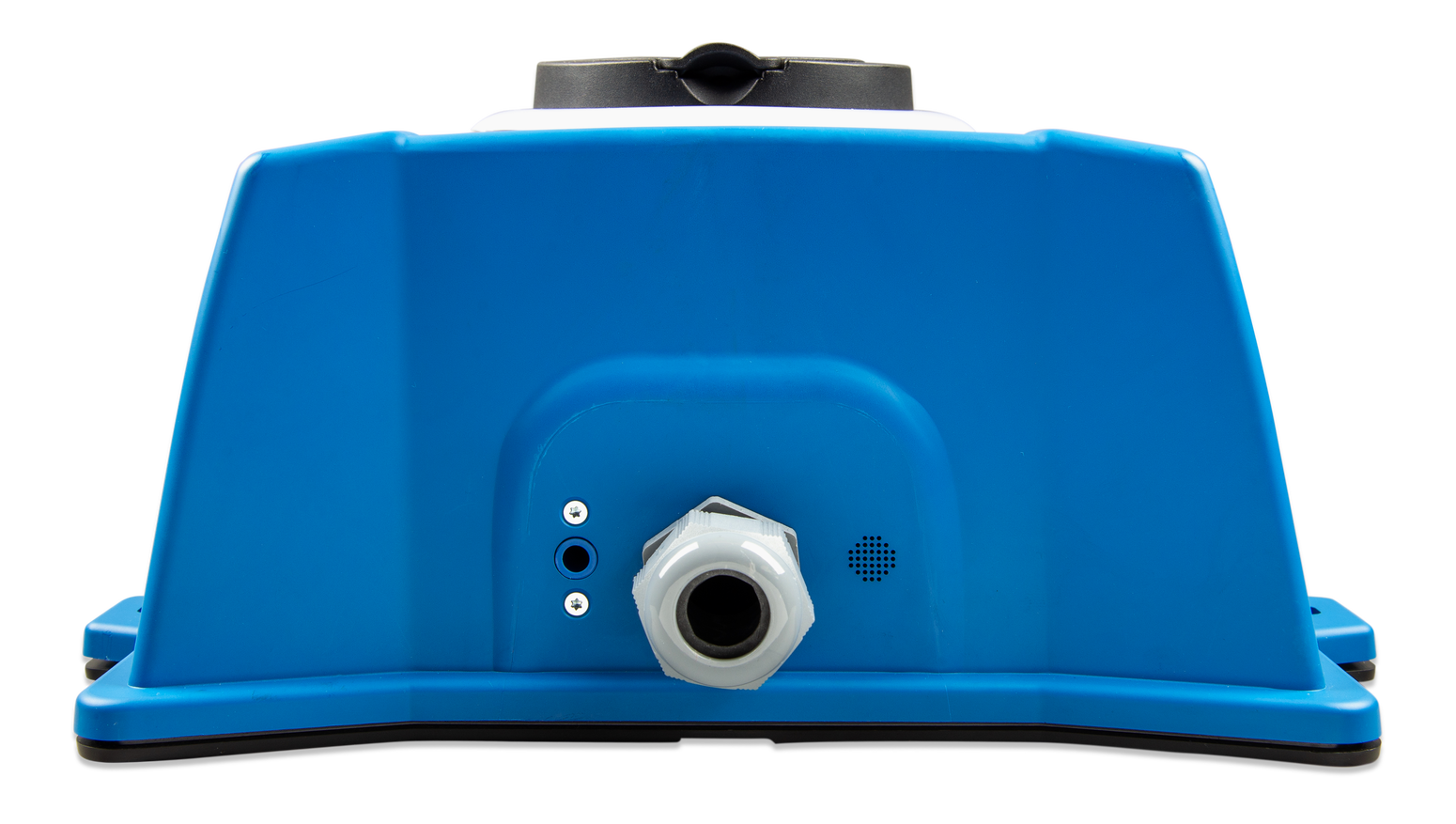

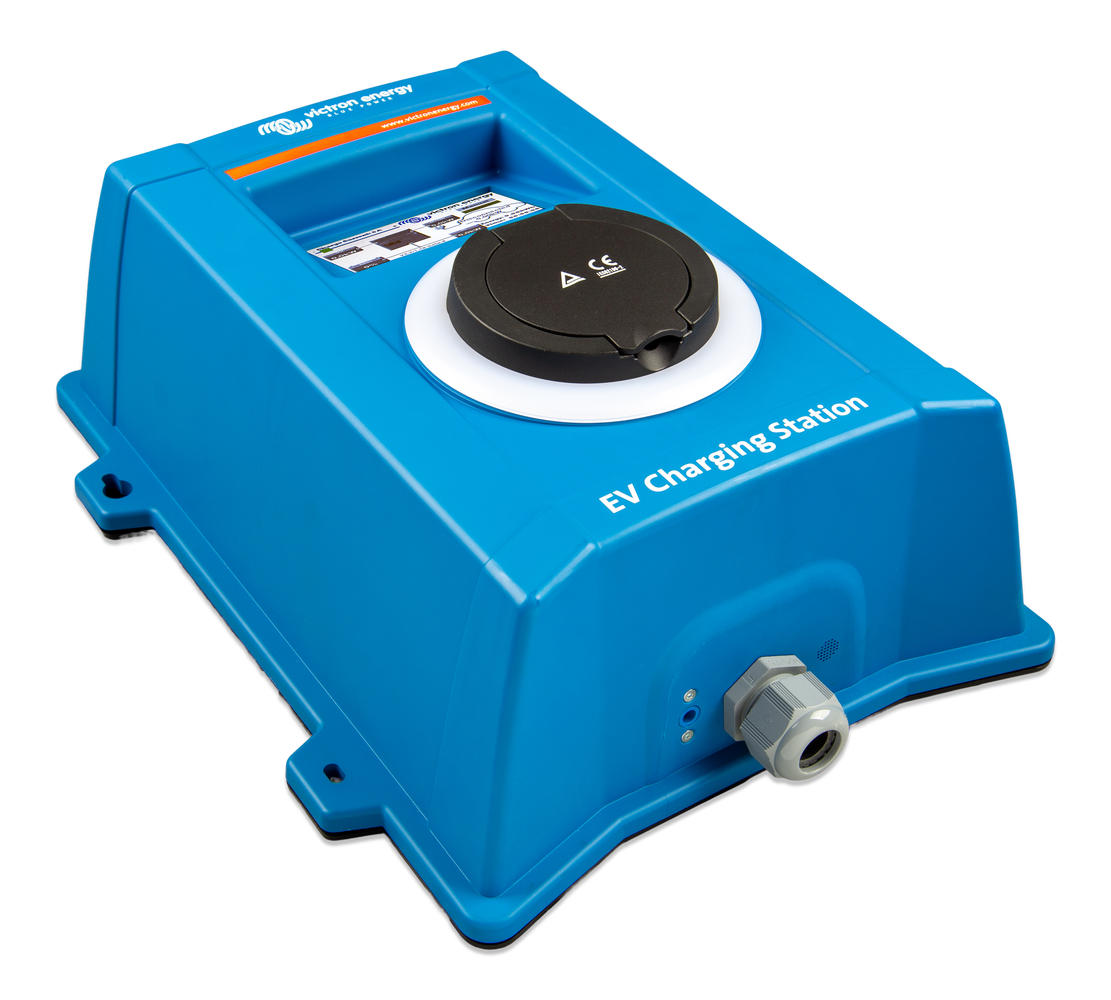

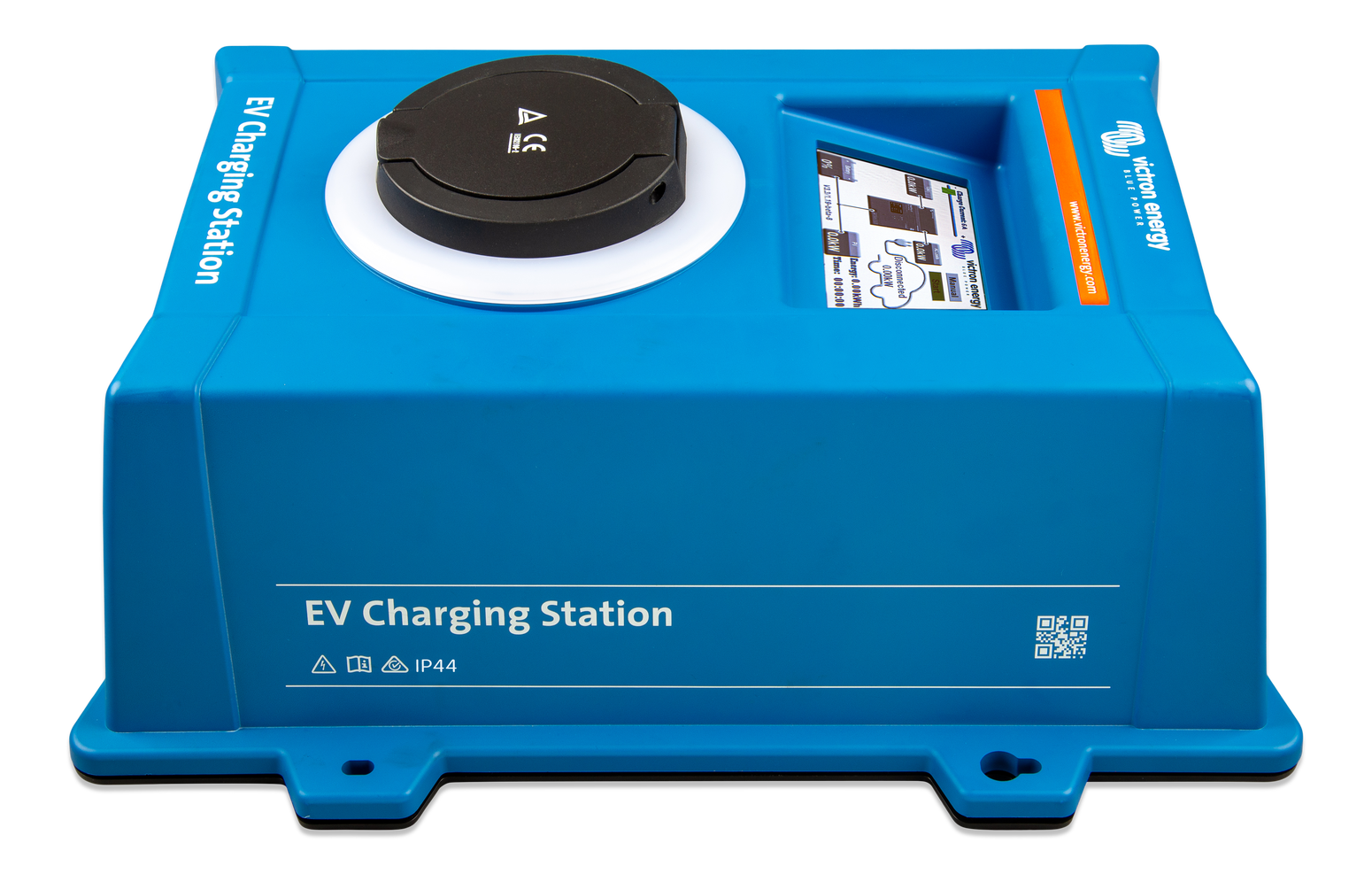

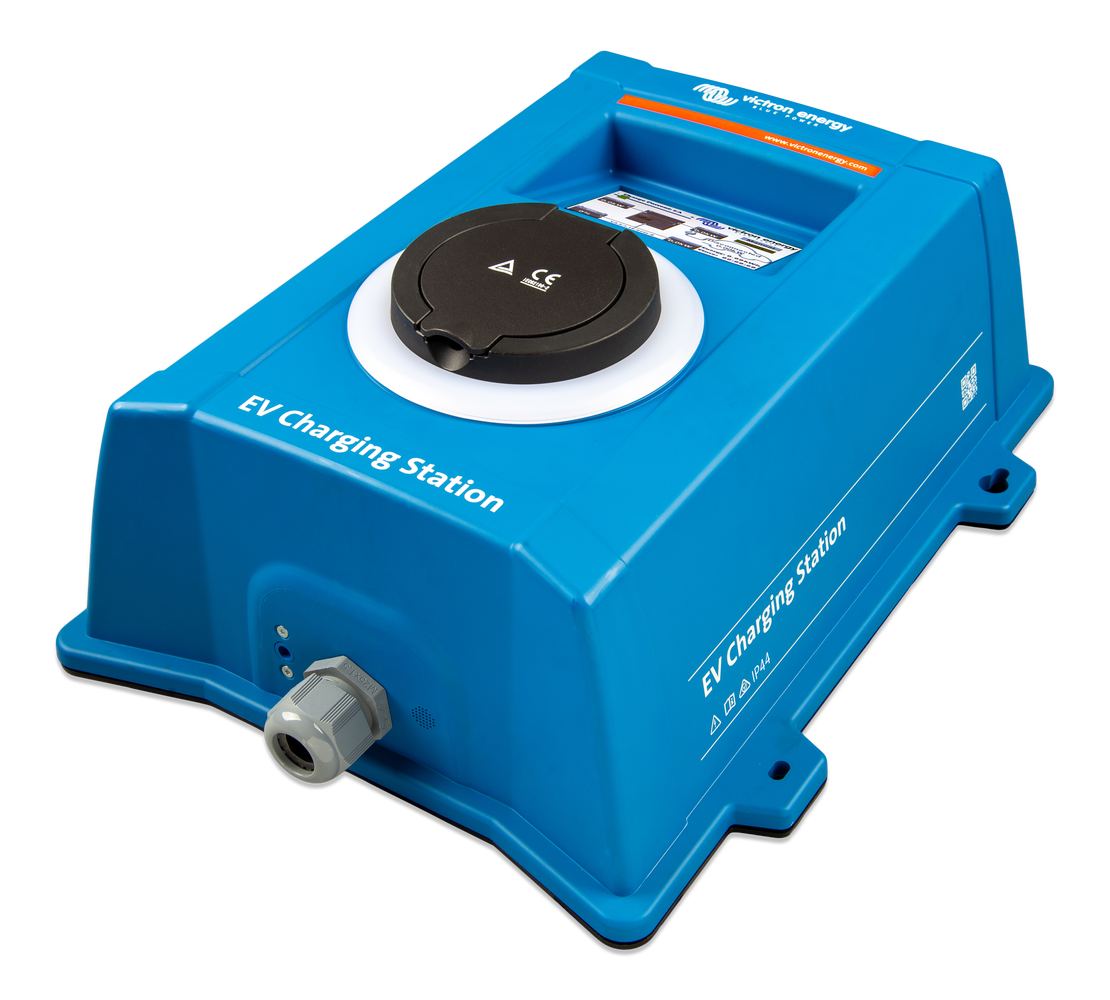

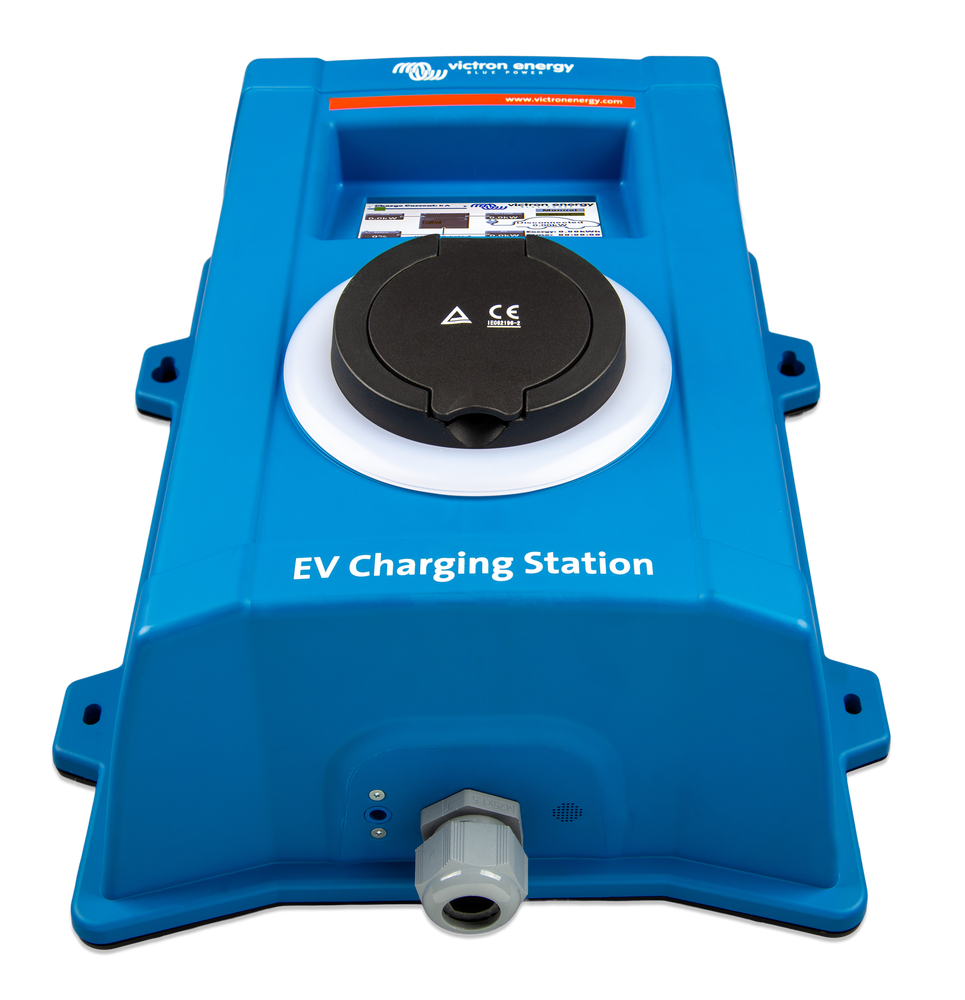

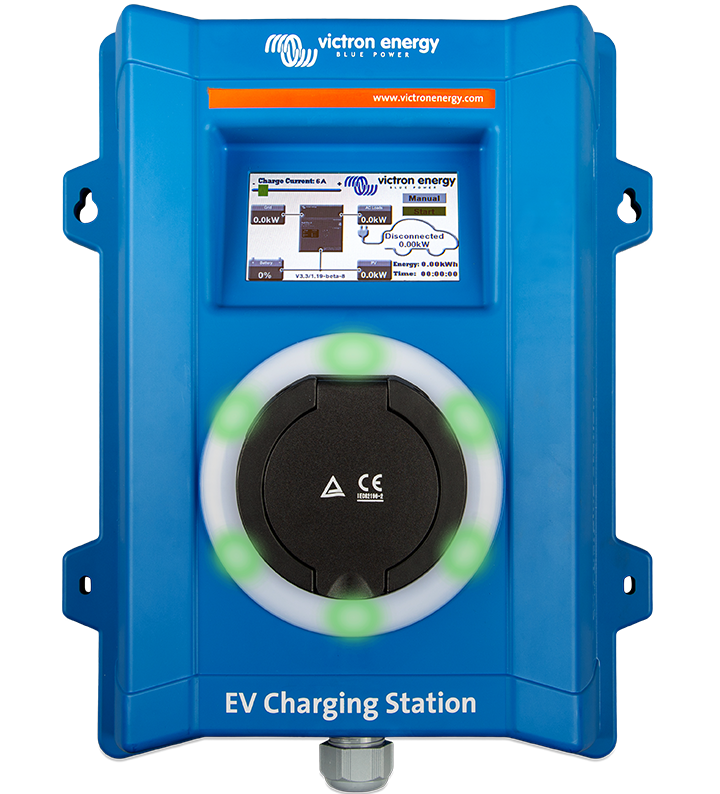

Victron EV Charging station
The EV Charging Station has three phase and single-phase capabilities. It delivers maximum 22kW AC in three phase mode or 7.3kW in single phase mode.

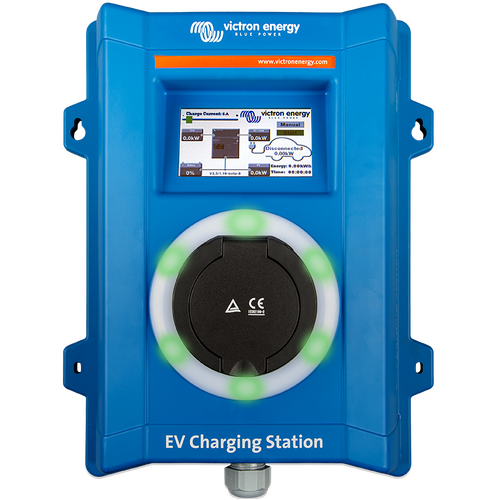

It incorporates 4.3-inch LCD touch screen for monitoring and control.
Fully programmable RGB Light Ring around charging port, to quickly determine the device state.
It can be programmed from the web interface to display different light effects based on the current state (disconnected, charging, charged etc.). The objective is to help the user see the current state from a distance.
Specifications:
- Input voltage range (V AC): 170 – 265
- Rated charge current: 32A / phase
- Nominal power: 22kW
- Current output range: 6 – 32A
- Wi-Fi standards: 802.11 b/g/n (2.4Ghz only)
- Self-consumption: 15mA@230V
- Configurable Max. : 10-32A

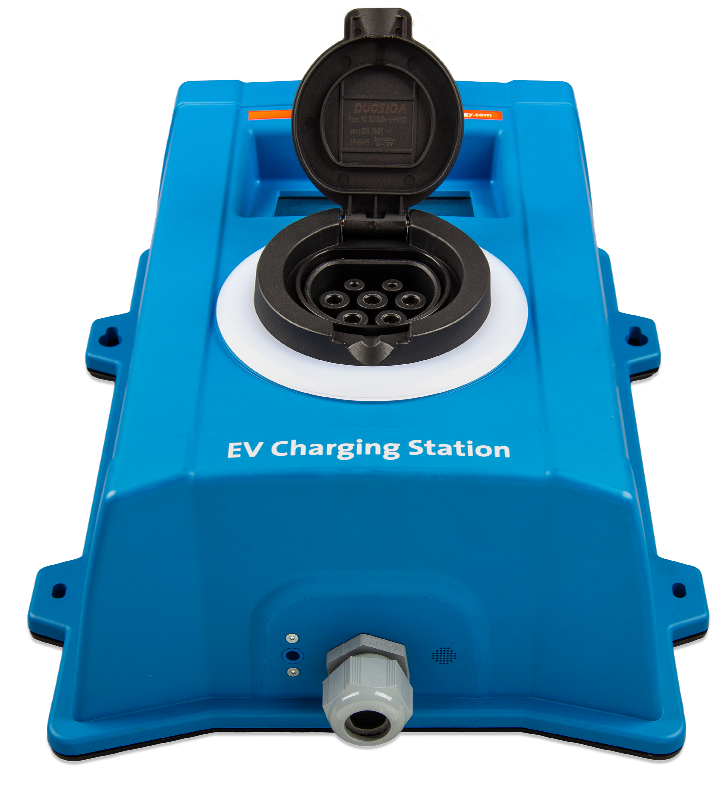

- Connector type: IEC 62196 Type 2
- Means to Disconnect: External circuit breaker (40A recommended)
- Configurable price/kWh calculator(Eur): Default setting: 0.13 (adjustable)
- Control type: Touch Screen, Web page, GX Device over Modbus TCP
- Light Ring: 55 light configurable light effects available
- Protection: External RCD is required
- Operating temperature -25°C to +50°C
- Storage temperature: -40 °C to +80 °C
- Humidity: 95%, non-condensing
- Data communication: Modbus TCP over WIFI
- ENCLOSURE: Enclosure colour Blue (RAL 5012)
- Power terminals: 6-10 mm² / AWG 10-8
- Protection category: IP44
- Ventilation: not required
- Weight: 3 kg
- Dimensions (h x w x d): 390 x 300 x 150 mm
.png)
Specifications
SKU EVC300400300
Brand Victron
GTIN 8719076051305
Product Category Electrical Accessories
Weight (kg) 3
Dimensions (H x W x D) 390 x 300 x 150 mm
NOTE: see full product specifications & further product info in the Description section on this page.
