Victron EV Charging Station NS - Blue
The EV Charging Station NS has three-phase and single-phase capabilities. It delivers a maximum of 22kW AC in three-phase or 7.3kW in single-phase mode.
The device is technically identical to the EV Charging Station, but with a new, modern design available in 3 colours and without the built-in LCD screen. Initial setup, configuration and monitoring is done from VictronConnect via Bluetooth and/or the integrated web interface via a WiFi Access Point or a WiFi LAN.
The charger can be fully integrated with and remotely controlled via a Victron Energy GX Device and VRM.
Not only does this EV Charging Station NS fully integrate with a Victron Energy GX device and VRM, if you have solar (within the Victron ecosystem), it can also be set up to allow excess energy from the sun to directly charge your vehicle. Manual and scheduled modes offer even more flexibility to respond to the needs of the EV depending on the system.

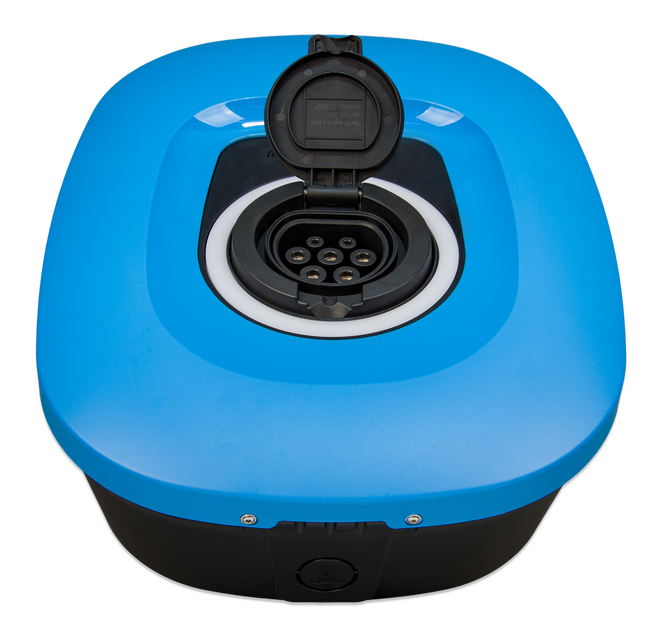

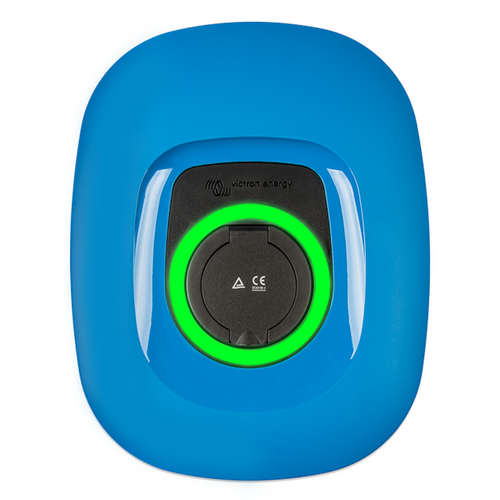

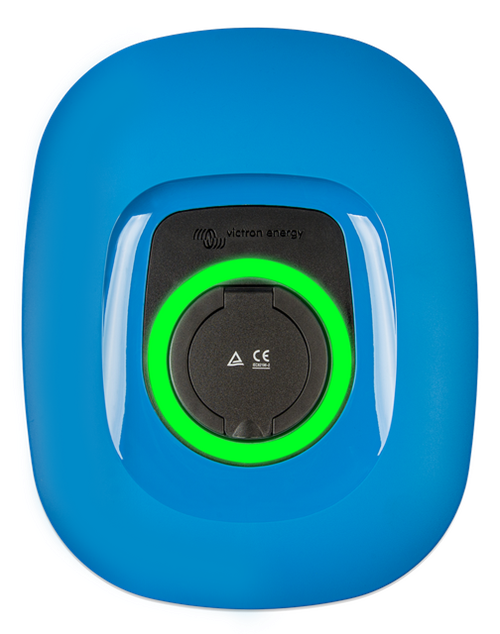

It has a fully programmable RGB light ring around the charging port that displays different light effects depending on the current status (disconnected, charging, charged, etc.) to quickly determine the device status.
Specifications:
- Input voltage range (V AC) :170 – 265 VAC
- Rated charge current: 32 A / phase
- Nominal power: 22 kW
- Current output range: 6 – 32 A
- WiFi standards: 802.11 b/g/n (2.4 Ghz only)
- Self-consumption: 15 mA@230 V
- Configurable Max. Current: 10-32 A
- Configurable Min. Current: 6 A up to 1 A below max. value
- Connector type: IEC 62196 Type 2
- Means to Disconnect: External circuit breaker (40 A recommended)
- Configurable price/kWh calculator(Eur): Default setting: 0.13 (adjustable)
- Control type: Web page, GX Device over Modbus TCP, VictronConnect via Bluetooth
- Light Ring: 55 light configurable light effects available
- Protection: External RCD is required
- Operating temperature: -25 °C to +50 °C
- Storage temperature: -40 °C to +80 °C
- Humidity: 95 %, non-condensing
- Data communication: Modbus TCP over WiFi, Bluetooth
- Enclosure colour: Light Blue (RAL 5012), Traffic Black (RAL 9017),
- Traffic White (RAL 9016)
- Power terminals: 6-10 mm² / AWG 10-8
- Protection category: IP44
- Weight: 3 kg
- Dimensions (h x w x d): 372 x 292 x 122mm
.png)
Specifications
SKU EVC200300200
Brand Victron
Product Category Electrical Accessories
Operating Temperature -25°C to +50°C
Weight (kg) 3
Dimensions (H x W x D) 372 x 292 x 122mm
Nominal Power 22kW
Protection category IP44
Input voltage range (V AC) 170 – 265
NOTE: see full product specifications & further product info in the Description section on this page.
