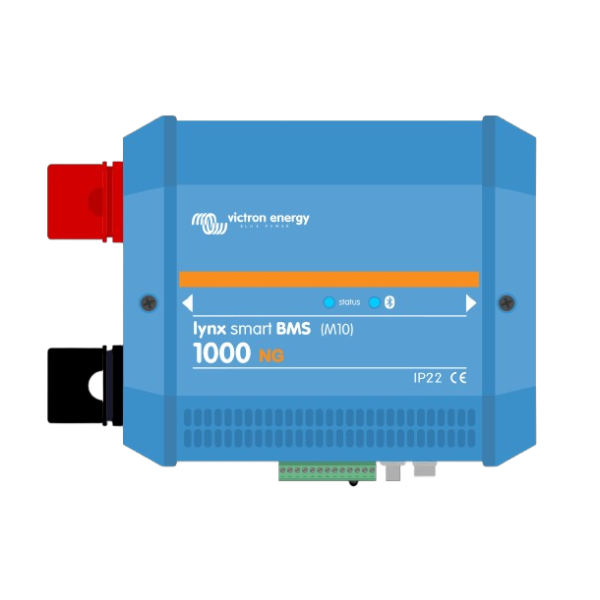

Victron Lynx Smart BMS 1000 NG (M10)
SKU: LYN034170310 Learn More»
Description
Victron Lynx Smart BMS 1000 NG (M10)
The Lynx Smart BMS NG is a dedicated Battery Management System for Victron Lithium NG (not to be confused with the Lynx Smart BMS 500A, which is for Victron Smart Lithium batteries) batteries available with a nominal voltage of 12.8V, 25.6V and 51.2V in various capacities. This is the safest of the mainstream lithium battery types. The maximum number of batteries in one system is 50, which results in a maximum energy storage of 192kWh in a 12V system and up to 384kWh in a 24V and 48V system. The maximum energy storage capacity can be multiplied by paralleling multiple Lynx Smart BMSs, which also ensures redundancy should one battery bank fail.
Multiple BMS-es are available for our Lithium NG series of batteries, and the Lynx Smart BMS NG is the most feature-rich and complete option.
Features:
- Built-in 1000A contactor used as a fallback safety mechanism and also suitable as a remote controllable main system switch.
- Battery monitor, indicating state of charge percentage and more data.
- Pre-alarm signal: provides a warning before the system shuts down due to a low cell voltage.
- Bluetooth for use with our VictronConnect App, for setup, monitoring and diagnostic.
- Local and remote monitoring using a Victron GX device, for example, the Cerbo GX and our VRM portal.
- M10 busbar - The Lynx Smart BMS NG integrates seamlessly into our Lynx Distributor system and can be connected to all Lynx M10 products.
Specifications
SKU LYN034170310
Brand Victron
Product Category Batteries Other
Operating temperature range -40 to +60 °C
Weight (kg) 2.7
Dimensions (H x W x D) 230 x 180 x 100mm
Protection Class IP22
NOTE: see full product specifications & further product info in the Description section on this page.
