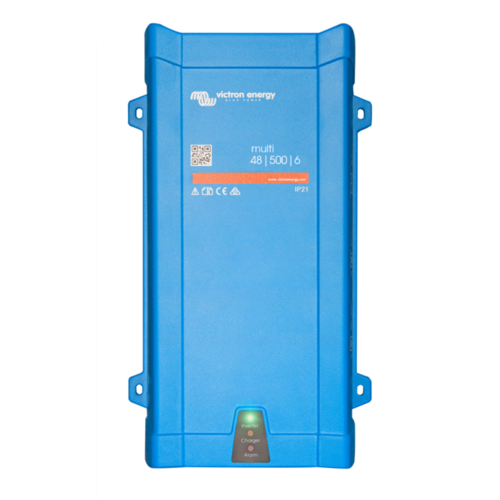

Victron Multi Inverter Charger 48/500/6-16 VE.Bus
SKU: PMP481500000 Learn More»
FREE SHIPPING
This item is sent via Express Courier. All freight is fully insured.
Accessories List:
Description
Victron Multi Inverter Charger 48/500/6-16 VE.Bus
A MultiPlus 230-volt AC, 48-volt 500-VA inverter charger with 6-amp battery charging and 16-amp AC transfer capability compatible with all batteries including lithium
Specifications:
| Output Current Rating (Amps) | 6.0 Amps |
|---|---|
| Wattage | 430W |
| Peak Power | 900W |
| Output Voltage and Frequency | Output voltage: 230VAC ± 2% Frequency: 50Hz ± 0,1% |
| Output Power | Cont. output power at 25°C (430W) Cont. output power at 40°C (400W) Cont. output power at 65°C (300W) |
| Input Voltage | 38-66V |
| Operating Temperature Range | -40 to +65°C |
| AC Input | Input voltage range: 187-265 VAC Input frequency: 45 – 65 Hz |
| Inverter Output Continuous Watts | 430W (continuous output power at 25°C) |
| Charge voltage 'absorption' | 57.6V |
| Charge Voltage Float - Wet (25 degrees)** | 55.2V |
| Charge voltage 'storage' | 52.8V |
| Inverter Output Nominal Efficiency | 92% (maximum) |
| No load power consumption | 7W | 3W in search mode |
| Product Dimensions (mm) LxWxH | 182 x 311 x 100 |
| Net Weight (kg) | 4.4 Kg |
Features:
- Proven reliability;
- The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverter is short circuit proof and protected against overheating, whether due to overload or high ambient temperature.
- Power Control;
- Dealing with a limited generator, shoreside or grid power with the Multi Control Panel a maximum generator or shore current can be set. The MultiPlus will then take account of other AC loads and use whatever is extra for charging, thus preventing the generator or shore supply from being overloaded.
- Power Assist;
- Boosting the capacity of shore or generator power where peak power is so often required only for a limited period, the MultiPlus will make sure that insufficient shore or generator power is immediately compensated for by power from the battery. When the load reduces, the spare power is used to recharge the battery.
- High start-up power;
- Needed to start high inrush loads such as power converters for LED lamps, halogen lamps or electric tools.
- Search Mode;
- When Search Mode is ‘on’, the power consumption of the inverter in no-load operation is decreased by approx. 70%. In this mode the Multi, when operating in inverter mode, is switched off in case of no load or very low load, and switches on every two seconds for a short period. If the output current exceeds a set level, the inverter will continue to operate. If not, the inverter will shut down again.
- Programmable relay;
- By default, the programmable relay is set as an alarm relay, i.e. the relay will de-energise in the event of an alarm or a pre-alarm (inverter almost too hot, ripple on the input almost too high, battery voltage almost too low).
- Remote on / off / charger on;
- Three pole connector.
Specifications
SKU PMP481500000
Brand Victron
GTIN 8719076046387
Product Category Power Inverter Chargers
Voltage 48V
Wattage (W) 430
Input Voltage 38-66V
Dimensions 182 x 311 x 100mm
Peak Power (W) 900
Weight (kg) 4.4
NOTE: see full product specifications & further product info in the Description section on this page.
Q & A
-
Can these chargers take solar input?
No, the battery charging component is an AC input, meaning only AC power (mains power) can charge through this unit.
