Victron MultiPlus-II Inverter Charger 24/5000/120-50
SKU: PMP242505010 Learn More»
FREE SHIPPING
This item is sent via Express Courier. All freight is fully insured.
Accessories List:
Description

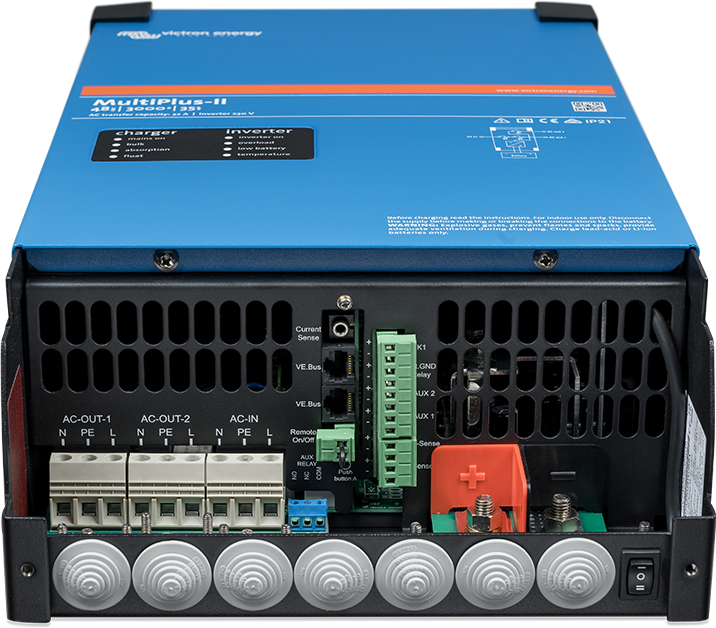

Victron MultiPlus-II Inverter Charger 24/5000/120-50
The MultiPlus-II combines the functions of the MultiPlus and the MultiGrid. It has all the features of the MultiPlus, plus an external current transformer option to implement PowerControl and PowerAssist and to optimize self-consumption with external current sensing (max. 32A).
It also has all the features of the MultiGrid with built-in anti-islanding and an increasingly long list of country approvals.
PowerAssist
The MultiPlus-II will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.
ESS: Energy Storage Systems
The MultiPlus-II is the key component in a Victron ESS system, providing the flexibility to combine with MPPT Solar Chargers or Grid-tie PV Inverters.
Uninterrupted AC power (UPS function)
In the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.
Remote Monitoring and Control
When coupled with a GX device (e.g. Cerbo GX) you can monitor and control your Multi and system or systems' locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, from adjusting your Multi to auto starting a backupgenerator and more.
NOTE: for a short period of time this product was called MultiGrid-II.
.png)
Specifications
SKU PMP242505010
Brand Victron
GTIN 8719076052913
Product Category Power Inverter Chargers
Voltage 24V
Wattage (W) 4000
Input Voltage 187-265 VAC
Dimensions 565 x 328 x 240, 560 x 320 x 41
Peak Power (W) 9000
Weight (kg) 30
NOTE: see full product specifications & further product info in the Description section on this page.
Q & A
-
Can these chargers take solar input?
No, the battery charging component is an AC input, meaning only AC power (mains power) can charge through this unit.
-
What size Generator can I use with the Multiplus Inverter Chargers?
The below generators are the minimum recommend sizes based on an AVR generator:
Inverter Charger Size Minimum Recommended Generator Size 240V AC Input Current Limit 800VA 2 kVa 5A 1200VA 2.5 kVa 7A 1600VA 3 kVa 10A 3000VA 5 kVa 16A 5000VA 8 kVa 25A If your generator is smaller than the recommended size for your inverter/charger, you will definitely need to adjust the settings on the inverter/charger and reduce the AC input current limit, and/or a DC charge current limit to prevent overloading the generator. If you do want an inverter based generator get one that is at least 30% larger than required than an equivalent AVR based model to help prevent overloads.
