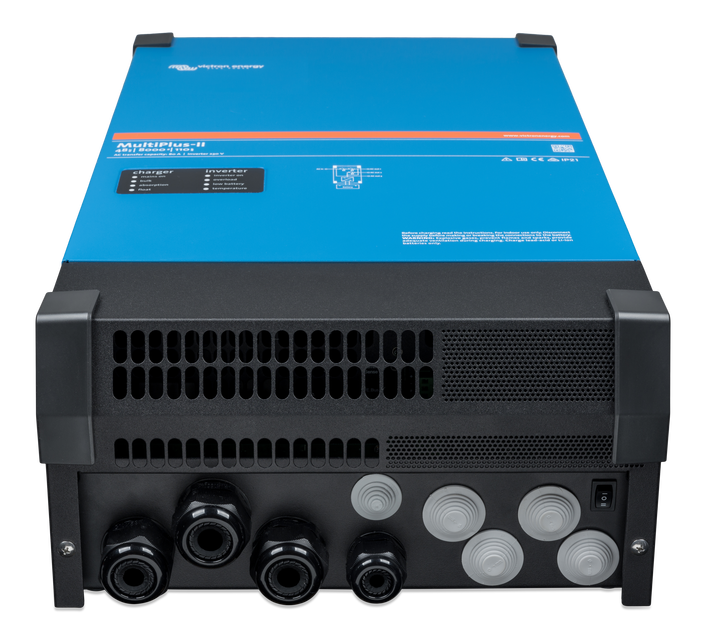

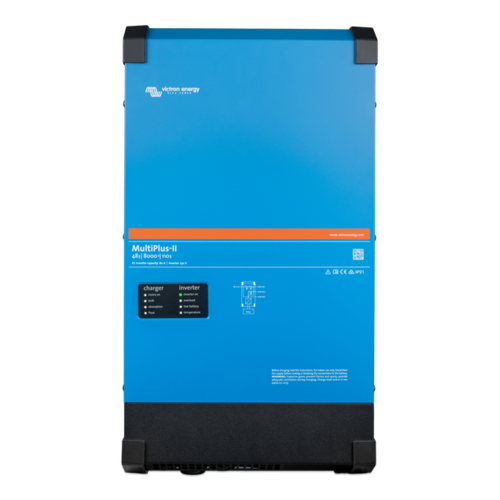

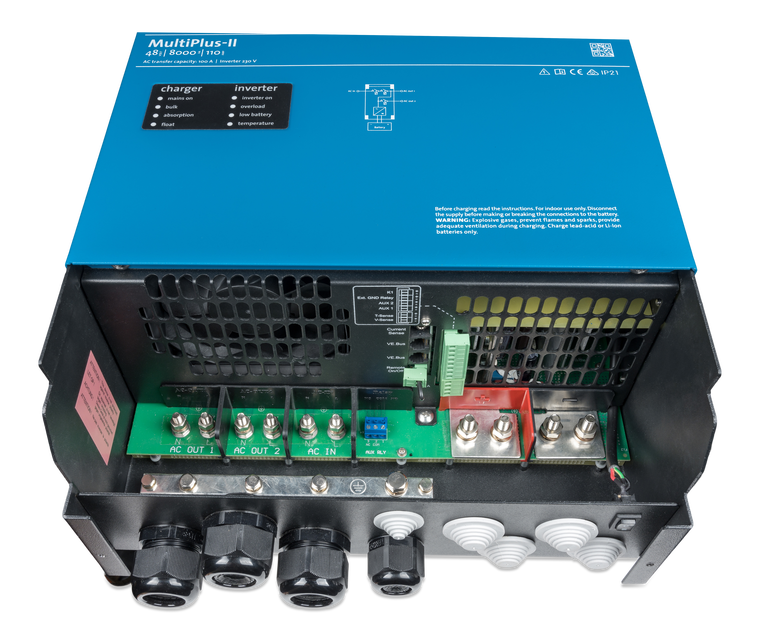

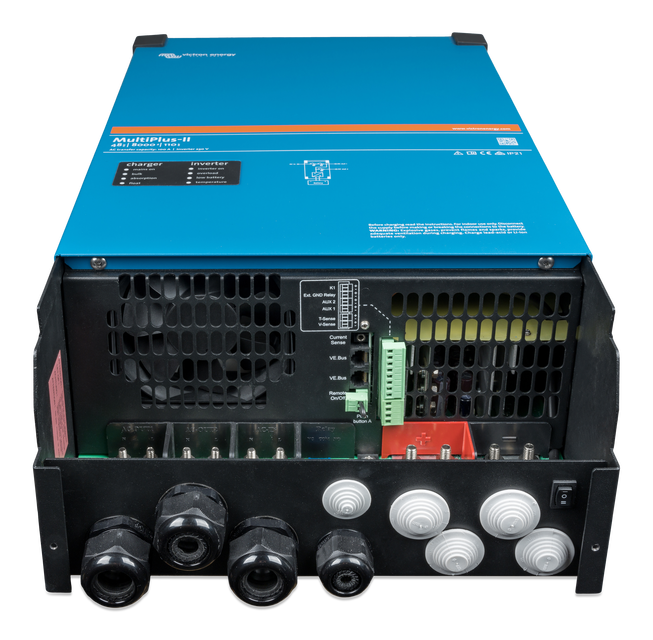

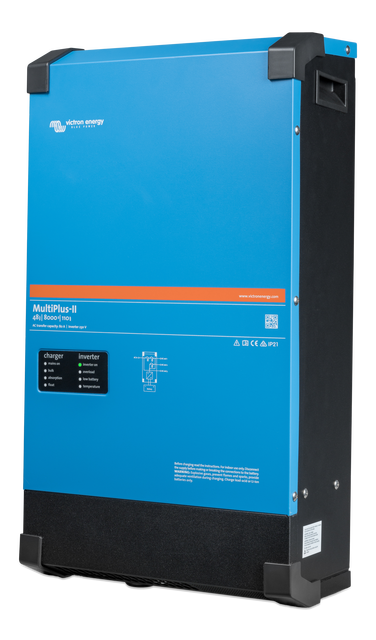

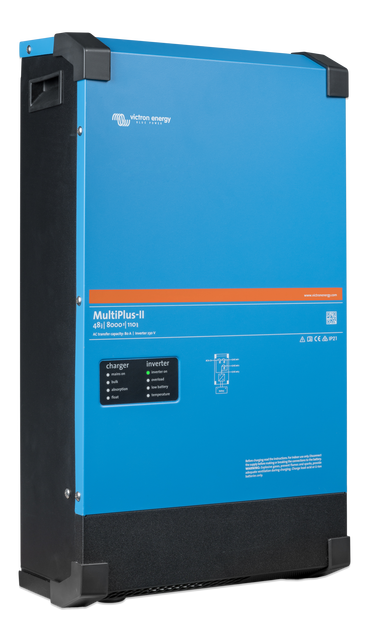

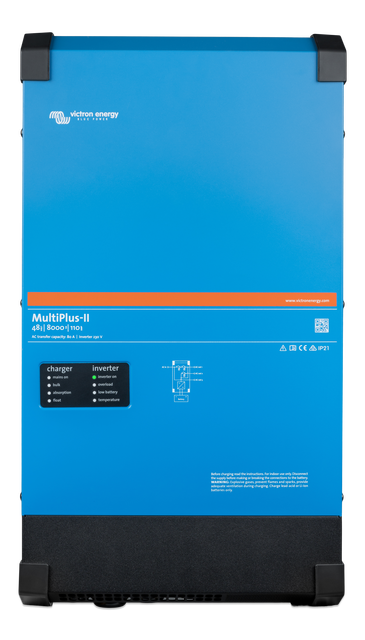

Victron MultiPlus-II Inverter Charger 48/8000/110-100/100 230V

Description

Victron MultiPlus-II Inverter Charger 48/8000/110-100/100 230V

The new inverter/charger:

The MultiPlus-II combines the functions of the MultiPlus and the MultiGrid.
It has all the features of the MultiPlus, plus an external current transformer option to implement PowerControl and PowerAssist and to optimize self-consumption with external current sensing (max. 32A).
It also has all the features of the MultiGrid with built-in anti-islanding and an increasingly long list of country approvals.

Note: for a short period of time this product was called MultiGrid-II.

PowerAssist:

The MultiPlus-II will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.

ESS: Energy Storage Systems:

The MultiPlus-II is the key component in a Victron ESS system, providing the flexibility to combine with MPPT Solar Chargers or Grid-tie PV Inverters. For examples and more detailed information see the ESS (Energy Storage System) manual.

Uninterrupted AC power (UPS function):

In the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.

Remote Monitoring and Control:

When coupled with a GX device (e.g. Cerbo GX) you can monitor and control your Multi and system or systems' locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, from adjusting your Multi to auto starting a backupgenerator and more…

Specifications:

• Power Control / Power Assist: Yes
• Transfer switch: 100 A
• Input voltage range:  38– 66 V
• Output Voltage: 230VAC ± 2%
• Frequency: 50Hz ± 0,1% (1)
• Cont. output power at 25°C (3): 8000 VA
• Cont. output power at 25°C: 6400 W
• Cont. output power at 40°C:  5500 W
• Cont. output power at 65°C: 4000 W
• Maximum apparent feed-in power : 8000VA
• Peak power: 15000 W
• Maximum efficiency: 95%
• Zero-load power: 29 W
• Zero load power in AES mode : 19W
• Zero-load power in search mode: 3 W
• Input Voltage Range : 187-265 VAC
• Input Frequency : 45 – 65 Hz
• Charge voltage 'absorption' : 57.6 V
• Charge voltage 'float' : 55.2 V
• Storage mode :  52.8 V
• Charge current house battery (4) : 110 A
• Battery temperature sensor : Yes
• Auxillary Output : Yes (50A)
• Progmmable relay (5) : Yes
• Protection (2) : a – g
• VE.Bus communication port : For parallel (not for 8k and 10k models) and three phase operation, remote monitoring and system integration
• General purpose com.port : Yes, 2x
• Remote on-off: Yes
• DIP switches : Yes (7)
• Internal DC fuse : No
• Operating Temperature Range : -40 to +65°C (fan assisted cooling)
• Humidity : Max 95% (non-condensing)
• Material & Colour : Steel (RAL 5012), IP22
• Battery-connection : Four M8 bolts (2 plus and 2 minus connections)
• 230V AC-connection : Bolts M6
• Weight  : 42kg
• Dimensions (h x w x d) : 642mm x 363mm x 206mm
